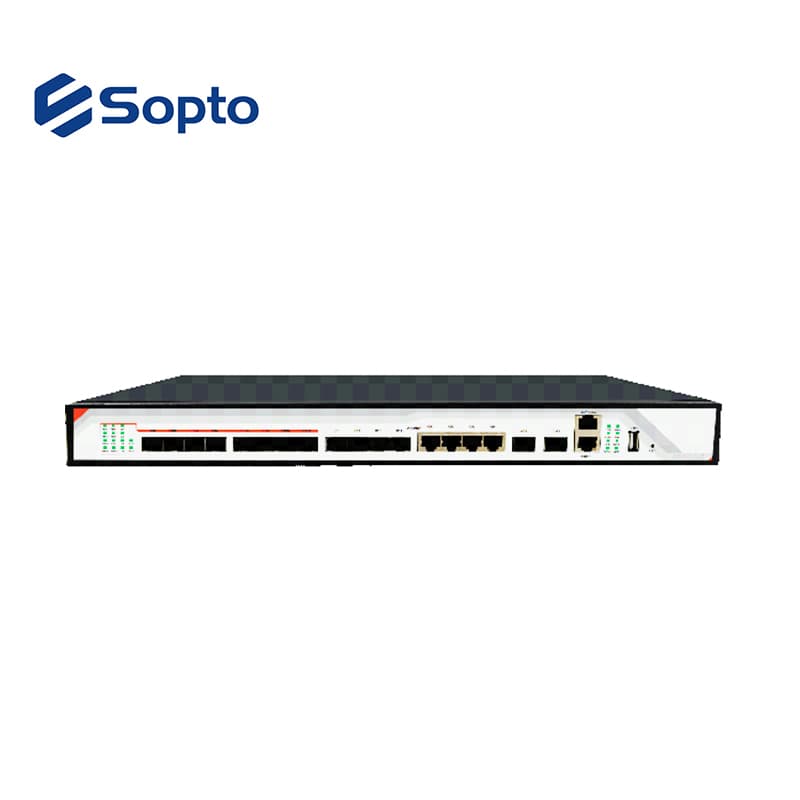

Standalone 8PON GPON OLT
SOPTO’s 8 PON GPON OLT completely meet relative standard of ITU G.984.x and FSAN, which is 1U rack-mounted device with 1 USB interface, 4 uplink GE ports, 4 uplink optical ports, 2 10-gigabit uplink ports and 8 GPON ports, each GPON port supports the splitting ratio of 1:128 and provides downstream bandwidth of 2.5Gbps and upstream bandwidth of 1.25Gbps, system support 1024 GPON terminals accessing in for the most.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
SOPTO’s 8 PON GPON OLT completely meet relative standard of ITU G.984.x and FSAN, which is 1U rack-mounted device with 1 USB interface, 4 uplink GE ports, 4 uplink optical ports, 2 10-gigabit uplink ports and 8 GPON ports, each GPON port supports the splitting ratio of 1:128 and provides downstream bandwidth of 2.5Gbps and upstream bandwidth of 1.25Gbps, system support 1024 GPON terminals accessing in for the most. Feature ● Meet ITU-T G.984/G.988 standard and relative GPON standards of Chinese Communication Industry ● Support OMCI remote management for ONT/ONU, compatible with ITU-T G.984.4/G.988 OMCI Protocol ● 1U height 8PON OLT product in compact design of Pizza-Box ● Layer 2 Switching Function ● Layer 3 Switching Function （ in development ） ● QOS Guarantee ● Easy-to-Use Management System Specification Size 440mm(L)*391mm(W)*44mm(H) Weight 4kg Backplane Bandwidth 96G Maximum power 70W Working environment Working temperature 0 ～ 50 ℃ Storage temperature -40 ～ 85 ℃ Relative Relative humidity 5 ～ 90% (Non-condensing) Power supply 220VAC AC: 90V ～ 240V ， 47/63Hz -48DC DC:-36V ～ -72V Management Rack Type 1U 19-inch standard box Slot 2 power module slot USB Port 1 Type-C interface Management Port 1 100/1000BASE-Tx out-band Ethernet port 1 CONSOLE local management port Uplink Port COMBO port 4 10/100/1000M auto-negotiation Ethernet ports 4 SFP interfaces 10-Gigabit 2 SFP+ interfaces PON Port Quantity 8 Physical interface SFP slot Interface type ITU-TG.984.2 Class B+/Class C+ Max splitting ratio 1:128 PON Port attribute Transmission distance 20KM Port rate Downstream:2.5Gbps Upstream: 1.25Gbps Wavelength Forwarding: 1490nm Receiving: 1310nm Interface type SC/UPC Fiber type 9/125μm SMF (Single Mode Fiber) Light transmission power Class B+ +1.5 ～ +5dBm Class C+ +3 ～ +7dBm Receiving sensitivity Class B+ -28dBm Class C+ -30dBm Saturation power Class B+ -8dBm Class C+ -12dBm Network management method Support CLI 、 SNMP 、 TELNET 、 SSH 、 WEB ————————————————————————————————————————————— ———————— —————— GPON OLT Factory Configuration (User Manual and EMS) Download link： https://pan.baidu.com/s/1sLCKMm9C_A0ZjNl-n1V2dA Code： kjgl Applications GPON / EPON OLT Network Applications Related Articles ● What is the PON+EOC network solution ● Introduction and Comparison EPON and GPON Ordering Information Product Model Configuration Notes GPON OLT SPO-GS8424 1 U standalone GPON OLT with 8 PON ports, 1 USB interface,4 uplink COMBO ports, 2 uplink 10-gigabit optical ports and power supply of 220VAC / -48VDC, support dual power redundancy configuration. 1.BBU key. N-without BBU; B-with BBU. 2.Power key. SA-single AC; DA-double AC; SD-single DC; DD-double DC; DX-single AC and single DC. without SFP modules GPON OLT SPO-GS8808E 8PON GPON OLT 1U chassis, 8 GE uplink optic ports, 8 GE uplink electric ports, 220VAC or -48VDC plug-in power modules, supports dual power configuration without SFP modules ， without 10Gbit uplink card
Especificaciones técnicas
