Submarine Fiber Cable
Submarine Fiber cable, externally wrapped with steel or steel wire, used directly under water, requires resistance to external mechanical damage and strong water pressure.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

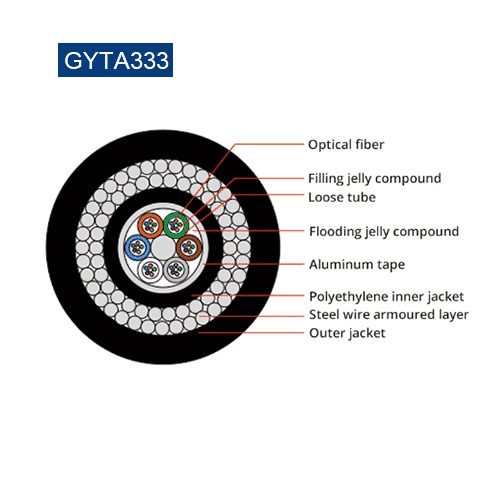

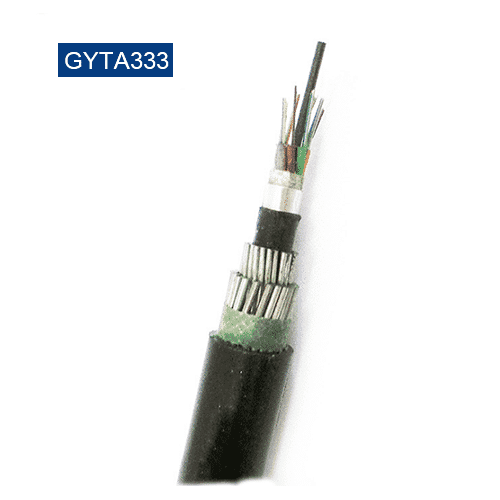

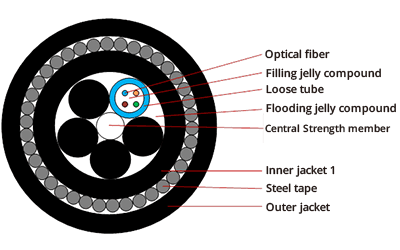

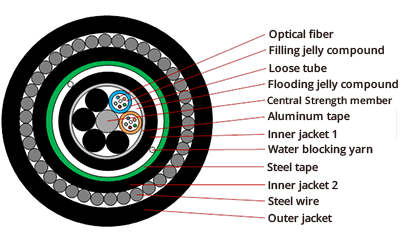

Submarine Fiber cable, externally wrapped with steel or steel wire, used directly under water, requires resistance to external mechanical damage and strong water pressure. Feature ● 2 ~ 288 cores ● Steel wire as strength member. ● Loose-tube twisted single sheath structure ● Steel wire armoring ● Applicable for underwater 100 meters ● Loose tube material with good hydrolysis resistance and high strength; Flooding jelly compound to ensure critical protection of fiber ● Compact structure，excellent waterproof performance, excellent mechanical performance and temperature performance ● bunched or ribbon fiber ● SM (G.652D, G.655, G.657.A1, G.657.A2) and MM(OM1,OM2,OM3,OM4) are available; ● PE，LSZH outer jacket material optional Cross Section of Cable GYTA5333 GYFTY33 Working Condition Item Standard Parameters Operation temperature IEC 60794-1-2 F1 760 Drum Part NO. Height (mm) Width (mm) Inner diameter (mm) Length(km) Drum type GYTA5333 1250 760 500 2 Iron wood drum GYFTY33 950 760 400 2 Iron wood drum Product Certificate Sopto fiber optic cable took the first lead to pass the ISO9001 quality system, ISO14001 environment management system, OHSAS18001 occupational health safety management system，and its fiber optical cable meet the requirements of European CE, RoHs, Chinese TLC Applications ● Long-distance backbone network ● Urban ring network ● Access Network, FTTX ● Relay between communication machine rooms Related Articles ● What is the armored fiber optic cable ● Optical Fiber and Optical Fiber Classification ● What is Principle of Optical Fiber Communication Ordering Information Cable Type Product Description Application GYTA5333 Outdoor optical cable , Metal strength member; Aluminum-polyethylene adhesive and Steel-polyethylene adhesive inner jacket ;Single smaller round steel wire armoring ； PE Outer jacket Direct Buried or Submarine GYFTY33 Outdoor optical cable , Non-metal strength member, PE inner jacket; Single smaller round steel wire armoring ； PE Outer jacket Direct Buried or Submarine Notes： 1.Flooding jelly compound default 2.The relevant technical parameters can be adjusted according to the customers’ demands; 3.The block water way can be adjusted according to the customers’ demands; 4.The design flame resistance,anti-rodent,termite resistant cable according to the customers'demands. Transaction Process Packaging & Shipping
