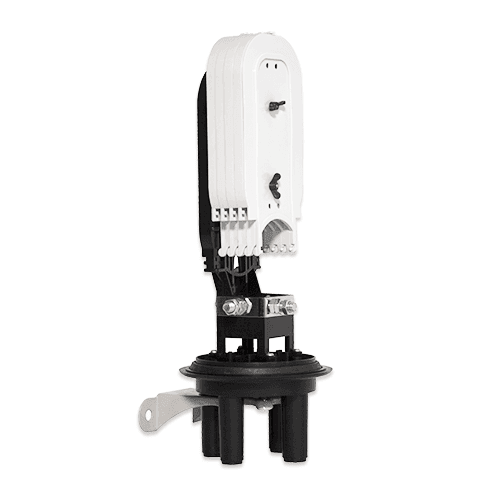

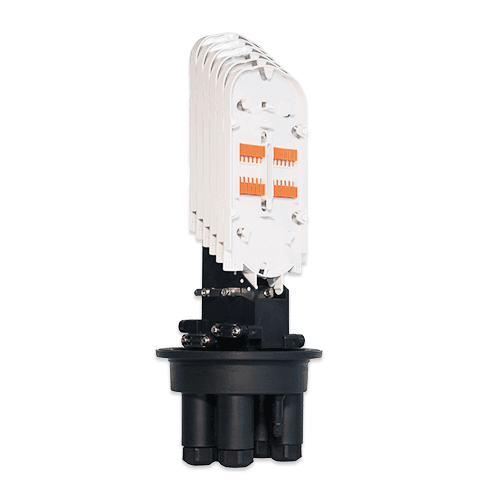

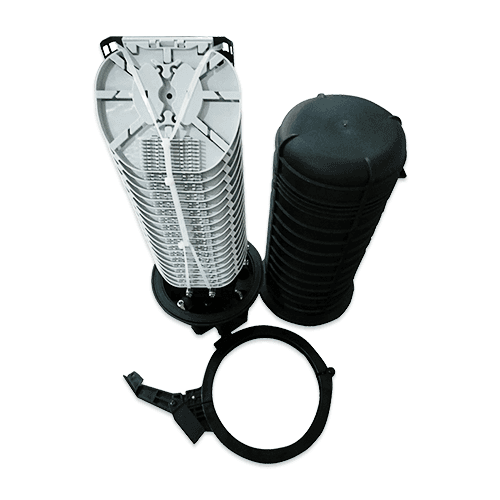

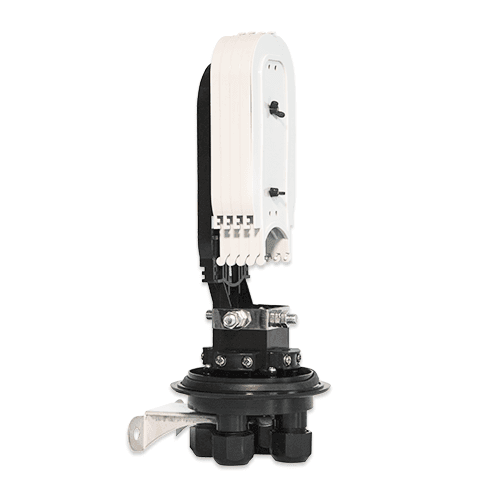

Vertical Fiber Closure
Fiber Closure Vertical type box is suitable for pole-mounted installation, and is used for protective connection and fiber distribution between two or more optical cables. It is one of the commonly used equipment for user access points, and mainly completes the distribution optical cable and the household line optical cable. Sopto provide 12 cores, 24 cores, 48 cores, 72 cores, 96 cores, 144 cores, 288 cores vertical fiber closures.
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
Fiber Closure Vertical type box is suitable for pole-mounted installation, and is used for protective connection and fiber distribution between two or more optical cables. It is one of the commonly used equipment for user access points, and mainly completes the distribution optical cable and the household line optical cable. Sopto provide 12 cores, 24 cores, 48 cores, 72 cores, 96 cores, 144 cores, 288 cores vertical fiber closures. Feature ● pole-mounted installation ● Cable inlet is sealed with heat shrinkable tube or threaded ● Made of imported high-strength engineering plastic (PP) and molded with high-pressure molding plastic. ● Light weight, high mechanical strength, corrosion resistance, lightning resistance and long service life. Item Parameter Type Fiber Closure Vertical type Way to install Pole-mounting /Wall-mounting/Aerial installation Wall-mounting Capacity of splice tray 24 Sealing structure Cable inlet is sealed with heat shrinkable tube or threaded Work Temperature -40 °C ~+60°C Voltage resistance strength 15 kv dc, 1 minute no breakdown, no flash over phenomenon. Insulation resistance ≥2×104MΩ Tensile force ≥800N Sealing inflatable make the internal pressure of 100 kpa, into the water to observe more than 15 min, airless bubble generation, air pressure is not falling. Impact strength impact energy under16N.m, impact times for 3 times, no cracks Applications ● Communication, network system ● CATV Cable TV ● Cable network system, etc. Ordering Information Part Number Product Description Size(mm) SPFC-NV-24H-2/2A Fiber Closure Vertical type 24 Cores Max , 24 Cores Splice Tray 2 IN 2 OUT Hot melt sealing type A Φ190×435mm SPFC-NV-48H-2/2A Fiber Closure Vertical type 48 Cores Max , 24 Cores Splice Tray 2 IN 2 OUT Hot melt sealing type A Φ190×435mm SPFC-NV-72H-2/2A Fiber Closure Vertical type 72 Cores Max , 24 Cores Splice Tray 2 IN 2 OUT Hot melt sealing type A Φ190×435mm SPFC-NV-96H-2/2A Fiber Closure Vertical type 96 Cores Max , 24 Cores Splice Tray 2 IN 2 OU Hot melt sealing type A Φ190×435mm SPFC-NV-24M-2/2B Fiber Closure Vertical type 24 Cores Max , 24 Cores Splice Tray 2 IN 2 OUT Mechanical Splicing type B Φ190×410mm SPFC-NV-48M-2/2B Fiber Closure Vertical type 48 Cores Max , 24 Cores Splice Tray 2 IN 2 OUT Mechanical Splicing type B Φ190×410mm SPFC-NV-72M-2/2B Fiber Closure Vertical type 72 Cores Max , 24 Cores Splice Tray 2 IN 2 OUT Mechanical Splicing type B Φ190×410mm SPFC-NV-96M-2/2B Fiber Closure Vertical type 96 Cores Max , 24 Cores Splice Tray 2 IN 2 OUT Mechanical Splicing type B Φ190×410mm SPFC-NV-24H-3/3C Fiber Closure Vertical type 24 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Hot melt sealing type C Φ210*540mm SPFC-NV-48H-3/3C Fiber Closure Vertical type 48 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Hot melt sealing type C Φ210*540mm SPFC-NV-72H-3/3C Fiber Closure Vertical type 72 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Hot melt sealing type C Φ210*540mm SPFC-NV-96H-3/3C Fiber Closure Vertical type 96 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Hot melt sealing type C Φ210*540mm SPFC-NV-24M-3/3D Fiber Closure Vertical type 24 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Mechanical Splicing type D φ230*435mm SPFC-NV-48M-3/3D Fiber Closure Vertical type 48 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Mechanical Splicing type D φ230*435mm SPFC-NV-72M-3/3D Fiber Closure Vertical type 72 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Mechanical Splicing type D φ230*435mm SPFC-NV-96M-3/3D Fiber Closure Vertical type 96 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Mechanical Splicing type D φ230*435mm SPFC-NV-24H-3/3E Fiber Closure Vertical type 24 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Hot melt sealing type E Φ210×540mm SPFC-NV-48H-3/3E Fiber Closure Vertical type 48 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Hot melt sealing type E Φ210×540mm SPFC-NV-72H-3/3E Fiber Closure Vertical type 72 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Hot melt sealing type E Φ210×540mm SPFC-NV-96H-3/3E Fiber Closure Vertical type 96 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Hot melt sealing type E Φ210×540mm SPFC-NV-144H-3/3E Fiber Closure Vertical type 144 Cores Max , 24 Cores Splice Tray 3 IN 3 OUT Hot melt sealing type E Φ210×540mm SPFC-NV-24H-4/4F Fiber Closure Vertical type 24 Cores Max , 24 Cores Splice Tray 4 IN 4 OU Hot melt sealing type F Φ230×440mm SPFC-NV-48H-4/4F Fiber Closure Vertical type 48 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT Hot melt sealing type F Φ230×440mm SPFC-NV-72H-4/4F Fiber Closure Vertical type 72 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT Hot melt sealing type F Φ230×440mm SPFC-NV-96H-4/4F Fiber Closure Vertical type96 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT Hot melt sealing type F Φ230×440mm SPFC-NV-144H-4/4F Fiber Closure Vertical type144 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT Hot melt sealing type F Φ230×440mm
Especificaciones técnicas
