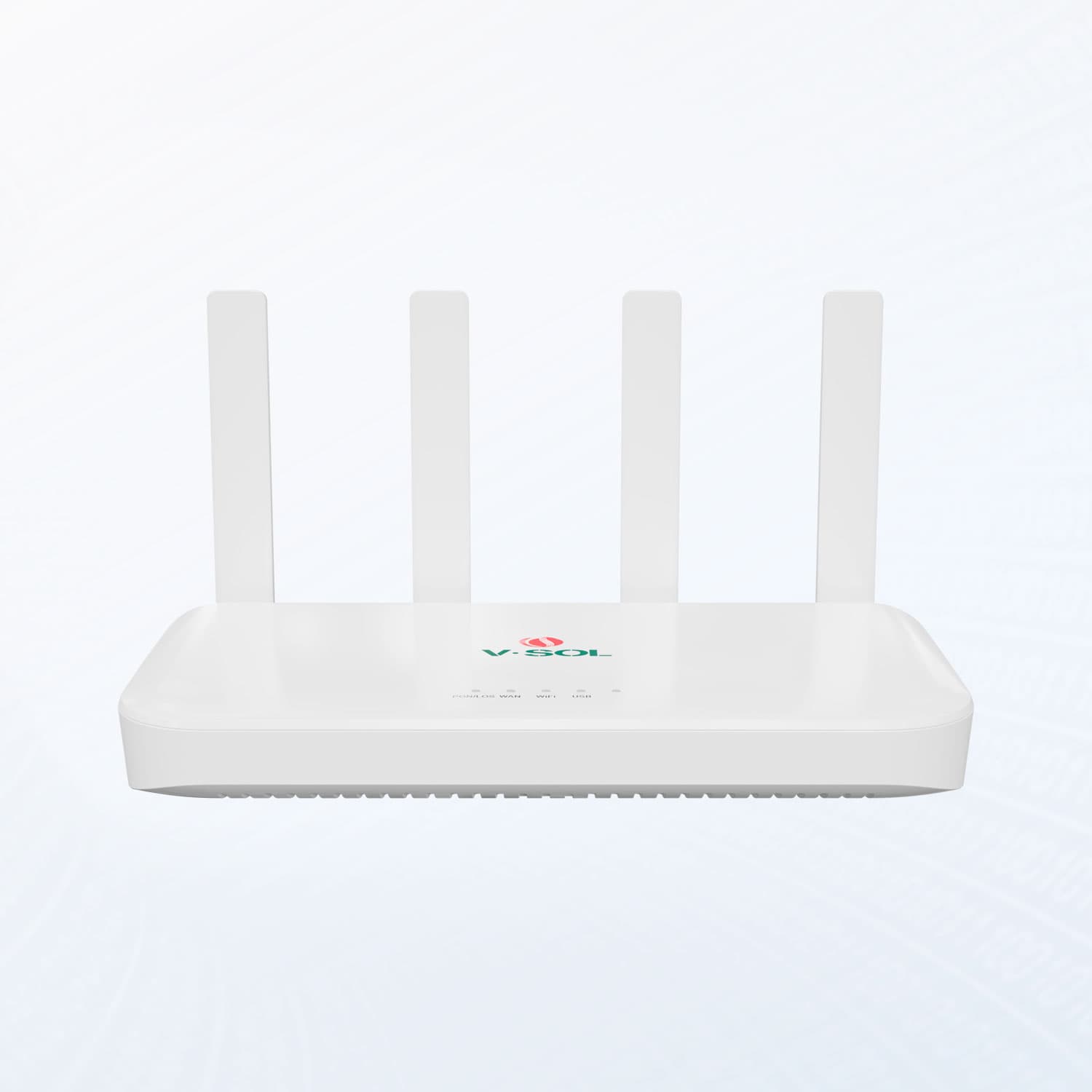

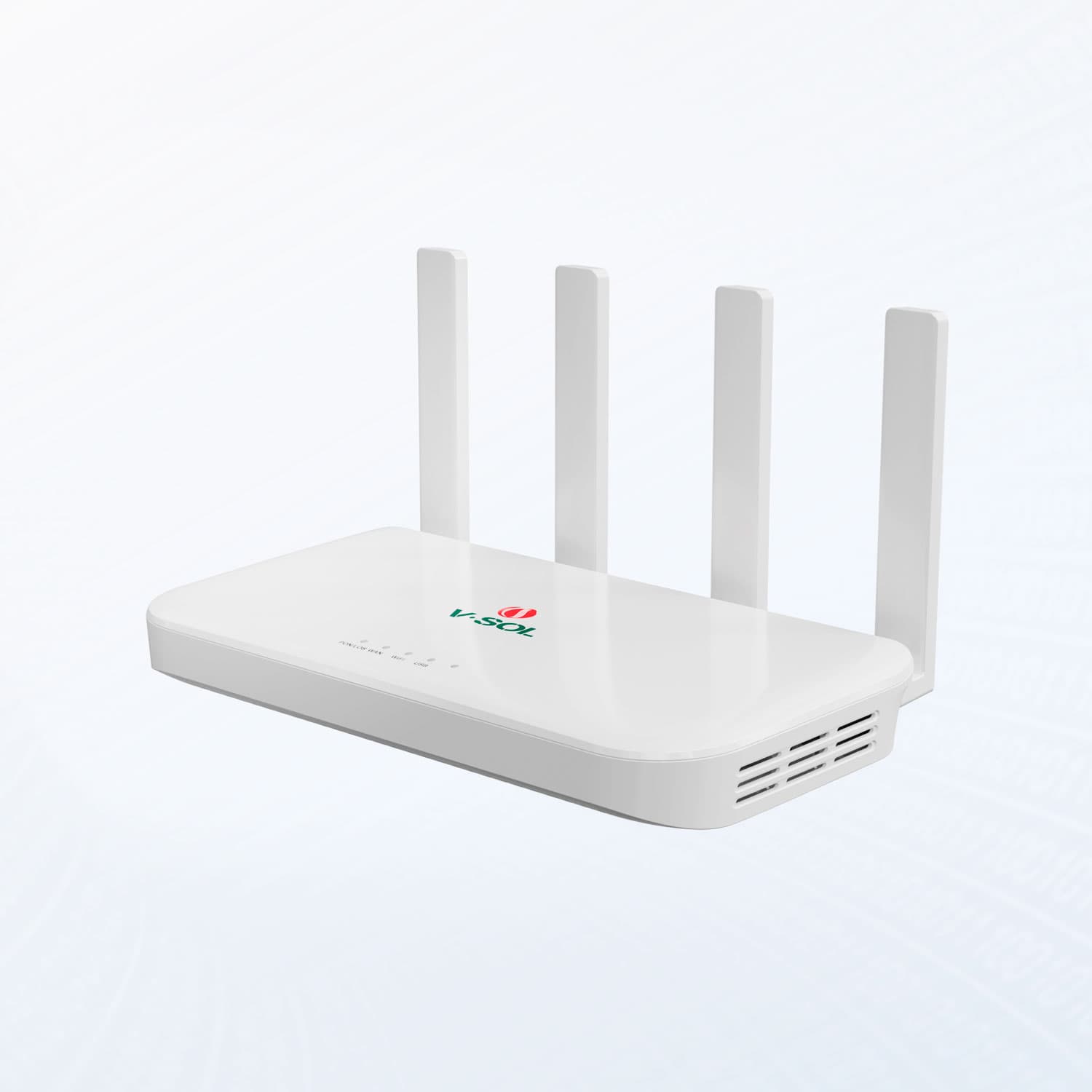

V2904AX — 1*2.5GE+3*GE+1*USB3.0+Wi-Fi6 HGU ONT
10G PON | AX3000 Dual-Band | 2.5GbE | Plug-and-Play Modelo: V2904AX
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

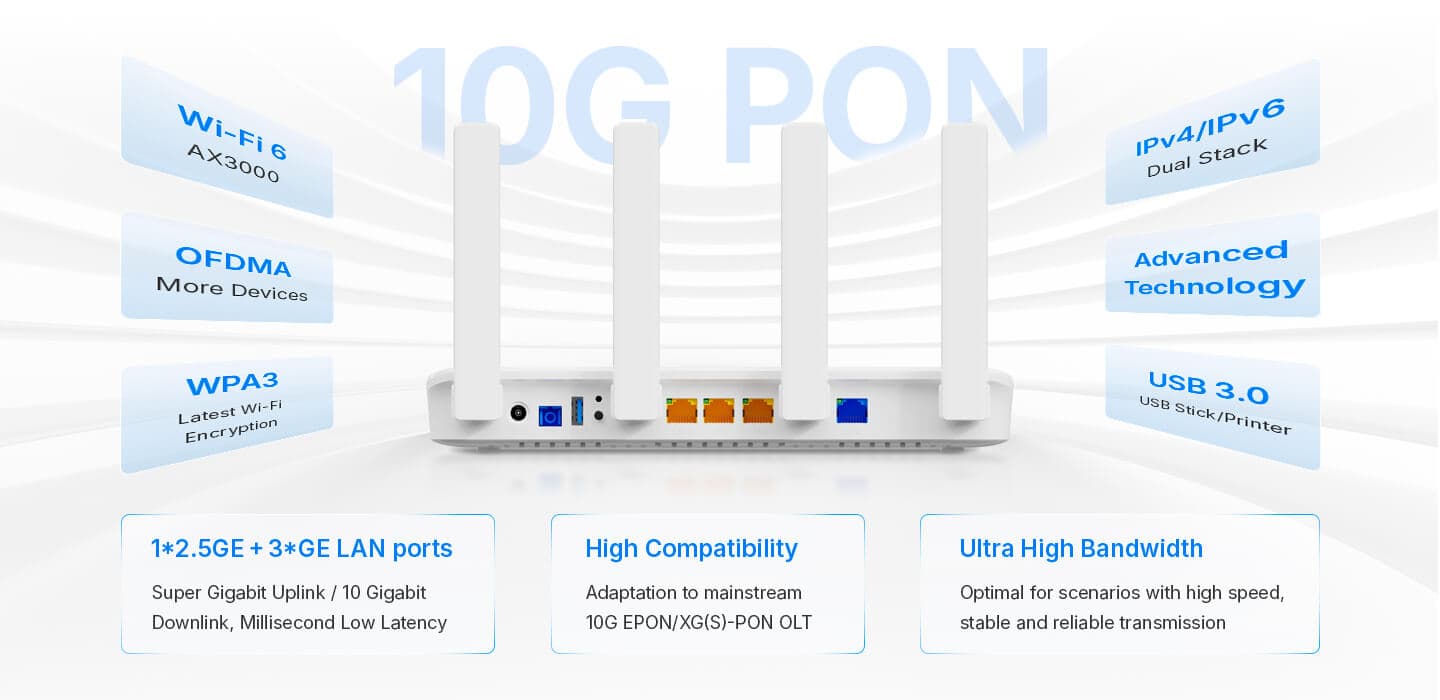

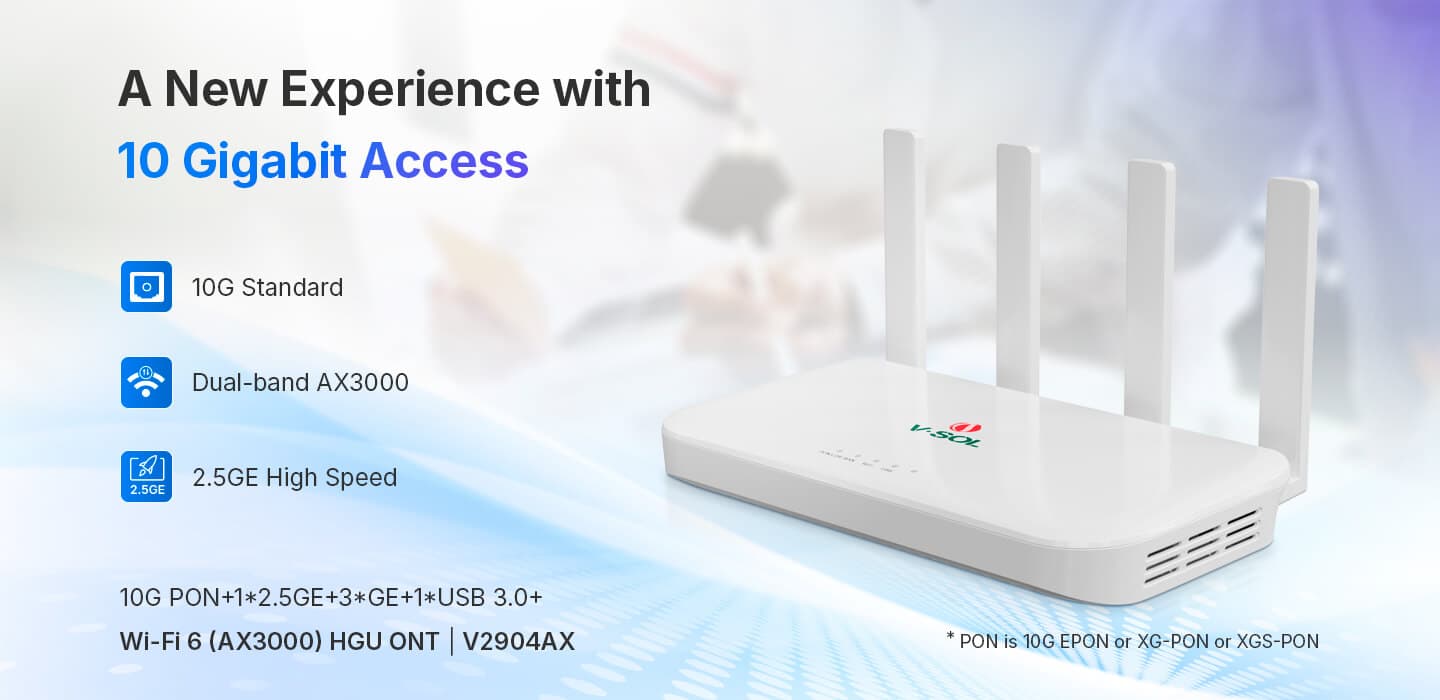

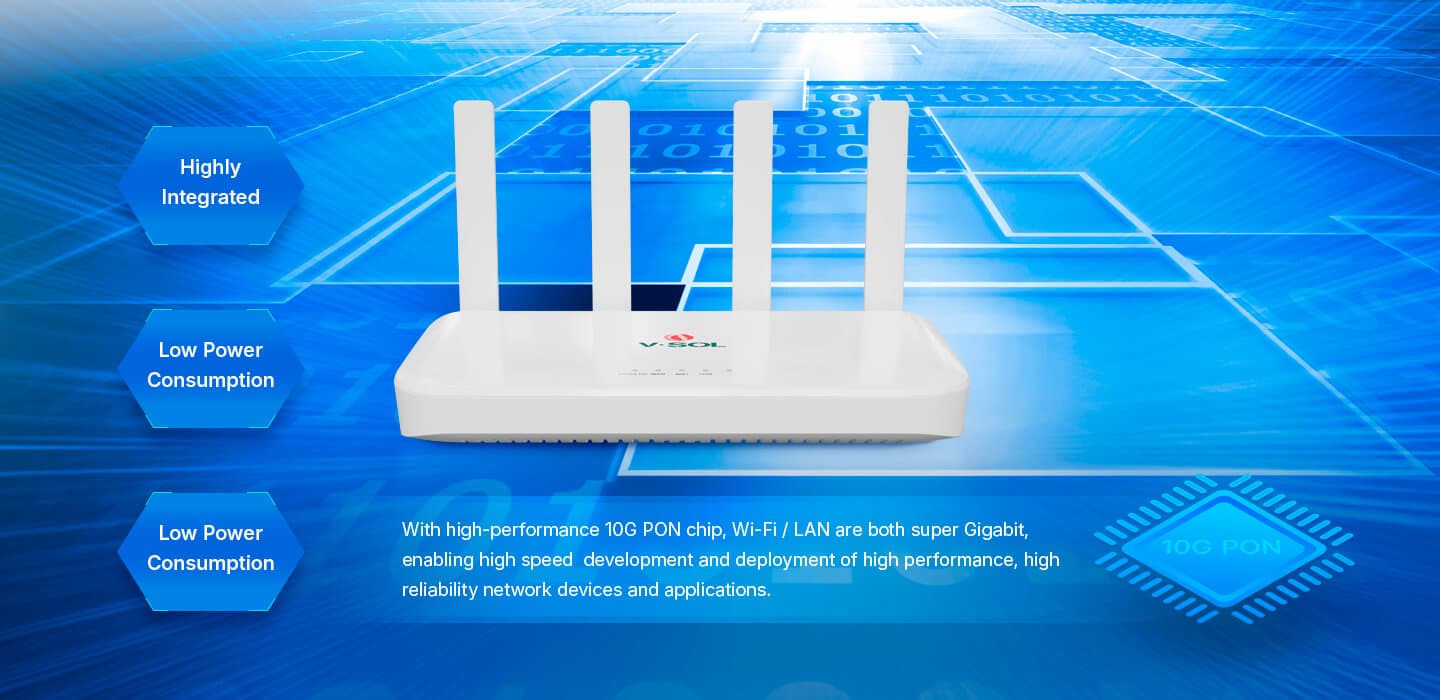

Una Nueva Experiencia con Acceso de 10 Gigabits Estándar 10G | AX3000 Doble Banda | Nuevo Puerto 2.5G Nuevo ONT PON 10G: Directo a la Era 10G Estándares Innovadores para el Acceso de Banda Ancha por Fibra Óptica Llevando Wi-Fi Gigabit de Alta Potencia a Cada Rincón Última Interfaz 2.5GbE para Aprovechar al Máximo el Ancho de Banda Acelera la Conectividad con un Chipset de Alto Rendimiento Hardware Parameter Dimension 244mm*131mm*36mm (L*W*H) Net weight 425g Operating condition Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensed) Storing condition Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed) Power adapter 12V/2A Power supply 24W Interface 1*2.5GE+3*GE+1*USB 3.0+ Wi-Fi 6 Indicators PON/LOS, WAN, USB, Wi-Fi Interface Parameter PON Interface l 10G PON port: Class B+ l SC single mode, SC/UPC connector l TX optical power: 6dBm (XGS-PON), 5dBm (XG-PON), 4dBm (10G EPON) l RX sensitivity: -28dBm l Overload optical power: -8dBm l Transmission distance: 20km l Wavelength: 10G EPON: DS 1577nm/US 1310nm XG(S)-PON:DS 1577nm/US 1270nm 10G PON layer l IEEE 802.3av(10G-EPON) l ITU-T G.987(XG-PON) l ITU-T G.9807.1 (XGS-PON) User interface l 1*2.5GE, Auto-negotiation, RJ45 ports l 3*GE, Auto-negotiation, RJ45 ports l 1*USB 3.0 Antenna 2*4dBi (2.4GHz), 2*5dBi(5GHz); external antennas USB 1×USB 3.0(Can connect to USB disk and support FTP service) Function Data O&M l WEB/TELNET/OAM/OMCI/TR069 l Support private OAM/OMCI protocol and Unified network management of VSOL OLT Internet Connection Support Bridge/Router mode Multicast l IGMP v1/v2/v3, IGMP snooping l MLD v1/v2 snooping Wi-Fi l Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz l Wi-Fi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 l Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM l Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band L2 802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN L3 IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS Firewall Anti-DDOS, Filtering Based on ACL/MAC /URL
Especificaciones técnicas
- Dimension
- 244mm*131mm*36mm (L*W*H)
- Net weight
- 425g
- Operating condition
- Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensed)
- Storing condition
- Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed)
- Power adapter
- 12V/2A
- Power supply
- 24W
- Interface
- 1*2.5GE+3*GE+1*USB 3.0+ Wi-Fi 6
- Indicators
- PON/LOS, WAN, USB, Wi-Fi
- PON Interface
- l 10G PON port: Class B+ l SC single mode, SC/UPC connector l TX optical power: 6dBm (XGS-PON), 5dBm (XG-PON), 4dBm (10G EPON) l RX sensitivity: -28dBm l Overload optical power: -8dBm l Transmission distance: 20km l Wavelength: 10G EPON: DS 1577nm/US 1310nm XG(S)-PON:DS 1577nm/US 1270nm
- 10G PON layer

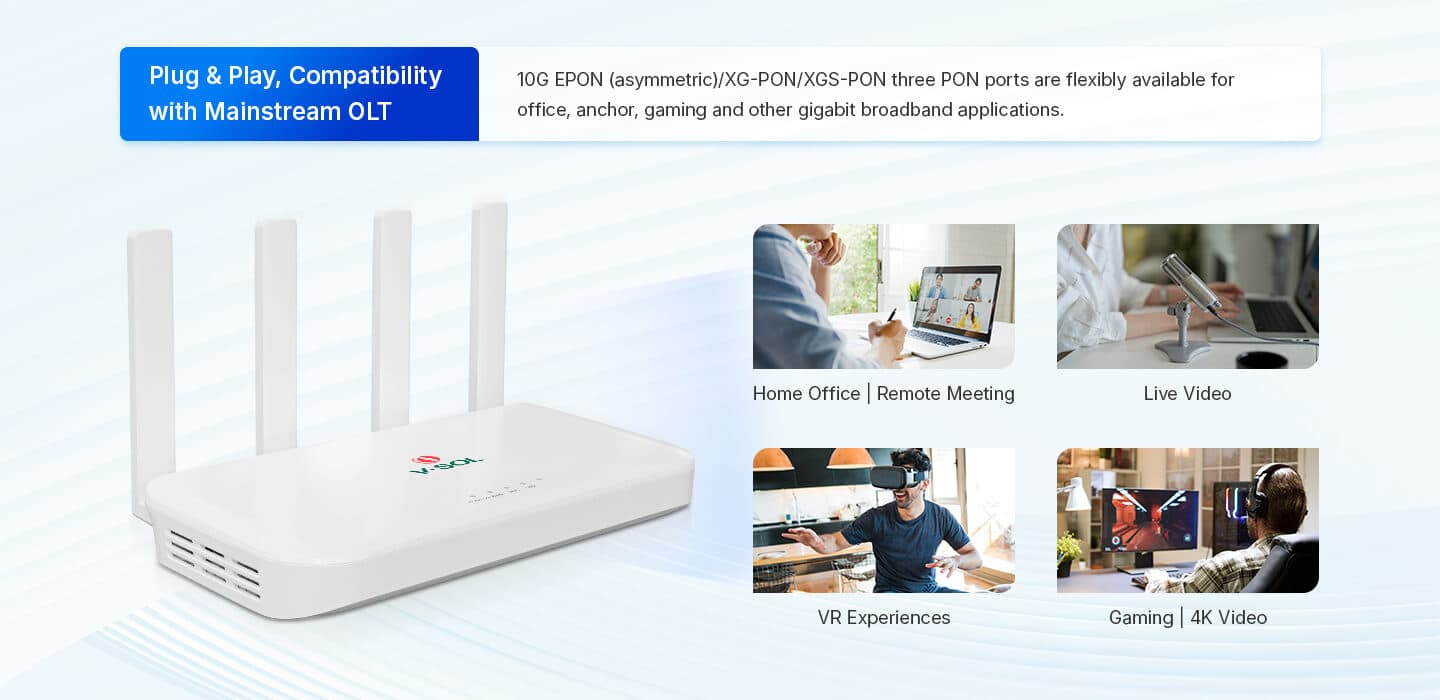

- l IEEE 802.3av(10G-EPON) l ITU-T G.987(XG-PON) l ITU-T G.9807.1 (XGS-PON)
- User interface

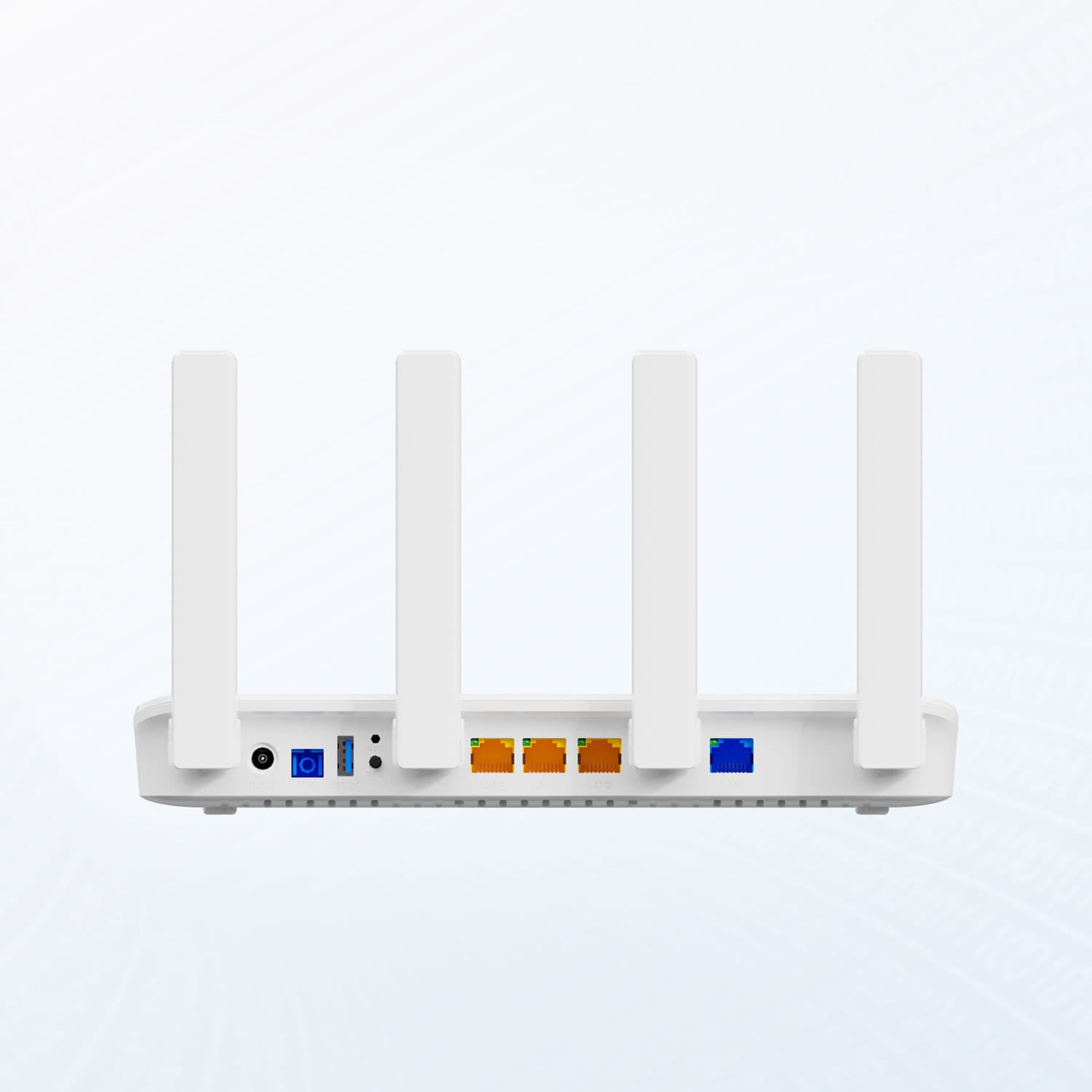

- l 1*2.5GE, Auto-negotiation, RJ45 ports l 3*GE, Auto-negotiation, RJ45 ports l 1*USB 3.0
- Antenna
- 2*4dBi (2.4GHz), 2*5dBi(5GHz); external antennas
- USB
- 1×USB 3.0(Can connect to USB disk and support FTP service)
- O&M
- l WEB/TELNET/OAM/OMCI/TR069 l Support private OAM/OMCI protocol and Unified network management of VSOL OLT
- Internet Connection
- Support Bridge/Router mode
- Multicast
- l IGMP v1/v2/v3, IGMP snooping l MLD v1/v2 snooping
- Wi-Fi

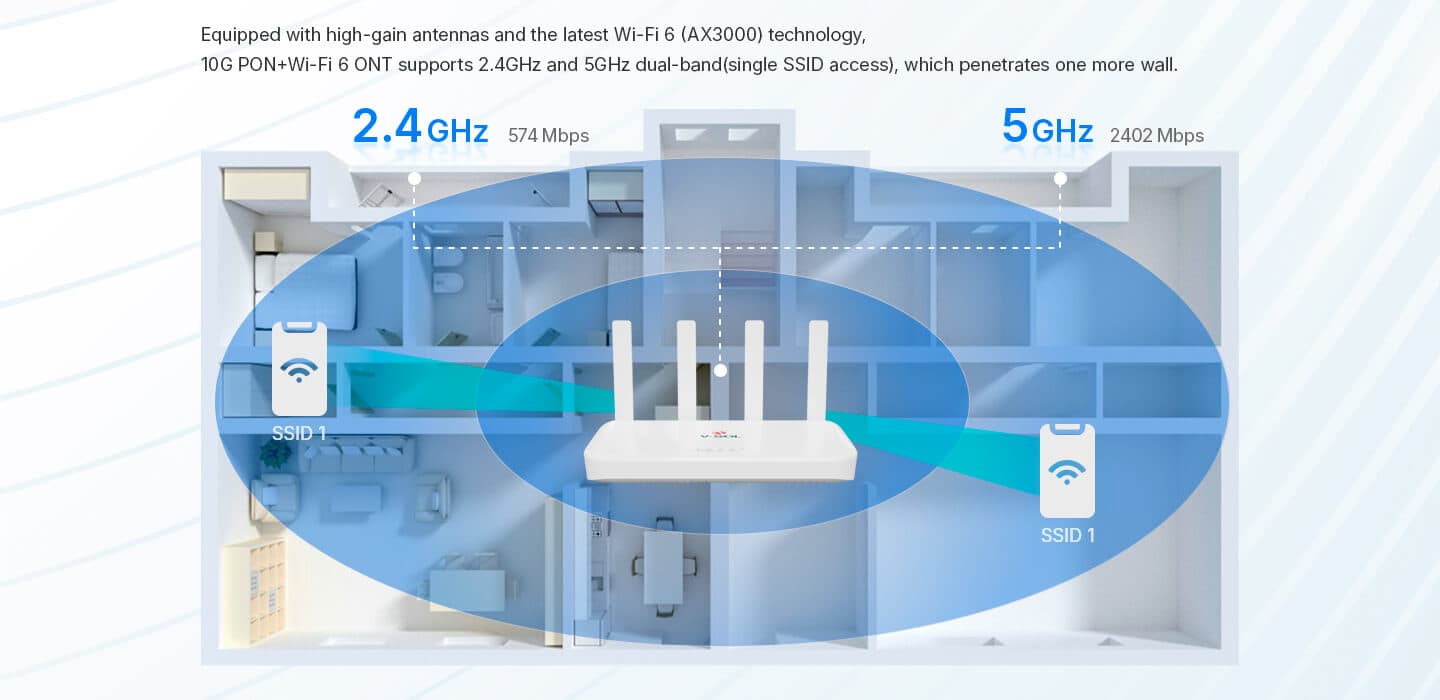

- l Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz l Wi-Fi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 l Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM l Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band
- L2
- 802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN
- L3
- IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS
- Firewall
- Anti-DDOS, Filtering Based on ACL/MAC /URL
