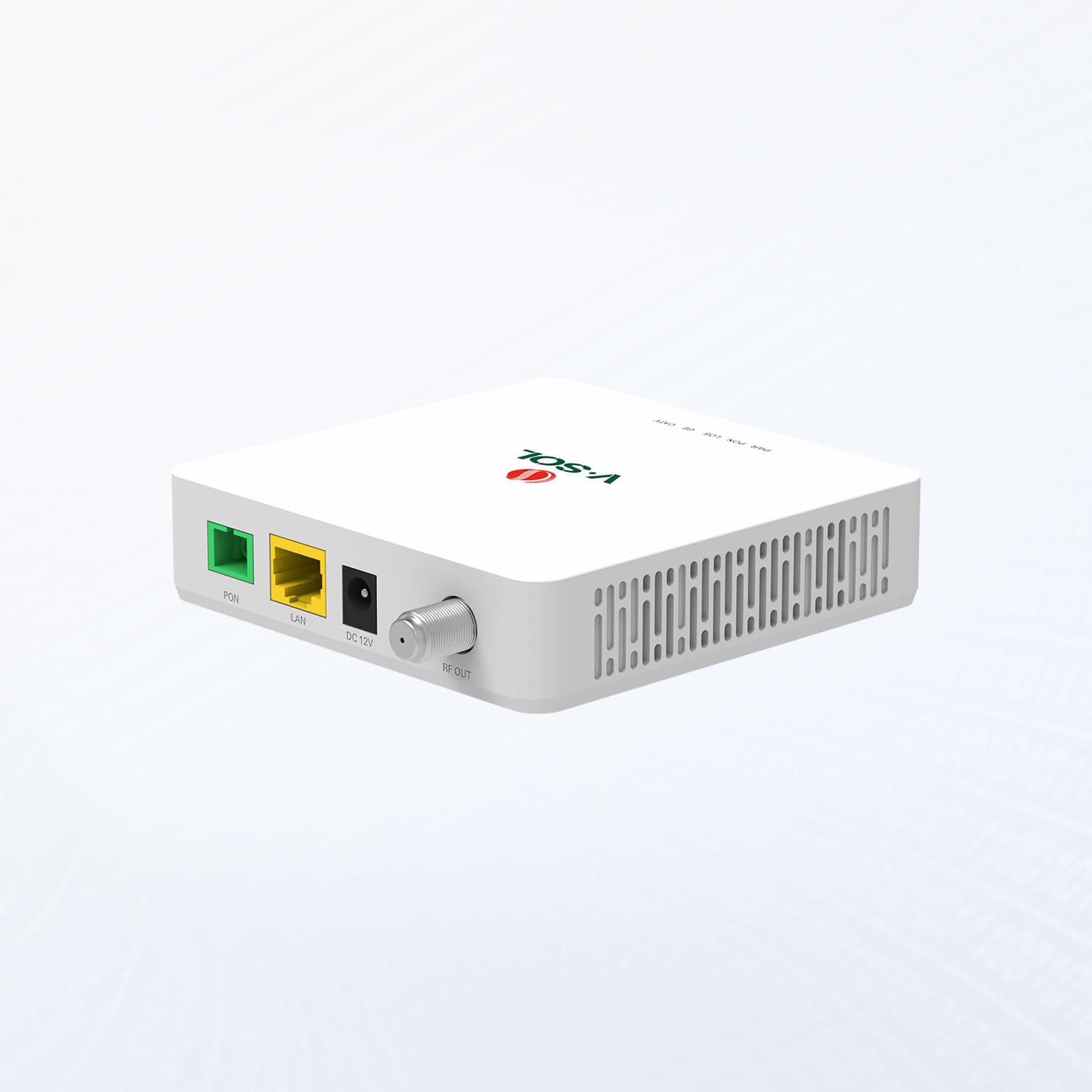

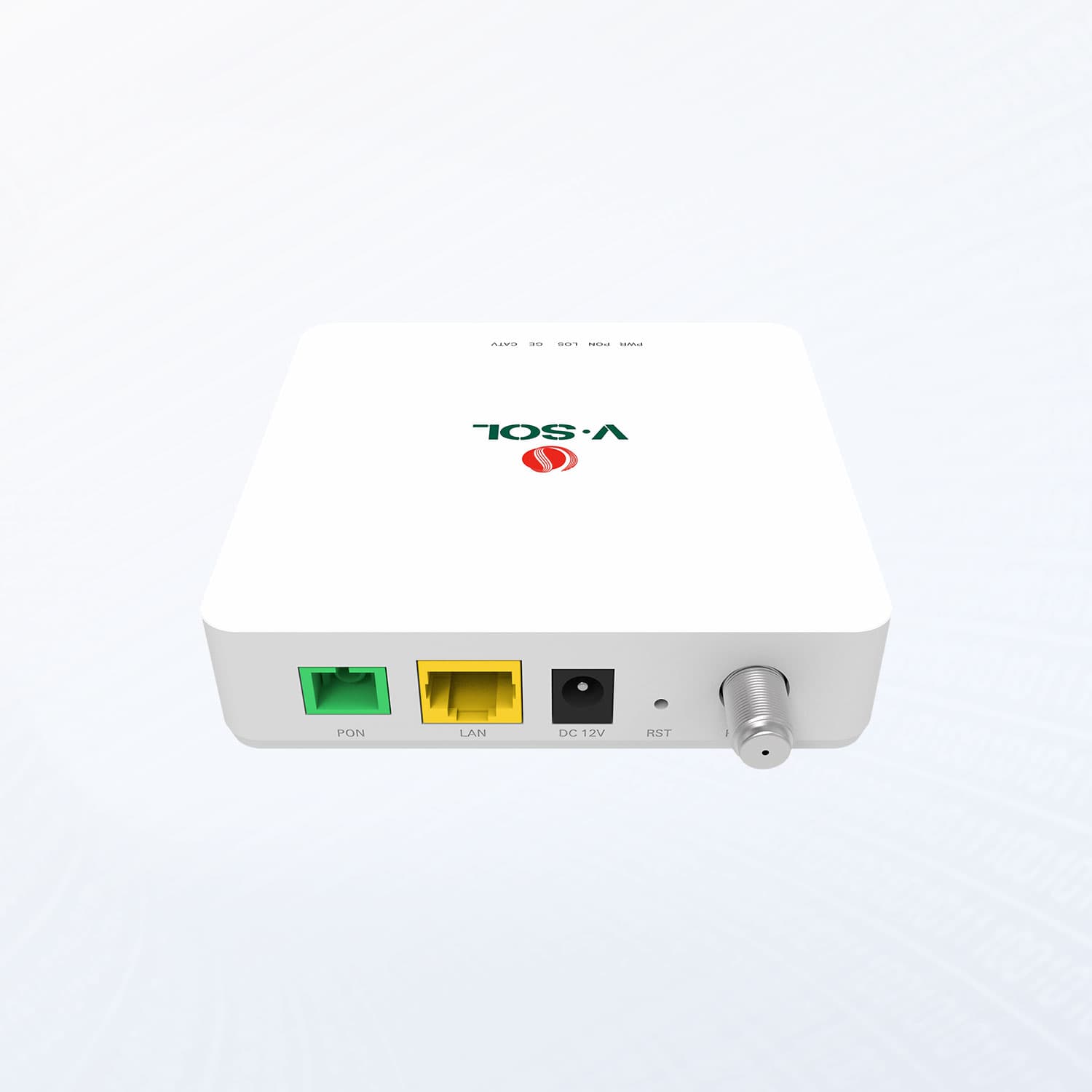

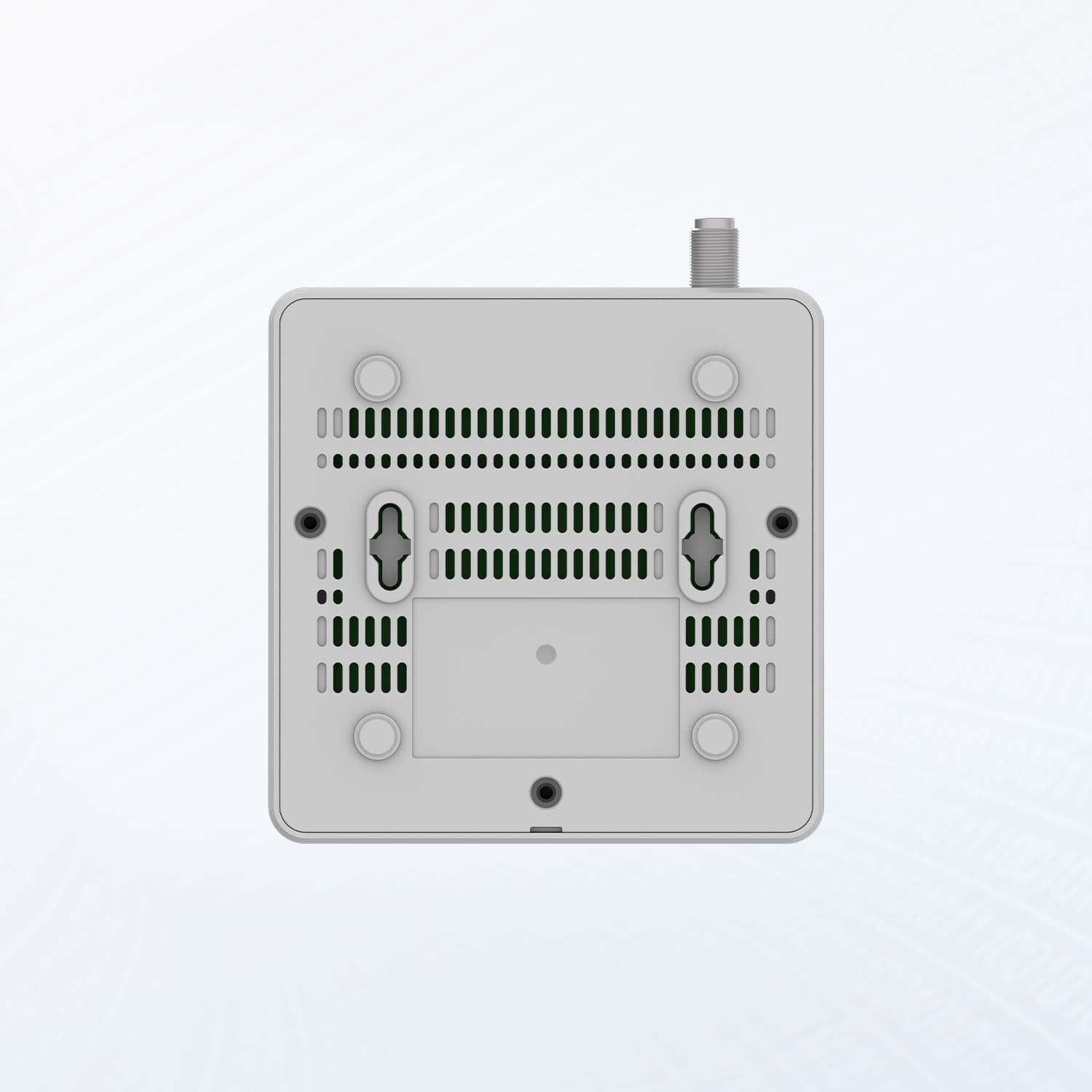

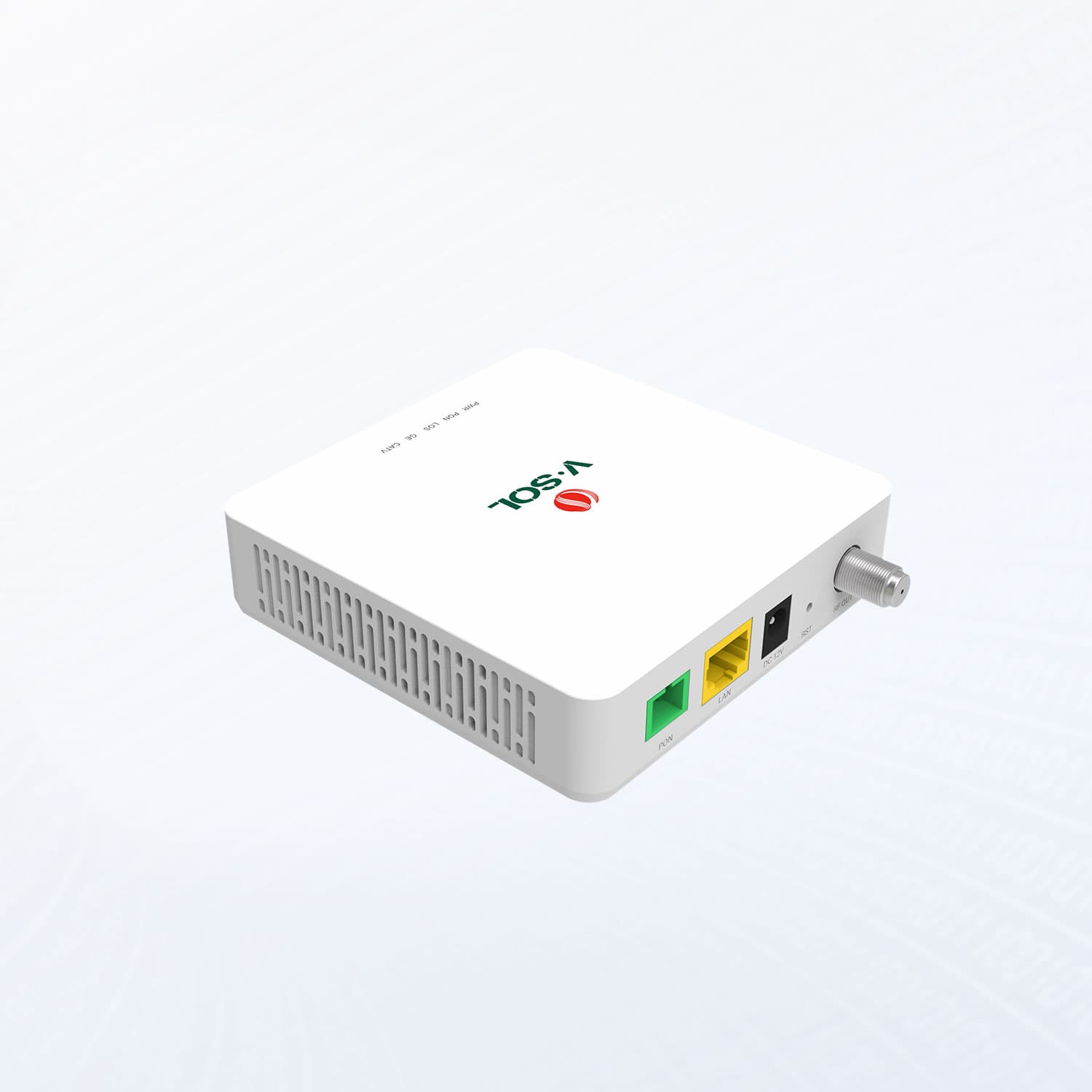

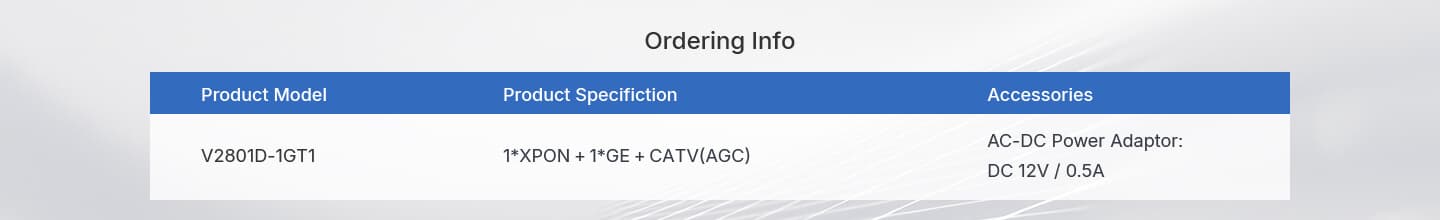

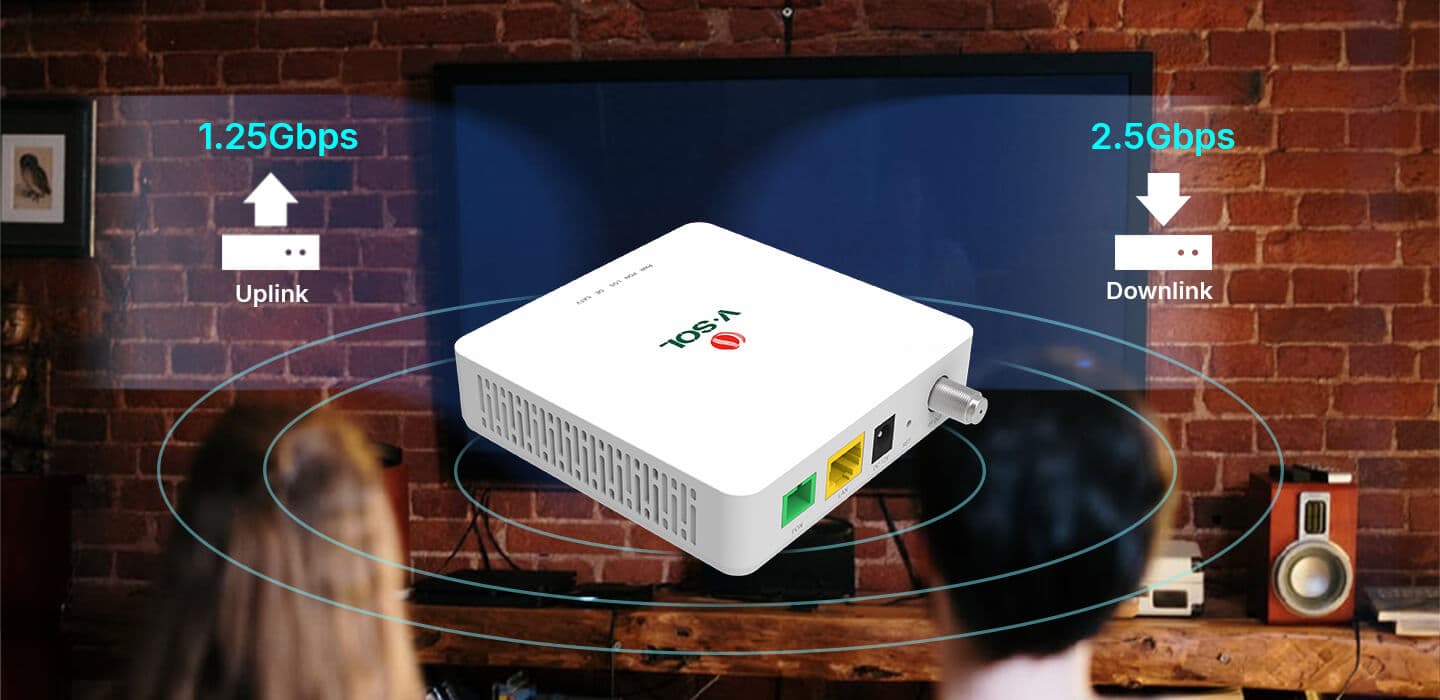

V2801D-1GT1 — 1GE+CATV ONU

Descripción

ONT CATV V2801D XPON Modo Dual | LAN Gigabit | Servicio CATV ‌Soporta Funciones HGU/SFU, Red de Acceso Flexible ‌Soporta Modo Bridge y Modo Router ‌Elección Flexible Satisface las Necesidades de los Clientes Tamaño Compacto, Conecta y Usa Fácil de Implementar l Hardware Parameter Dimension 100mm×92mm×30mm(L×W×H) Net weight 140g Operating condition Operating Temp: -10 ~ +55°C Operating Humidity: 5 ~ 95% (non-condensing) Storing condition Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 90% (non-condensing) Power adapter DC 12V, 0.5A, external AC-DC power adaptor Power supply ≤4.2W Interface 1GE + CATV Indicators POWER, LOS, PON, LAN, CATV l Interface Parameter PON interface 1 XPON port (EPON PX20+ and GPON Class B+) SC single mode, SC/APC connector TX optical power: 0 ~ +4dBm RX sensitivity: -27dBm Overload optical power: -3dBm (EPON) or -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm, CATV 1550nm LAN interface 1*GE Auto-negotiation RJ45 ports CATV interface V2801D-1GT1 V2 / V2801D-B-1GT1 V2: RF Optical power: +2 ~ -18dBm Optical receiving wavelength: 1550±10nm RF frequency range: 47 ~ 1000MHz RF output impedance: 75Ω RF output level: ≥70dBuV (0 ~ -15dBm) AGC range: 0 ~ -15dBm MER: ≥32dB (-14dBm optical input) V2801D-1GT1 V4: Optical receiving wavelength: 1550±10nm Optical input range: +2 ~ -18dBm Optical reflection loss: ≥40dB RF frequency range: 47 ~ 1000MHz RF output impedance: 75Ω RF output level and AGC range: ≥81±2dBuv@+1 ~ -10dBm ≥79±2dBuv@ 0 ~ -11dBm ≥77±2dBuv@-1 ~ -12dBm ≥75±2dBuv@-2 ~ -13dBm ≥73±2dBuv@-3 ~ -14dBm ≥71±2dBuv@-4 ~ -15dBm MER: ≥32dB (-14dBm optical input) l Function Data PON Mode XPON Dual Mode Uplink Mode Bridging and Routing Mode Well connect with OLTs of mainstream CATV Support CATV Remote management Standard Support CTC OAM 2.1 and 3.0 Support ITUT984.x OMCI Layer2 802.1D & 802.1ad bridging 802.1p CoS 802.1Q VLAN Layer3 IPv4 DHCP Client/Server PPPoE, NAT, DMZ, DDNS Multicast IGMP v2/v3, IGMP snooping Security and Firewall Prevent Rogue ONU DDOS, Filtering Based on ACL/MAC/URL O&M V2801D-1GT1 V2 / V2801D-1GT1 V4: Support EMS\WEB\Telnet\CLI and unified network management of VSOL OLT V2801D-B-1GT1 V2: Support EMS\WEB\Telnet\CLI, Support TR069 and unified network management of VSOL OLT

Especificaciones técnicas

Dimension

100mm×92mm×30mm(L×W×H)

Net weight

140g

Operating condition

Operating Temp: -10 ~ +55°C Operating Humidity: 5 ~ 95% (non-condensing)

Storing condition

Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 90% (non-condensing)

Power adapter

DC 12V, 0.5A, external AC-DC power adaptor

Power supply

≤4.2W

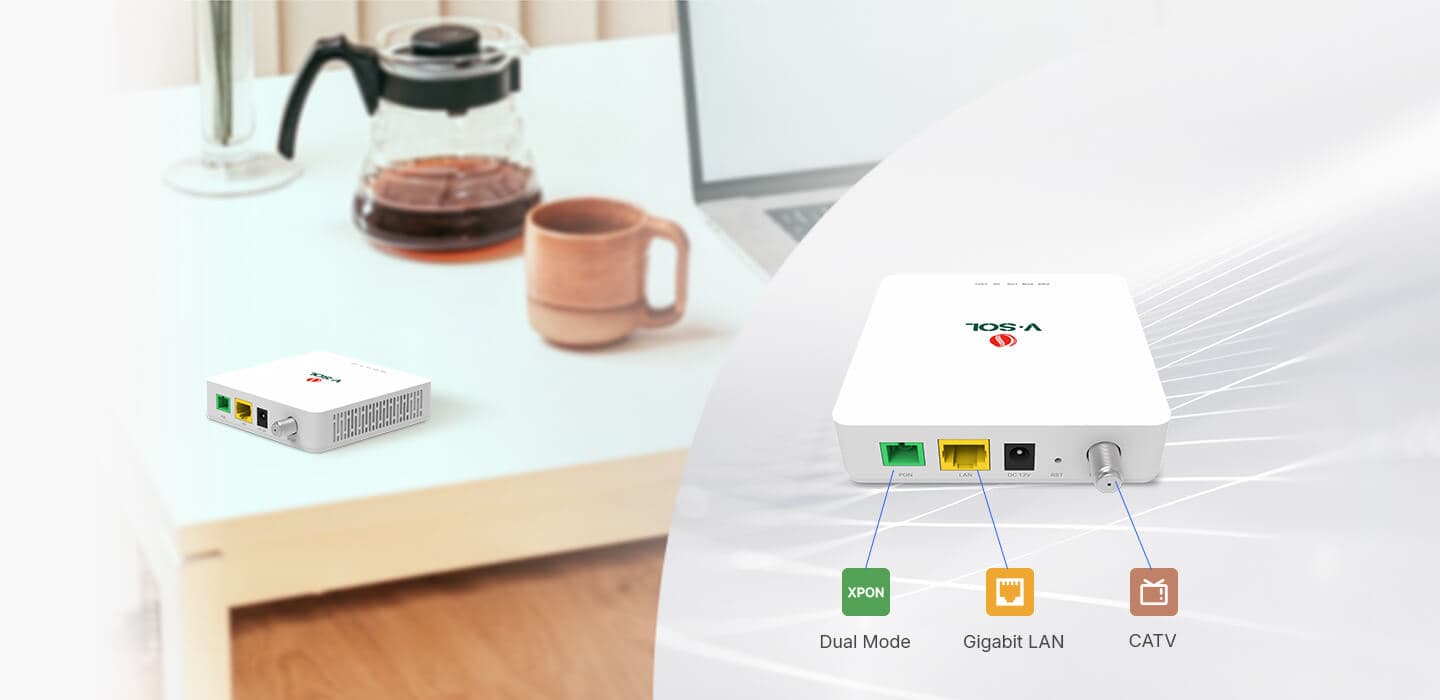

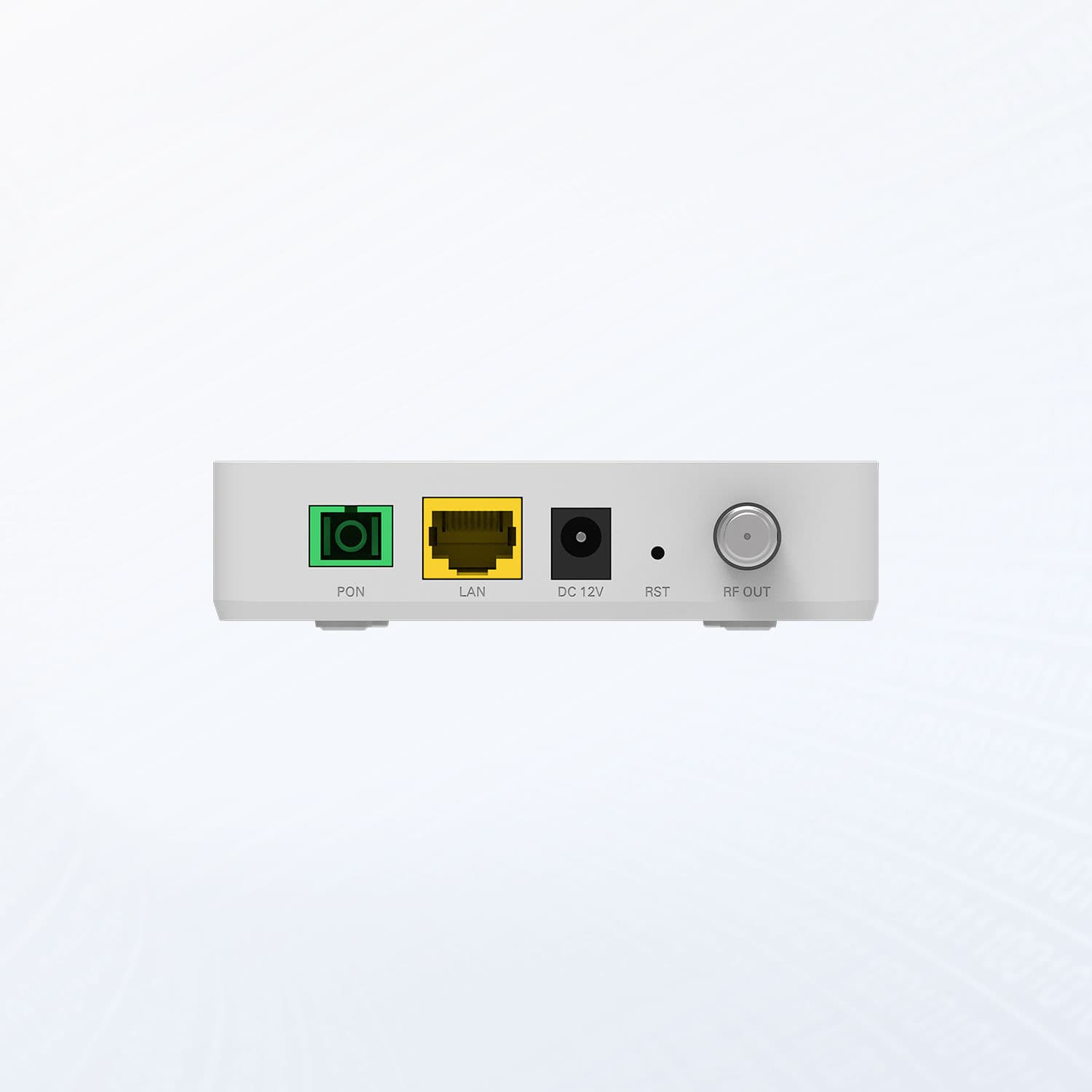

Interface

1GE + CATV

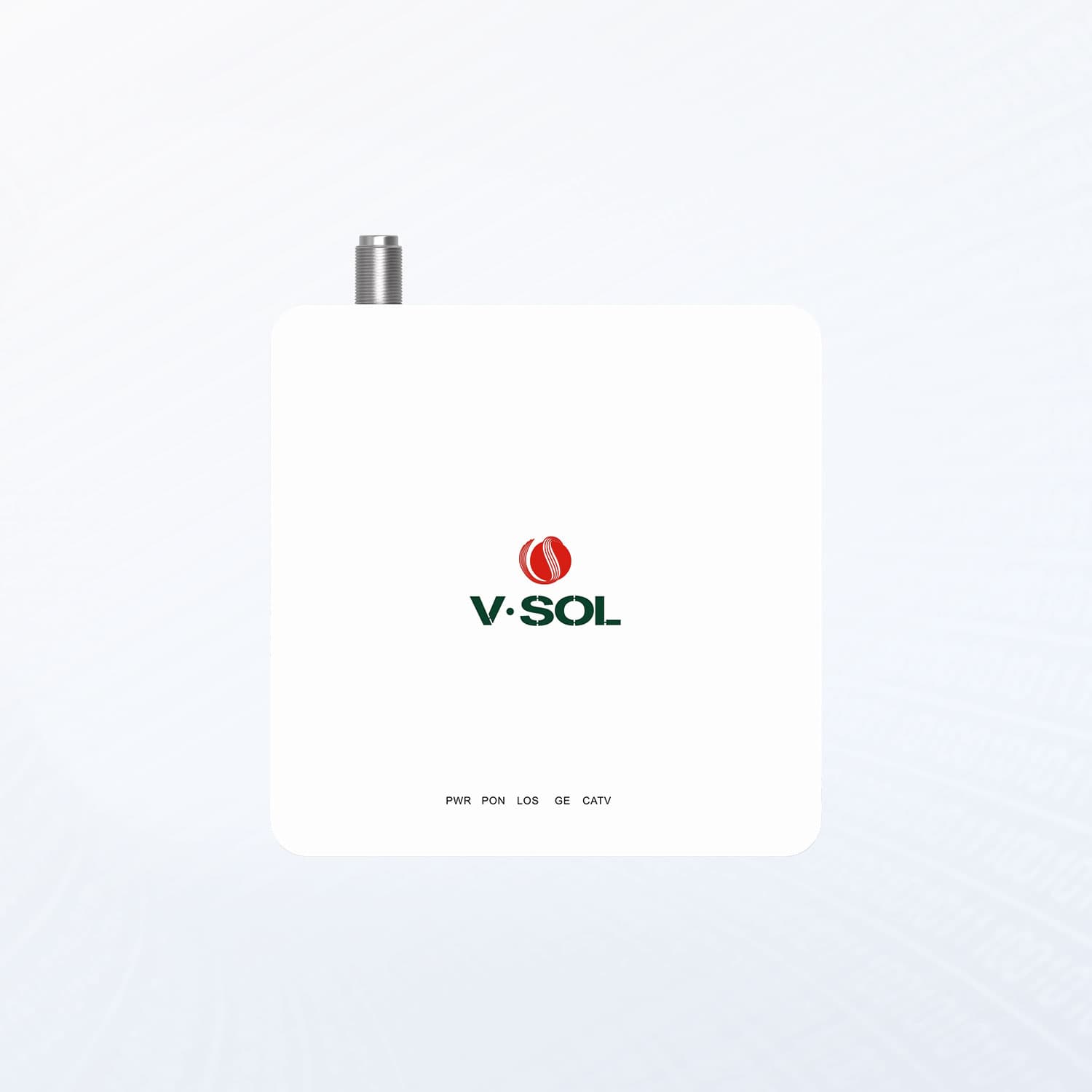

Indicators

POWER, LOS, PON, LAN, CATV

PON interface

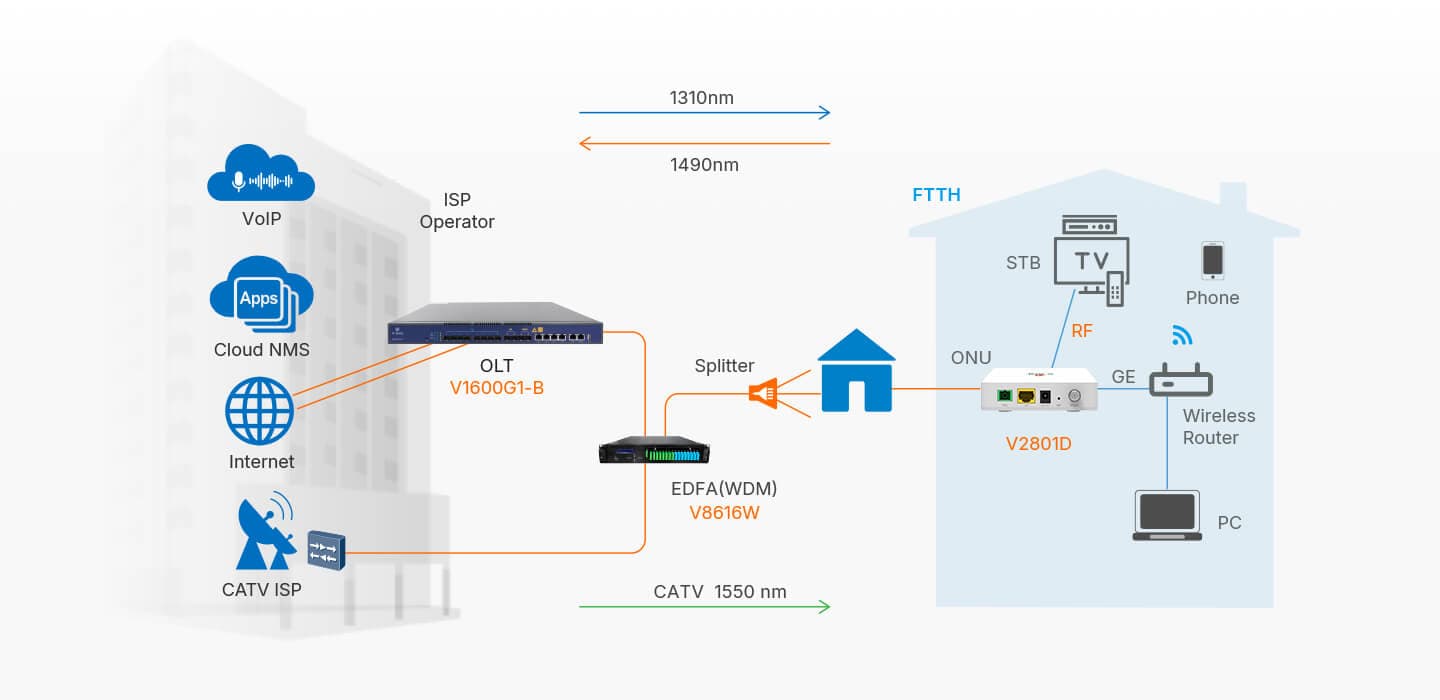

1 XPON port (EPON PX20+ and GPON Class B+) SC single mode, SC/APC connector TX optical power: 0 ~ +4dBm RX sensitivity: -27dBm Overload optical power: -3dBm (EPON) or -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm, CATV 1550nm

LAN interface

1*GE Auto-negotiation RJ45 ports

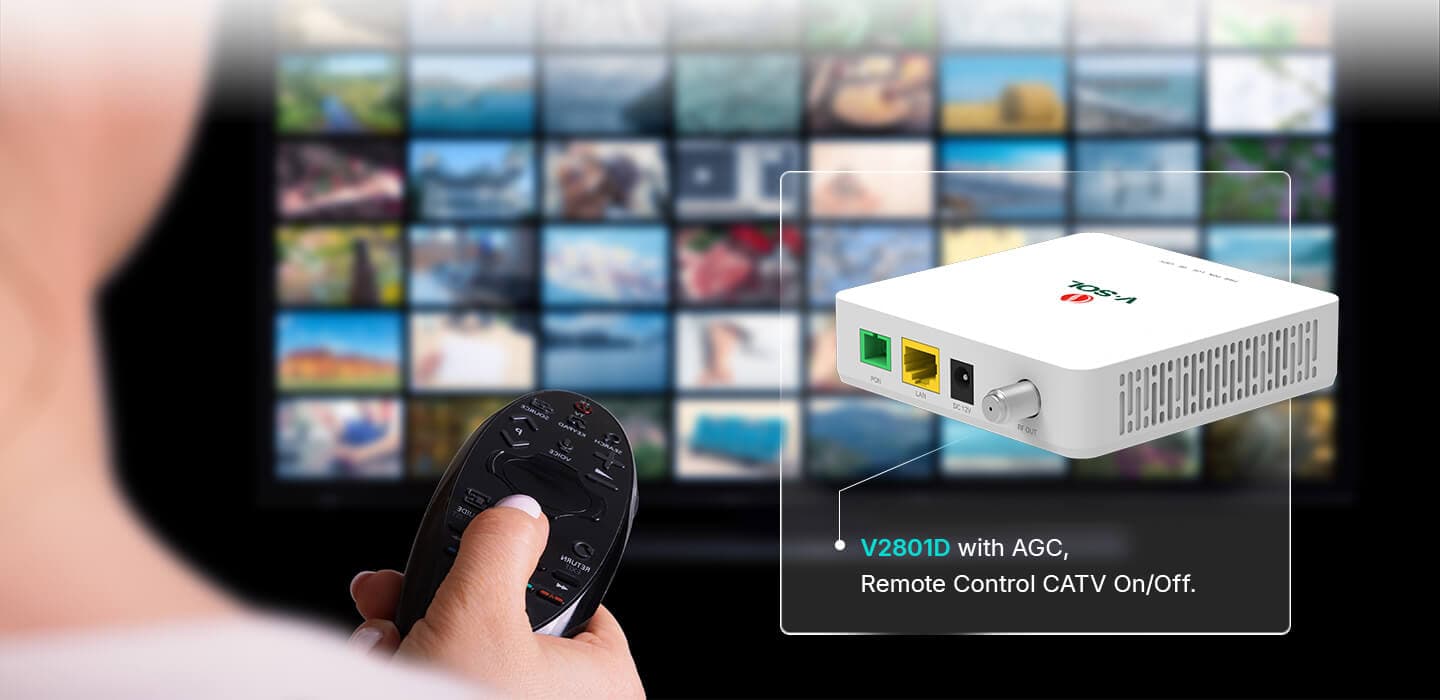

CATV interface

V2801D-1GT1 V2 / V2801D-B-1GT1 V2: RF Optical power: +2 ~ -18dBm Optical receiving wavelength: 1550±10nm RF frequency range: 47 ~ 1000MHz RF output impedance: 75Ω RF output level: ≥70dBuV (0 ~ -15dBm) AGC range: 0 ~ -15dBm MER: ≥32dB (-14dBm optical input) | V2801D-1GT1 V4: Optical receiving wavelength: 1550±10nm Optical input range: +2 ~ -18dBm Optical reflection loss: ≥40dB RF frequency range: 47 ~ 1000MHz RF output impedance: 75Ω RF output level and AGC range: ≥81±2dBuv@+1 ~ -10dBm ≥79±2dBuv@ 0 ~ -11dBm ≥77±2dBuv@-1 ~ -12dBm ≥75±2dBuv@-2 ~ -13dBm ≥73±2dBuv@-3 ~ -14dBm ≥71±2dBuv@-4 ~ -15dBm MER: ≥32dB (-14dBm optical input)

PON Mode

XPON Dual Mode

Uplink Mode

Bridging and Routing Mode Well connect with OLTs of mainstream

CATV

Support CATV Remote management

Standard

Support CTC OAM 2.1 and 3.0 Support ITUT984.x OMCI

Layer2

802.1D & 802.1ad bridging 802.1p CoS 802.1Q VLAN

Layer3

IPv4 DHCP Client/Server PPPoE, NAT, DMZ, DDNS

Multicast

IGMP v2/v3, IGMP snooping

Security and Firewall

Prevent Rogue ONU DDOS, Filtering Based on ACL/MAC/URL

O&M

V2801D-1GT1 V2 / V2801D-1GT1 V4: Support EMS\WEB\Telnet\CLI and unified network management of VSOL OLT | V2801D-B-1GT1 V2: Support EMS\WEB\Telnet\CLI, Support TR069 and unified network management of VSOL OLT
