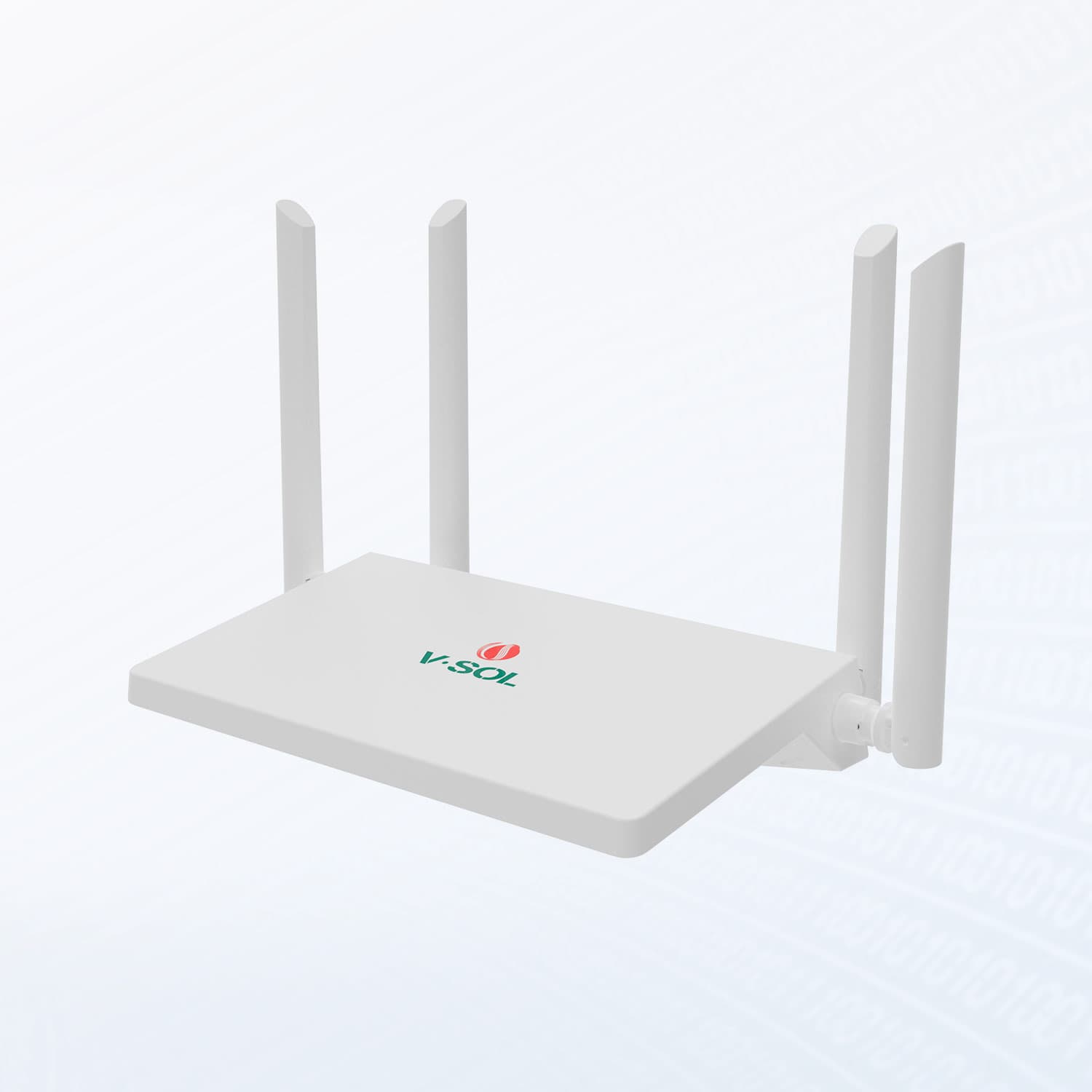

HG5013-4G — 1GE WAN+3GE LAN+Wi-Fi 6 Router

Descripción

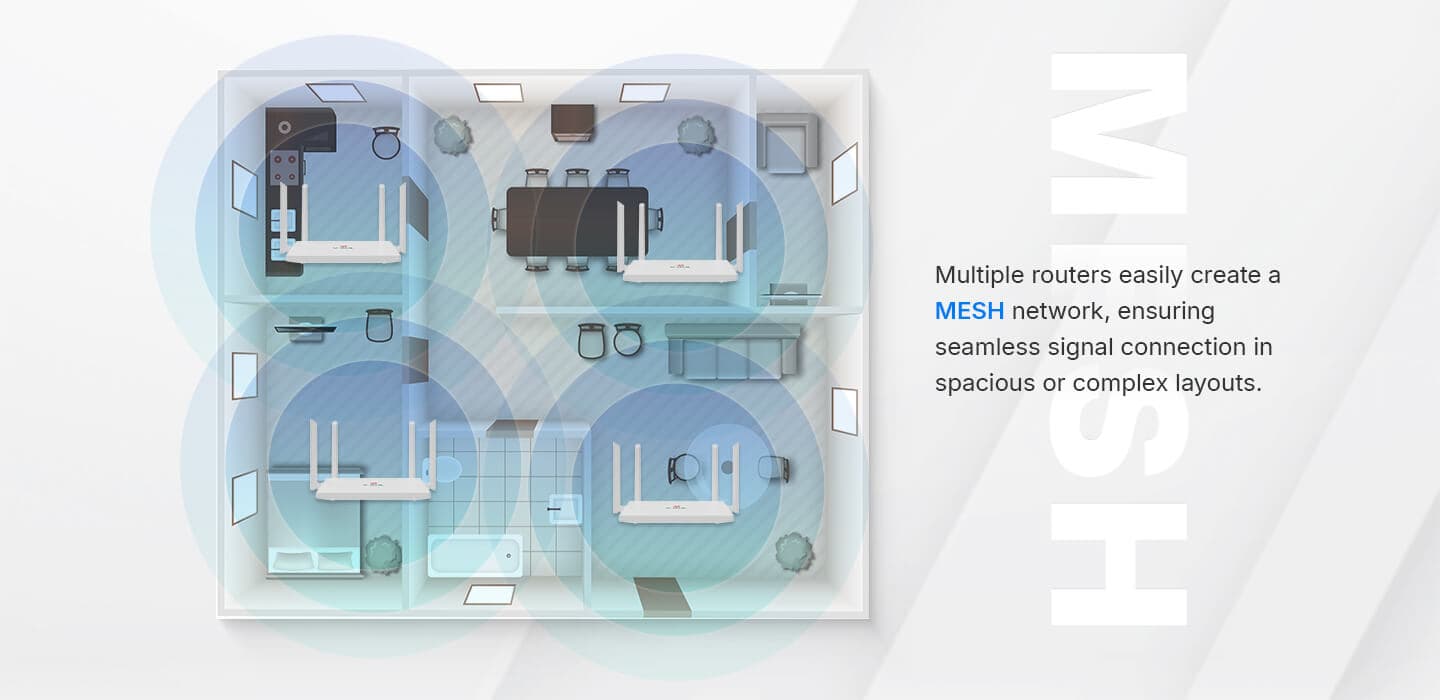

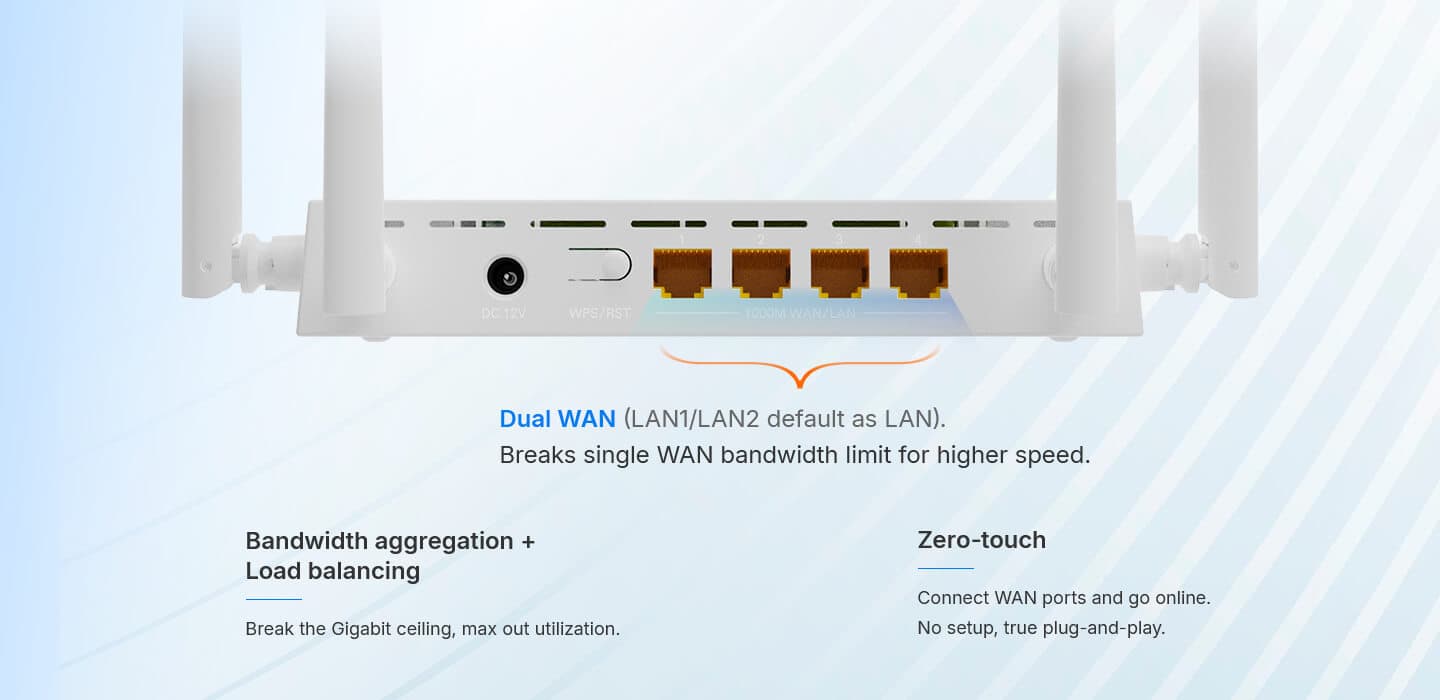

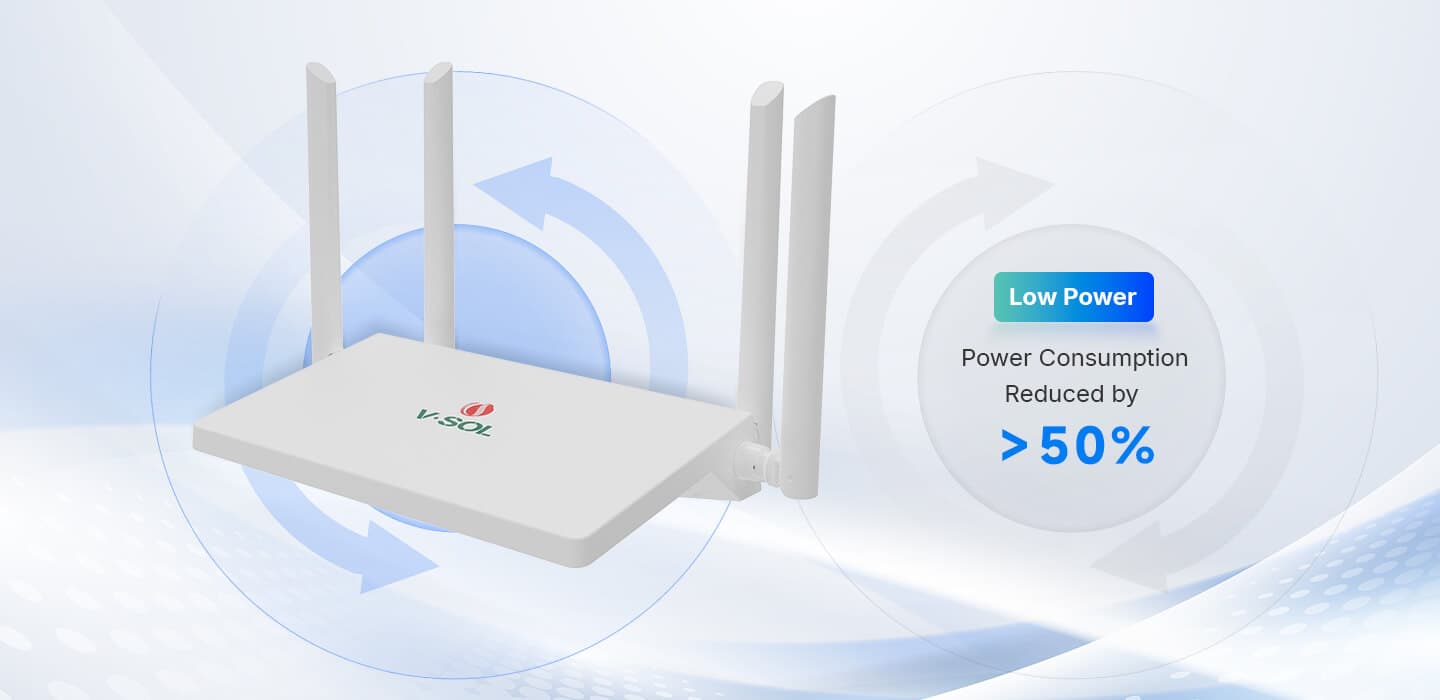

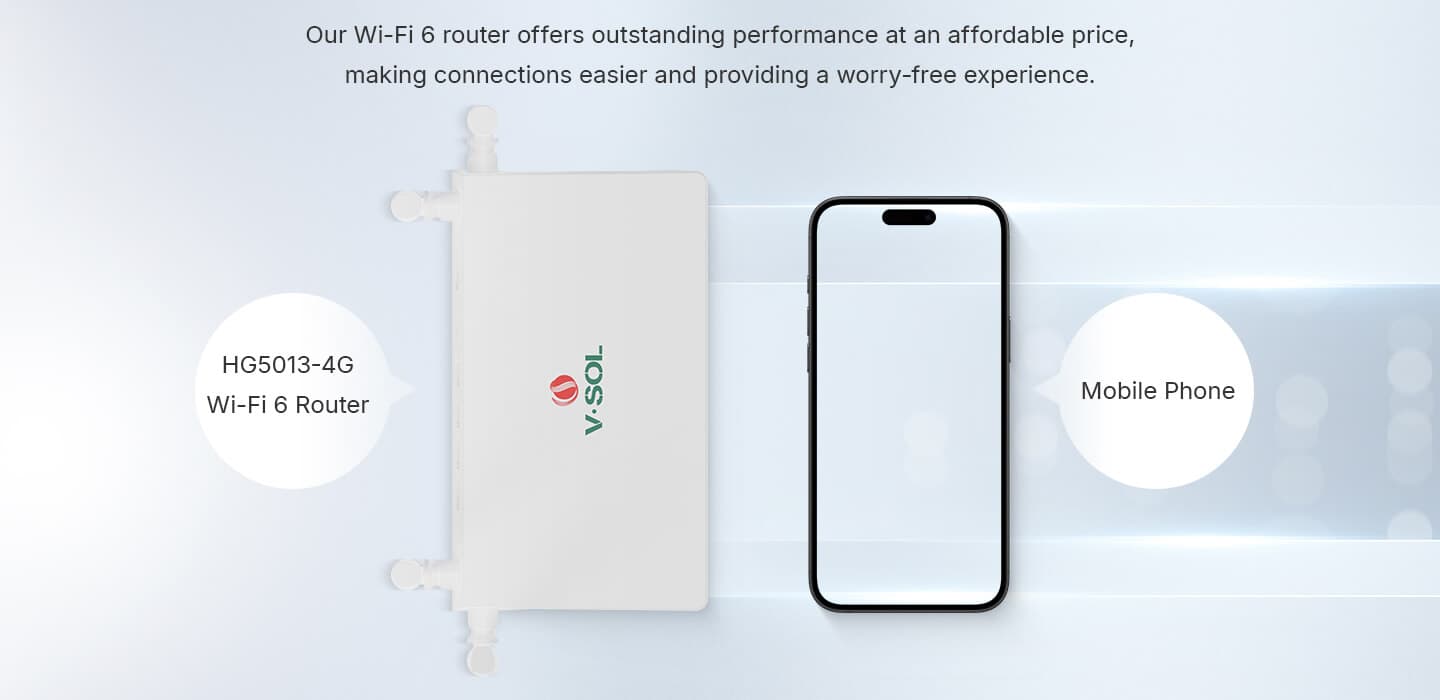

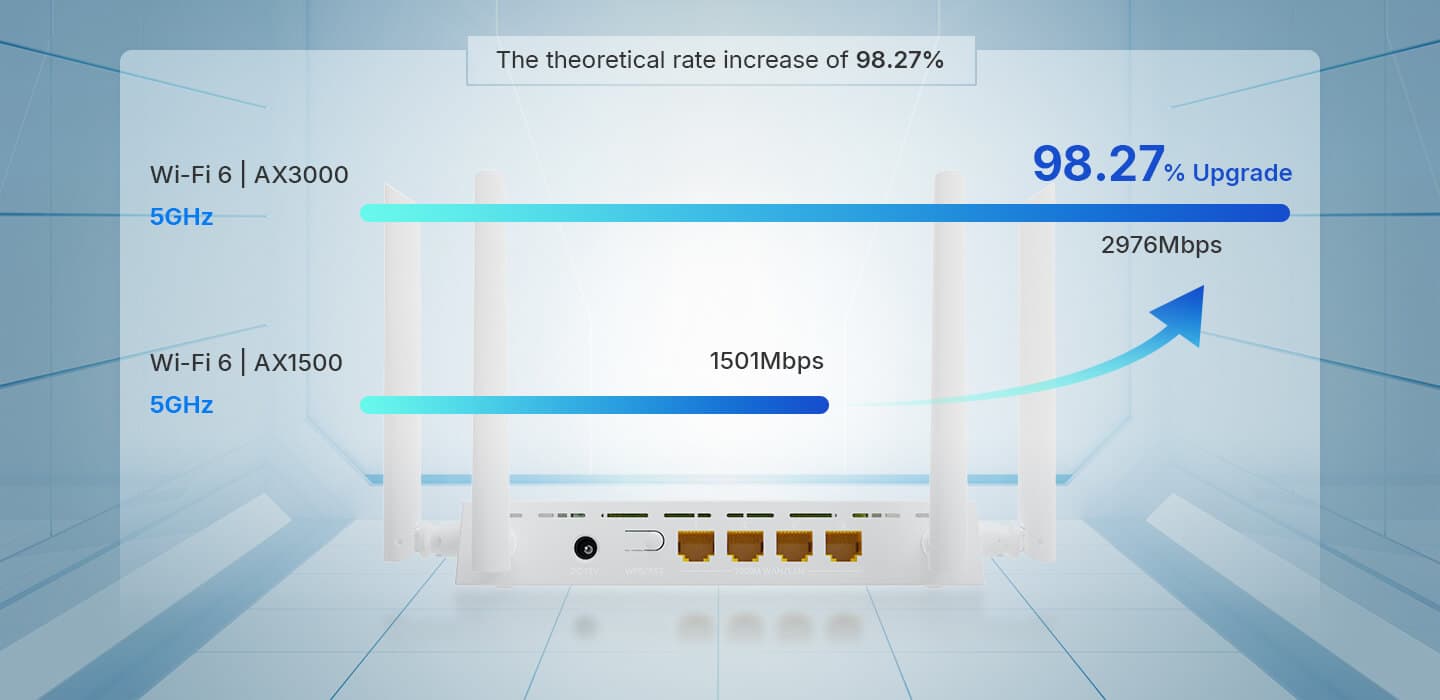

Router Wi-Fi 6 Gigabit de doble banda AX3000 Wi-Fi 6 (AX3000) | Puerto 4*GE | Bajo consumo | Compacto Wi-Fi 6 de ultra alta velocidad (AX3000) Agregación De Doble WAN Diseño de bajo consumo Compacto como un teléfono móvil Redes MESH para una amplia cobertura Internet sin preocupaciones para los niños Hardware Parameter Dimension 179.9mm×104.1mm×30.8mm(L*W*H) Net weight 185g Working condition Working temp: 0 ~ + 5 0°C Working humidity: 5 ~ 9 0 %(non-condensing) Storing condition Storing temp: – 3 0 ~ + 60 °C Storing humidity: 5 ~ 9 0 % (non-condensing) Power adapter DC 12V/1A Power supply ≤12W Interface 1GE WAN + 3GE LAN + Wi – Fi 6 Indicators SYS Button Reset / WPS Interface Parameter User Interface 4*10/100/1000Mbps auto adaptive Ethernet interface, RJ45 connectors (1*WAN, 3*LAN) WLAN Interface Compliant with IEEE802.11b/g/n/ac/ax 2402 Mbps on 5GHz and 574Mbps on 2.4 GHz 2.4Ghz: 2*2, 5GHz: 2*2; External antennas Maximum number of connected devices: 128 Function Data Management WEB/Telnet/TR-069/SSH/CLI Management Multicast Support IGMP Snooping (IGMPv1/v2/v3) Support IGMP Proxy Support MLD Snooping(MLDv1 、 MLDv2) Support MLD Proxy Support Fast leave WAN Maximum speed of 1Gbps Wireless Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11b/g/n/ax 2.4GHz Wi-Fi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 Support MU-MIMO & OFDMA Support Dynamic QoS Support 1024-QAM Support WMM BSS-Coloring & Beamforming & Beamsteering Support Wi-Fi Easy-mesh function L3 Support IPv4, IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Statics Support Static route, NAT Support DMZ, ALG, UPnP Support Virtual Server Support NTP (Network Time Protocol) Support DNS Client and DNS Proxy DHCP Support DHCP Server & DHCP Relay Security Support local access control Support IP address filtering Support URL filtering Support Anti-DDoS attack function Support Anti-port scanning function Suppression of protocol-specific broadcast/multicast packets (e.g. DHCP, ARP, IGMP, etc.) Support Anti-Intranet ARP Attack Support Parental control function

Especificaciones técnicas

Dimension

179.9mm×104.1mm×30.8mm(L*W*H)

Net weight

185g

Working condition

Working temp: 0 ~ + 5 0°C Working humidity: 5 ~ 9 0 %(non-condensing)

Storing condition

Storing temp: – 3 0 ~ + 60 °C Storing humidity: 5 ~ 9 0 % (non-condensing)

Power adapter

DC 12V/1A

Power supply

≤12W

Interface

1GE WAN + 3GE LAN + Wi – Fi 6

Indicators

SYS

Button

Reset / WPS

User Interface

4*10/100/1000Mbps auto adaptive Ethernet interface, RJ45 connectors (1*WAN, 3*LAN)

WLAN Interface

Compliant with IEEE802.11b/g/n/ac/ax 2402 Mbps on 5GHz and 574Mbps on 2.4 GHz 2.4Ghz: 2*2, 5GHz: 2*2; External antennas Maximum number of connected devices: 128

Management

WEB/Telnet/TR-069/SSH/CLI Management

Multicast

Support IGMP Snooping (IGMPv1/v2/v3) Support IGMP Proxy Support MLD Snooping(MLDv1 、 MLDv2) Support MLD Proxy Support Fast leave

WAN

Maximum speed of 1Gbps

Wireless

Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11b/g/n/ax 2.4GHz Wi-Fi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 Support MU-MIMO & OFDMA Support Dynamic QoS Support 1024-QAM Support WMM BSS-Coloring & Beamforming & Beamsteering Support Wi-Fi Easy-mesh function

L3

Support IPv4, IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Statics Support Static route, NAT Support DMZ, ALG, UPnP Support Virtual Server Support NTP (Network Time Protocol) Support DNS Client and DNS Proxy

DHCP

Support DHCP Server & DHCP Relay

Security

Support local access control Support IP address filtering Support URL filtering Support Anti-DDoS attack function Support Anti-port scanning function Suppression of protocol-specific broadcast/multicast packets (e.g. DHCP, ARP, IGMP, etc.) Support Anti-Intranet ARP Attack Support Parental control function
