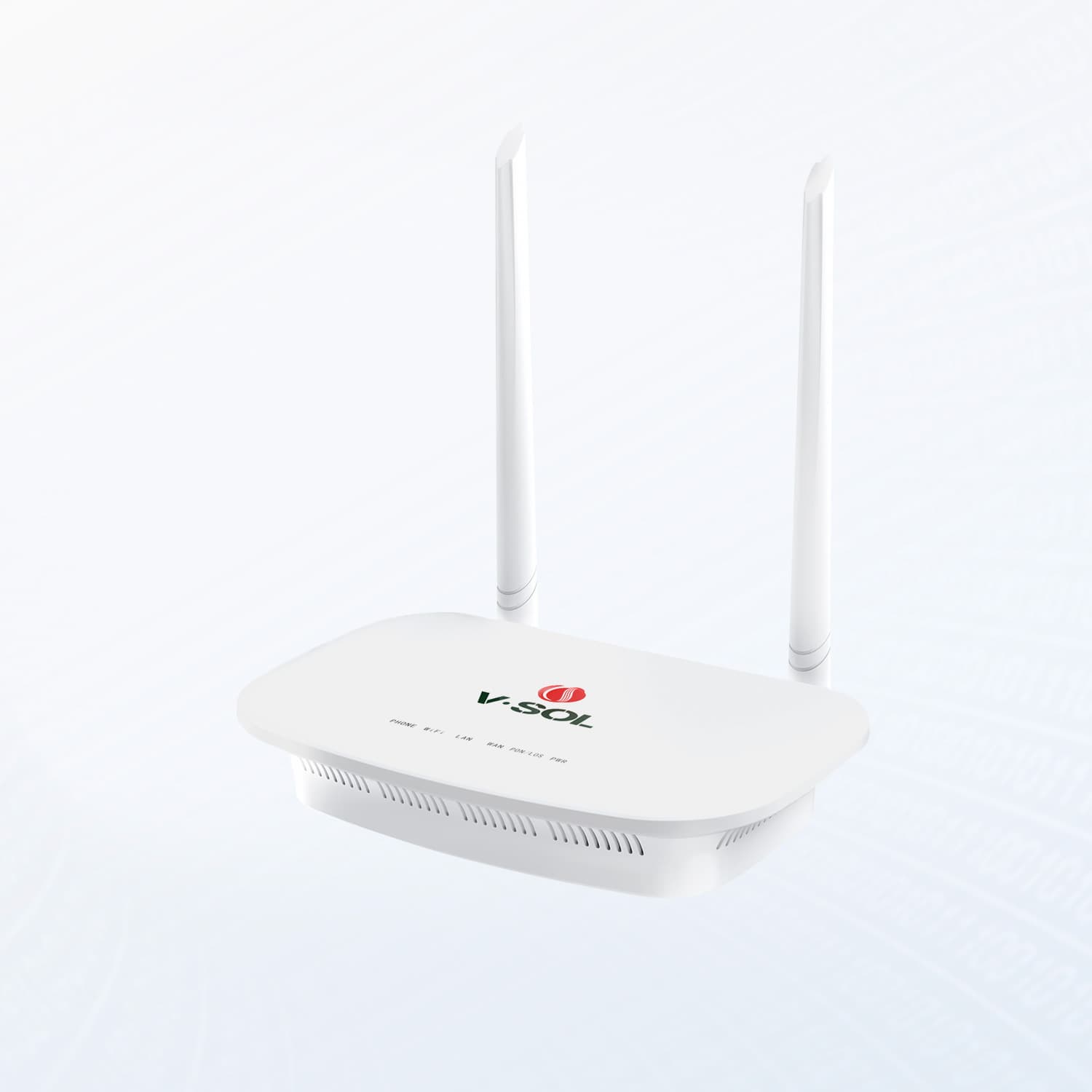

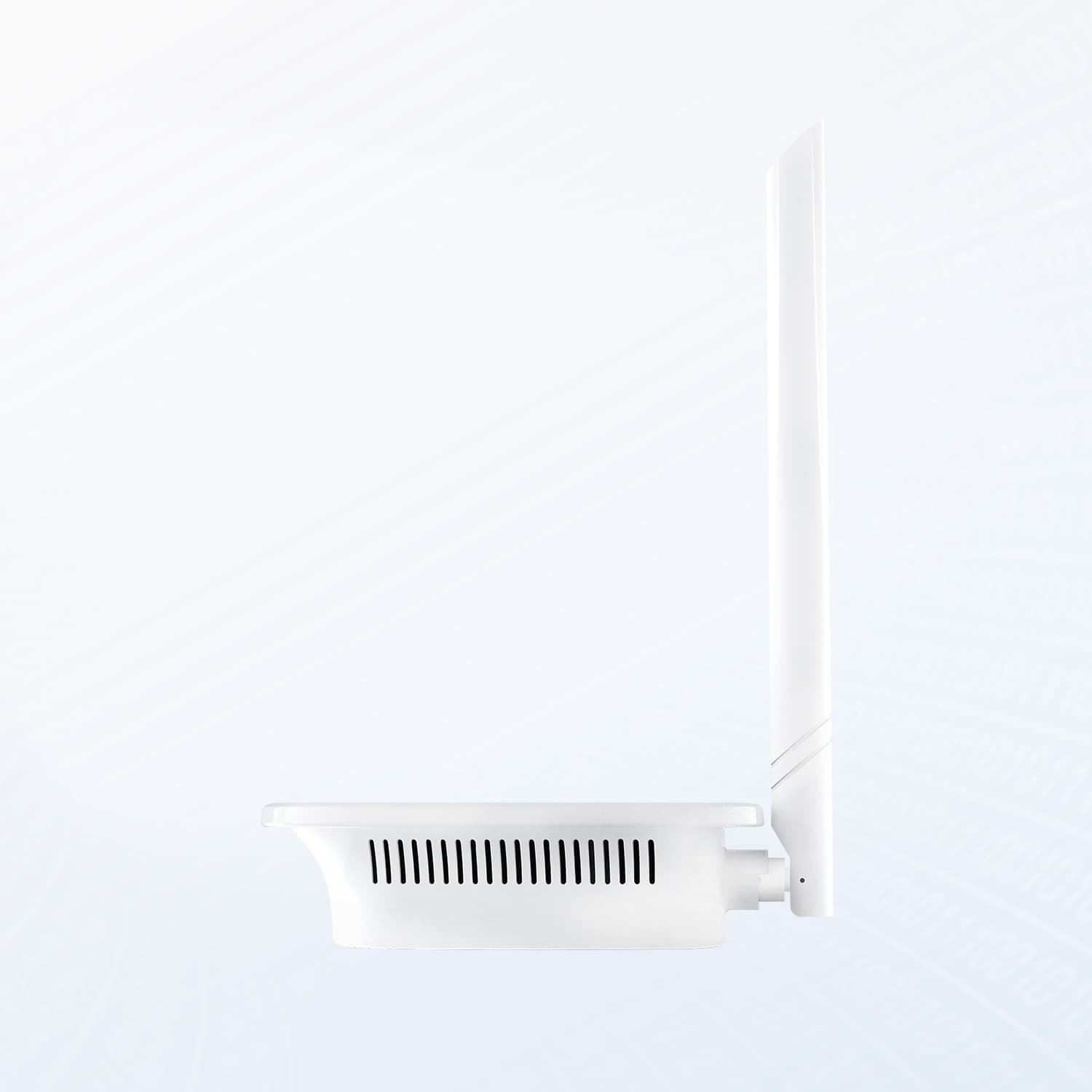

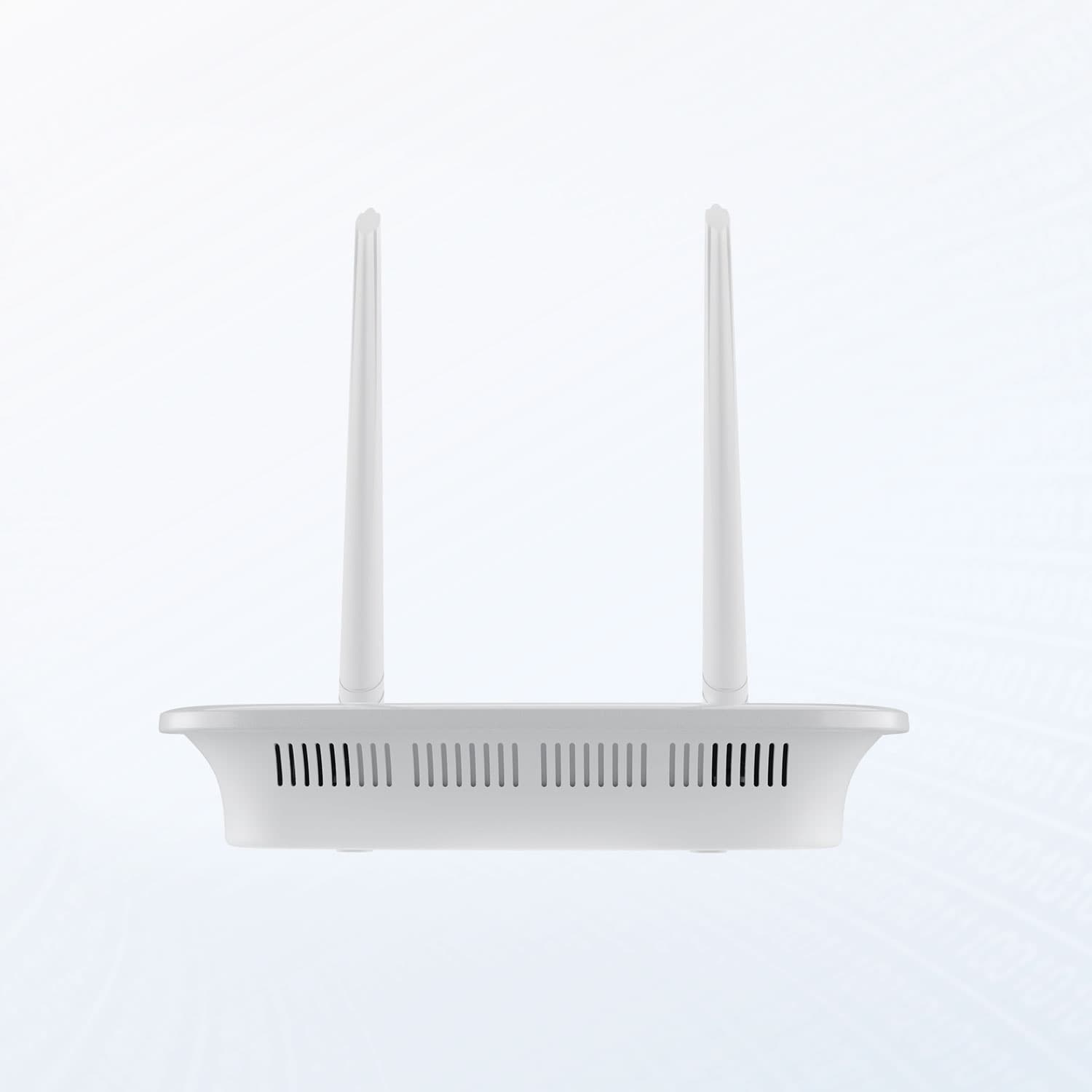

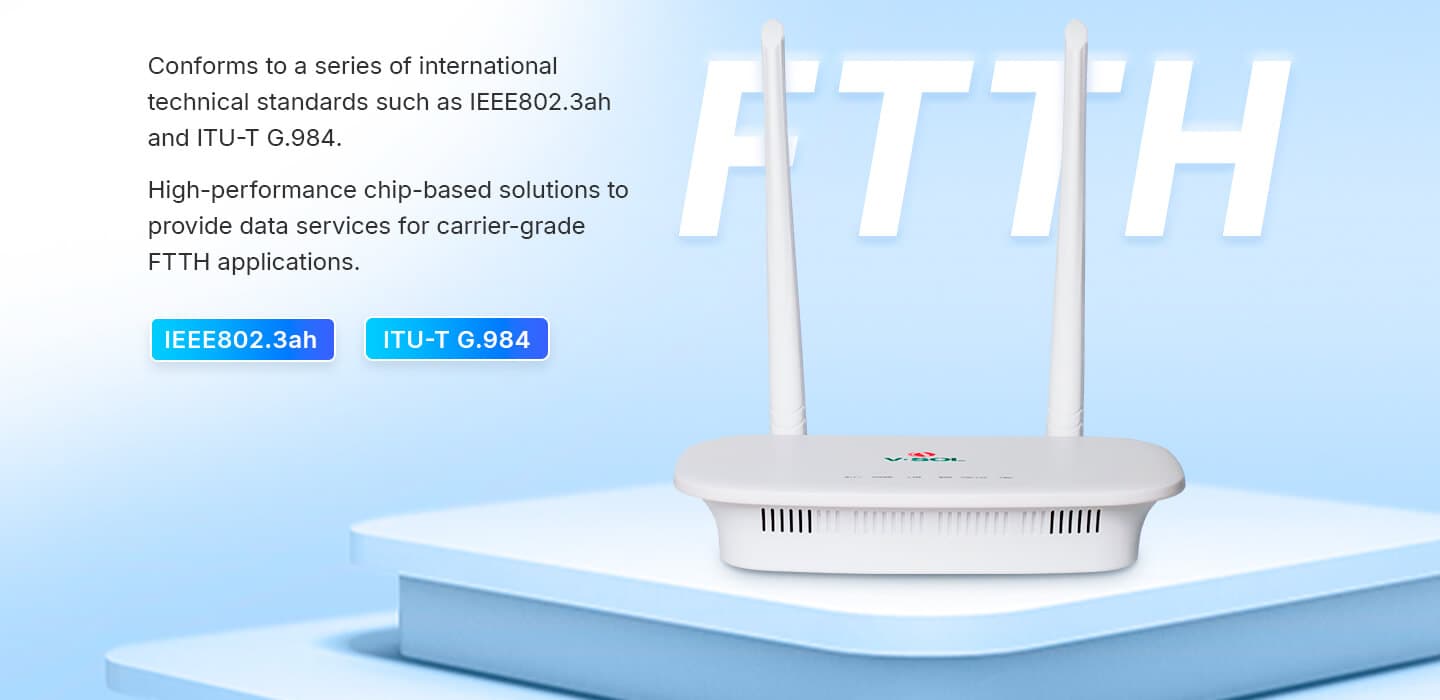

HG322RGW — 1GE+1POTS+Wi-Fi 4 HGU ONT

Descripción

1*XPON+1GE+1POTS+Wi-Fi 4 HGU ONT HG322RGW Solución de alto rendimiento Acceso automático a EPON/GPON Amplia cobertura de señal Wi-Fi Antenas de 5dBi, amplia cobertura y gran capacidad de penetración. Potente función VoIP Fácil de operar y mantener Hardware Parameter Dimension 170mm*112mm*31mm(L*W*H) Net weight 0.180KG Operating condition Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensing) Storing condition Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensing) Power adapter DC 12V/1A, external AC-DC power adaptor Power supply ≤6W Interfaces 1GE + 1POTS + Wi-Fi 4 Indicators PWR, PON/LOS, WAN, LAN, PHONE, Wi-Fi Interface Parameter PON I nterface 1XPON port (EPON PX20+ and GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0 ～ +4dBm RX sensitivity: -27dBm Overload optical power: -3dBm (EPON) or -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm WIFI I nterface IEEE802.11b/g/n (TX power: 17dBm/16dBm/ 15dBm), Up to 300Mbps 2T2R, 5dBi external antenna Support 13 Channels User I nterface 1*GE, Auto-negotiation, RJ45 connectors 1*POTS, RJ11 connectors Function Data PON mode Dual Mode, Can access EPON/GPON OLTs (HUAWEI, ZTE, FiberHome, etc). Uplink mode Bridging and Routing Mode Layer2 802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN. Layer3 IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS. Multicast IGMPv1/v2/v3, IGMP snooping. Security Flow & Storm control, Loop Detection. Wi-Fi Authentication: WEP/WAP-PSK(TKIP)/ WAP2-PSK(AES). Support: multiple SSID VoIP SIP and IMS SIP G.711a/G.711u/G.722/G.729 Codec Echo cancellation, VAD/CNG, DTMF Relay T.30/T.38 FAX Caller Identification/Call Waiting/Call Forwarding /Call Transfer/Call Hold/3-way Conference Line testing according to GR-909 Firewall Filtering Based on ACL/MAC/URL. O&M WEB/TELNET/OAM/OMCI/TR069, Support private OAM/OMCI protocol and Unified network management of VSOL OLT.

Especificaciones técnicas

Dimension

170mm*112mm*31mm(L*W*H)

Net weight

0.180KG

Operating condition

Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensing)

Storing condition

Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensing)

Power adapter

DC 12V/1A, external AC-DC power adaptor

Power supply

≤6W

Interfaces

1GE + 1POTS + Wi-Fi 4

Indicators

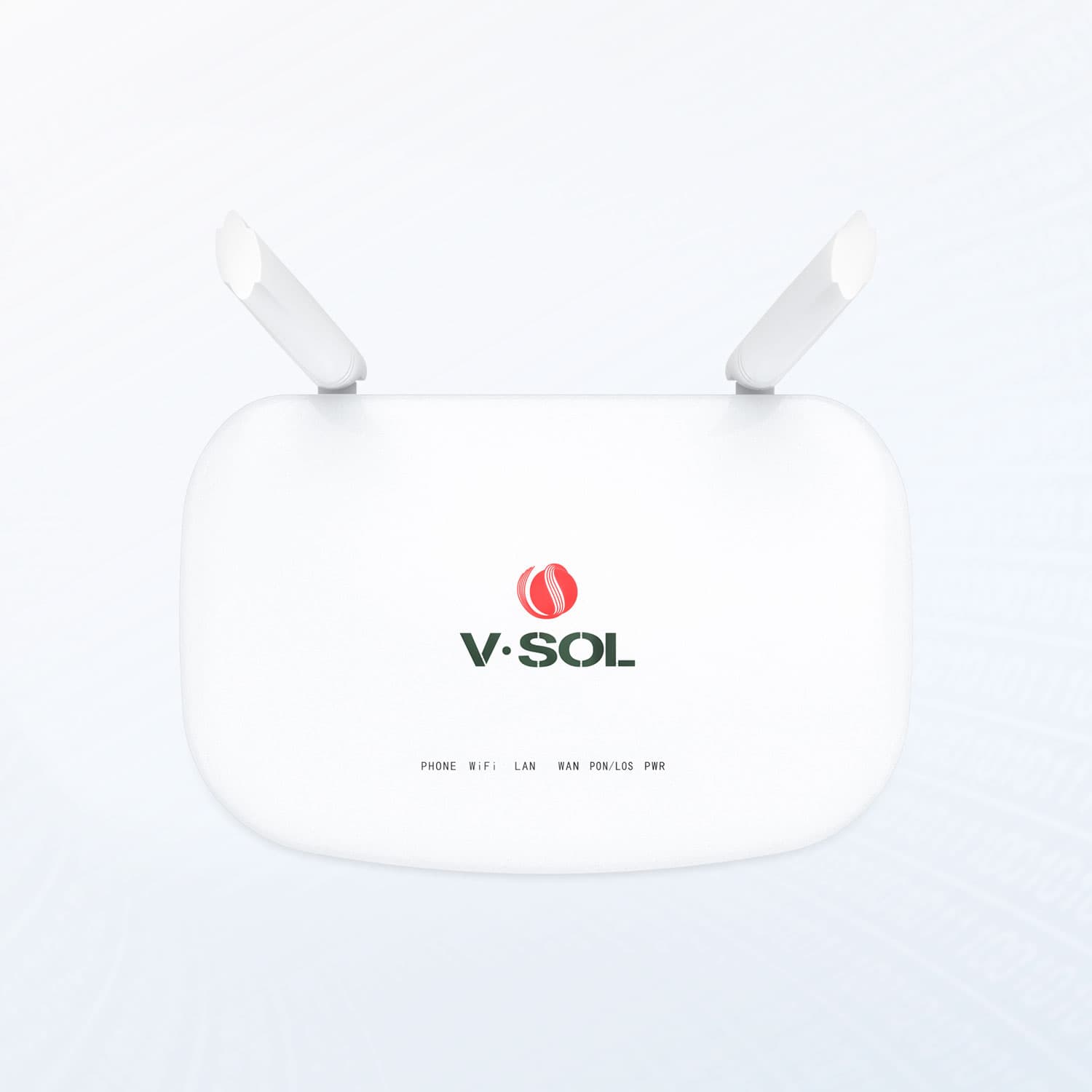

PWR, PON/LOS, WAN, LAN, PHONE, Wi-Fi

PON I nterface

1XPON port (EPON PX20+ and GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0 ～ +4dBm RX sensitivity: -27dBm Overload optical power: -3dBm (EPON) or -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm

WIFI I nterface

IEEE802.11b/g/n (TX power: 17dBm/16dBm/ 15dBm), Up to 300Mbps 2T2R, 5dBi external antenna Support 13 Channels

User I nterface

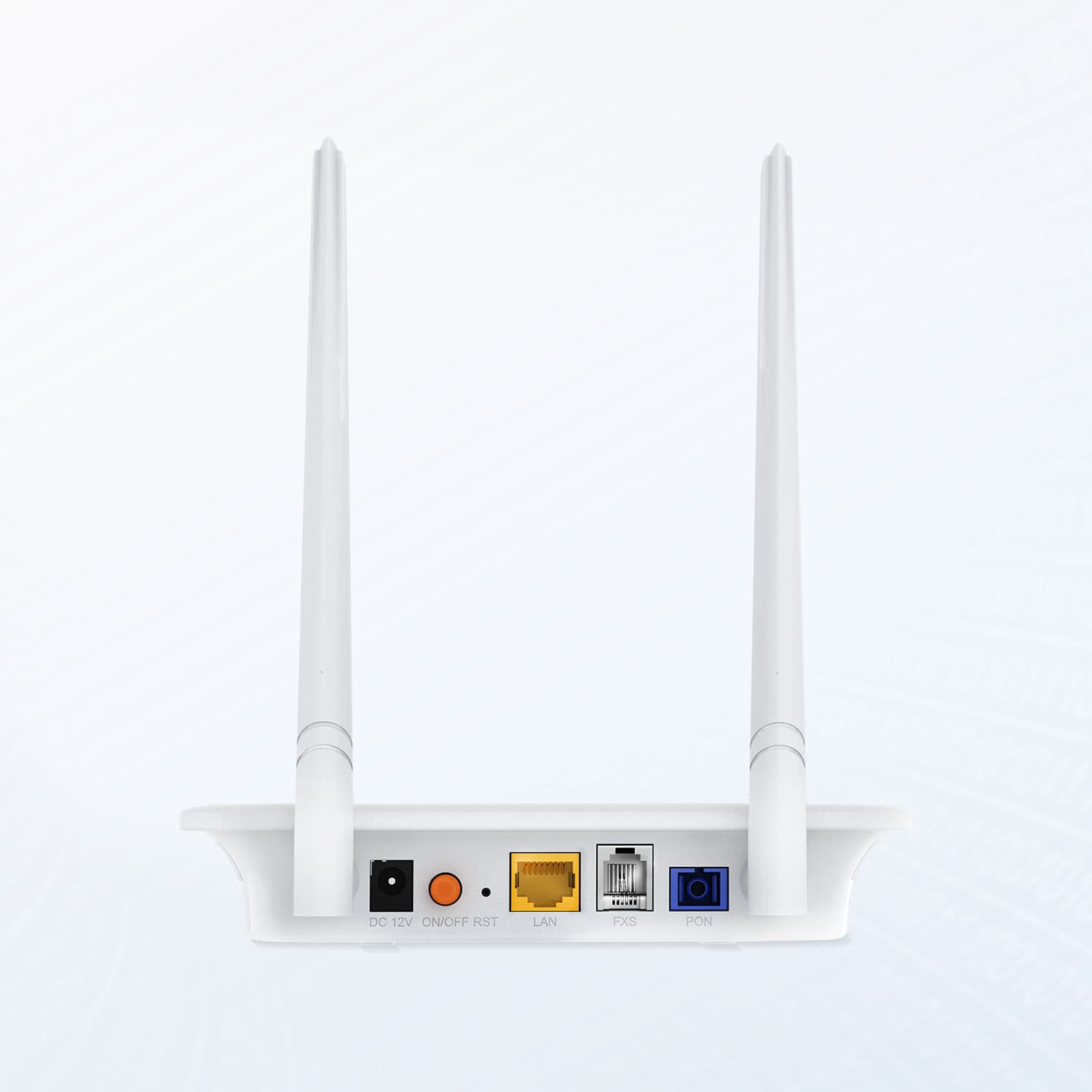

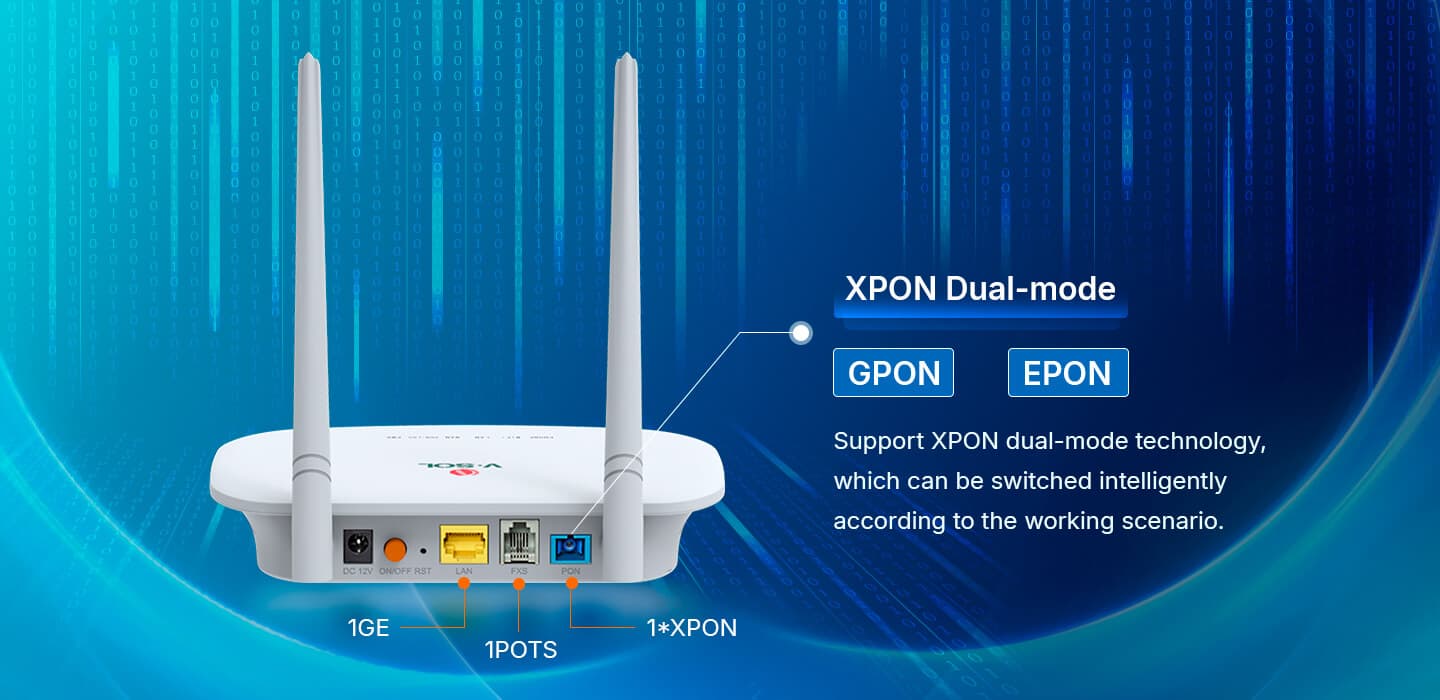

1*GE, Auto-negotiation, RJ45 connectors 1*POTS, RJ11 connectors

PON mode

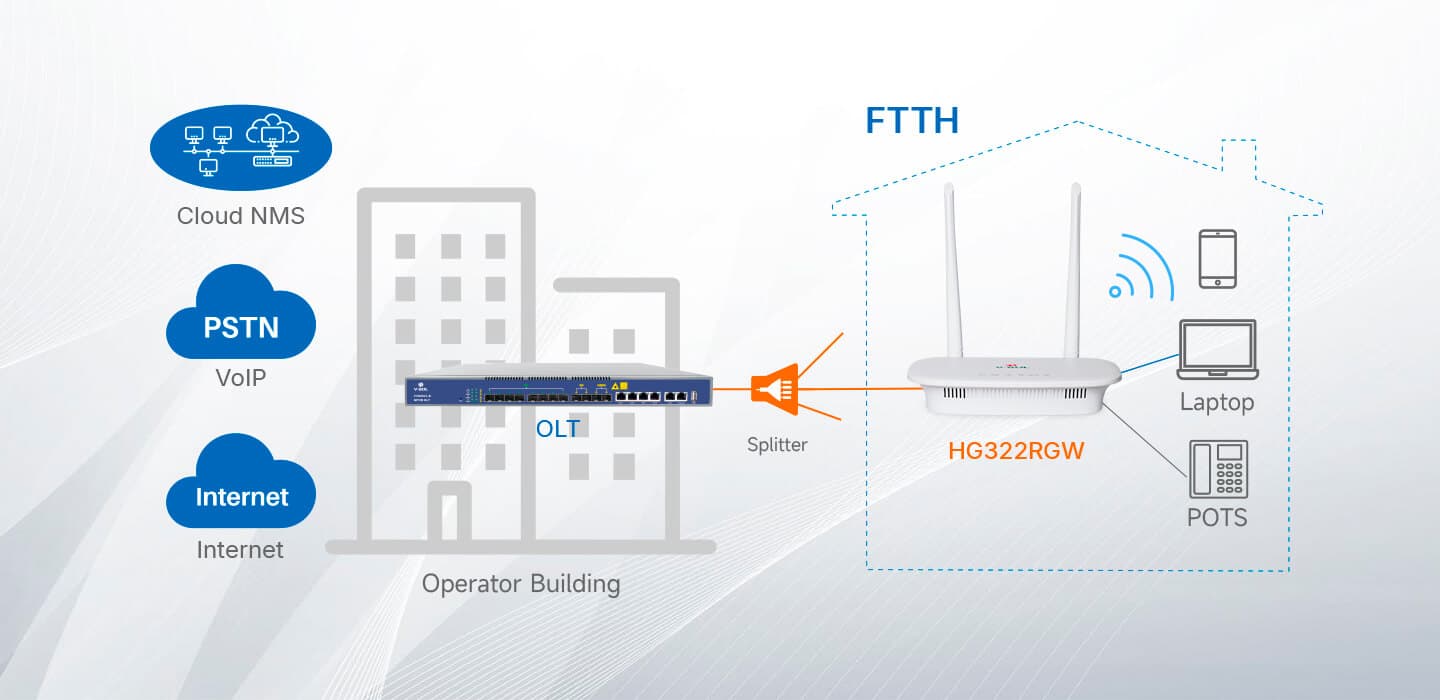

Dual Mode, Can access EPON/GPON OLTs (HUAWEI, ZTE, FiberHome, etc).

Uplink mode

Bridging and Routing Mode

Layer2

802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN.

Layer3

IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS.

Multicast

IGMPv1/v2/v3, IGMP snooping.

Security

Flow & Storm control, Loop Detection.

Wi-Fi

Authentication: WEP/WAP-PSK(TKIP)/ WAP2-PSK(AES). Support: multiple SSID

VoIP

SIP and IMS SIP G.711a/G.711u/G.722/G.729 Codec Echo cancellation, VAD/CNG, DTMF Relay T.30/T.38 FAX Caller Identification/Call Waiting/Call Forwarding /Call Transfer/Call Hold/3-way Conference Line testing according to GR-909

Firewall

Filtering Based on ACL/MAC/URL.

O&M

WEB/TELNET/OAM/OMCI/TR069, Support private OAM/OMCI protocol and Unified network management of VSOL OLT.
