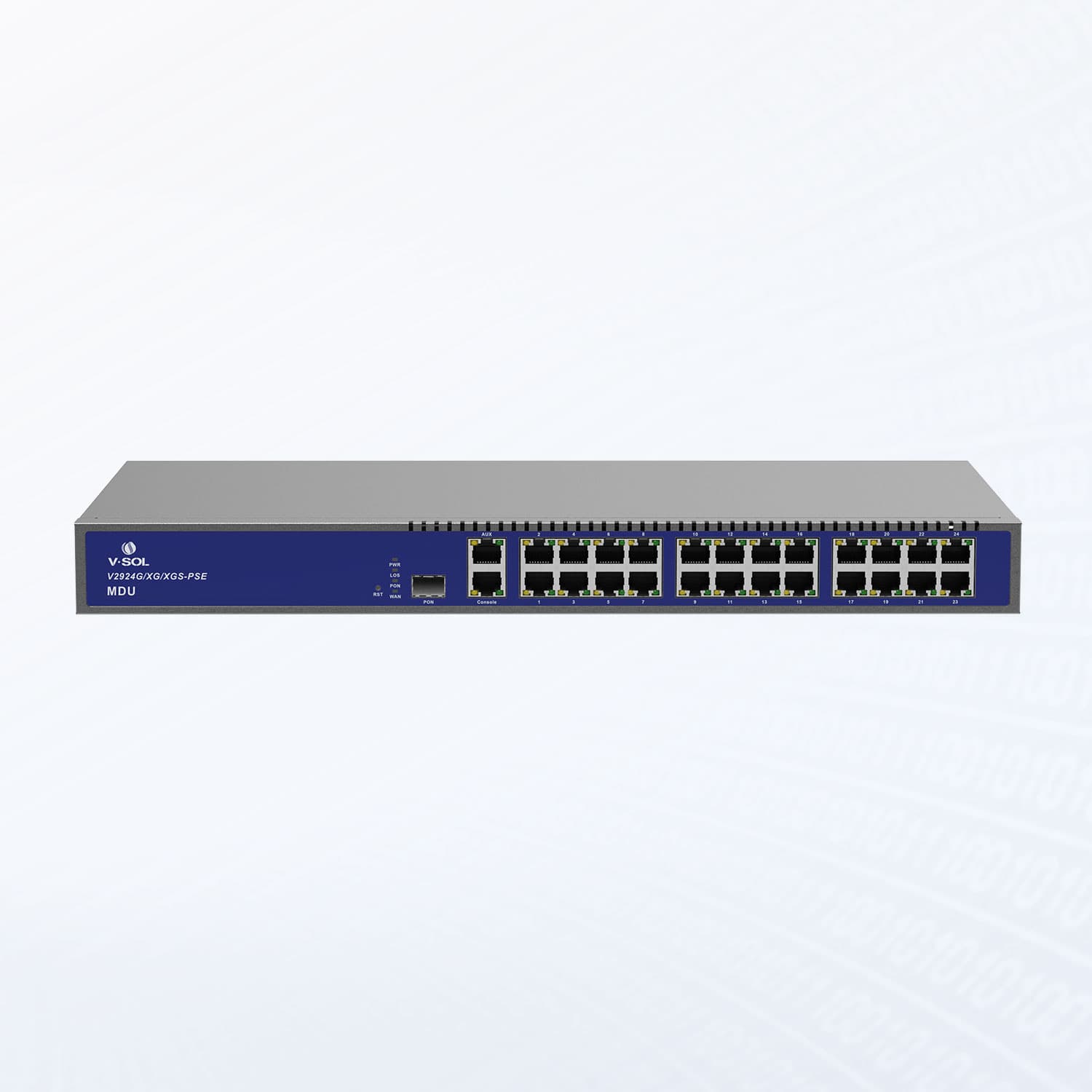

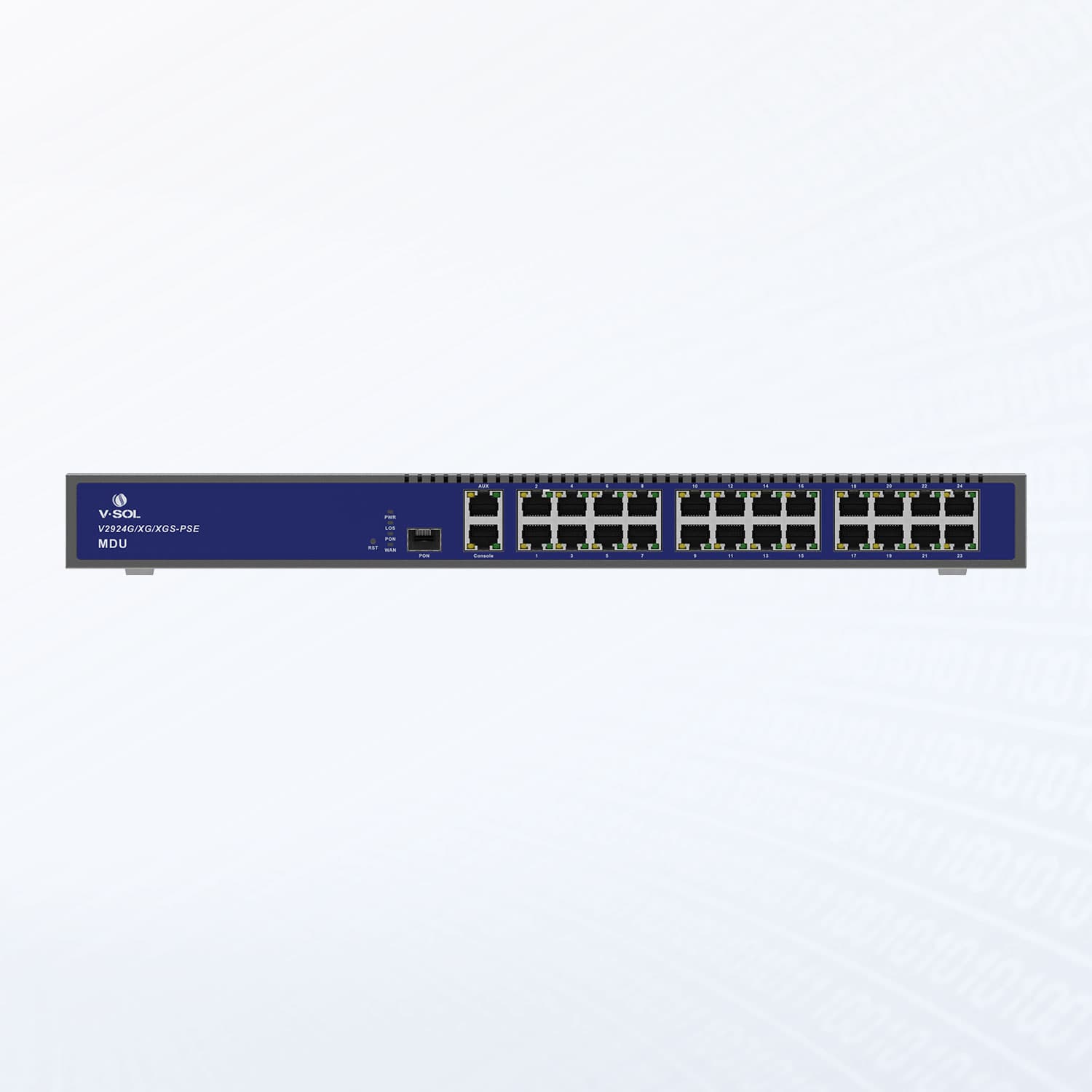

V2924G/XG/XGS(-PSE) — 1PON+24GE MDU
Compatibilidad Triple PON | Opcional PoE+ | Alimentación Energética Eficiente Modelo: V2924G/XG/XGS(-PSE)
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

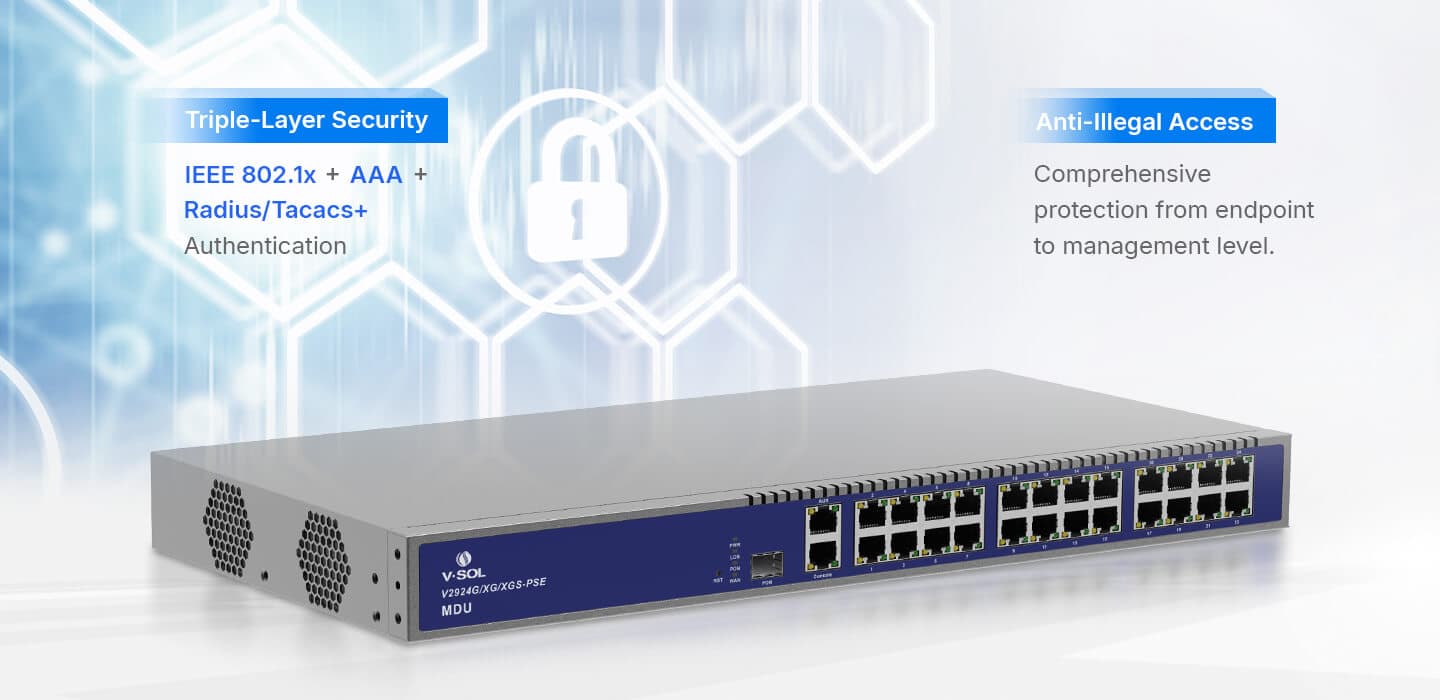

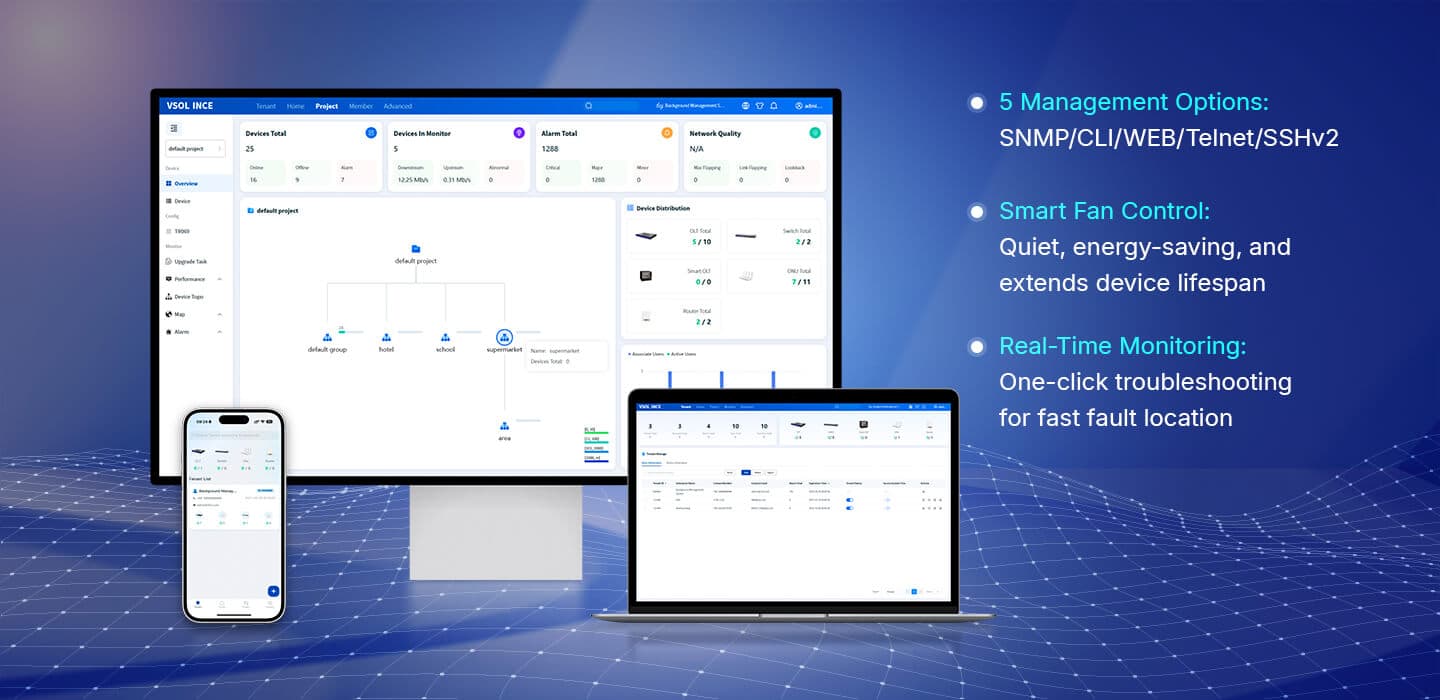

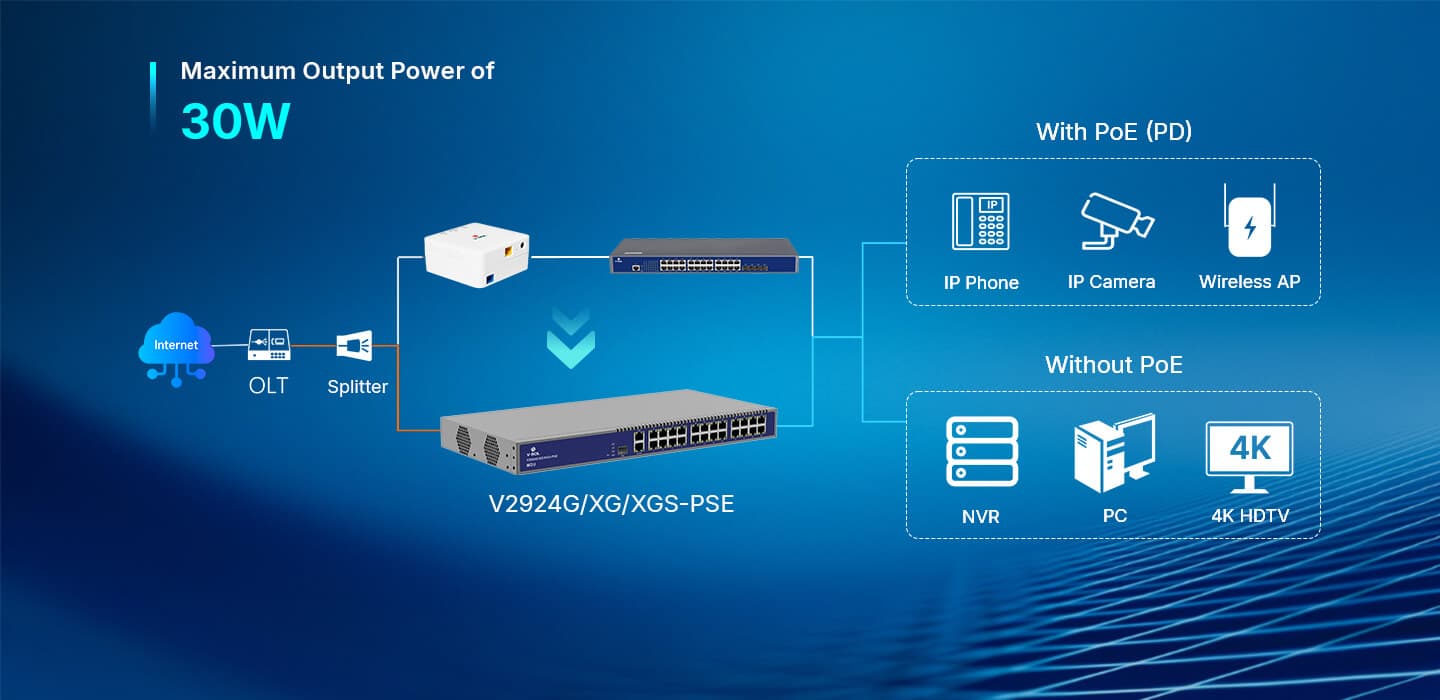

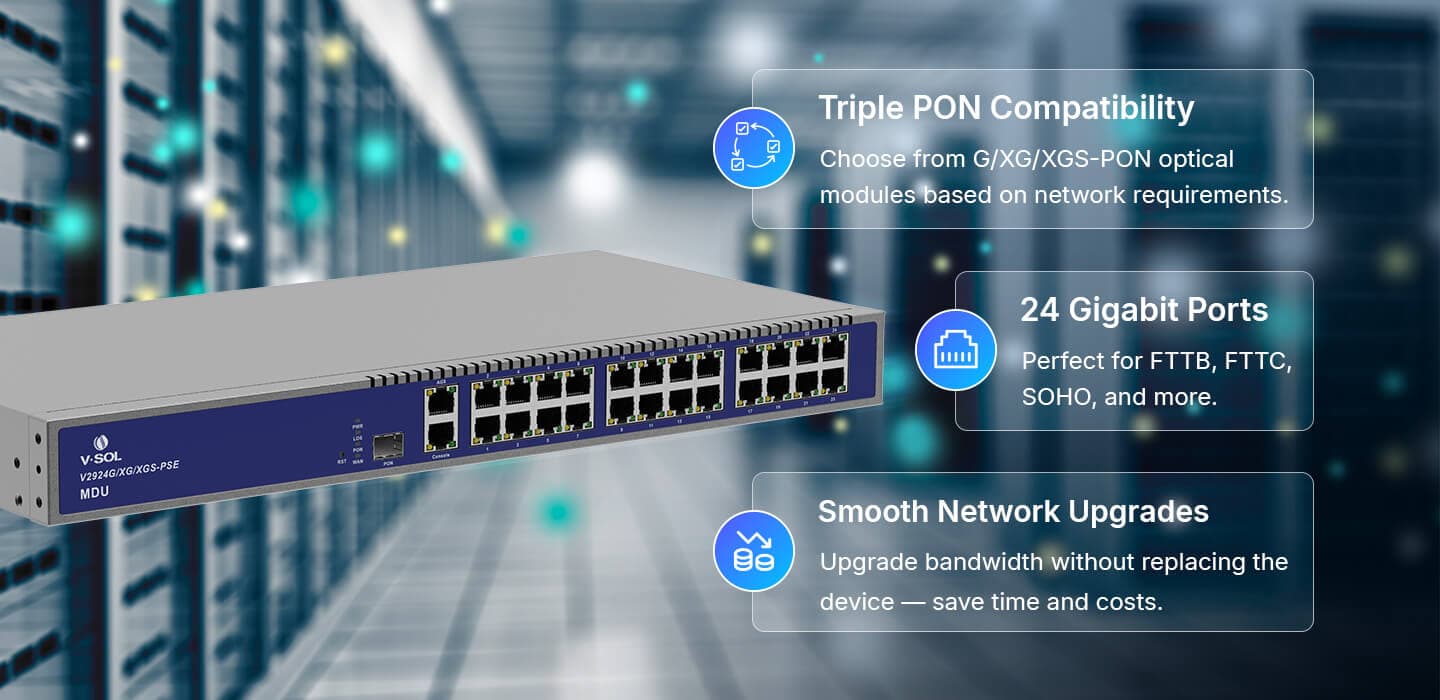

Solución todo en uno para Redes de seguridad, comerciales y residenciales Soporte PON de triple modo Despliegue flexible con suministro eficiente de energía Despliegue flexible con suministro eficiente de energía Gestión inteligente, operaciones simplificadas Conéctese en cualquier lugar, implante con confianza POE ONU de 24 puertos = 1*GPON/XG-PON/XGS-PON ONU + Conmutador LAN POE de 24 puertos V2924G/XG/XGS(-PSE) Item V2924G/XG/XGS V2924G/XG/XGS-PSE Chassis Rack 1U 19-inch standard box 1G User Port QTY 24 Physical Interface RJ45(GE) RJ45(GE, PoE) Forward Rate 1Gbps 10G Uplink Port QTY 1 Physical Interface SFP Slots, GPON/XG-PON/XGS-PON (Depends on the type of PON optical module inserted) Forward Rate GPON (US:1.25Gbps, DS:2.5Gbps), XG-PON (US:2.5Gbps, DS:10Gbps), XGS-PON (US:10Gbps, DS:10Gbps). Management Ports 1*CONSOLE port and 1*AUX port Switching Capacity (Gbps) 90 Throughput (Mbps) 9736.842 Dimension (L×W×H) 442*163*43.6mm 442*216.2*43.6mm Weight 2.15kg 3.20kg AC Power Supply Working Voltage Range: 100~240V, Rated Voltage: 110V/220V Maximum PoE power per port / 30W Maximum PoE power supply power of the whole device / ≥370W Maximum power consumption of the whole machine 13.8W ≥400w Operating Environment Working Temperature -30 ~ +60°C Storage Temperature -40 ~ +85°C Relative Humidity 5 ~ 95% (non-condensing)
Especificaciones técnicas
- Item
- V2924G/XG/XGS | V2924G/XG/XGS-PSE
- Chassis
- Rack | 1U 19-inch standard box
- 1G User Port
- QTY | 24
- Physical Interface
- RJ45(GE) | RJ45(GE, PoE)
- Forward Rate
- 1Gbps
- 10G Uplink Port
- QTY | 1
- Physical Interface
- SFP Slots, GPON/XG-PON/XGS-PON (Depends on the type of PON optical module inserted)
- Forward Rate
- GPON (US:1.25Gbps, DS:2.5Gbps), XG-PON (US:2.5Gbps, DS:10Gbps), XGS-PON (US:10Gbps, DS:10Gbps).
- Management Ports
- 1*CONSOLE port and 1*AUX port
- Switching Capacity (Gbps)
- 90
- Throughput (Mbps)
- 9736.842
- Dimension (L×W×H)
- 442*163*43.6mm | 442*216.2*43.6mm
- Weight
- 2.15kg | 3.20kg
- AC Power Supply
- Working Voltage Range: 100~240V, Rated Voltage: 110V/220V
- Maximum PoE power per port
- / | 30W
- Maximum PoE power supply power of the whole device
- / | ≥370W
- Maximum power consumption of the whole machine
- 13.8W | ≥400w
- Operating Environment
- Working Temperature | -30 ~ +60°C
- Storage Temperature
- -40 ~ +85°C
- Relative Humidity
- 5 ~ 95% (non-condensing)
