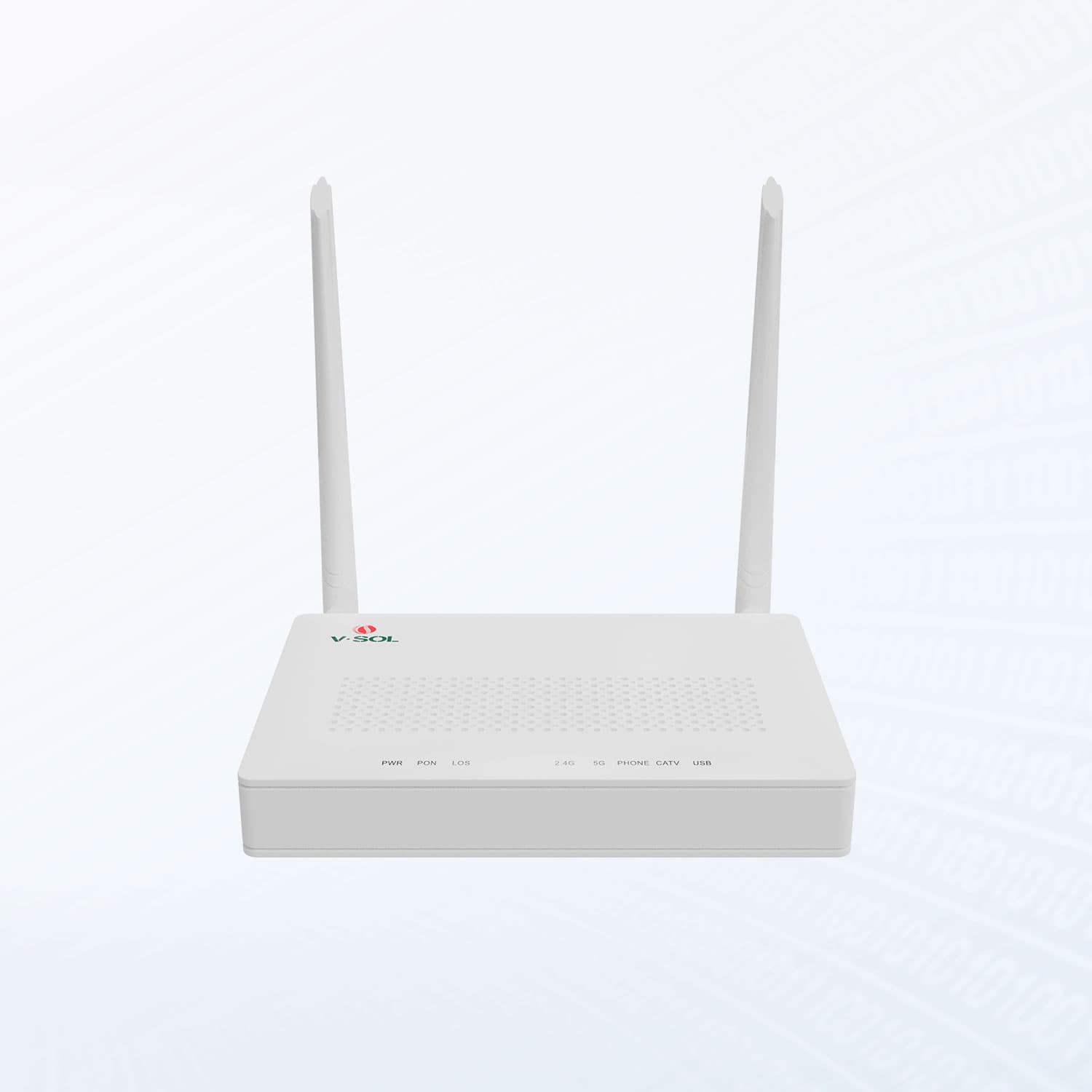

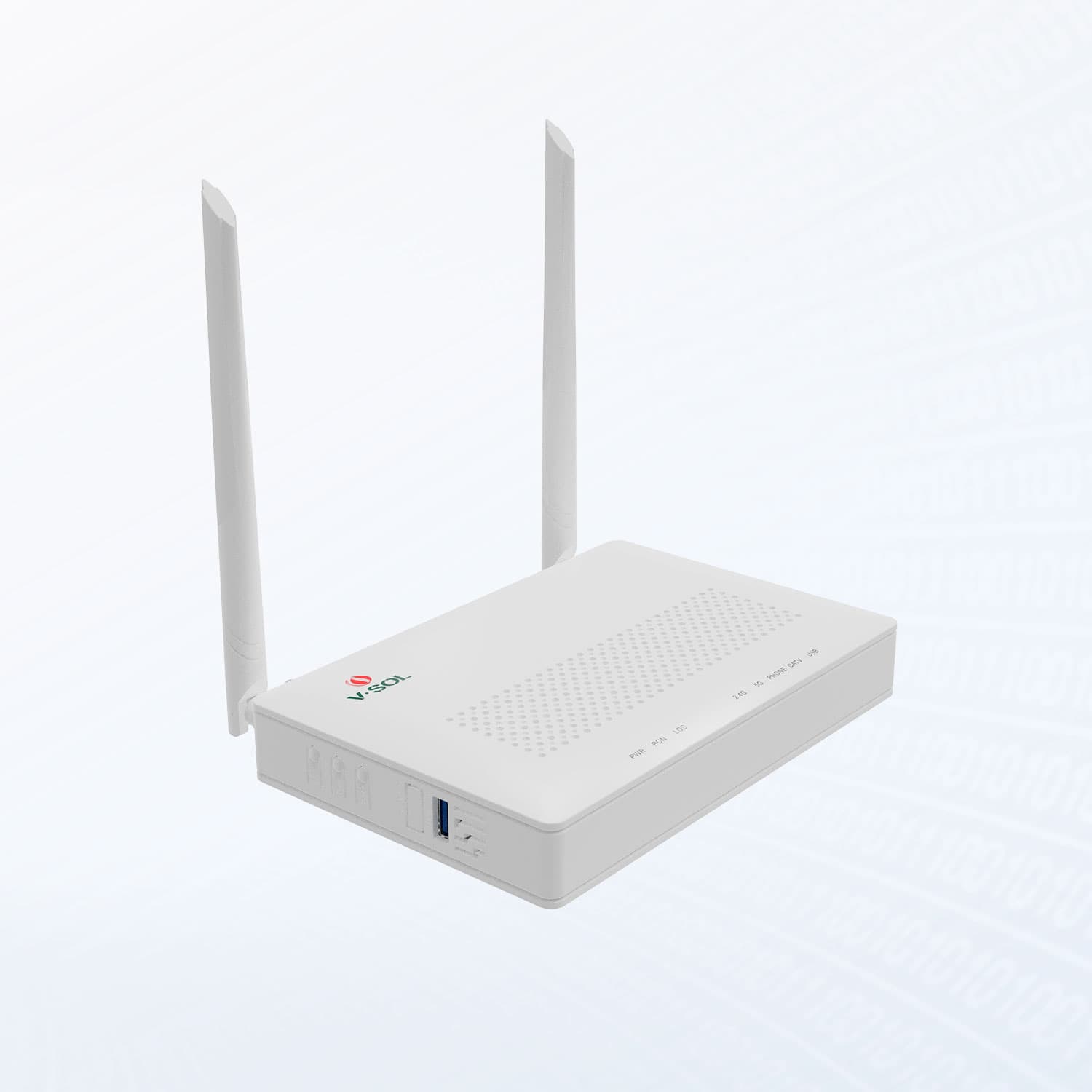

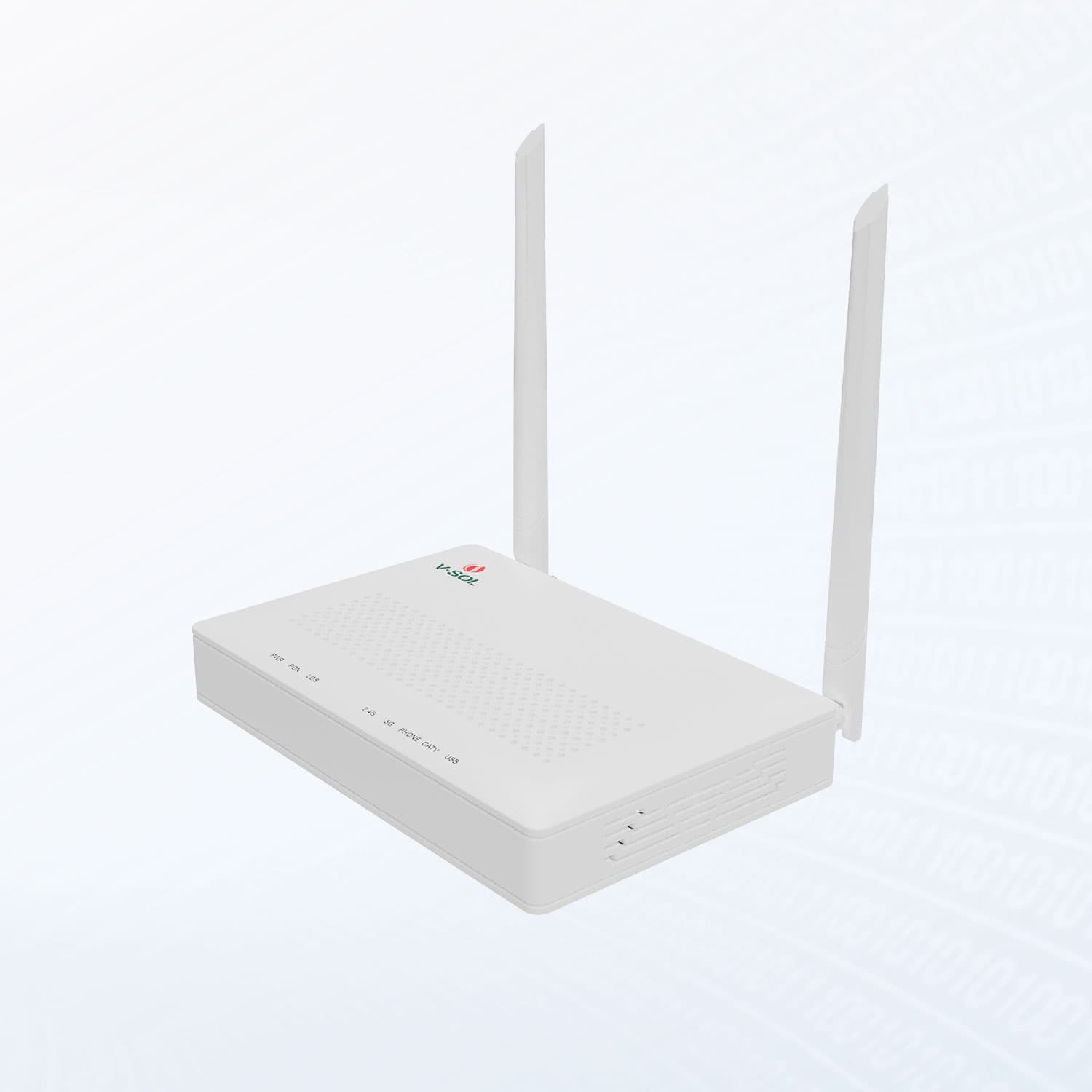

HG325AC(T)-A — 1XPON+4GE+1POTS+CATV+USB 3.0+Wi-Fi 5 HGU ONT

Descripción

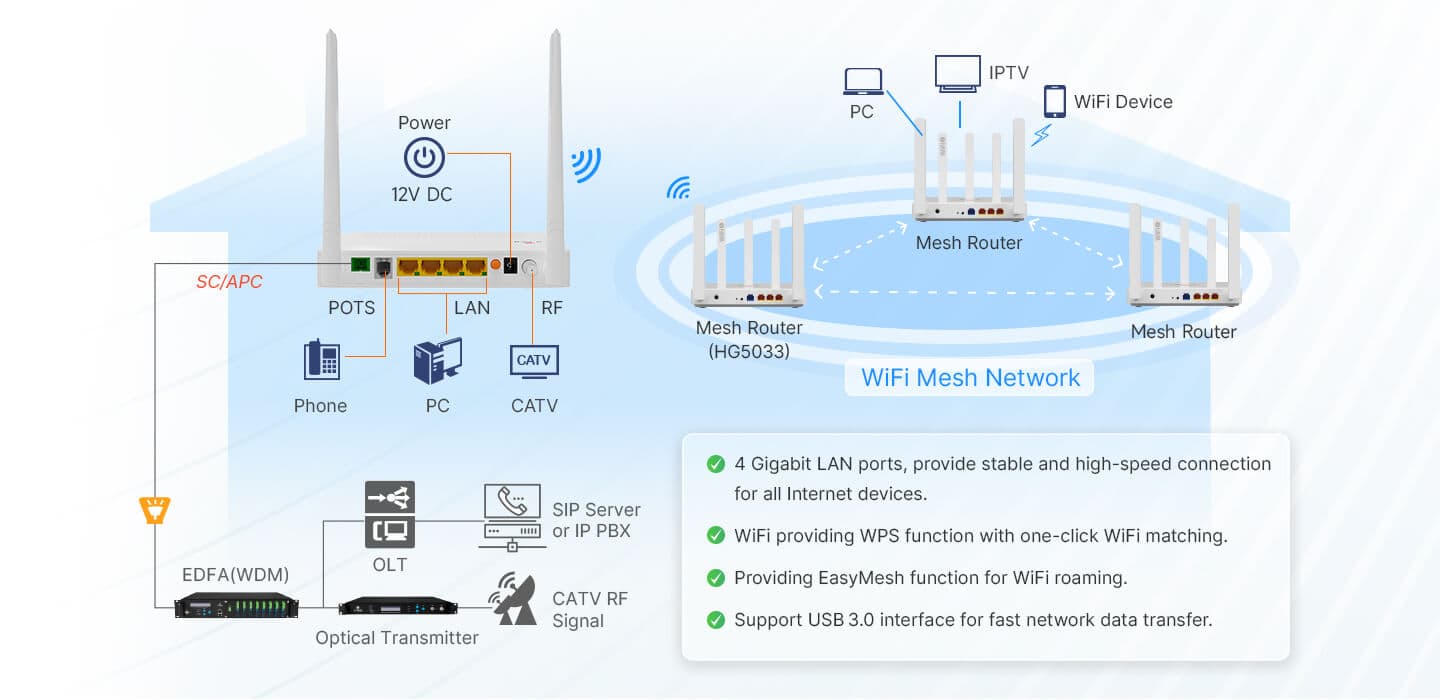

Triple play Wi-Fi 5 ONT a un precio inmejorable HG325AC(T)-A | 4*GE+Wi-Fi 5+CATV（opcional）+1POTS +USB3.0 Integración multiservicio con selección flexible Antena de doble banda para una experiencia definitiva Antenas rentables de doble banda (2,4 GHz/5 GHz) con un SSID y conmutación inteligente para una experiencia mejorada. Malla Wi-Fi en toda la casa para una itinerancia sin fisuras Control remoto CATV(con AGC) On/Off Hardware Parameter Dimension 180mm×120mm×32mm(L×W×H) Net weight 280g Operating condition Operating temp: -10 ~ +55°C Operating humidity:5 ~ 95% (non-condensing) Storing condition Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensing) Power adapter DC12V,1.5A, external AC-DC power adaptor Power supply ≤12W Interface 4GE+1POTS+Wi-Fi 5+USB 3.0+CATV (optional) Indicators PWR 、 LOS 、 PON 、 2.4G 、 5G 、 WAN 、 WPS 、 USB 、 Phone 、 LAN1 ～ 4 、 CATV (optional) Interface Parameter PON interface l 1XPON port(EPON PX20+ & GPON Class B+) l SC single mode, SC/APC connector l TX optical power: 0 ～ +4dBm l RX sensitivity: -27dBm l Overload optical power: -3dBm(EPON) or -8dBm(GPON) l Transmission distance: 20KM l Wavelength: TX 1310nm, RX1490nm User interface l 4*GE, Auto-negotiation, RJ45 ports l 1 POTS RJ11 Connector l 1*USB 3.0 WLAN interface l Compliant with IEEE802.11b/g/n/ac l Wi-Fi:2.4GHz 、 5.8GHz 2×2, 3dBi antenna, rate up to 1.167Gbps,Multiple SSID l TX power: 2.4GHz: 18dBm; 5GHz: 17dBm l RX power: 2.4GHz: HT40-MCS7 -71dBm; 5GHz: VHT80 MCS9 <-63dBm CATV interface (optional) l Optical receiving wavelength: 1550±10nm l Optical input range: +2 ～ -18dBm l Optical reflection loss: ≥40dB l RF frequency range: 47 ～ 1000MHz l RF output impedance: 75Ω l RF output level and AGC range: ≥81±2dBuv@+1 ～ -10dBm ≥79±2dBuv@ 0 ～ -11dBm ≥77±2dBuv@-1 ～ -12dBm ≥75±2dBuv@-2 ～ -13dBm ≥73±2dBuv@-3 ～ -14dBm ≥71±2dBuv@-4 ～ -15dBm l MER: ≥32dB(-14dBm optical input) Function Data O&M l OAM/OMCI,Telnet,WEB,TR069 l Support full management of HGU functions by VSOL OLT Multicast l IGMP v1/v2/v3, IGMP snooping l IGMP Proxy l MLD v1/v2 snooping l MLD Proxy Wireless l Integrated 802.11b/g/n/ac l Authentication: WAP-PSK(TKIP)/ WAP2-PSK(AES) l Support Multiple SSID l Support hidden SSID l Support Mesh l Supports up to 64 maximum device connections QoS l Support 4 queues l Support SP, WRR, 802.1P and DSCP L2 l Support 802.1D&802.1ad bridge, 802.1Q VLAN VoIP l SIP and IMS SIP l G.711a/G.711u/G.722/G.729 Codec l Echo cancellation,VAD/CNG,DTMF Relay l Caller Identification/Call Waiting/Call l Forwarding/Call Transfer/Call Hold/3-way Conference L3 l IPv4, IPv6 and IPv4/IPv6 dual stack l DHCP/PPPOE/Static l Static route, DHCP Server l NAT/DMZ/DDNS/Virtual Server Security l Support Firewall l Support Mac filter Based on MAC or URL l Support ACL l Support Loop detection System Function l Support NTP (Network Time Protocol) l Support Scheduled device restart l Support Ping and Traceroute diagnosis

Especificaciones técnicas

Dimension

180mm×120mm×32mm(L×W×H)

Net weight

280g

Operating condition

Operating temp: -10 ~ +55°C Operating humidity:5 ~ 95% (non-condensing)

Storing condition

Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensing)

Power adapter

DC12V,1.5A, external AC-DC power adaptor

Power supply

≤12W

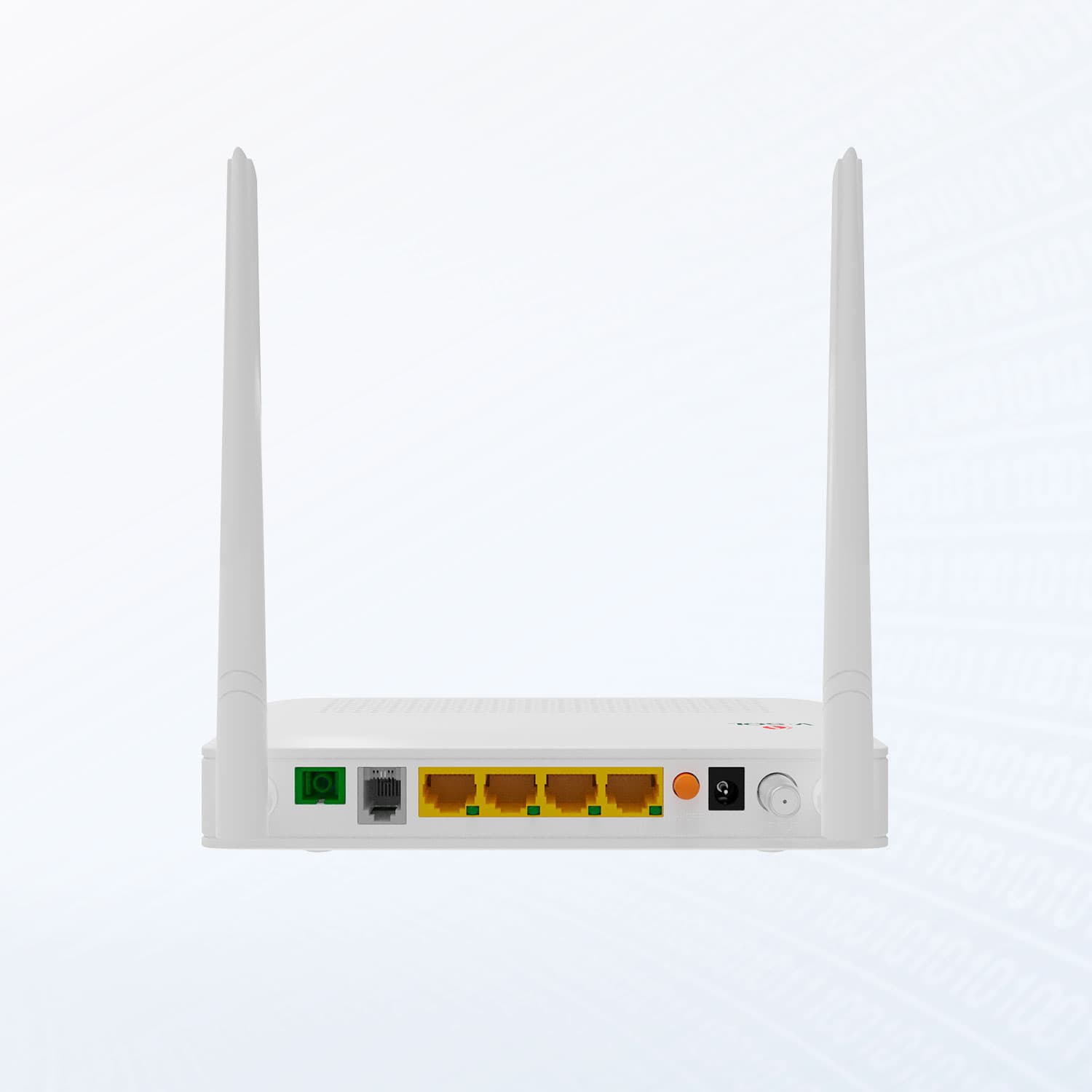

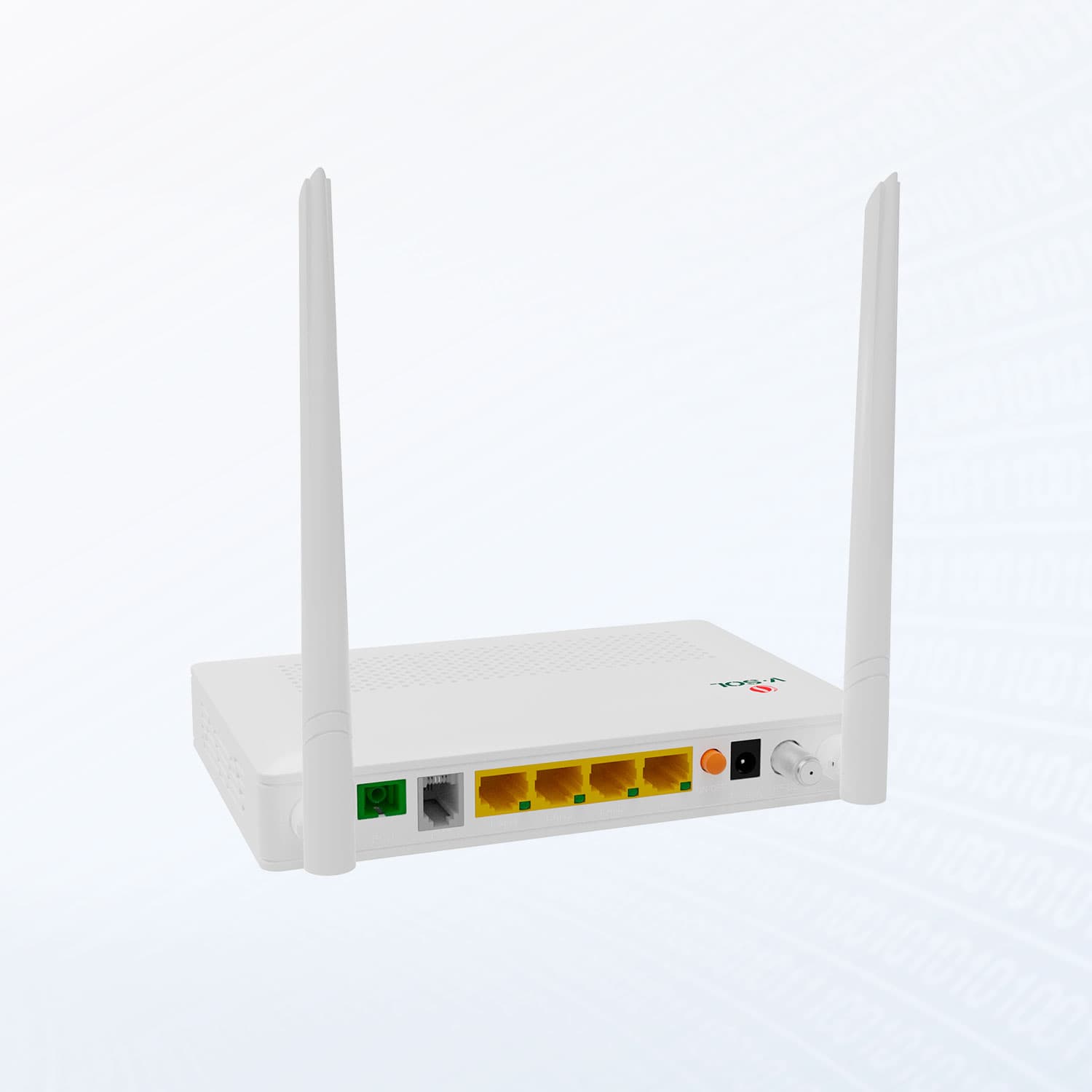

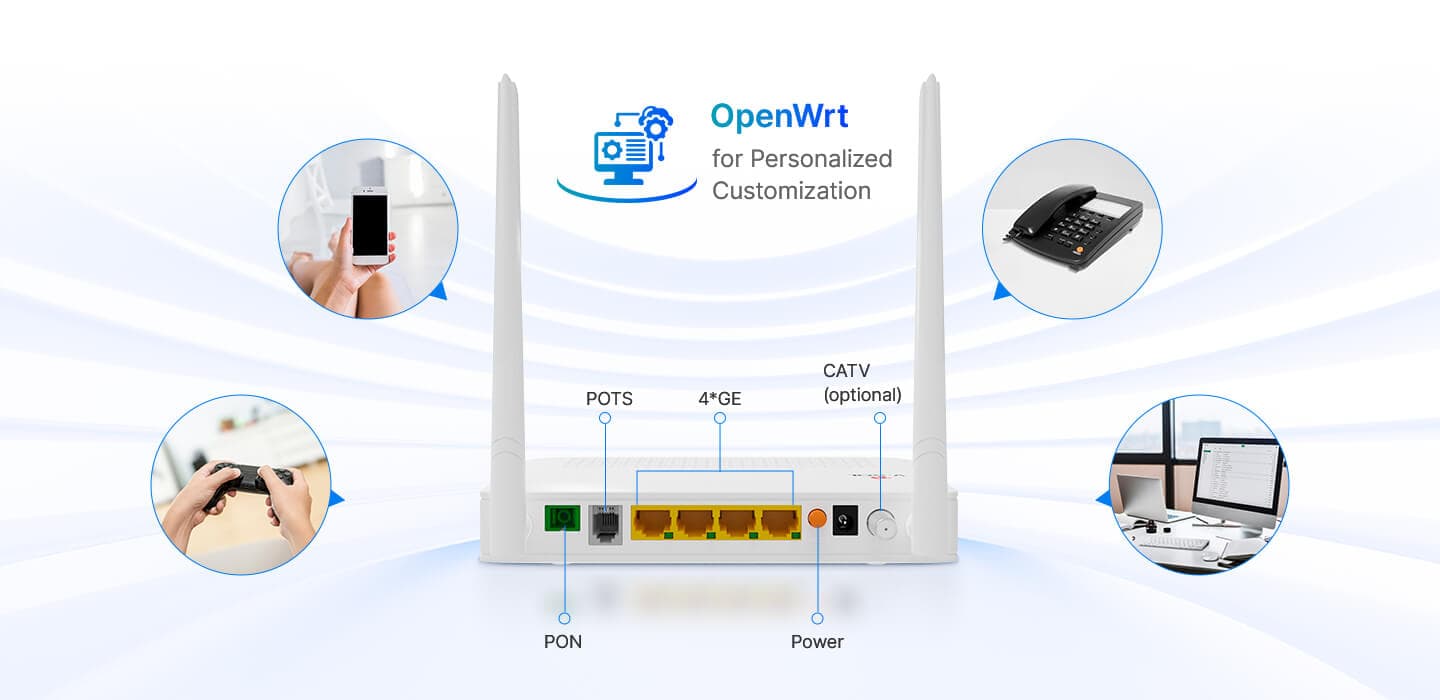

Interface

4GE+1POTS+Wi-Fi 5+USB 3.0+CATV (optional)

Indicators

PWR 、 LOS 、 PON 、 2.4G 、 5G 、 WAN 、 WPS 、 USB 、 Phone 、 LAN1 ～ 4 、 CATV (optional)

PON interface

l 1XPON port(EPON PX20+ & GPON Class B+) l SC single mode, SC/APC connector l TX optical power: 0 ～ +4dBm l RX sensitivity: -27dBm l Overload optical power: -3dBm(EPON) or -8dBm(GPON) l Transmission distance: 20KM l Wavelength: TX 1310nm, RX1490nm

User interface

l 4*GE, Auto-negotiation, RJ45 ports l 1 POTS RJ11 Connector l 1*USB 3.0

WLAN interface

l Compliant with IEEE802.11b/g/n/ac l Wi-Fi:2.4GHz 、 5.8GHz 2×2, 3dBi antenna, rate up to 1.167Gbps,Multiple SSID l TX power: 2.4GHz: 18dBm; 5GHz: 17dBm l RX power: 2.4GHz: HT40-MCS7 -71dBm; 5GHz: VHT80 MCS9 <-63dBm

CATV interface (optional)

l Optical receiving wavelength: 1550±10nm l Optical input range: +2 ～ -18dBm l Optical reflection loss: ≥40dB l RF frequency range: 47 ～ 1000MHz l RF output impedance: 75Ω l RF output level and AGC range: ≥81±2dBuv@+1 ～ -10dBm ≥79±2dBuv@ 0 ～ -11dBm ≥77±2dBuv@-1 ～ -12dBm ≥75±2dBuv@-2 ～ -13dBm ≥73±2dBuv@-3 ～ -14dBm ≥71±2dBuv@-4 ～ -15dBm l MER: ≥32dB(-14dBm optical input)

O&M

l OAM/OMCI,Telnet,WEB,TR069 l Support full management of HGU functions by VSOL OLT

Multicast

l IGMP v1/v2/v3, IGMP snooping l IGMP Proxy l MLD v1/v2 snooping l MLD Proxy

Wireless

l Integrated 802.11b/g/n/ac l Authentication: WAP-PSK(TKIP)/ WAP2-PSK(AES) l Support Multiple SSID l Support hidden SSID l Support Mesh l Supports up to 64 maximum device connections

QoS

l Support 4 queues l Support SP, WRR, 802.1P and DSCP

L2

l Support 802.1D&802.1ad bridge, 802.1Q VLAN

VoIP

l SIP and IMS SIP l G.711a/G.711u/G.722/G.729 Codec l Echo cancellation,VAD/CNG,DTMF Relay l Caller Identification/Call Waiting/Call l Forwarding/Call Transfer/Call Hold/3-way Conference

L3

l IPv4, IPv6 and IPv4/IPv6 dual stack l DHCP/PPPOE/Static l Static route, DHCP Server l NAT/DMZ/DDNS/Virtual Server

Security

l Support Firewall l Support Mac filter Based on MAC or URL l Support ACL l Support Loop detection

System Function

l Support NTP (Network Time Protocol) l Support Scheduled device restart l Support Ping and Traceroute diagnosis
