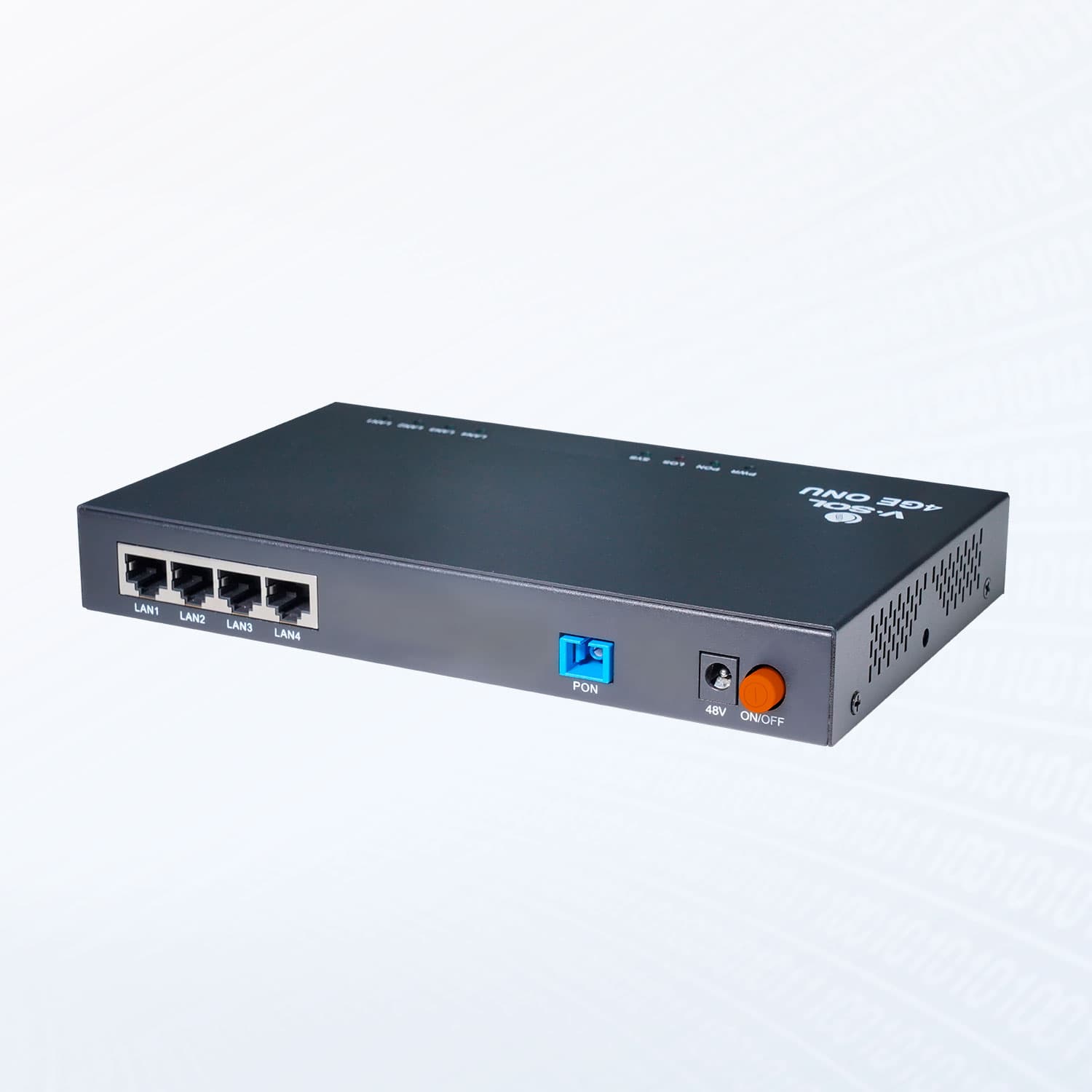

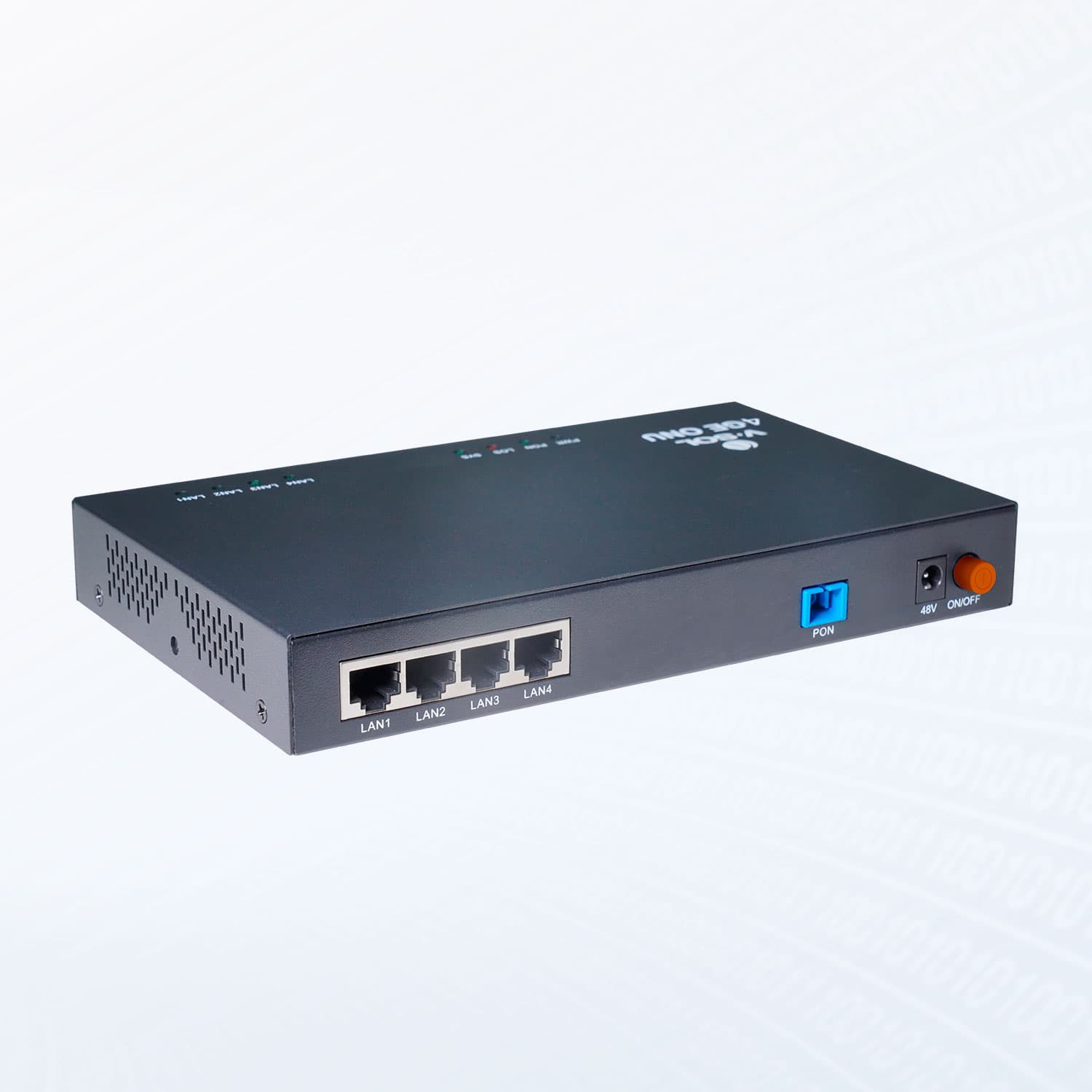

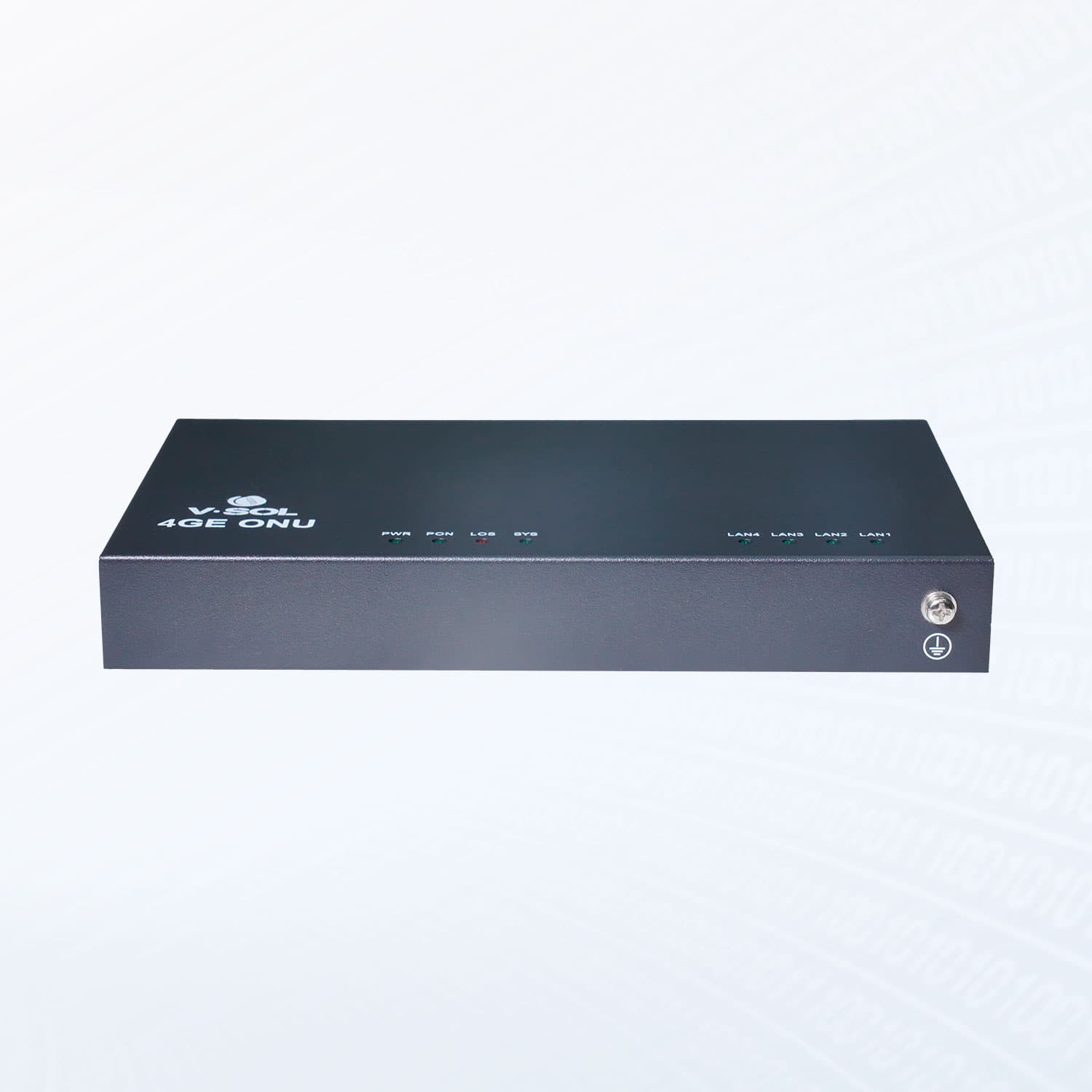

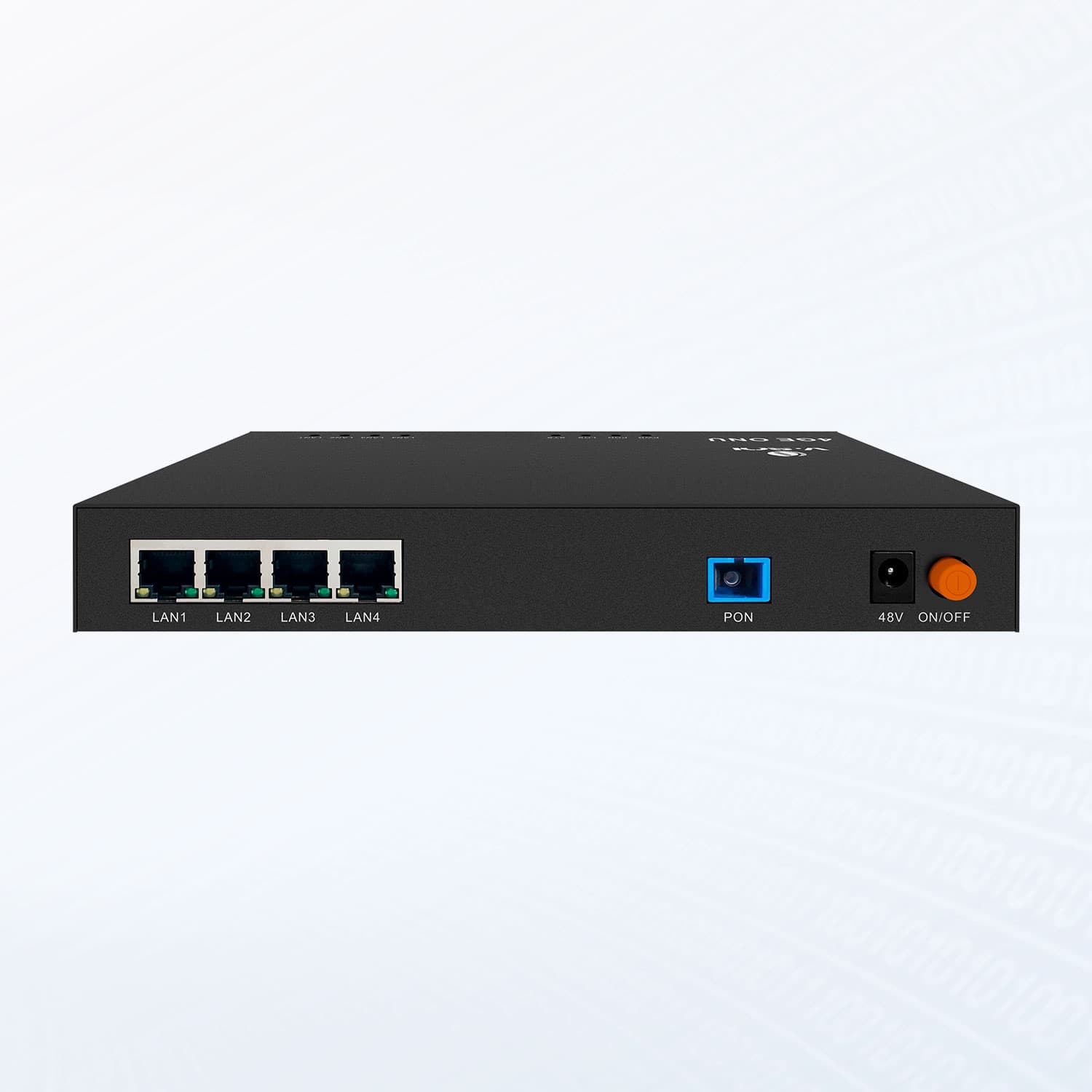

V2804-4GL(-PSE) — 1XPON+4GE(PoE+) ONU

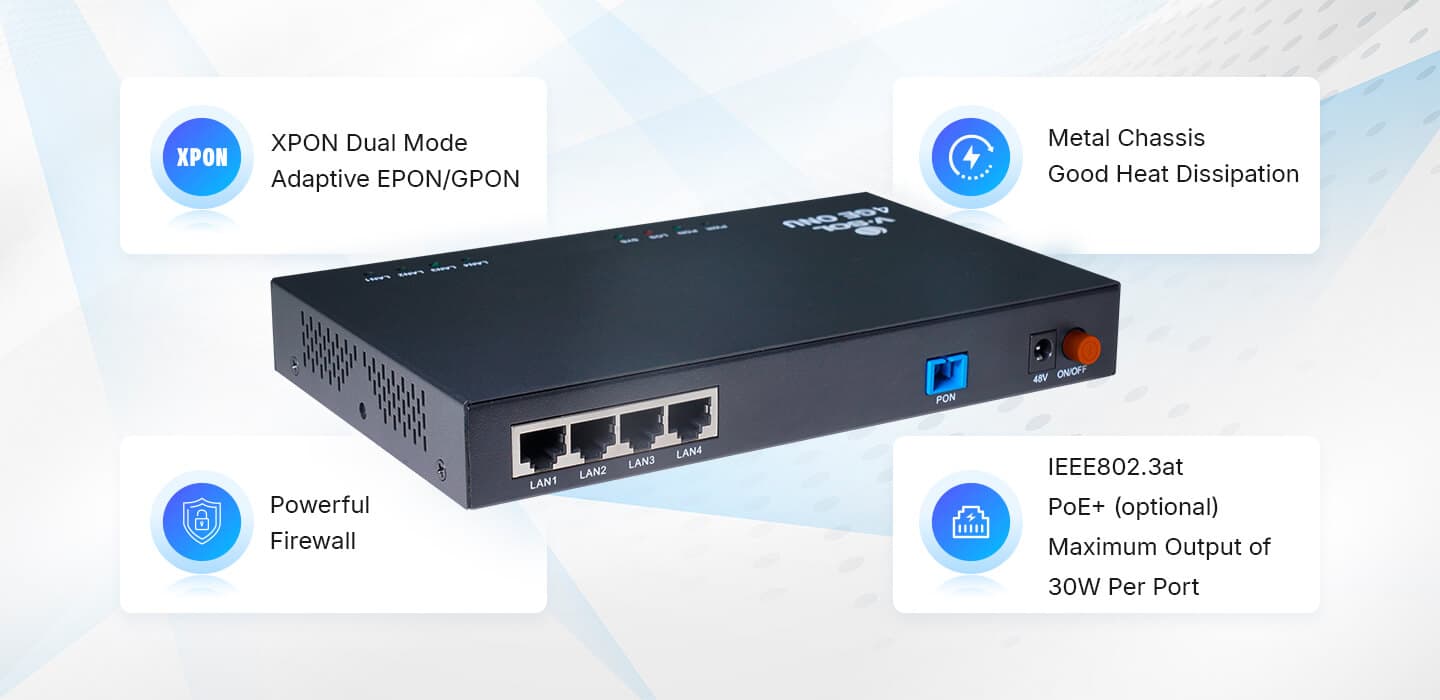

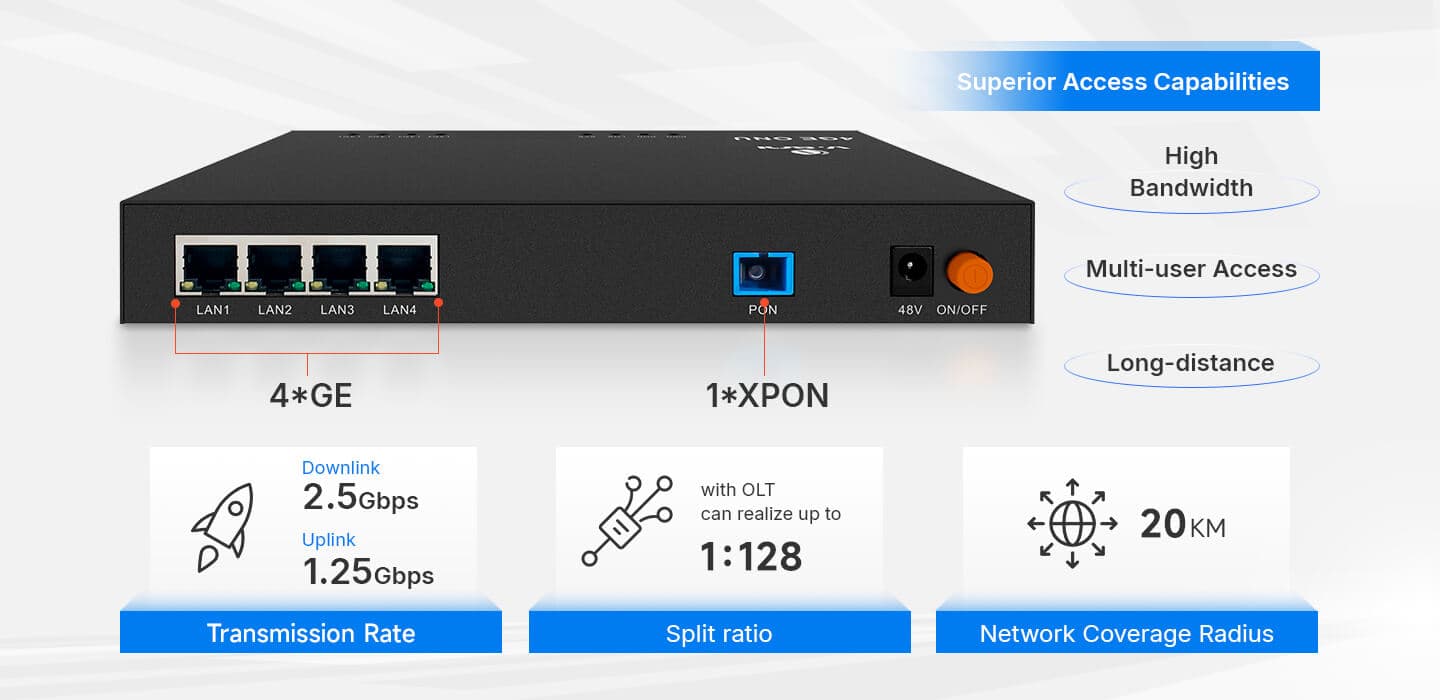

Opcional PoE+ | XPON Dual Mode | Capacidades de Acceso Superiores Modelo: V2804-4GL(-PSE)
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

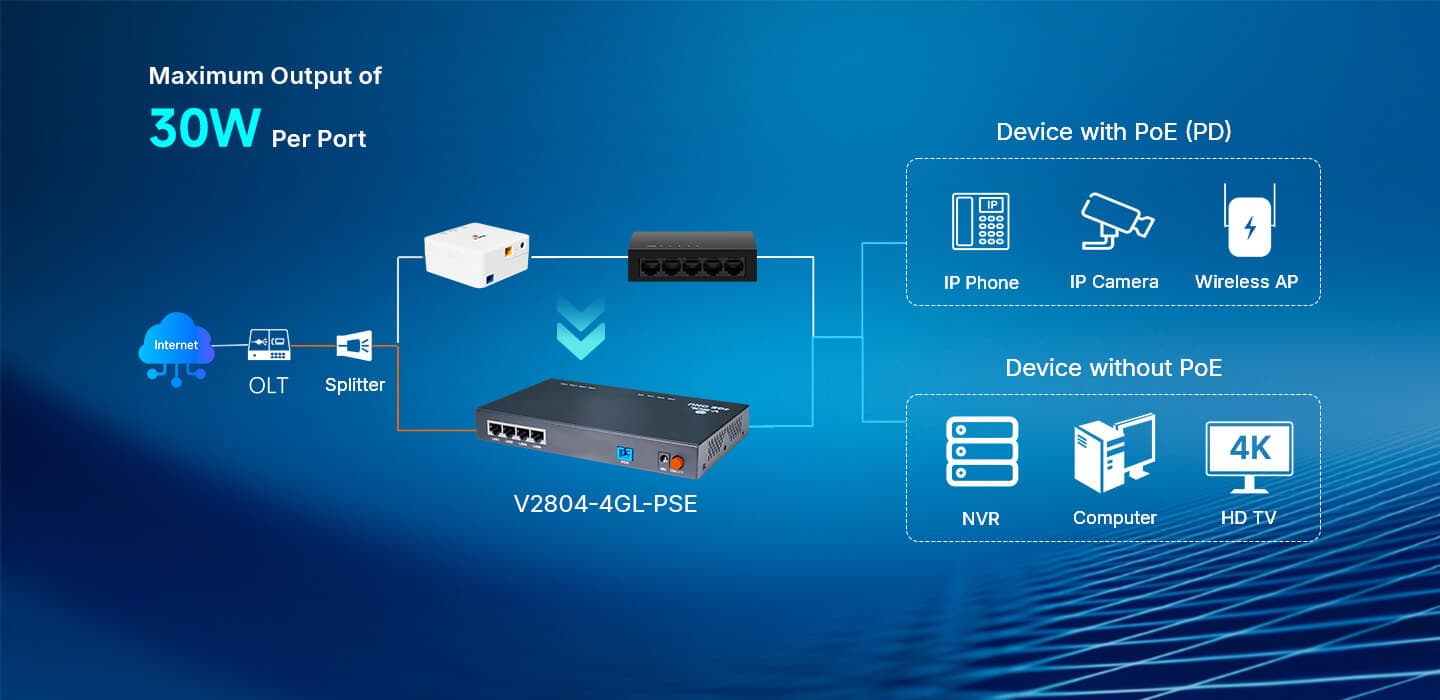

Diseñado específicamente para operadores de telecomunicaciones Madura, estable y rentable Funciones de control empresarial detalladas Rendimiento de acceso superior PoE ONU de 4 puertos = 1*XPON ONU + conmutador LAN PoE de 4 puertos V2804-4GL ( -PSE ) XPON ONU Items V2804-4GL V2804-4GL-PSE PON Interface Receiver Sensitivity -27dBm TX Optical Power 0~+4dBm Transmission Distance 20KM Wavelength TX 1310nm, RX1490nm Optical Interface SC/UPC Connectors LAN Interface Quantities 4×GE (PoE) 8 x GE (PoE) Speed GE:10/100/1000Mbps adaptive ethernet interface, RJ45 Connector PoE: IEEE802.3af/at Operating condition Temp: -10 ~ +55°C; Humidity: 10 ~ 90% (non-condensing) Operating Voltage DC 12V/1A, e xternal power adapter DC 54V 1.11A, external power adapter Power Wastage ≤60W (with PoE supply) ， ≤ 12 W(without PoE supply) Size(L×W×H) 205mm×125mm×28mm
Especificaciones técnicas
- Items
- V2804-4GL | V2804-4GL-PSE
- PON Interface
- Receiver Sensitivity | -27dBm
- TX Optical Power
- 0~+4dBm
- Transmission Distance
- 20KM
- Wavelength
- TX 1310nm, RX1490nm
- Optical Interface
- SC/UPC Connectors
- LAN Interface
- Quantities | 4×GE (PoE) | 8 x GE (PoE)
- Speed
- GE:10/100/1000Mbps adaptive ethernet interface, RJ45 Connector PoE: IEEE802.3af/at
- Operating condition
- Temp: -10 ~ +55°C; Humidity: 10 ~ 90% (non-condensing)
- Operating Voltage
- DC 12V/1A, e xternal power adapter | DC 54V 1.11A, external power adapter
- Power Wastage
- ≤60W (with PoE supply) ， ≤ 12 W(without PoE supply)
- Size(L×W×H)
- 205mm×125mm×28mm
