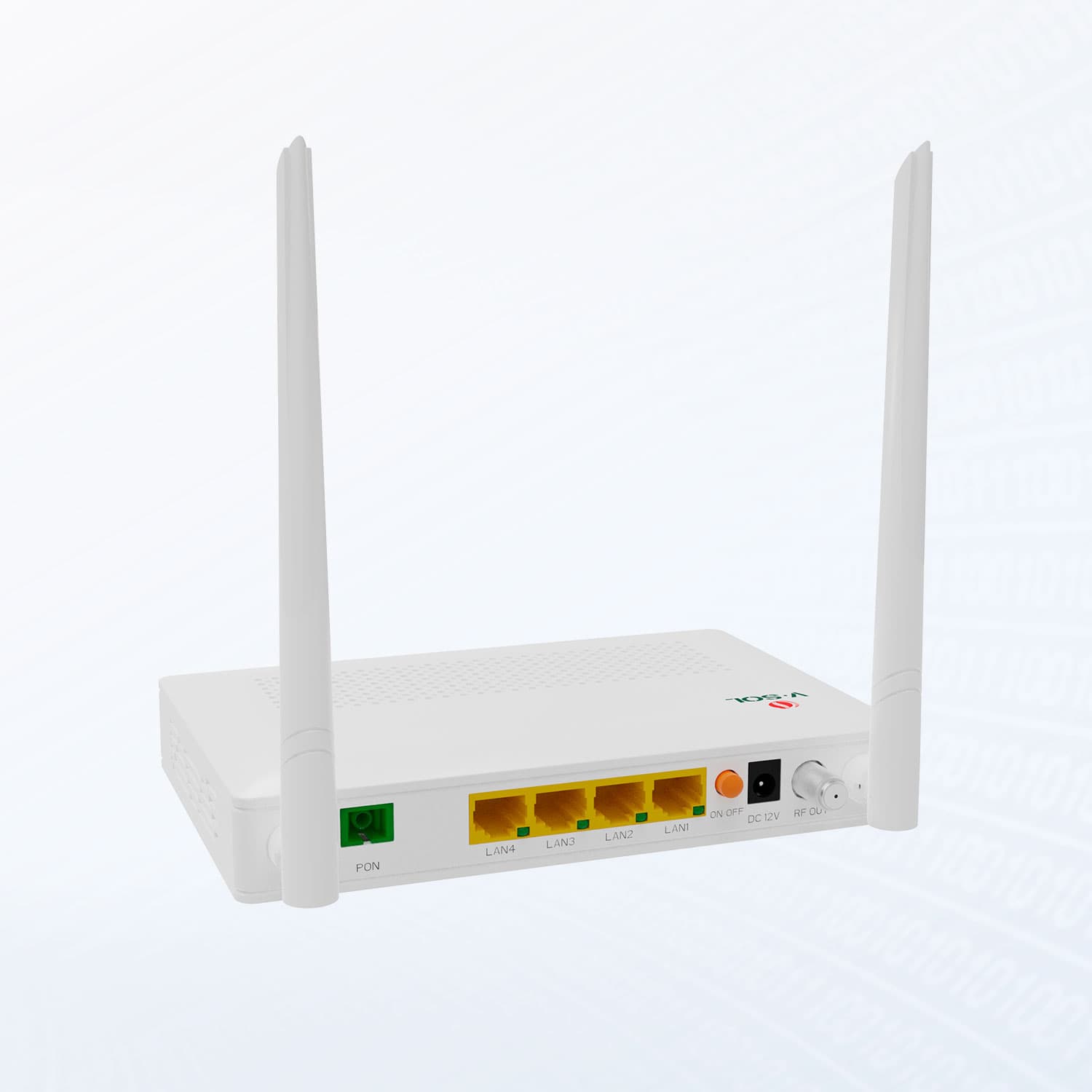

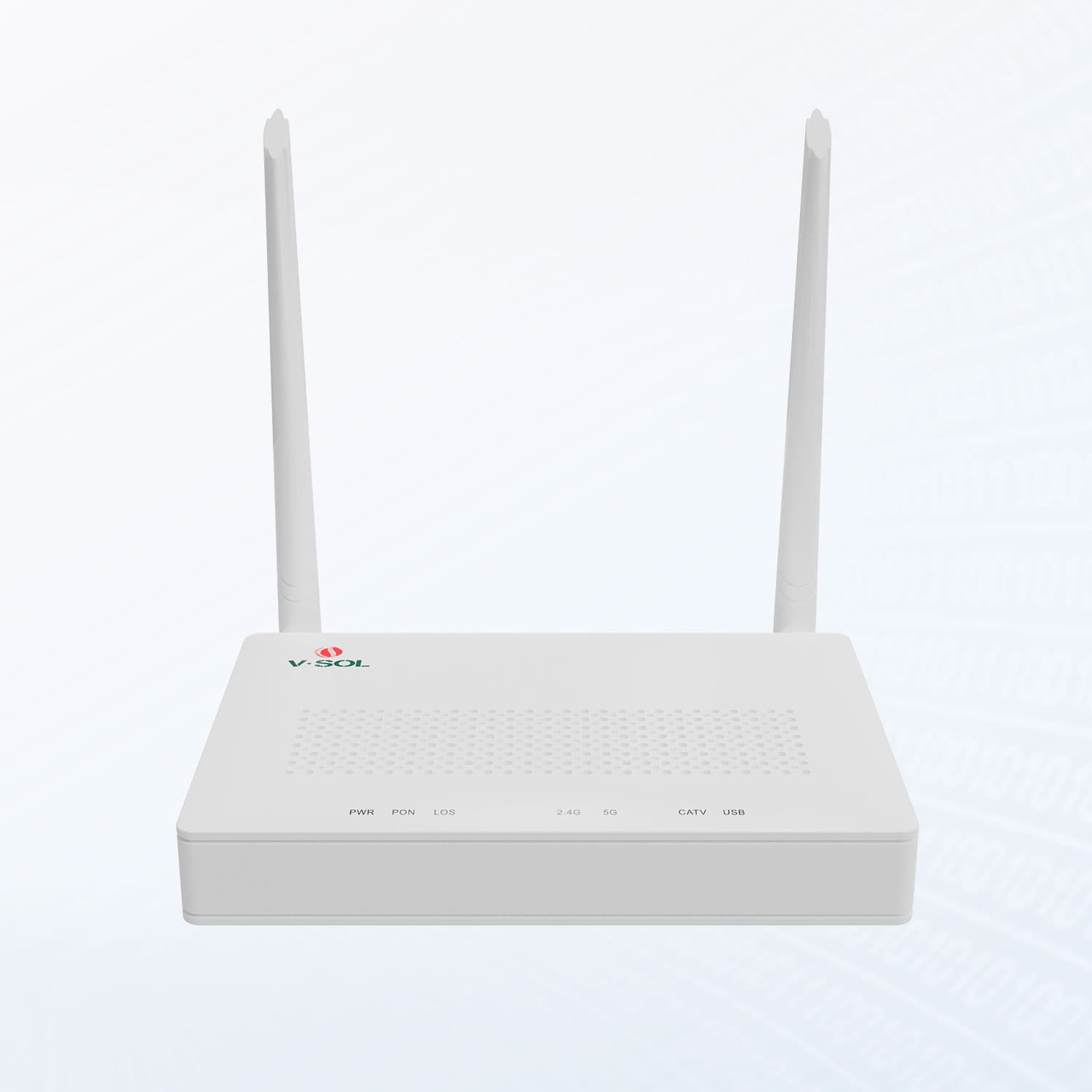

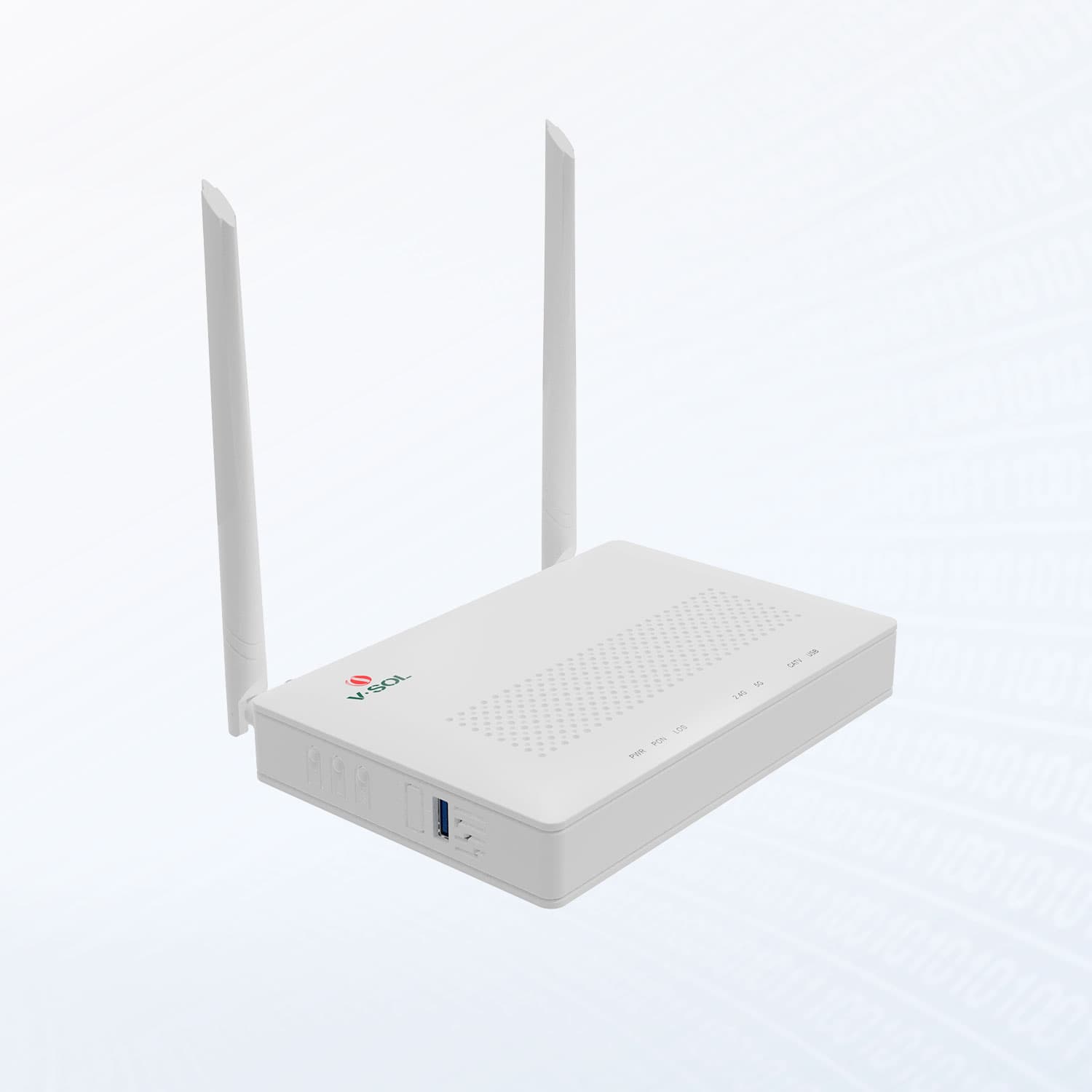

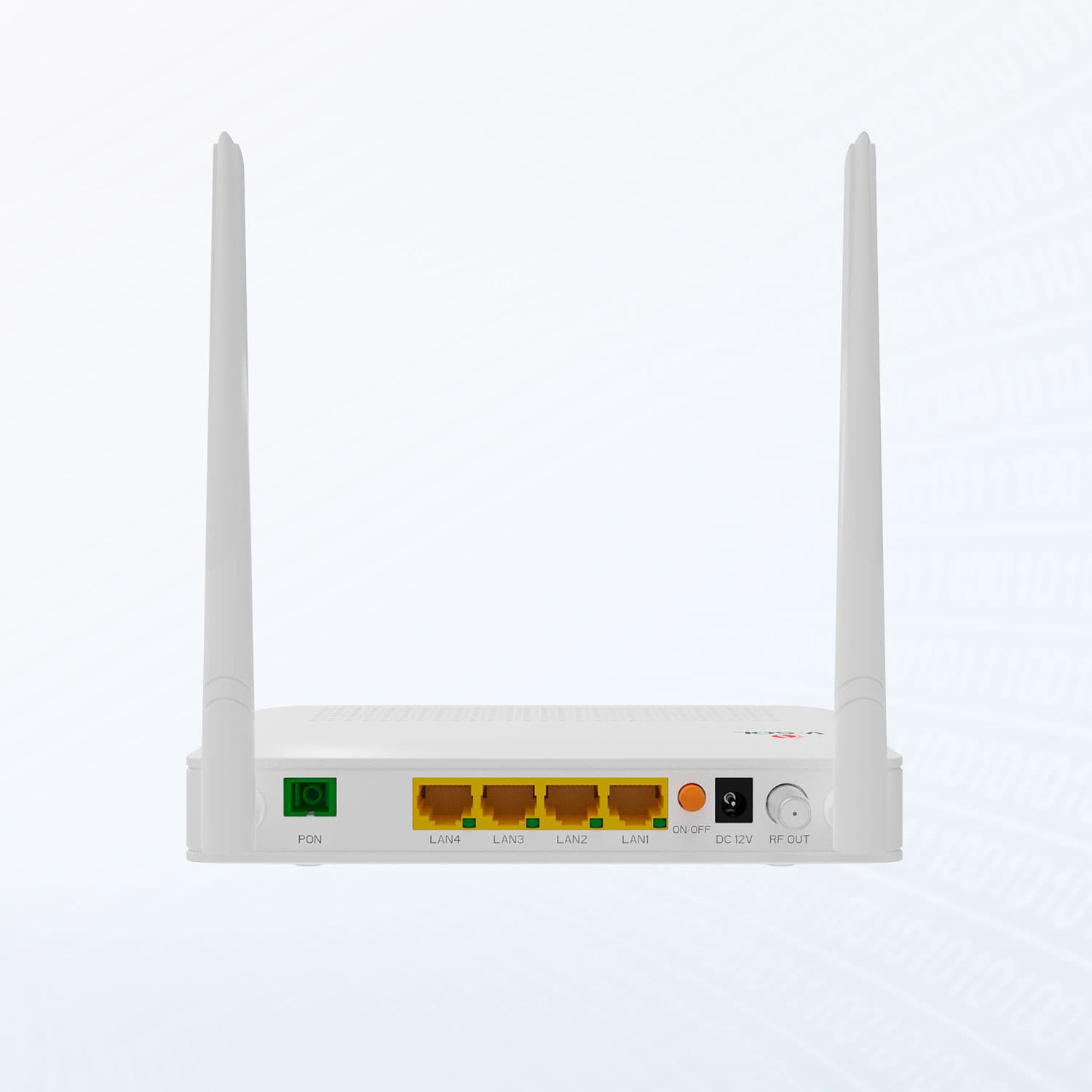

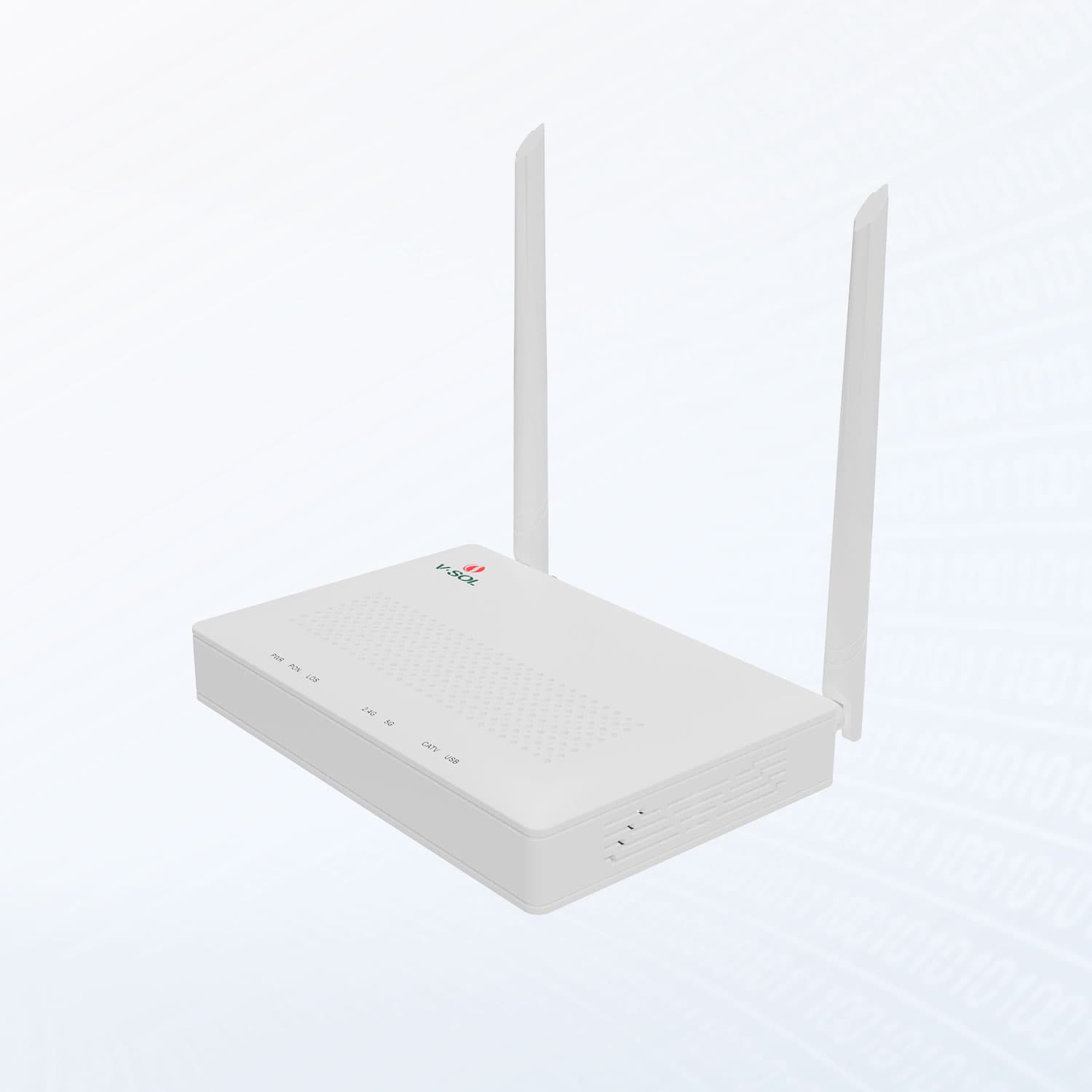

V2804AC(T)-A — 1GE(WAN/LAN1)+3GE(LAN)+USB 3.0+Wi-Fi 5 HGU ONT

Descripción

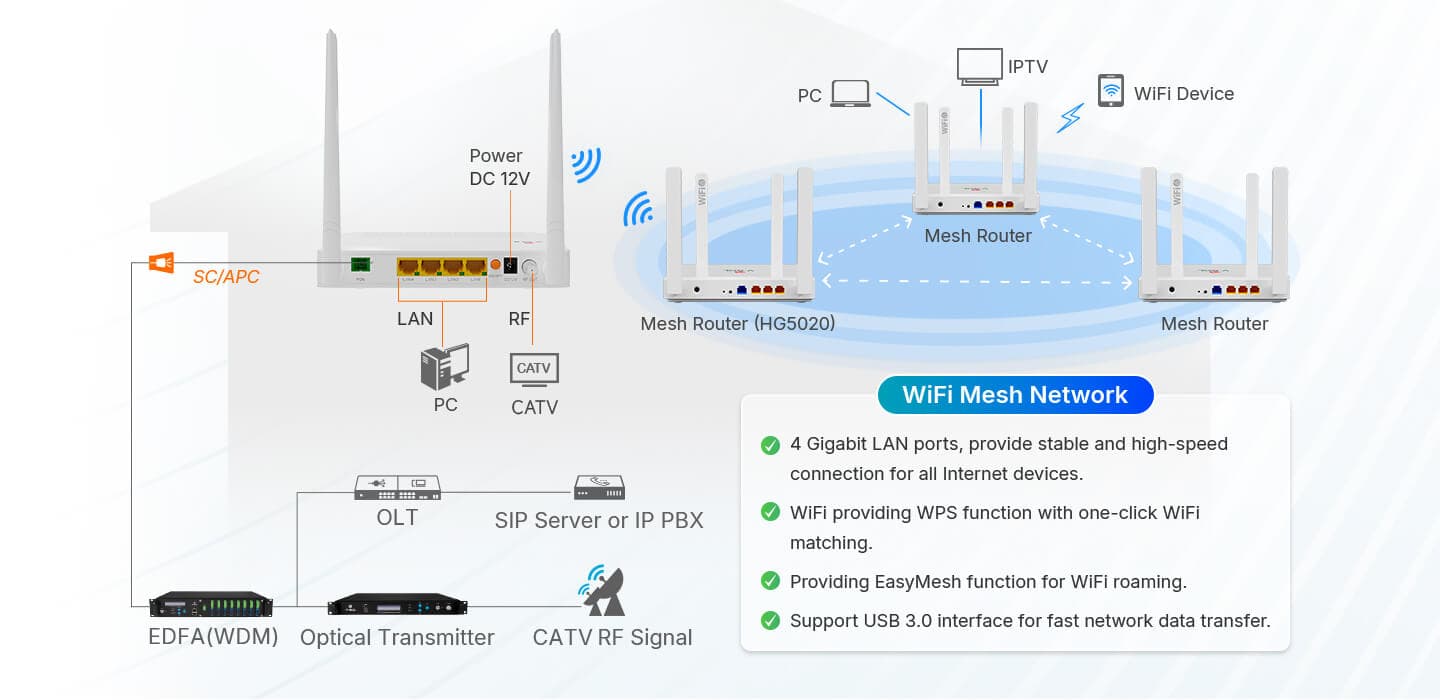

Valor imbatible Wi-Fi 5 ONT de doble banda V2804AC(T)-A | 1XPON+1GE(WAN/LAN1)+3GE(LAN)+Wi-Fi 5+USB 3.0+CATV(opcional) Integración multiservicio con selección flexible Antena de doble banda para una experiencia definitiva Antenas económicas de doble banda (2,4 GHz/5 GHz) con un SSID y conmutación inteligente para una experiencia mejorada. Malla Wi-Fi en toda la casa para una itinerancia sin fisuras CATV Opcional con Mando a Distancia Encendido/Apagado Hardware Parameter Dimension 180mm×120mm×32mm(L×W×H) Net weight 280g Operating condition Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensing) Storing condition Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensing) Power adapter DC12V,1A, external AC-DC power adaptor Power supply ≤18W Interface 1GE(WAN/LAN1) + 3GE(LAN) + Wi-Fi 5 + USB 3.0 + CATV ( optional ) Indicators PWR 、 LOS 、 PON 、 2.4G 、 5G 、 WAN 、 WPS 、 USB 、 CATV ( optional ) 、 LAN1 ～ 4 Interface Parameter PON interface 1XPON port (EPON PX20+ & GPON Class B+) SC single mode, SC/APC connector TX optical power: 0 ～ +4dBm RX sensitivity: -27dBm Overload optical power: -3dBm (EPON) or -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm User interface 4*GE, Auto-negotiation, RJ45 ports 1*USB 3.0 WLAN interface Compliant with IEEE802.11b/g/n/ac Wi-Fi:2.4GHz 、 5.8GHz 2×2, 3dBi antenna, rate up to 1.167Gbps,Multiple SSID TX power: 2.4GHz: 18dBm; 5GHz: 17dBm RX power: 2.4GHz: HT40-MCS7 -71dBm; 5GHz: VHT80 MCS9 <-63dBm CATV interface Optical receiving wavelength: 1550±10nm Optical input range: +2 ～ -18dBm Optical reflection loss: ≥40dB RF frequency range: 47 ～ 1000MHz RF output impedance: 75Ω RF output level and AGC range: ≥81±2dBuv@+1 ～ -10dBm ≥79±2dBuv@ 0 ～ -11dBm ≥77±2dBuv@-1 ～ -12dBm ≥75±2dBuv@-2 ～ -13dBm ≥73±2dBuv@-3 ～ -14dBm ≥71±2dBuv@-4 ～ -15dBm MER: ≥32dB (-14dBm optical input) Function Data O&M OAM/OMCI, Telnet, WEB, TR069 Support full management of HGU functions by VSOL OLT Multicast IGMP v1/v2/v3, IGMP snooping IGMP Proxy MLD v1/v2 snooping MLD Proxy Wireless Integrated 802.11b/g/n/ac Authentication: WAP-PSK(TKIP)/ WAP2-PSK(AES) Support Multiple SSID Support hidden SSID Support Mesh Supports up to 64 maximum device connections QoS Support 4 queues Support SP, WRR, 802.1P and DSCP L2 Support 802.1D&802.1ad bridge,802.1Q VLAN L3/L4 IPv4, IPv6 and IPv4/IPv6 dual stack DHCP/PPPOE/Static Static route, DHCP Server NAT/DMZ/DDNS/Virtual Server Security Support Firewall Support Mac filter Based on MAC or URL Support ACL Support Loop detection System Function Support NTP (Network Time Protocol) Support Scheduled device restart Support Ping and Traceroute diagnosis

Especificaciones técnicas

Dimension

180mm×120mm×32mm(L×W×H)

Net weight

280g

Operating condition

Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensing)

Storing condition

Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensing)

Power adapter

DC12V,1A, external AC-DC power adaptor

Power supply

≤18W

Interface

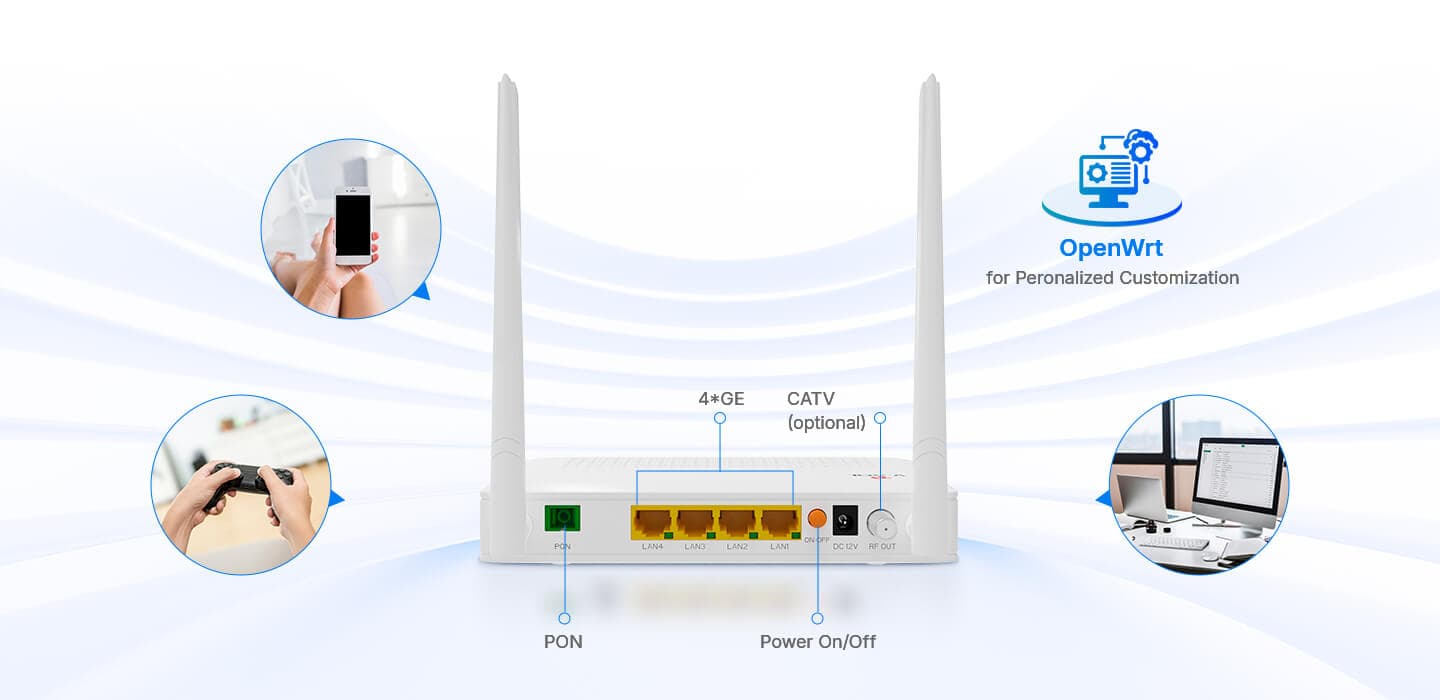

1GE(WAN/LAN1) + 3GE(LAN) + Wi-Fi 5 + USB 3.0 + CATV ( optional )

Indicators

PWR 、 LOS 、 PON 、 2.4G 、 5G 、 WAN 、 WPS 、 USB 、 CATV ( optional ) 、 LAN1 ～ 4

PON interface

1XPON port (EPON PX20+ & GPON Class B+) SC single mode, SC/APC connector TX optical power: 0 ～ +4dBm RX sensitivity: -27dBm Overload optical power: -3dBm (EPON) or -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm

User interface

4*GE, Auto-negotiation, RJ45 ports 1*USB 3.0

WLAN interface

Compliant with IEEE802.11b/g/n/ac Wi-Fi:2.4GHz 、 5.8GHz 2×2, 3dBi antenna, rate up to 1.167Gbps,Multiple SSID TX power: 2.4GHz: 18dBm; 5GHz: 17dBm RX power: 2.4GHz: HT40-MCS7 -71dBm; 5GHz: VHT80 MCS9 <-63dBm

CATV interface

Optical receiving wavelength: 1550±10nm Optical input range: +2 ～ -18dBm Optical reflection loss: ≥40dB RF frequency range: 47 ～ 1000MHz RF output impedance: 75Ω RF output level and AGC range: ≥81±2dBuv@+1 ～ -10dBm ≥79±2dBuv@ 0 ～ -11dBm ≥77±2dBuv@-1 ～ -12dBm ≥75±2dBuv@-2 ～ -13dBm ≥73±2dBuv@-3 ～ -14dBm ≥71±2dBuv@-4 ～ -15dBm MER: ≥32dB (-14dBm optical input)

O&M

OAM/OMCI, Telnet, WEB, TR069 Support full management of HGU functions by VSOL OLT

Multicast

IGMP v1/v2/v3, IGMP snooping IGMP Proxy MLD v1/v2 snooping MLD Proxy

Wireless

Integrated 802.11b/g/n/ac Authentication: WAP-PSK(TKIP)/ WAP2-PSK(AES) Support Multiple SSID Support hidden SSID Support Mesh Supports up to 64 maximum device connections

QoS

Support 4 queues Support SP, WRR, 802.1P and DSCP

L2

Support 802.1D&802.1ad bridge,802.1Q VLAN

L3/L4

IPv4, IPv6 and IPv4/IPv6 dual stack DHCP/PPPOE/Static Static route, DHCP Server NAT/DMZ/DDNS/Virtual Server

Security

Support Firewall Support Mac filter Based on MAC or URL Support ACL Support Loop detection

System Function

Support NTP (Network Time Protocol) Support Scheduled device restart Support Ping and Traceroute diagnosis
