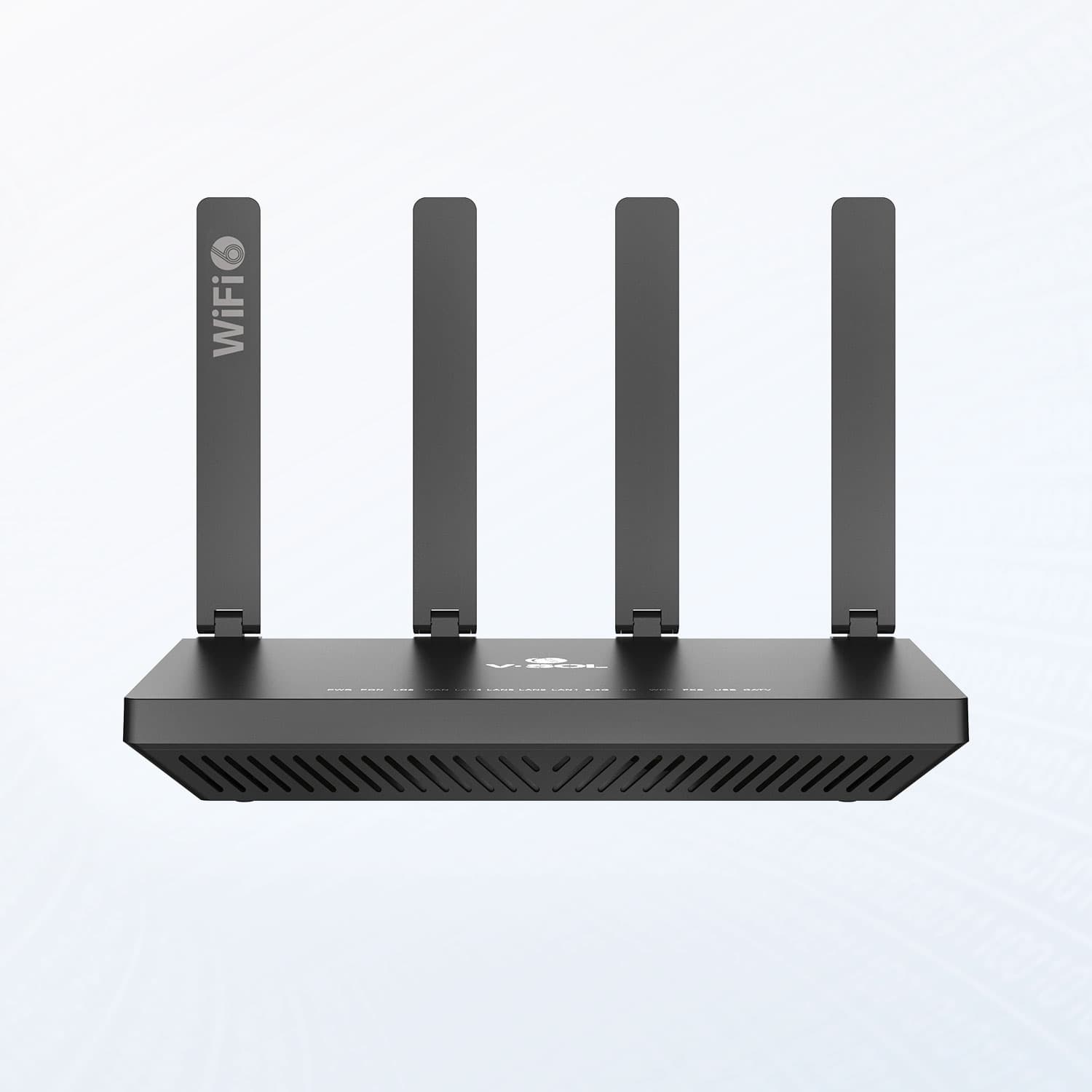

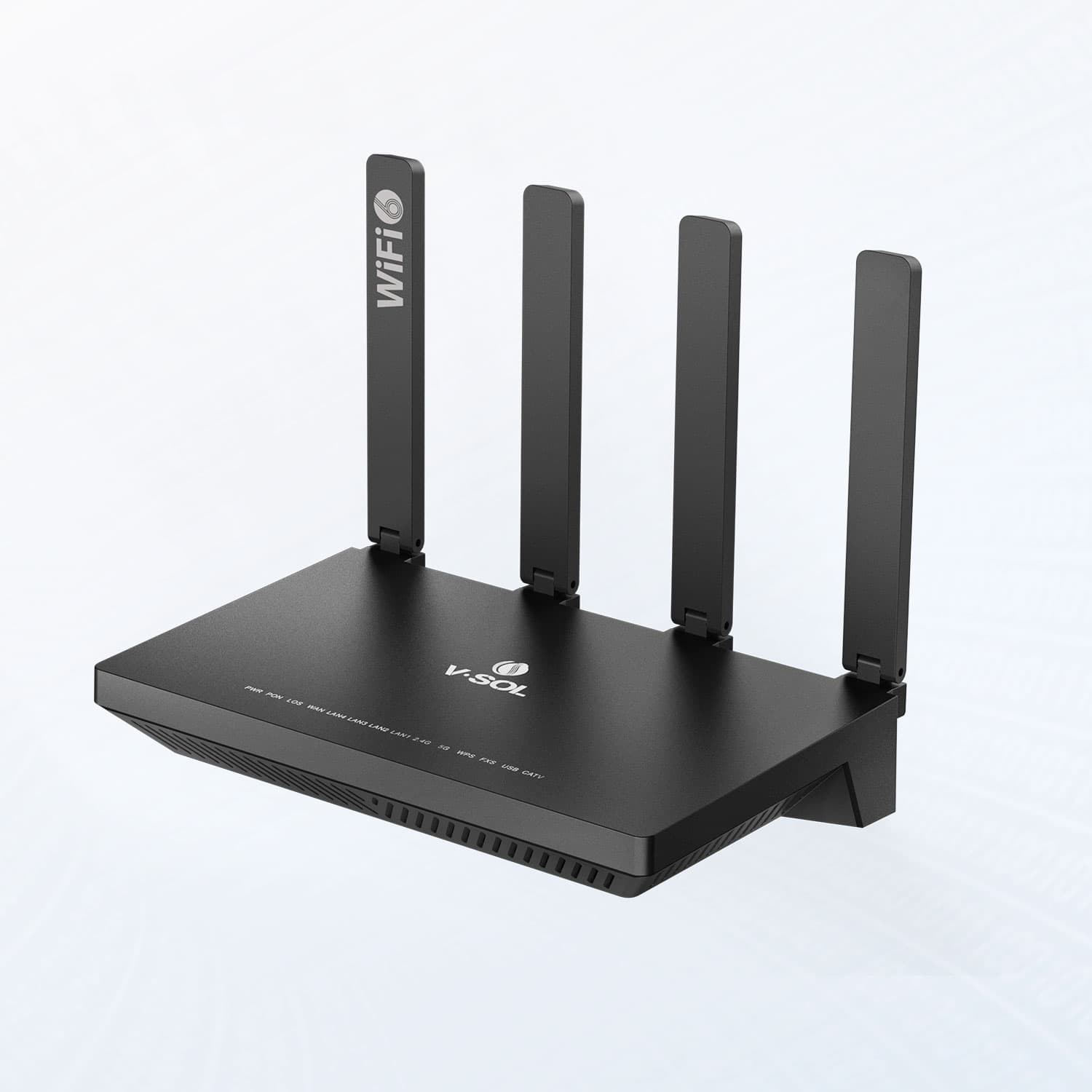

HG3232AX30(T)-A — 1XPON+1GE(WAN/LAN1)+3GE(LAN)+1POTS+1USB3.0+CATV+Wi-Fi 6 HGU ONT

Descripción

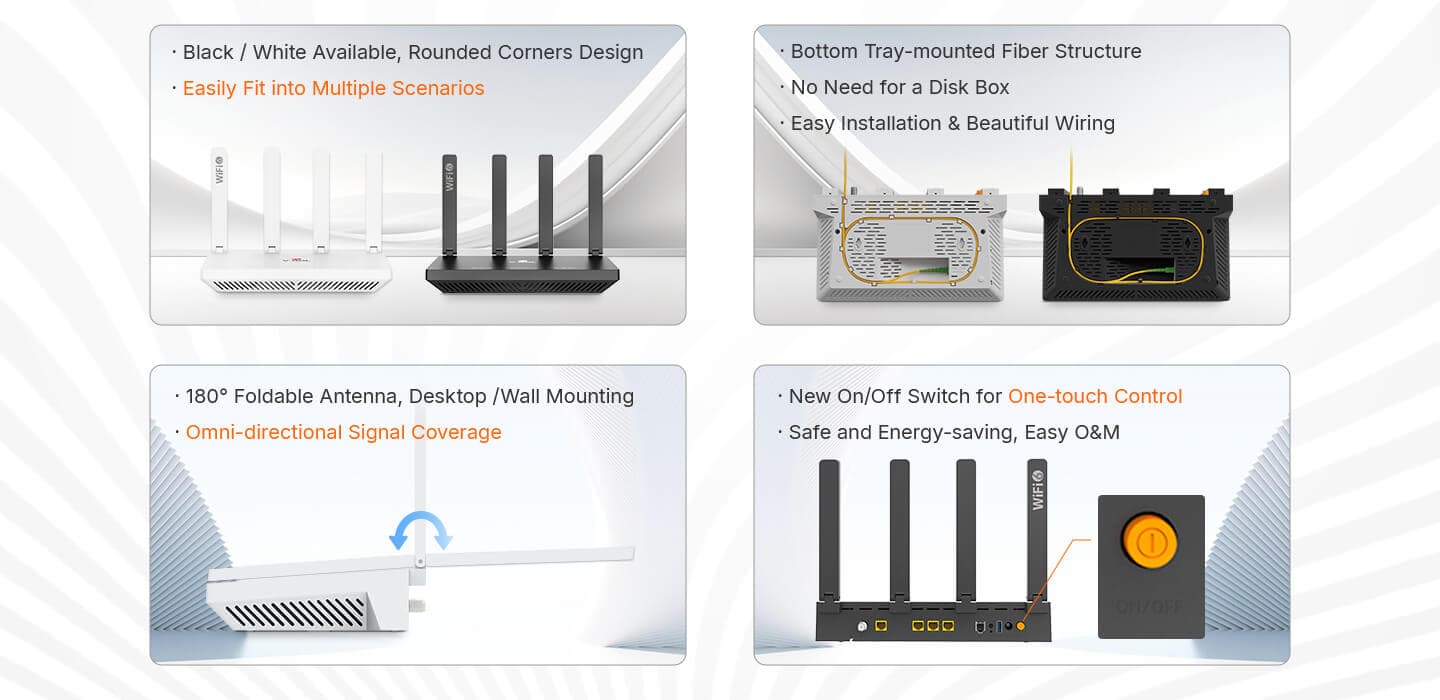

ONT de CATV de nueva generación Wi-Fi 6 (AX3000) Modo dual XPON | Wi-Fi 6 (AX3000) rentable | CATV con soporte AGC | Estructura de fibra montada en bandeja Por qué HG3232AX30(T)-A ？ Diseñado para satisfacer las demandas de los operadores de redes fijas de servicios FTTH y triple play. Disfrute de Wi-Fi 6 al mejor precio Diseño único, detalles de calidad Wi-Fi 6+CATV para simplificar el diseño de la red Potente función VoIP ○ Hardware Parameter Dimension 260.4mm×157.4mm×45.8mm(L×W×H) Net weight 0.55Kg Operating condition Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensed) Storing condition Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed) Power adapter 12V/1.5A Power supply ≤18W Interface 1XPON+1GE(WAN/LAN1)+3GE(LAN)+1POTS+1USB 3.0+CATV+Wi-Fi 6 Indicators PWR, PON, LOS, WAN, LAN1~4, 2.4G, 5G, WPS, FXS, USB, CATV ○ Interface parameter PON Interface l 1XPON port (EPON PX20+ and GPON Class B+) l SC single mode, SC/APC connector l TX optical power: 0 ～ +4dBm l RX sensitivity: -27dBm l Overload optical power: -3dBm (EPON) or -8dBm (GPON) l Transmission distance: 20KM l Wavelength: TX 1310nm, RX1490nm User interface l 4×GE, Auto-negotiation, RJ45 ports l 1×POTS RJ11 Connector Antenna 2.4GHz 2T2R, 5GHz 3T3R CATV interface l Optical receiving wavelength: 1550±10nm l Optical input range: +2 ～ -18dBm l Optical reflection loss: ≥40dB l RF frequency range: 47 ～ 1000MHz l RF output impedance: 75Ω l RF output level and AGC range: ≥81±2dBuv@+1 ～ -10dBm ≥79±2dBuv@ 0 ～ -11dBm ≥77±2dBuv@-1 ～ -12dBm ≥75±2dBuv@-2 ～ -13dBm ≥73±2dBuv@-3 ～ -14dBm ≥71±2dBuv@-4 ～ -15dBm l MER: ≥32dB(-14dBm optical input) ○ Function Data O&M l WEB/TELNET/OAM/OMCI/TR069 l Support private OAM/OMCI protocol Internet connection l Support Routing Mode Multicast l IGMP v1/v2/v3, IGMP snooping l MLD v1/v2 snooping VoIP l SIP and IMS SIP l G.711a/G.711u/G.722/G.729 Codec l Echo cancellation, VAD/CNG, DTMF Relay l T.30/T.38 FAX l Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference l Line testing according to GR-909 WIFI WIFI6: 802.11a/n/ac/ax 5GHz&2.4GHz, 2.4GHz 2×2 MIMO, 5GHz 2×2 MIMO Antenna Design: 5 antennas (4 external, 1 internal). 2 antennas for 2.4GHz, the other 3 including 1 internal optimize 5GHz for better directivity and coverage Wi-Fi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM Multi SSIDs Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band L2 l 802.1p Cos, 802.1Q VLAN L3 l IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS Firewall l Anti-DDOS, Filtering Based on ACL/MAC /URL

Especificaciones técnicas

Dimension

260.4mm×157.4mm×45.8mm(L×W×H)

Net weight

0.55Kg

Operating condition

Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensed)

Storing condition

Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed)

Power adapter

12V/1.5A

Power supply

≤18W

Interface

1XPON+1GE(WAN/LAN1)+3GE(LAN)+1POTS+1USB 3.0+CATV+Wi-Fi 6

Indicators

PWR, PON, LOS, WAN, LAN1~4, 2.4G, 5G, WPS, FXS, USB, CATV

PON Interface

l 1XPON port (EPON PX20+ and GPON Class B+) l SC single mode, SC/APC connector l TX optical power: 0 ～ +4dBm l RX sensitivity: -27dBm l Overload optical power: -3dBm (EPON) or -8dBm (GPON) l Transmission distance: 20KM l Wavelength: TX 1310nm, RX1490nm

User interface

l 4×GE, Auto-negotiation, RJ45 ports l 1×POTS RJ11 Connector

Antenna

2.4GHz 2T2R, 5GHz 3T3R

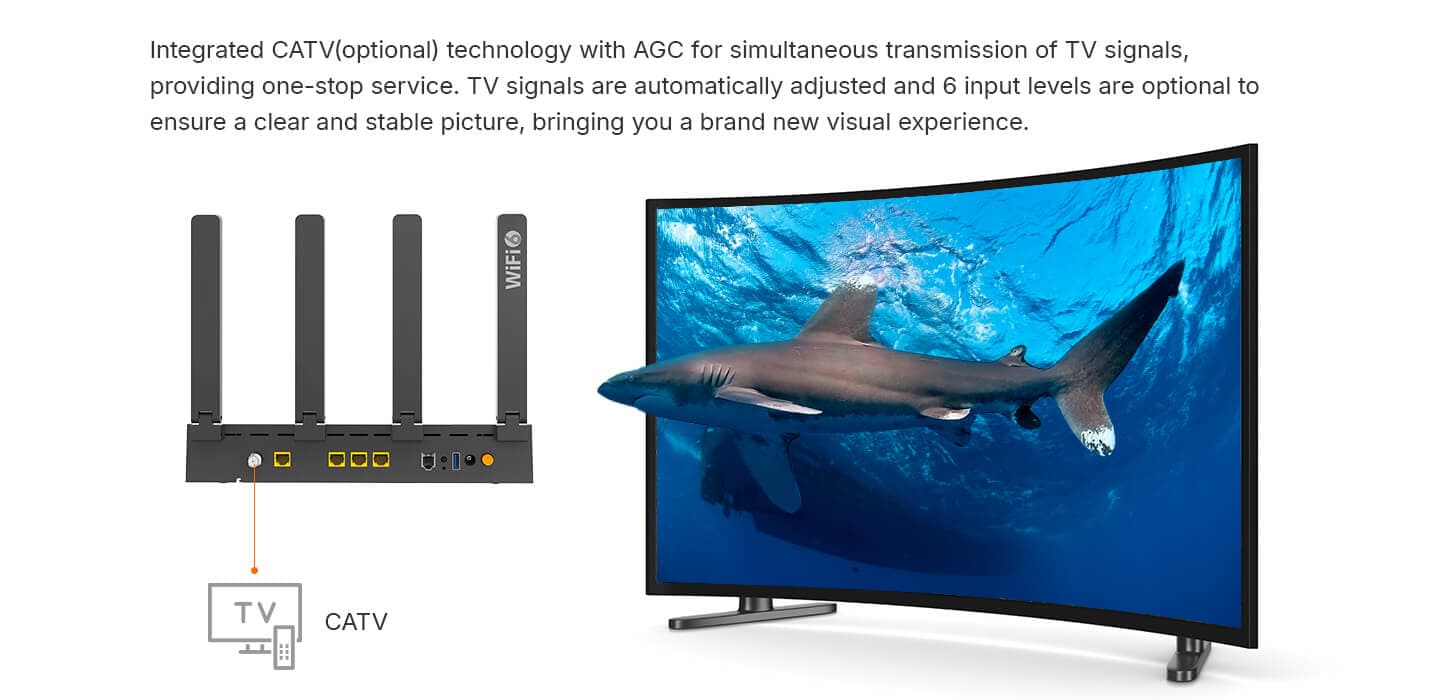

CATV interface

l Optical receiving wavelength: 1550±10nm l Optical input range: +2 ～ -18dBm l Optical reflection loss: ≥40dB l RF frequency range: 47 ～ 1000MHz l RF output impedance: 75Ω l RF output level and AGC range: ≥81±2dBuv@+1 ～ -10dBm ≥79±2dBuv@ 0 ～ -11dBm ≥77±2dBuv@-1 ～ -12dBm ≥75±2dBuv@-2 ～ -13dBm ≥73±2dBuv@-3 ～ -14dBm ≥71±2dBuv@-4 ～ -15dBm l MER: ≥32dB(-14dBm optical input)

O&M

l WEB/TELNET/OAM/OMCI/TR069 l Support private OAM/OMCI protocol

Internet connection

l Support Routing Mode

Multicast

l IGMP v1/v2/v3, IGMP snooping l MLD v1/v2 snooping

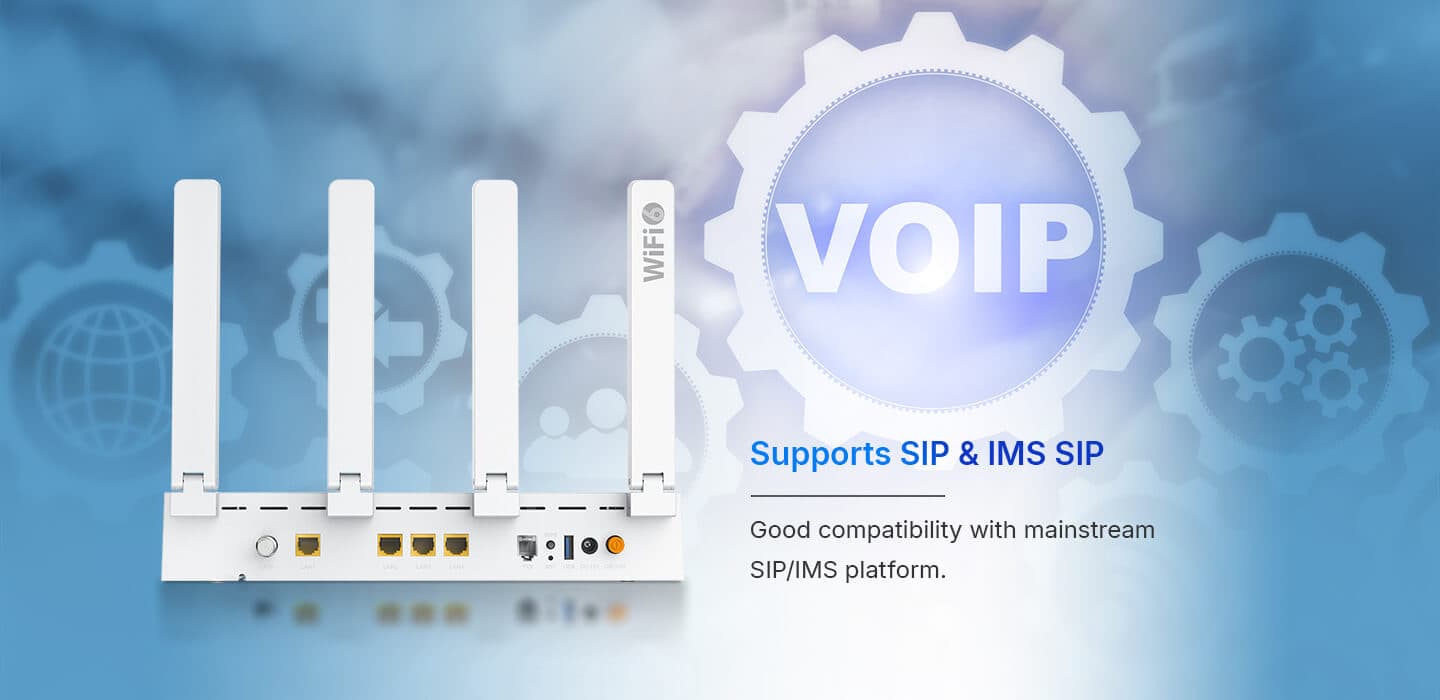

VoIP

l SIP and IMS SIP l G.711a/G.711u/G.722/G.729 Codec l Echo cancellation, VAD/CNG, DTMF Relay l T.30/T.38 FAX l Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference l Line testing according to GR-909

WIFI

WIFI6: 802.11a/n/ac/ax 5GHz&2.4GHz, 2.4GHz 2×2 MIMO, 5GHz 2×2 MIMO Antenna Design: 5 antennas (4 external, 1 internal). 2 antennas for 2.4GHz, the other 3 including 1 internal optimize 5GHz for better directivity and coverage Wi-Fi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM Multi SSIDs Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band

L2

l 802.1p Cos, 802.1Q VLAN

L3

l IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS

Firewall

l Anti-DDOS, Filtering Based on ACL/MAC /URL
