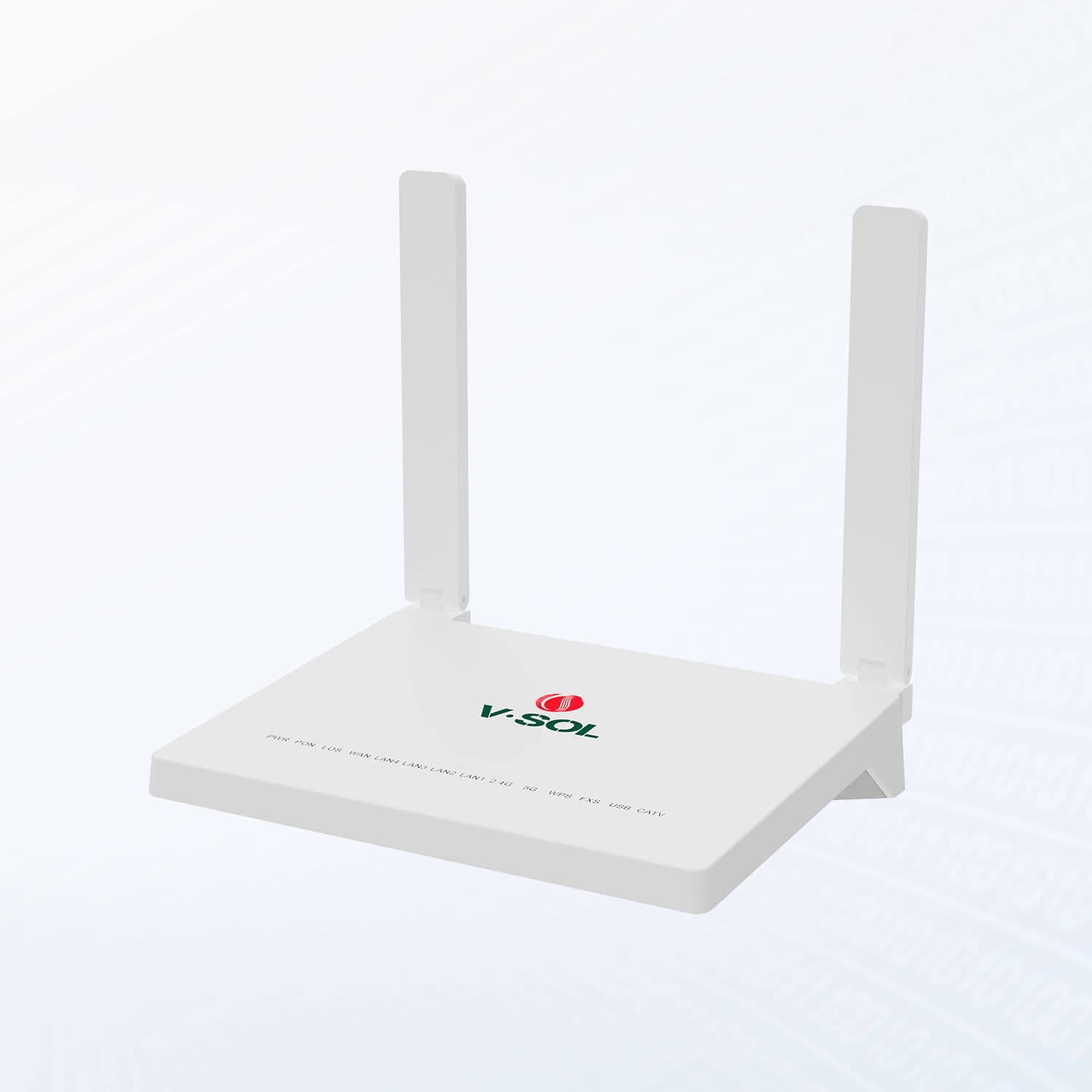

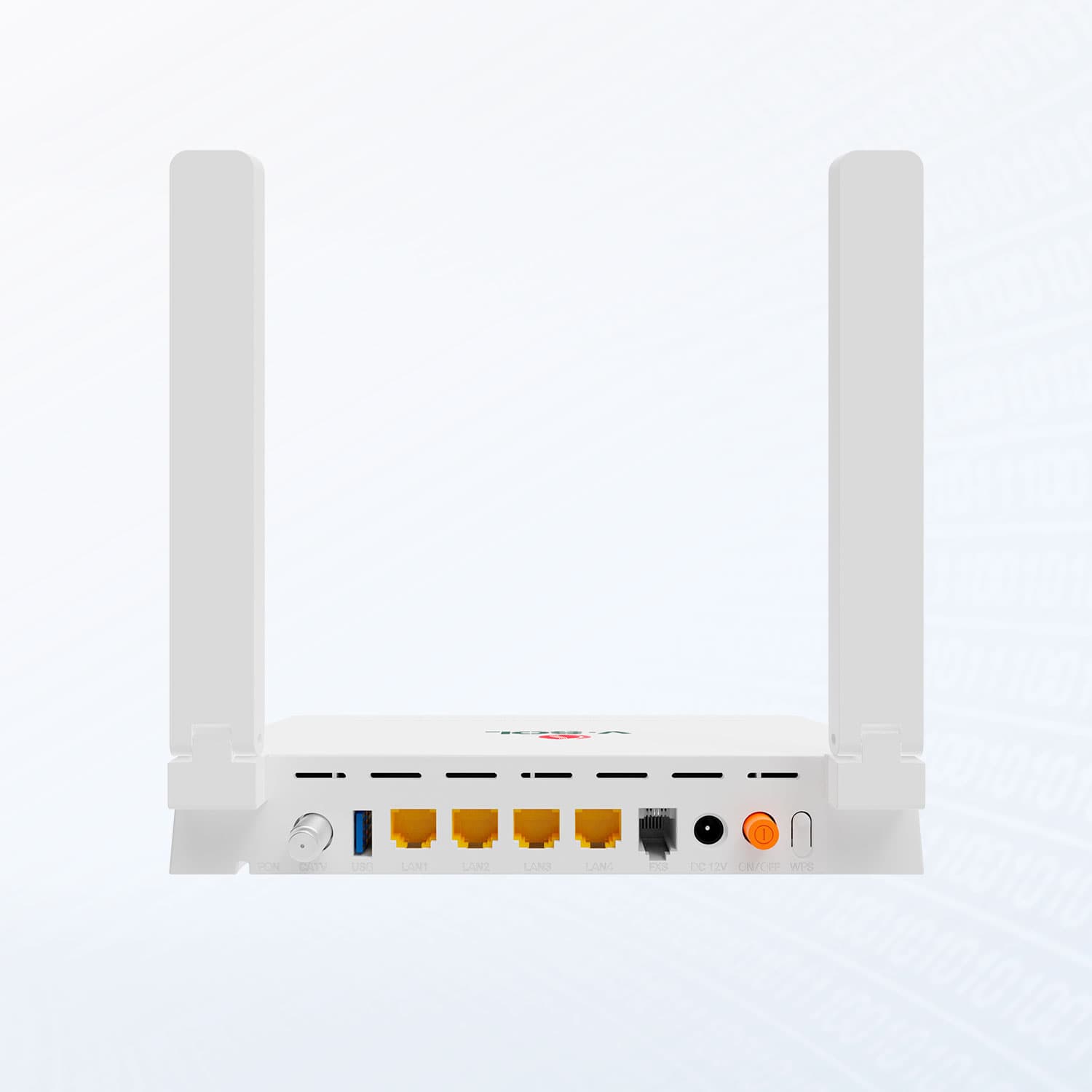

HG3232AX30(T)-H — 1XPON+1GE(WAN/LAN1)+3GE(LAN)+1POTS+1USB3.0+Wi-Fi 6 HGU ONT

Descripción

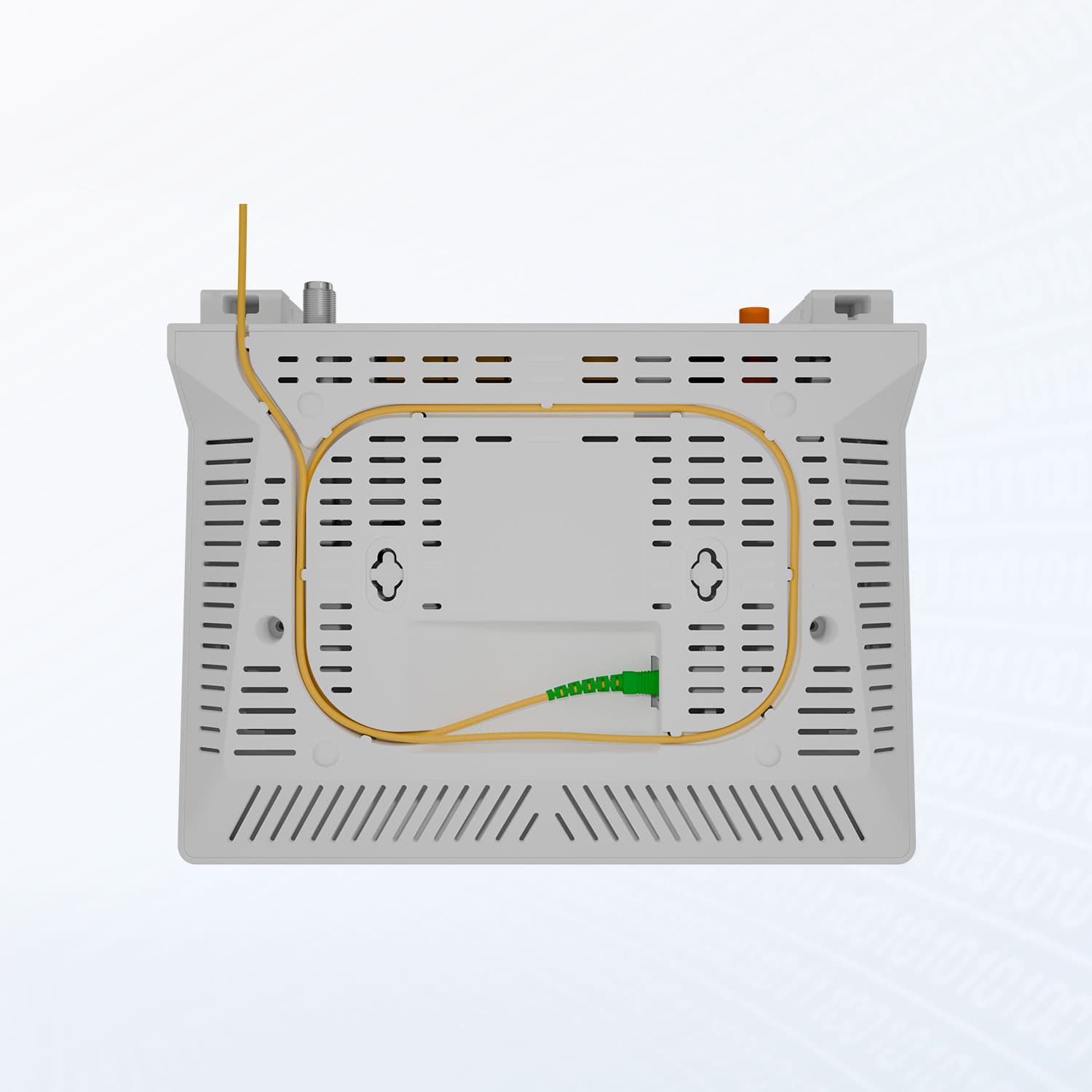

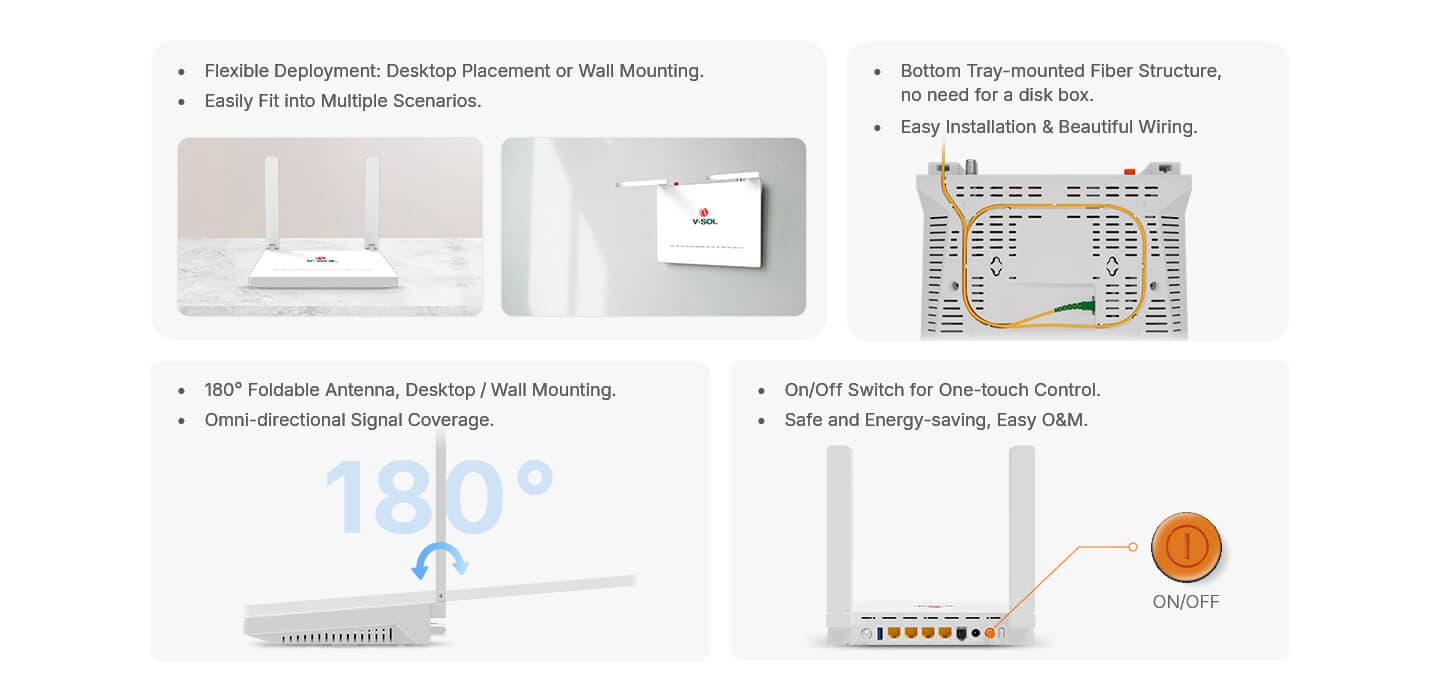

4GE Triple-play ONU: ¡Ahorre Más, Disfrute Más! Modo dual XPON | Wi-Fi 6 económico (AX3000) | CATV con soporte AGC | EEstructura de Fibra en Bandeja Montable Menor Costo, Máxima Satisfacción de Servicios Optimizado para redes FTTH y servicios triple play de operadores de línea fija. Menos Antenas, Calidad Premium Accesible Antenas externas dual-band: diseño compacto 2-en-1. Reduce costos y espacio físico. Conmutación inteligente con SSID unificado para conectividad continua sin interrupciones. ‌Mejor Señal, Velocidad Wi-Fi 6 de Próxima Generación Potenciado por AX3000: alto rendimiento para múltiples dispositivos simultáneos. Conexiones estables y ultrarrápidas incluso bajo carga pesada. HD Fluido y Mejoría Inteligente de CATV Compensación automática de nivel AGC + ajuste de señal en 6 etapas para transmisión HD estable y ultra nítida. ‌Llamadas Más Claras con Tecnología de Voz Carrier-Grade‌ Diseño Elegante, Calidad Premium en Cada Detalle Hardware Parameter Dimension 200mm×156.8mm×32.33mm(L×W×H) Net Weight 0.35kg Operating Condition Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensed) Storing Condition Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed) Power Adapter 12V/1.5A, External AC-DC power adapter Power Supply ≤12W Interface 1XPON + 1GE(WAN/LAN1) + 3GE(LAN) + 1POTS + 1USB 3.0 + Wi-Fi 6, CATV optional Indicators PWR, PON, LOS, WAN, LAN1~4, 2.4G, 5G, WPS, FXS, USB, CATV Interface Parameter PON Interface 1XPON port (EPON PX20+ and GPON Class B+) SC single mode: HG3232AX30T-H:SC/APC connector HG3232AX30-H:SC/UPC connector TX optical power: 0 ～ +4dBm RX sensitivity: -27dBm Overload optical power: -3dBm (EPON) or -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm User Interface 4×GE, Auto-negotiation, RJ45 ports 1×POTS RJ11 Connector Antenna 2.4GHz/5GHz 2T2R, external antennas CATV interface Optical receiving wavelength: 1550±10nm Optical input range: +2 ～ -18dBm Optical reflection loss: ≥40dB RF frequency range: 47 ～ 1000MHz RF output impedance: 75Ω RF output level and AGC range: ≥81±2dBuv@+1 ~ -10dBm ≥79±2dBuv@ 0 ~ -11dBm ≥77±2dBuv@-1 ~ -12dBm ≥75±2dBuv@-2 ~ -13dBm ≥73±2dBuv@-3 ~ -14dBm ≥71±2dBuv@-4 ~ -15dBm MER: ≥32dB (-14dBm optical input) Function Data O&M WEB/TELNET/OAM/OMCI/TR069 Support private OAM/OMCI protocol Internet Connection Support Routing Mode Multicast IGMP v1/v2/v3, IGMP snooping MLD v1/v2 snooping VoIP SIP and IMS SIP G.711a/G.711u/G.722/G.729 Codec Echo cancellation, VAD/CNG, DTMF Relay T.30/T.38 FAX Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference Line testing according to GR-909 WIFI Wi-Fi 6: 802.11a/n/ac/ax 5GHz, 2.4GHz Wi-Fi: 2.4GHz\5GHz 2×2, 2 dual band antennas, rate up to 3Gbps, Multiple SSID Wi-Fi Encryption: WEP-64/WEP-128/WPA/WPA2/WPA3 Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band Support Wi-Fi Easy-mesh function L2 802.1p Cos,802.1Q VLAN L3 IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS Firewall Anti-DDOS , Filtering Based on ACL/MAC /URL

Especificaciones técnicas

Dimension

200mm×156.8mm×32.33mm(L×W×H)

Net Weight

0.35kg

Operating Condition

Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensed)

Storing Condition

Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed)

Power Adapter

12V/1.5A, External AC-DC power adapter

Power Supply

≤12W

Interface

1XPON + 1GE(WAN/LAN1) + 3GE(LAN) + 1POTS + 1USB 3.0 + Wi-Fi 6, CATV optional

Indicators

PWR, PON, LOS, WAN, LAN1~4, 2.4G, 5G, WPS, FXS, USB, CATV

PON Interface

1XPON port (EPON PX20+ and GPON Class B+) SC single mode: HG3232AX30T-H:SC/APC connector HG3232AX30-H:SC/UPC connector TX optical power: 0 ～ +4dBm RX sensitivity: -27dBm Overload optical power: -3dBm (EPON) or -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm

User Interface

4×GE, Auto-negotiation, RJ45 ports 1×POTS RJ11 Connector

Antenna

2.4GHz/5GHz 2T2R, external antennas

CATV interface

Optical receiving wavelength: 1550±10nm Optical input range: +2 ～ -18dBm Optical reflection loss: ≥40dB RF frequency range: 47 ～ 1000MHz RF output impedance: 75Ω RF output level and AGC range: ≥81±2dBuv@+1 ~ -10dBm ≥79±2dBuv@ 0 ~ -11dBm ≥77±2dBuv@-1 ~ -12dBm ≥75±2dBuv@-2 ~ -13dBm ≥73±2dBuv@-3 ~ -14dBm ≥71±2dBuv@-4 ~ -15dBm MER: ≥32dB (-14dBm optical input)

O&M

WEB/TELNET/OAM/OMCI/TR069 Support private OAM/OMCI protocol

Internet Connection

Support Routing Mode

Multicast

IGMP v1/v2/v3, IGMP snooping MLD v1/v2 snooping

VoIP

SIP and IMS SIP G.711a/G.711u/G.722/G.729 Codec Echo cancellation, VAD/CNG, DTMF Relay T.30/T.38 FAX Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference Line testing according to GR-909

WIFI

Wi-Fi 6: 802.11a/n/ac/ax 5GHz, 2.4GHz Wi-Fi: 2.4GHz\5GHz 2×2, 2 dual band antennas, rate up to 3Gbps, Multiple SSID Wi-Fi Encryption: WEP-64/WEP-128/WPA/WPA2/WPA3 Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band Support Wi-Fi Easy-mesh function

L2

802.1p Cos,802.1Q VLAN

L3

IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS

Firewall

Anti-DDOS , Filtering Based on ACL/MAC /URL
