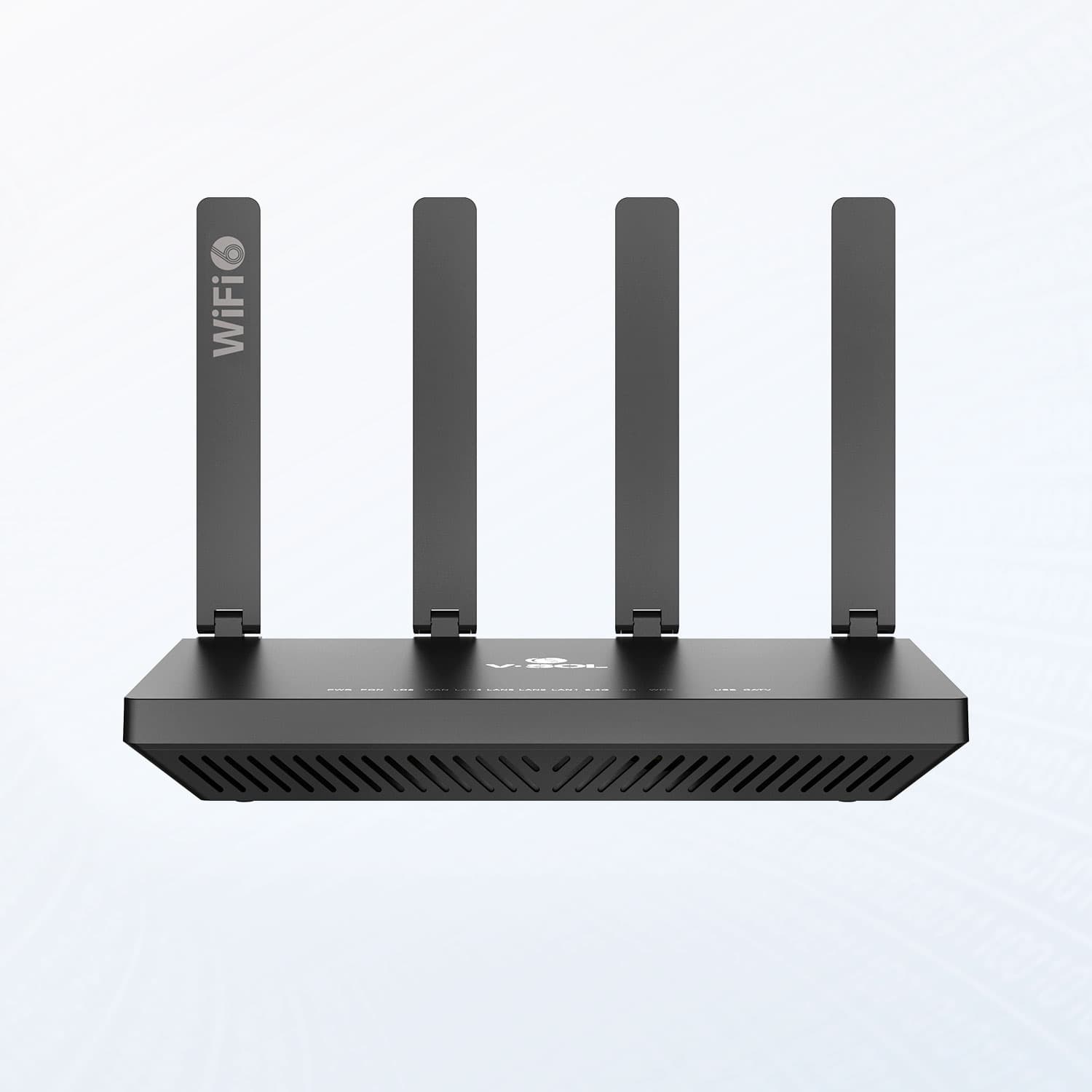

V2804AX30(T)-A — 1XPON+4LAN+1USB3.0+CATV+Wi-Fi 6 HGU ONT

Descripción

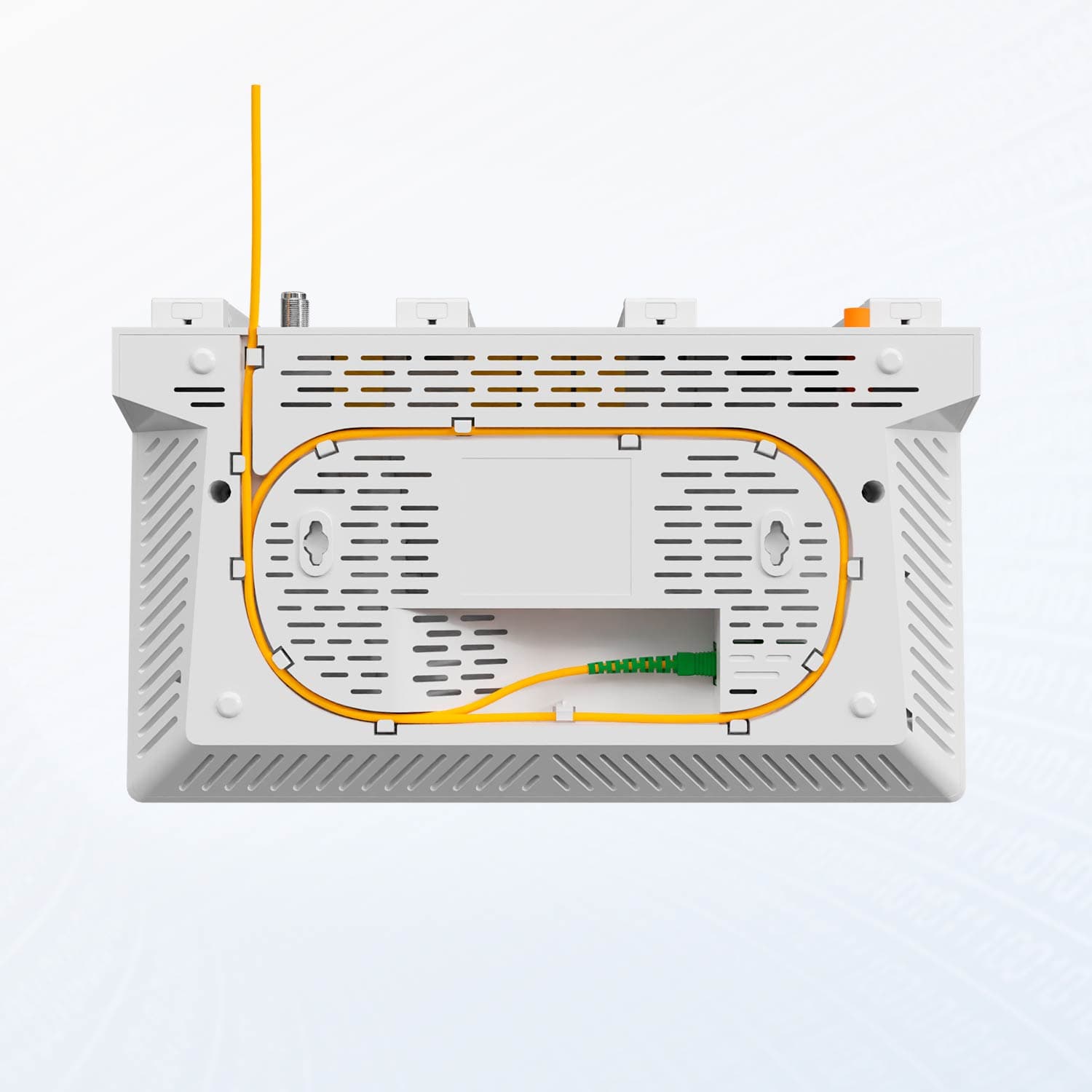

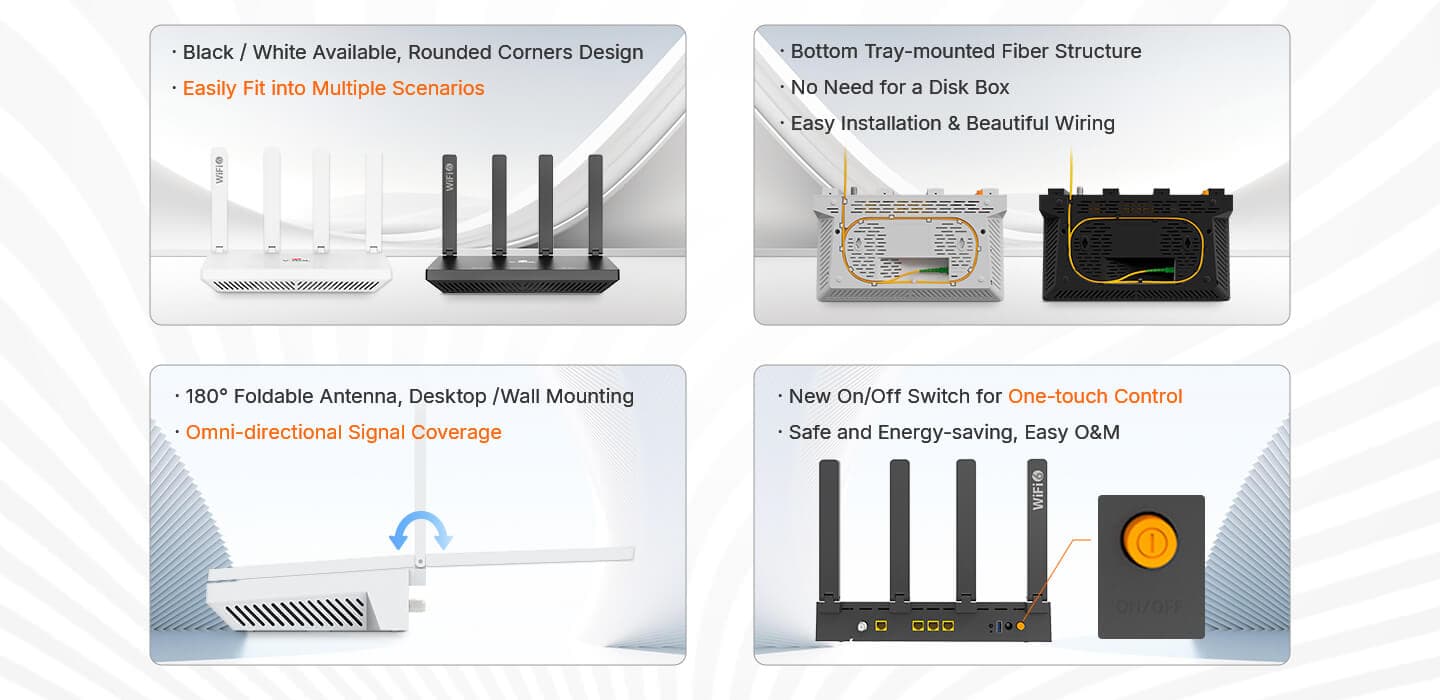

ONT de CATV Wi-Fi 6(AX3000) de nueva generación Modo dual XPON | Wi-Fi 6 (AX3000) rentable | CATV con soporte AGC | Estructura de fibra montada en bandeja ¿Por qué V2804AX30(T)-A？ Diseñado para satisfacer las demandas de los operadores de redes fijas de servicios FTTH y triple play. Disfrute de Wi-Fi 6 al mejor precio Diseño único, detalles de calidad Wi-Fi 6+CATV para simplificar el diseño de la red ○ Hardware Parameter Dimension 260.4mm×157.4mm×45.8mm(L×W×H) Net weight 0.55Kg Operating condition Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensed) Storing condition Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed) Power adapter 12V/1.5A Power supply ≤18W Interface 1XPON+4GE+1USB3.0+CATV+Wi-Fi 6 Indicators PWR, PON, LOS, WAN, LAN1~4 ,2.4G ,5G, WPS, USB, CATV ○ Interface parameter PON Interface 1XPON port (EPON PX20+ and GPON Class B+) SC single mode, SC/APC connector TX optical power: 0 ～ +4dBm RX sensitivity: -27dBm Overload optical power: -3dBm (EPON) or -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm User interface 4×GE, Auto-negotiation, RJ45 ports Antenna 2.4GHz 2T2R, 5GHz 3T3R CATV interface Optical receiving wavelength: 1550±10nm Optical input range: +2 ～ -18dBm Optical reflection loss: ≥40dB RF frequency range: 47 ～ 1000MHz RF output impedance: 75Ω RF output level and AGC range: ≥81±2dBuv@+1 ～ -10dBm ≥79±2dBuv@ 0 ～ -11dBm ≥77±2dBuv@-1 ～ -12dBm ≥75±2dBuv@-2 ～ -13dBm ≥73±2dBuv@-3 ～ -14dBm ≥71±2dBuv@-4 ～ -15dBm MER: ≥32dB (-14dBm optical input) ○ Function Data O&M WEB/TELNET/OAM/OMCI/TR069 Support private OAM/OMCI protocol Internet connection Support Routing Mode Multicast IGMP v1/v2/v3, IGMP snooping MLD v1/v2 snooping WIFI Wi-Fi 6: 802.11a/n/ac/ax 5GHz&2.4GHz, 2.4GHz 2×2 MIMO, 5GHz 2×2 MIMO Antenna Design: 5 antennas (4 external, 1 internal). 2 antennas for 2.4GHz, the other 3 including 1 internal optimize 5GHz for better directivity and coverage WiFi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM Multi SSIDs Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band L2 802.1p Cos,802.1Q VLAN L3 IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS Firewall Anti-DDOS , Filtering Based on ACL/MAC /URL

Especificaciones técnicas

Dimension

260.4mm×157.4mm×45.8mm(L×W×H)

Net weight

0.55Kg

Operating condition

Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensed)

Storing condition

Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed)

Power adapter

12V/1.5A

Power supply

≤18W

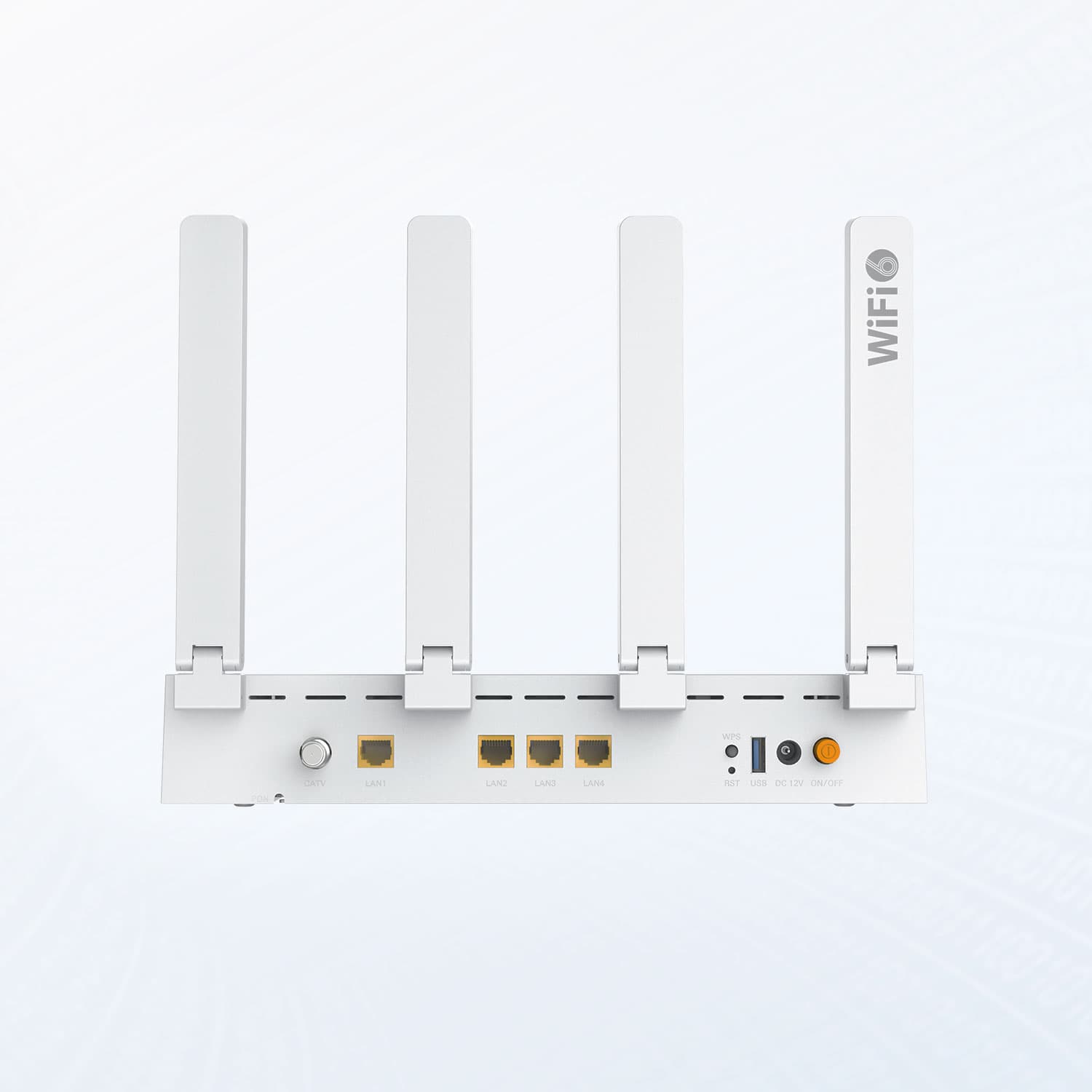

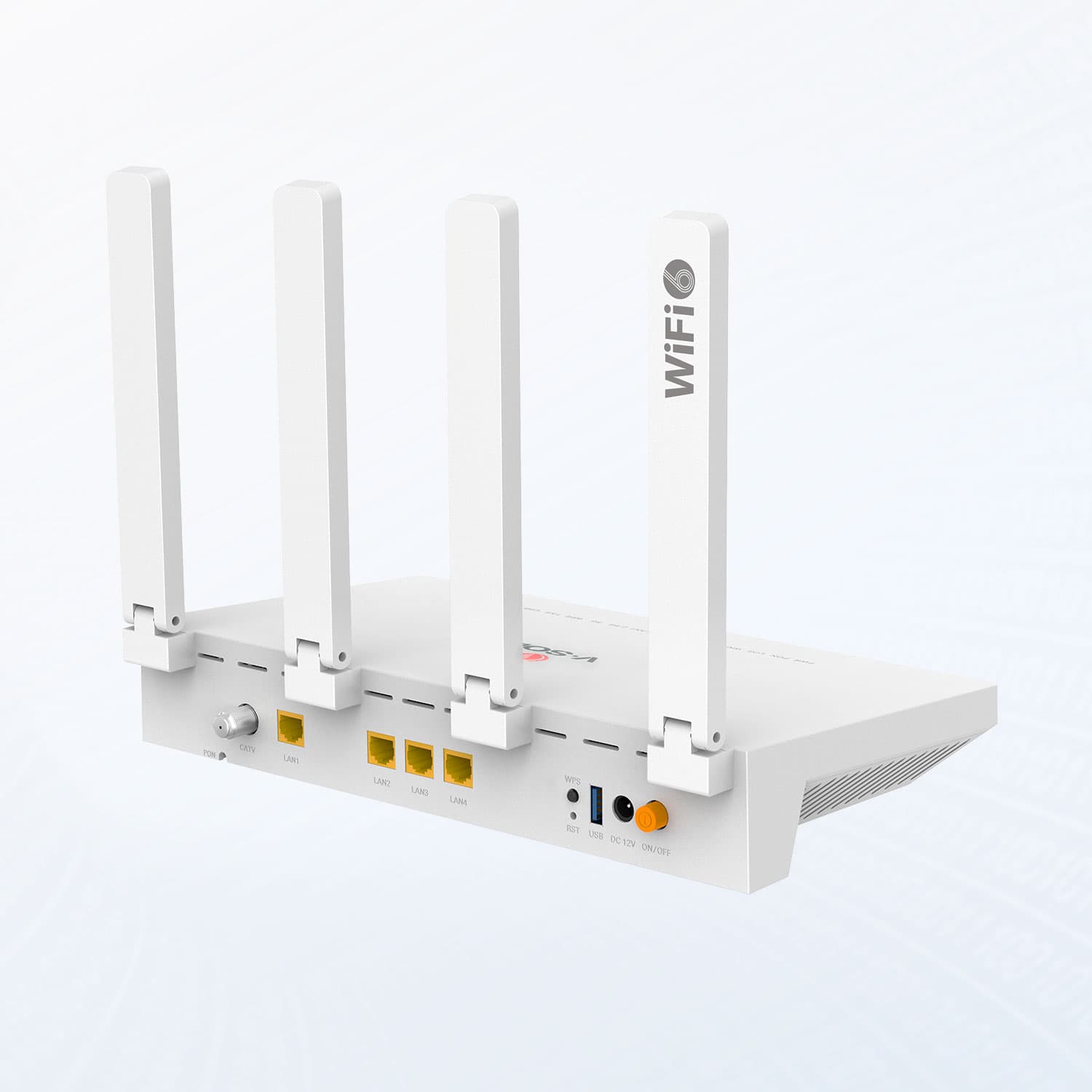

Interface

1XPON+4GE+1USB3.0+CATV+Wi-Fi 6

Indicators

PWR, PON, LOS, WAN, LAN1~4 ,2.4G ,5G, WPS, USB, CATV

PON Interface

1XPON port (EPON PX20+ and GPON Class B+) SC single mode, SC/APC connector TX optical power: 0 ～ +4dBm RX sensitivity: -27dBm Overload optical power: -3dBm (EPON) or -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm

User interface

4×GE, Auto-negotiation, RJ45 ports

Antenna

2.4GHz 2T2R, 5GHz 3T3R

CATV interface

Optical receiving wavelength: 1550±10nm Optical input range: +2 ～ -18dBm Optical reflection loss: ≥40dB RF frequency range: 47 ～ 1000MHz RF output impedance: 75Ω RF output level and AGC range: ≥81±2dBuv@+1 ～ -10dBm ≥79±2dBuv@ 0 ～ -11dBm ≥77±2dBuv@-1 ～ -12dBm ≥75±2dBuv@-2 ～ -13dBm ≥73±2dBuv@-3 ～ -14dBm ≥71±2dBuv@-4 ～ -15dBm MER: ≥32dB (-14dBm optical input)

O&M

WEB/TELNET/OAM/OMCI/TR069 Support private OAM/OMCI protocol

Internet connection

Support Routing Mode

Multicast

IGMP v1/v2/v3, IGMP snooping MLD v1/v2 snooping

WIFI

Wi-Fi 6: 802.11a/n/ac/ax 5GHz&2.4GHz, 2.4GHz 2×2 MIMO, 5GHz 2×2 MIMO Antenna Design: 5 antennas (4 external, 1 internal). 2 antennas for 2.4GHz, the other 3 including 1 internal optimize 5GHz for better directivity and coverage WiFi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM Multi SSIDs Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band

L2

802.1p Cos,802.1Q VLAN

L3

IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS

Firewall

Anti-DDOS , Filtering Based on ACL/MAC /URL
