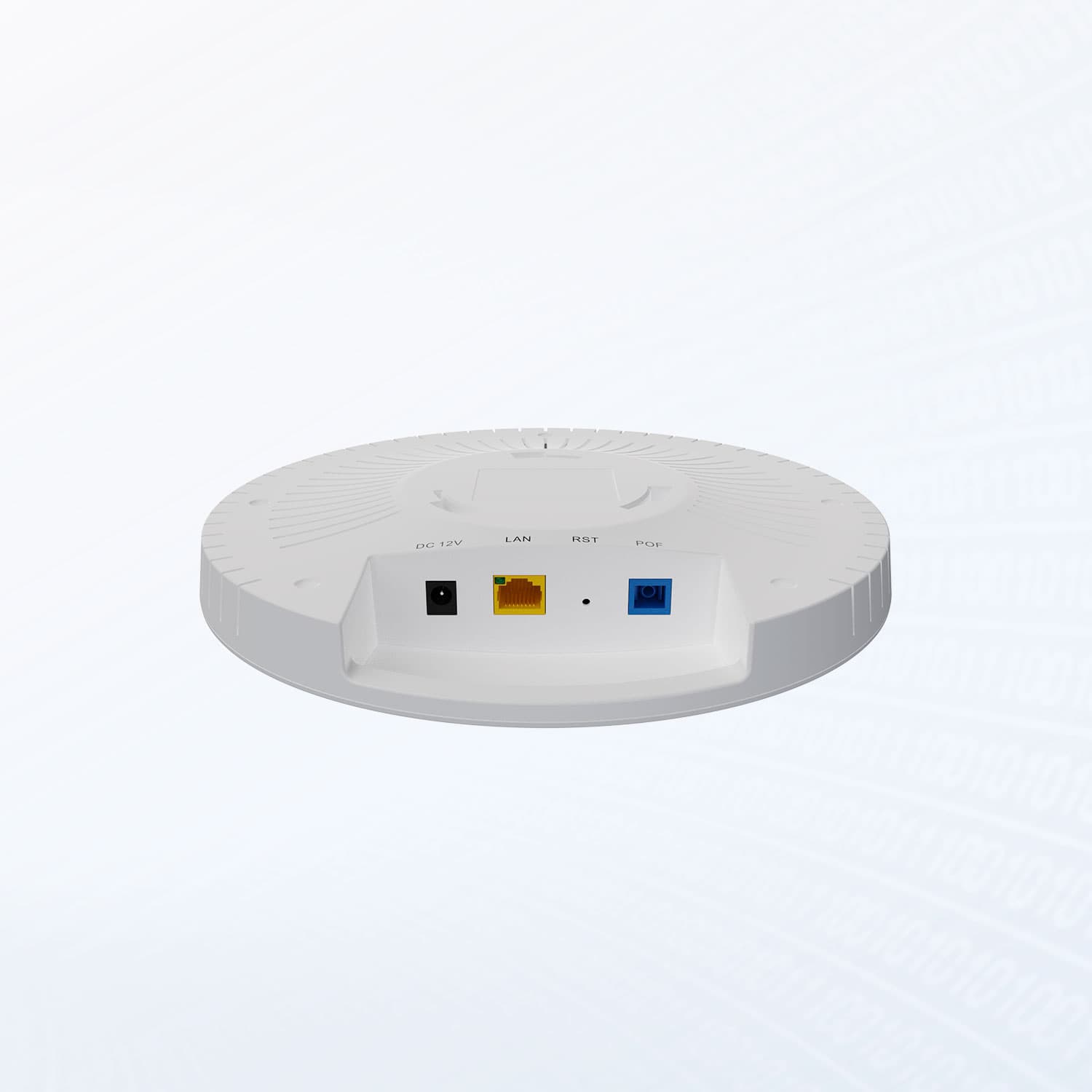

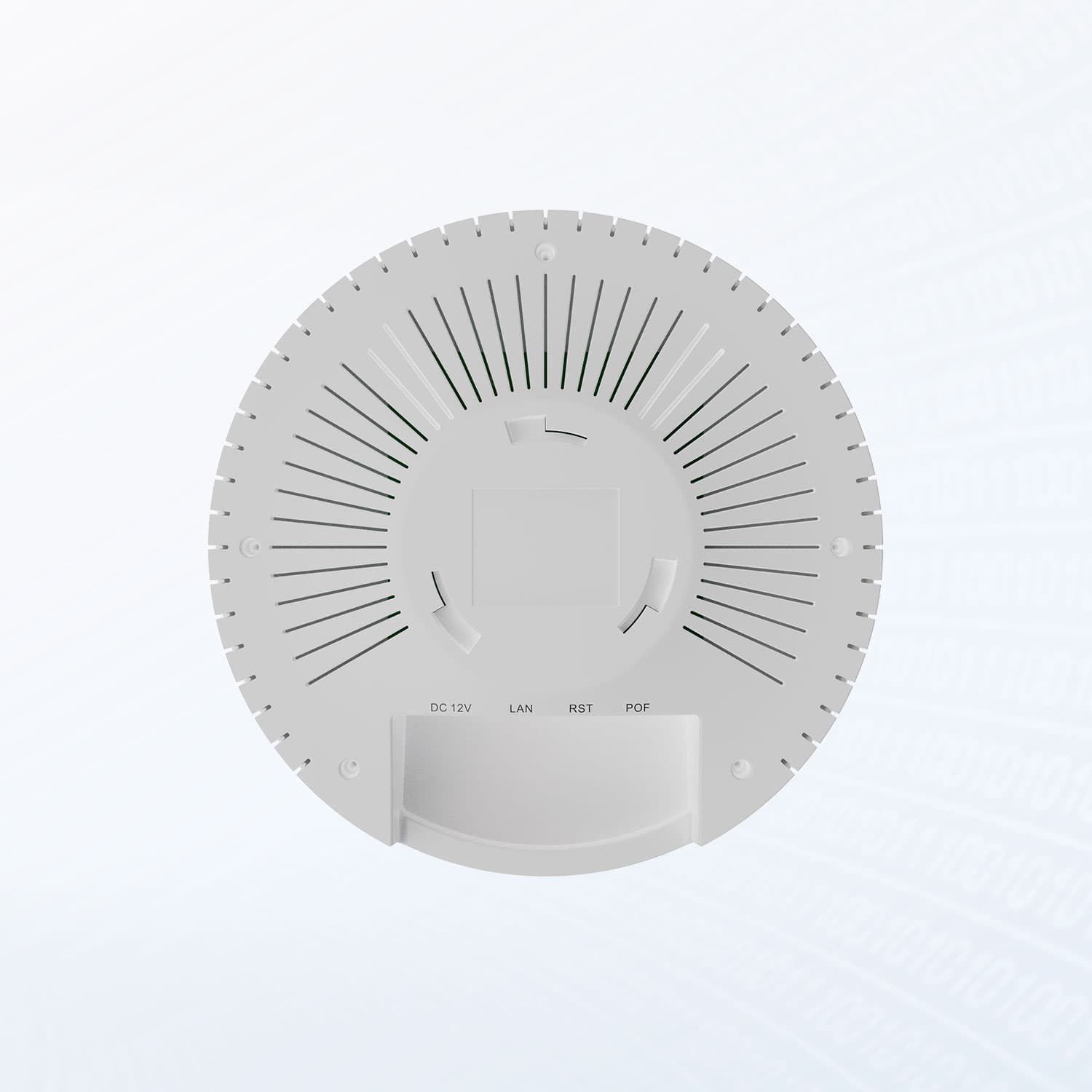

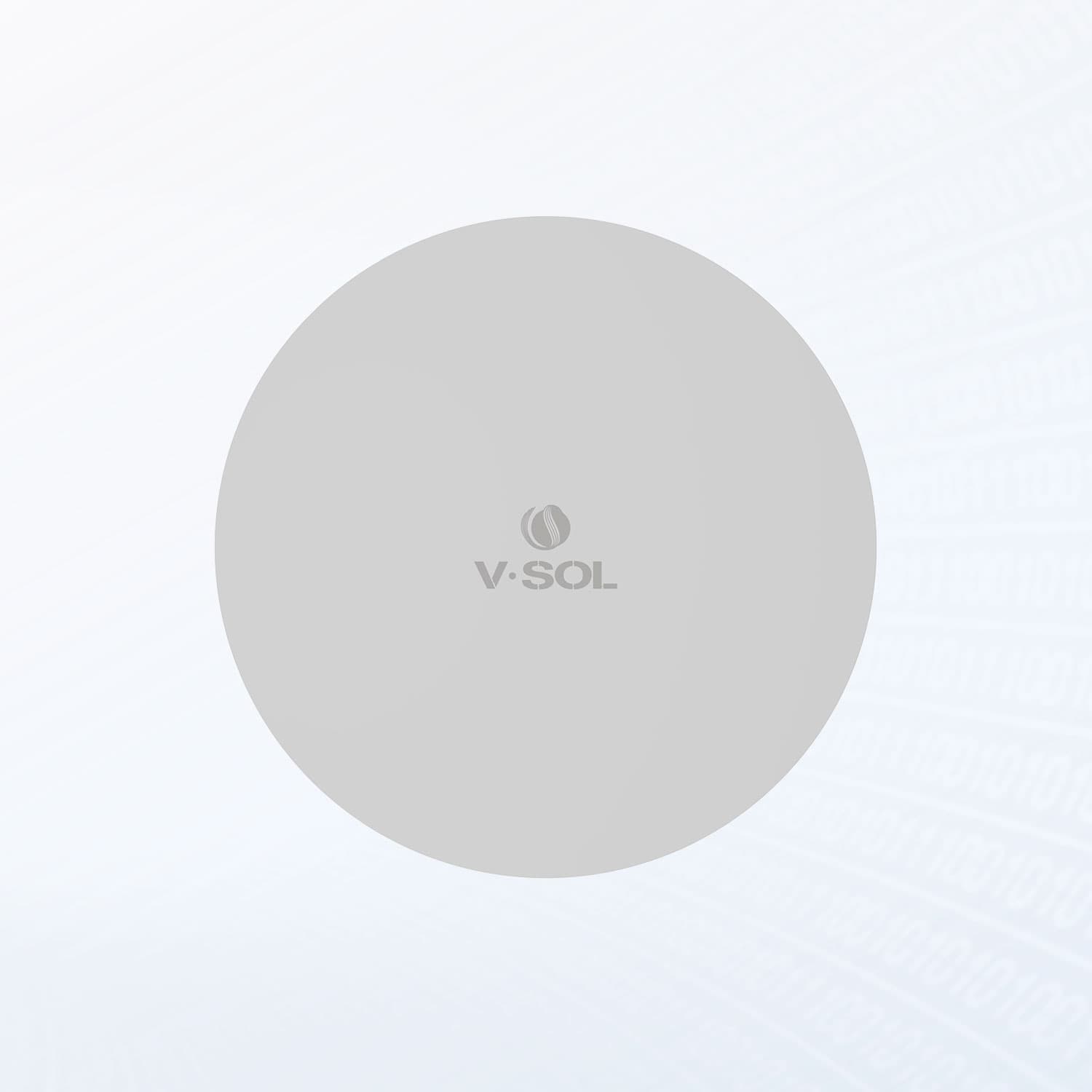

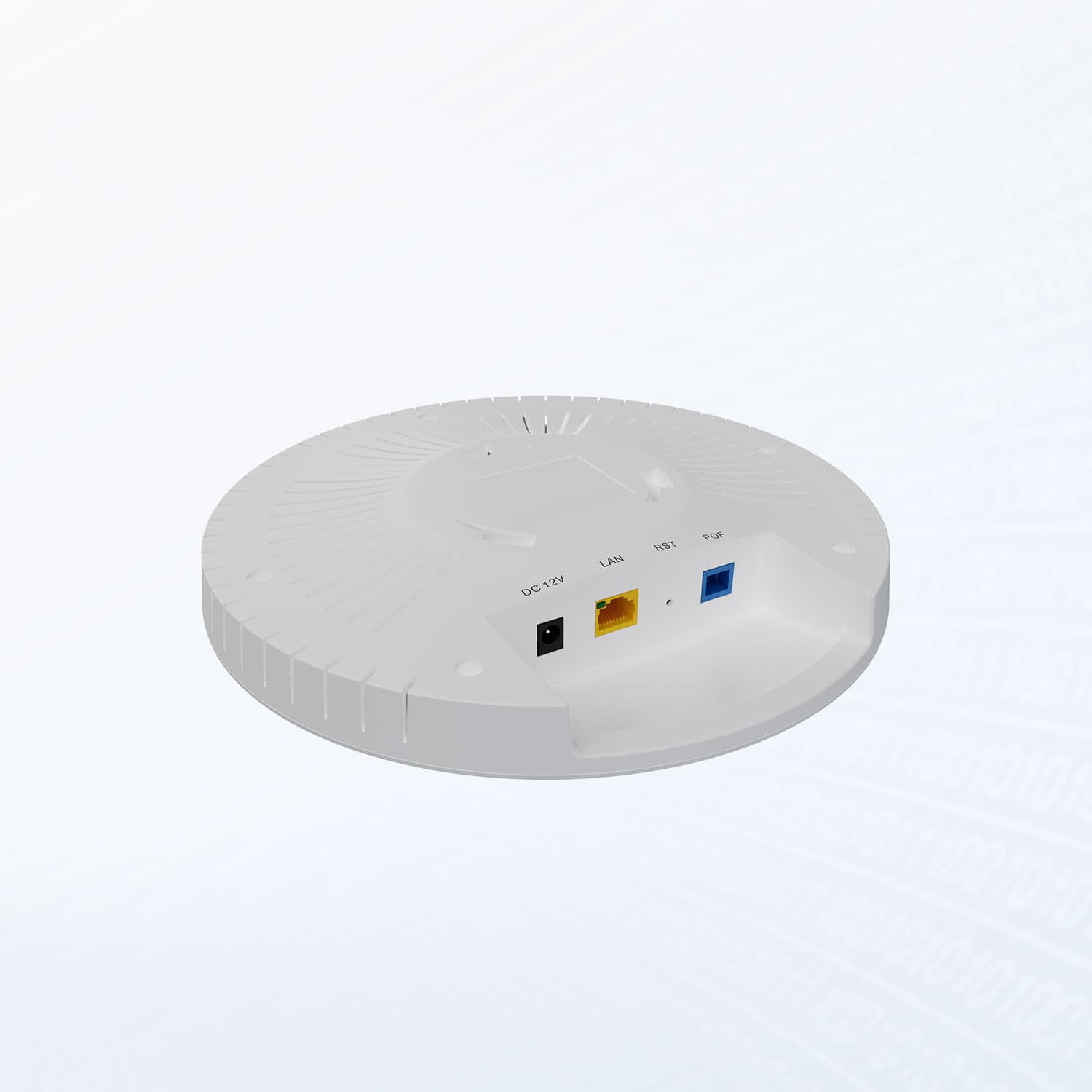

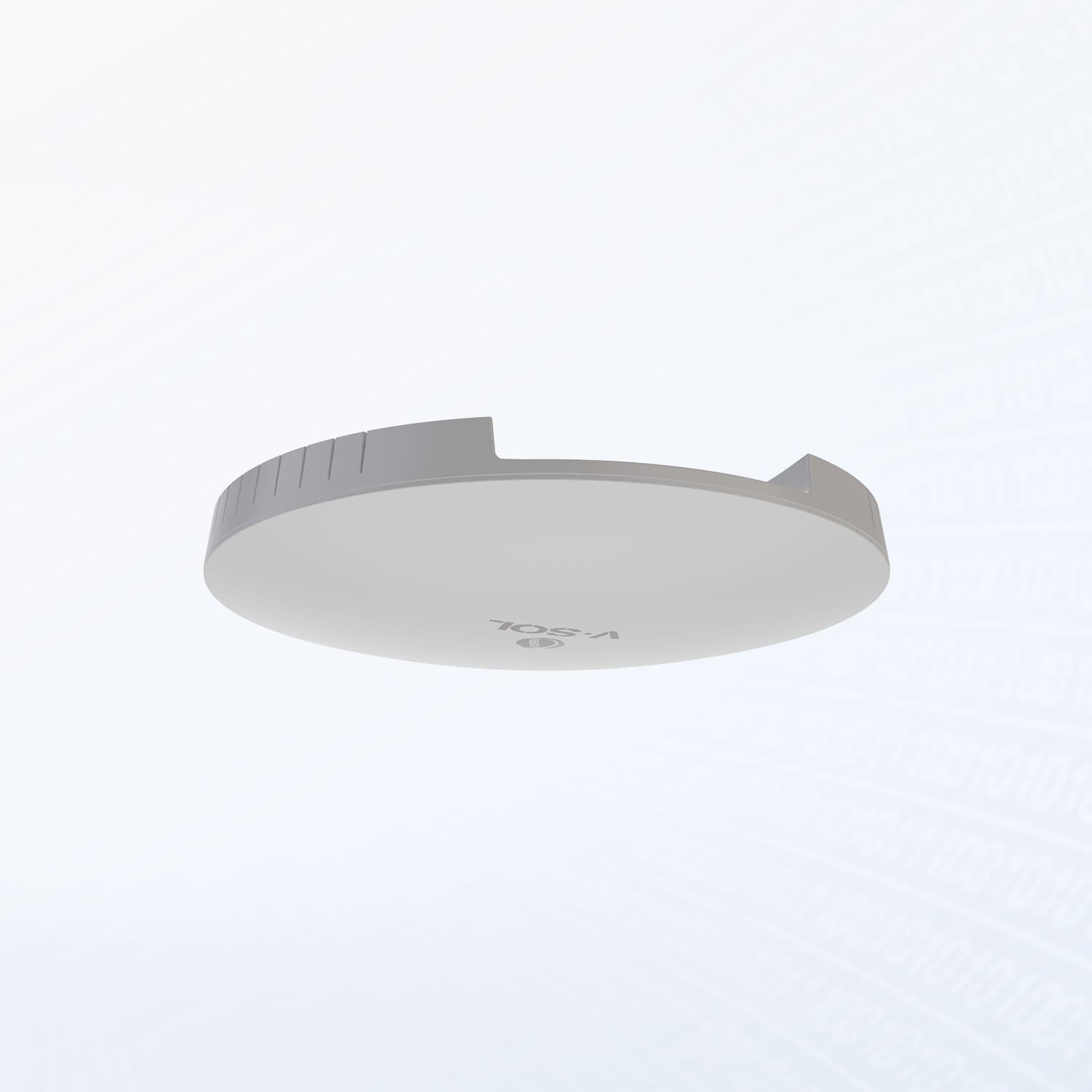

V2801AX30C-A — 1XPON(PoF)+1GE+Wi-Fi 6 Ceiling Installation ONT

Descripción

AX3000 ONT Wi-Fi 6 de montaje en techo V2801AX30C-A | 1*XPON(PoF)+1*GE+Wi-Fi 6(AX3000) Velocidades ultrarrápidas AX3000 Wi-Fi 6 Compacto & Fácil de implantar Reducción significativa del coste total de propiedad con la fuente de alimentación PoF Mantente siempre suave con AC+AP Hardware Parameter Dimension 240mm*240mm*48mm(L*W*H) Net weight 400g Working condition Working temp: -10~+55°C Working humidity:5~95%(non-condensing) Storing condition Storing temp: -40~+70°C Storing humidity:5~ 95% (non-condensing) Power adapter Local power supply:DC 12V, 1A; PoF power supply:DC 14~60V; Power supply ≤12W Interface 1GE+Wi-Fi 6 Indicators PON/LOS, LAN Button Reset Installation Ceiling installation Interface Parameter PON Interface l 1XPON port(EPON PX20+ and GPON Class B+) l SC single mode, SC/UPC connector l Support PoF l TX optical power: 0 ～ +4dBm l RX sensitivity: -27dBm l Overload optical power: -3dBm(EPON) or -8dBm(GPON) l Transmission distance: 20KM l Wavelength: TX 1310nm, RX1490nm User Interface 1*GE, Auto-negotiation,RJ45 ports WLAN Interface l Compliant with IEEE802.11b/g/n/ac/ax l 2402 Mbps on 5GHz and 574Mbps on 2.4 GHz l 2.4GHz: 2*2, 5GHz: 3*3; 5*4dBi Internal antennas l Maximum number of connected devices:256 Function Data Multicast l IGMP v1/v2/v3, IGMP snooping l IGMP Proxy l MLD v1/v2 snooping l MLD Proxy Wireless l Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11b/g/n/ax 2.4GHz l Wi-Fi Encryption:WPA/WPA2/WPA3(personal), WPS2.0 l Support MU-MIMO & OFDMA l Support Multiple SSID l Support hidden SSID l Support Mesh QOS l Support 4 queues l Support SP, WRR, 802.1P and DSCP L2 l Support 802.1D&802.1ad bridge, 802.1Q VLAN L3/L4 l Support IPv4, IPv6 and IPv4/IPv6 dual stack l Support DHCP/PPPOE/Static IP l Support Static route,NAT l Support DMZ, ALG,UPnP l Support Virtual Server l Support DNS Client and DNS Proxy l Support DDNS Security l Support local access control l Support IP/MAC filtering, URL filtering l Support Anti-DoS attack function l Support loop detection l Support Parental control function System Function l Support NTP (Network Time Protocol) l Support scheduled device restart l Support Ping and Traceroute diagnosis l Support Iperf speed measurement function l Support WLAN packet capture

Especificaciones técnicas

Dimension

240mm*240mm*48mm(L*W*H)

Net weight

400g

Working condition

Working temp: -10~+55°C Working humidity:5~95%(non-condensing)

Storing condition

Storing temp: -40~+70°C Storing humidity:5~ 95% (non-condensing)

Power adapter

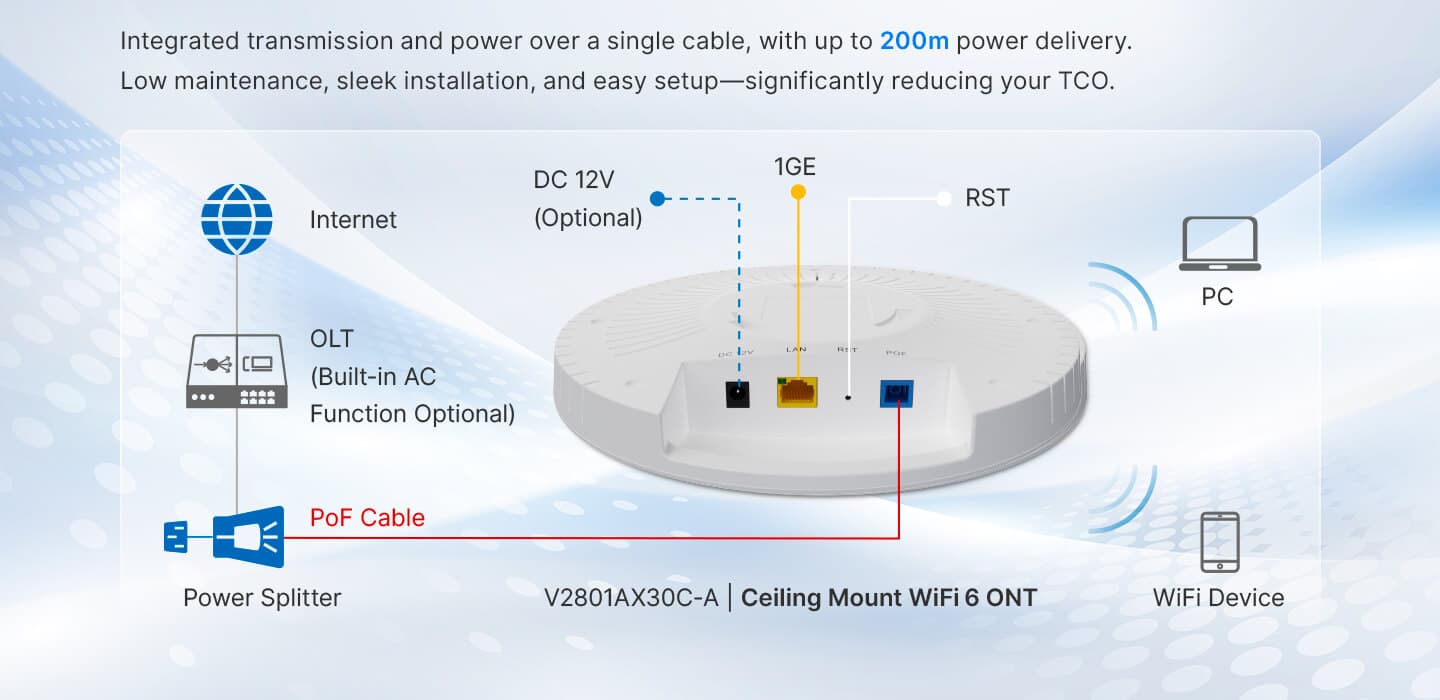

Local power supply:DC 12V, 1A; PoF power supply:DC 14~60V;

Power supply

≤12W

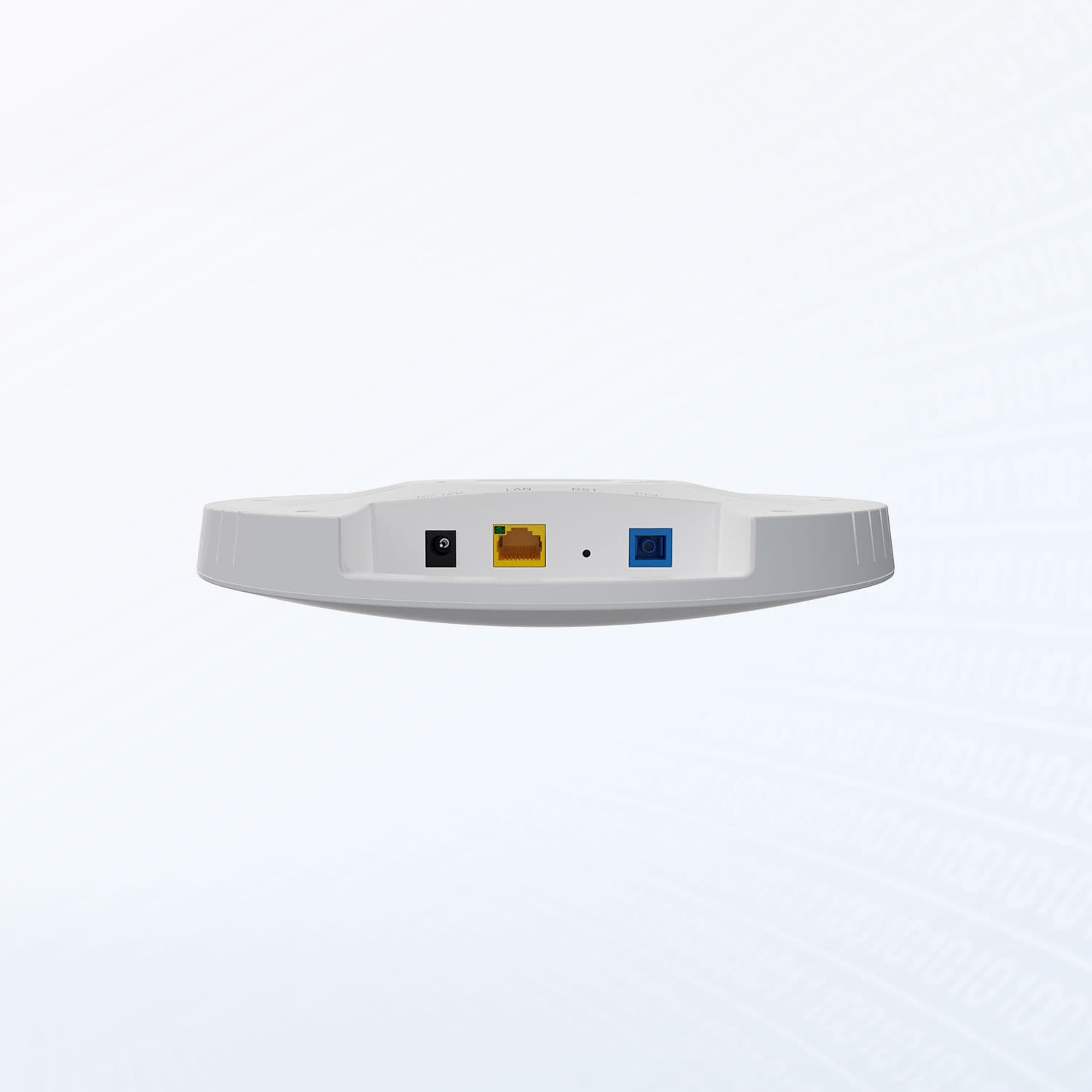

Interface

1GE+Wi-Fi 6

Indicators

PON/LOS, LAN

Button

Reset

Installation

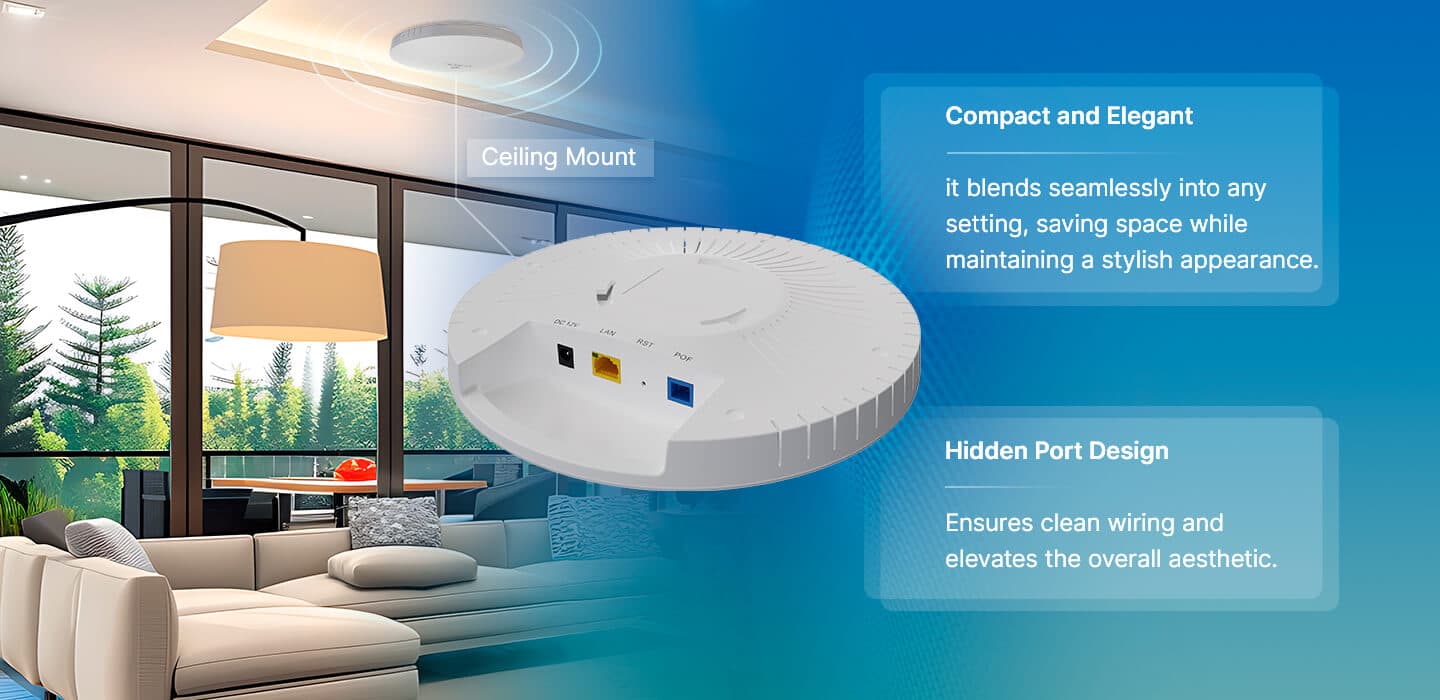

Ceiling installation

PON Interface

l 1XPON port(EPON PX20+ and GPON Class B+) l SC single mode, SC/UPC connector l Support PoF l TX optical power: 0 ～ +4dBm l RX sensitivity: -27dBm l Overload optical power: -3dBm(EPON) or -8dBm(GPON) l Transmission distance: 20KM l Wavelength: TX 1310nm, RX1490nm

User Interface

1*GE, Auto-negotiation,RJ45 ports

WLAN Interface

l Compliant with IEEE802.11b/g/n/ac/ax l 2402 Mbps on 5GHz and 574Mbps on 2.4 GHz l 2.4GHz: 2*2, 5GHz: 3*3; 5*4dBi Internal antennas l Maximum number of connected devices:256

Multicast

l IGMP v1/v2/v3, IGMP snooping l IGMP Proxy l MLD v1/v2 snooping l MLD Proxy

Wireless

l Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11b/g/n/ax 2.4GHz l Wi-Fi Encryption:WPA/WPA2/WPA3(personal), WPS2.0 l Support MU-MIMO & OFDMA l Support Multiple SSID l Support hidden SSID l Support Mesh

QOS

l Support 4 queues l Support SP, WRR, 802.1P and DSCP

L2

l Support 802.1D&802.1ad bridge, 802.1Q VLAN

L3/L4

l Support IPv4, IPv6 and IPv4/IPv6 dual stack l Support DHCP/PPPOE/Static IP l Support Static route,NAT l Support DMZ, ALG,UPnP l Support Virtual Server l Support DNS Client and DNS Proxy l Support DDNS

Security

l Support local access control l Support IP/MAC filtering, URL filtering l Support Anti-DoS attack function l Support loop detection l Support Parental control function

System Function

l Support NTP (Network Time Protocol) l Support scheduled device restart l Support Ping and Traceroute diagnosis l Support Iperf speed measurement function l Support WLAN packet capture
