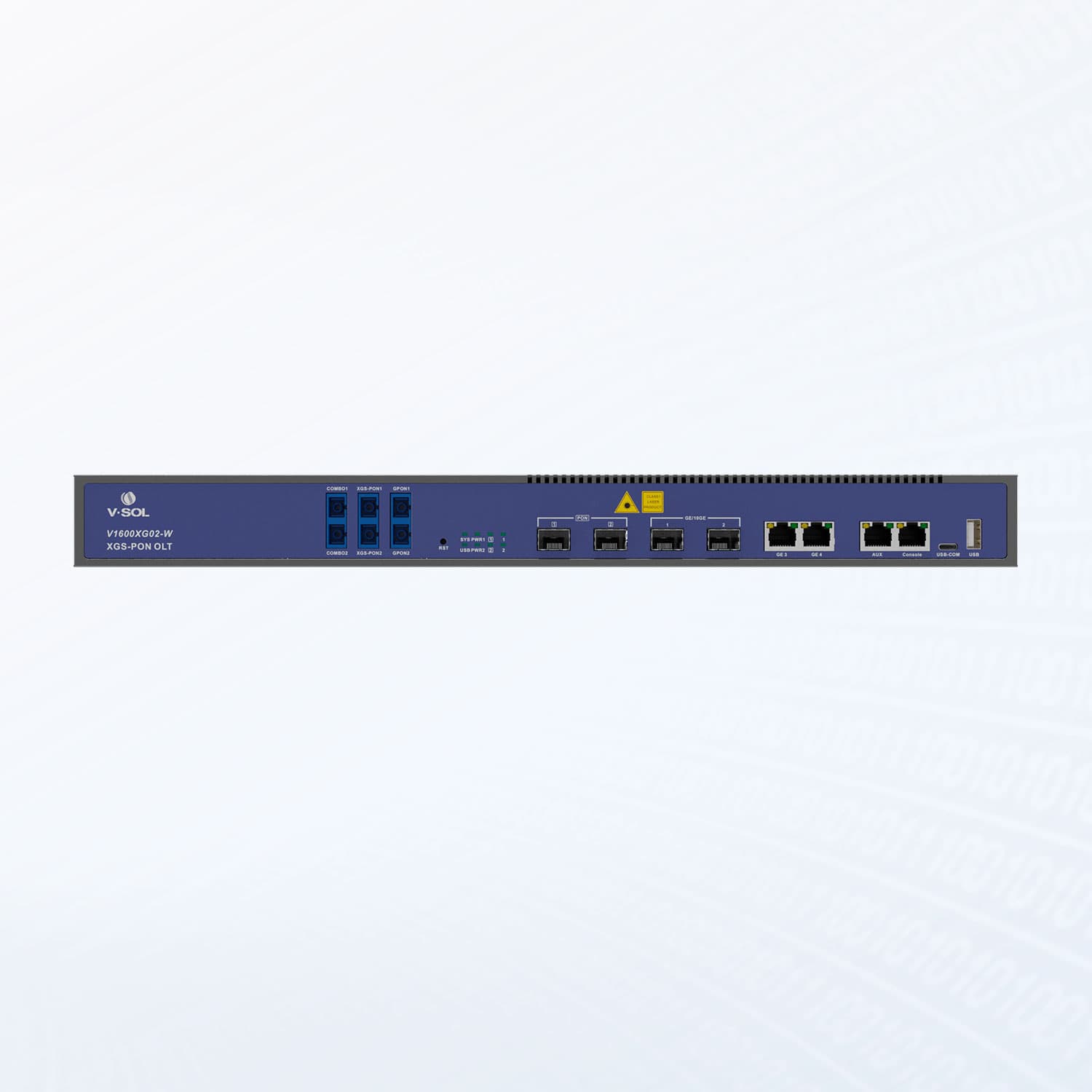

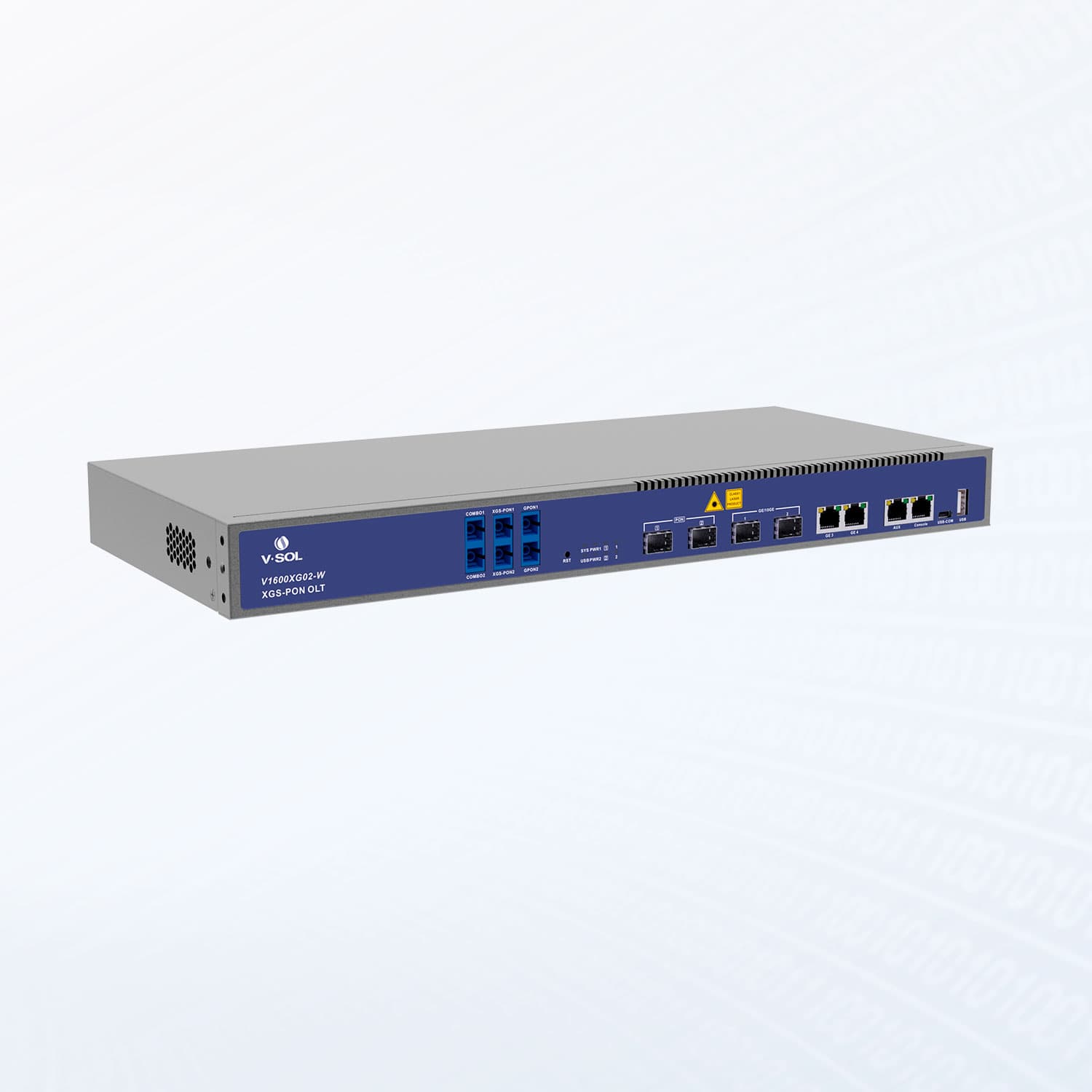

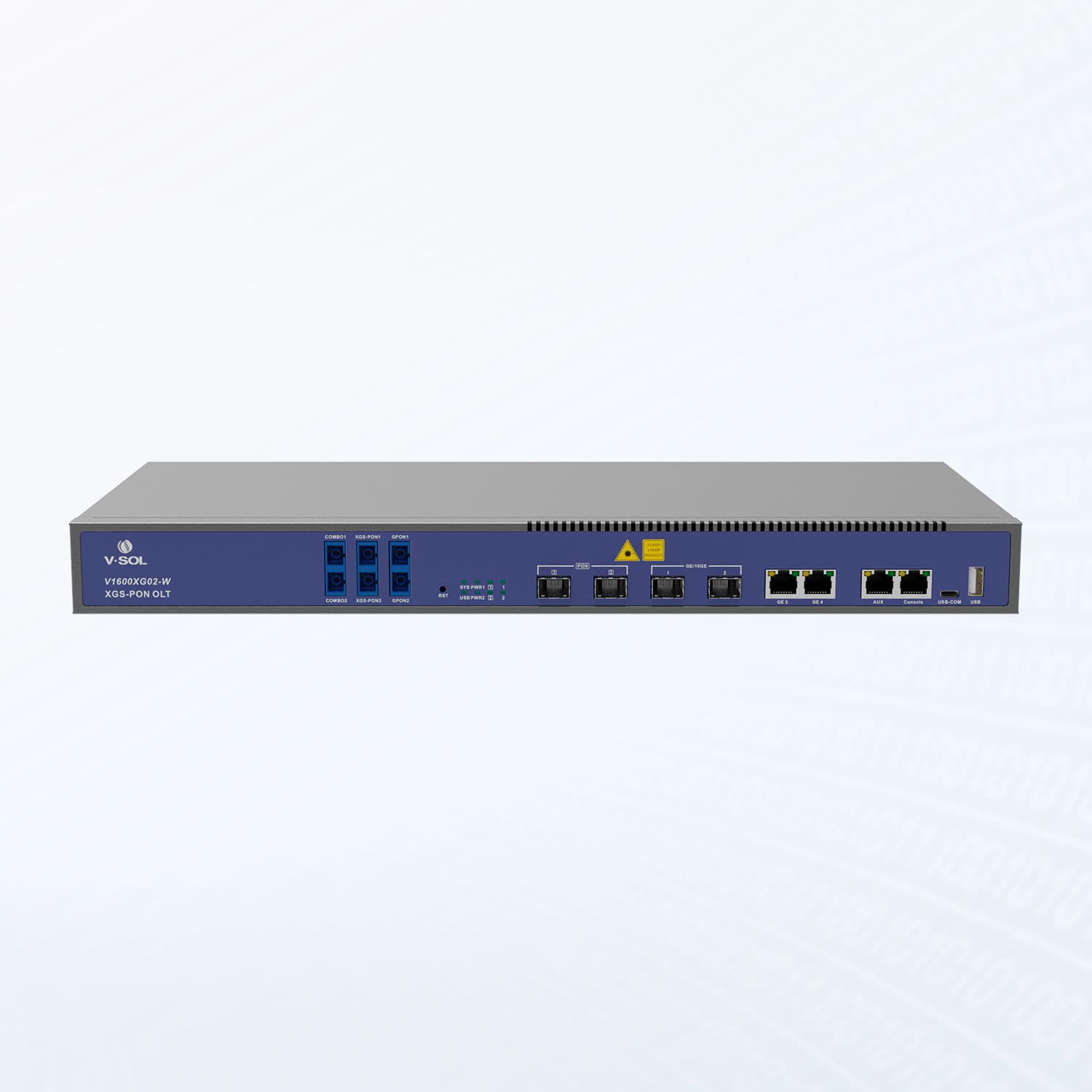

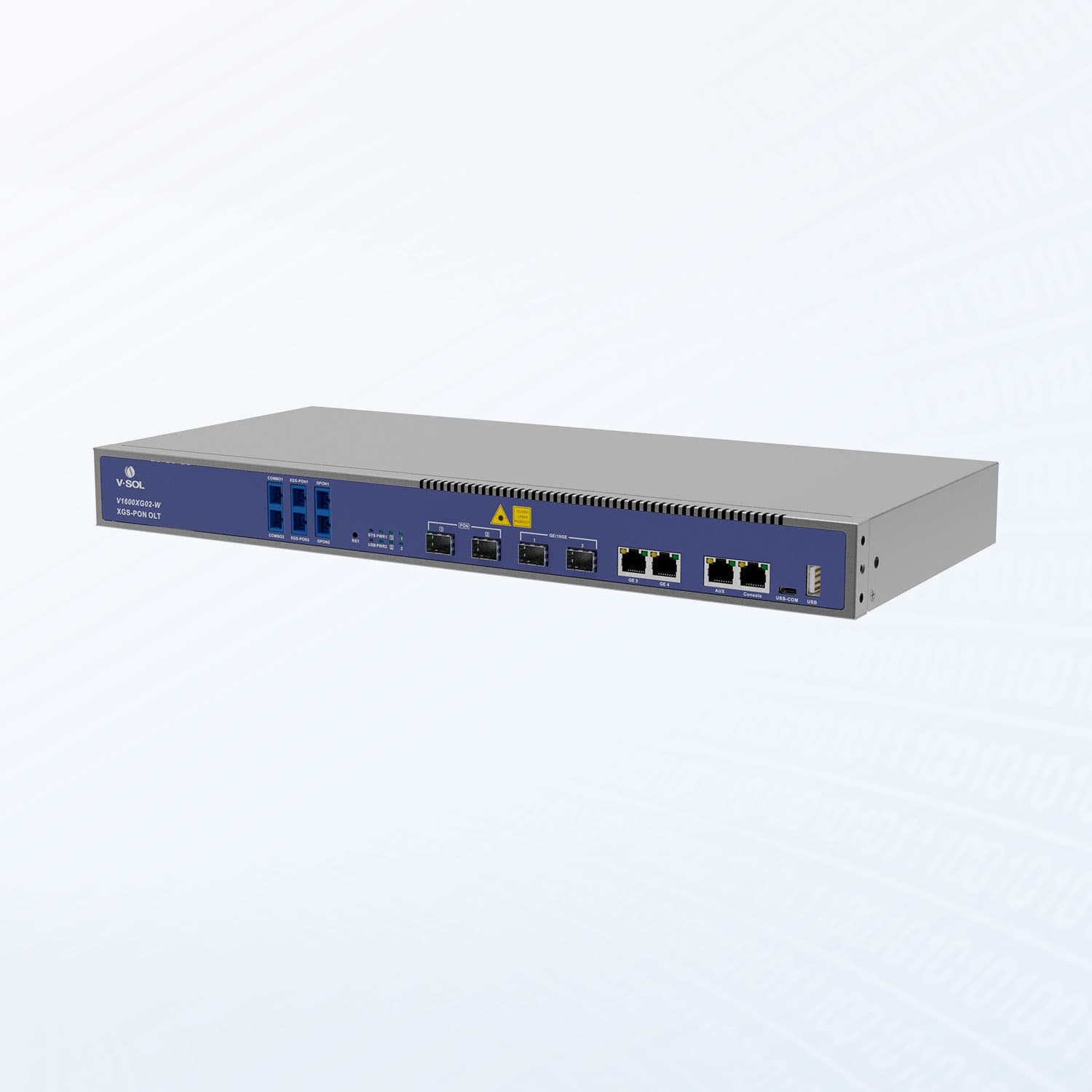

V1600XG02-W — 2 PON Port GPON/XG/XGS-PON OLT
WDM1r | 10Gbps | Блок 1U Modelo: V1600XG02-W
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
Actualización PON 10G de gran valor: compatible y apta para sistemas heredados Innovaciones tecnológicas Evolución fluida a 10G PON Optimización significativa del TCO Seguridad de nivel Telecom Amplia gama de aplicaciones V1600XG02 -W Chassis Rack 1U 19Inch Standard Box Uplink Port QTY 4 RJ45(GE) 2 SFP(GE) / SFP+(10GE) 2 XG-PON/ XGS-PON Port QTY 2 Physical Interface SFP+ Slots Optical splitting ratio 1:256 (Maximum), 1:128 (Recommended) Built in WDM1r GPON Input ports 2 XGS-PON Input ports 2 COMBO Output ports 2 Management Ports 1*10/100/1000M BASE-T out-band LAN port, 1*CONSOLE port,1*USB-COM, 1*USB2.0 Backplane Bandwidth (Gbps) 208 Port Forwarding Rate (Mpps) 124.992 PON Port Specification Transmission Distance 20KM GPON port speed Upstream 1.244 Gbps, Downstream 2.488Gbps XG-PON port speed Upstream 2.488Gbps, Downstream 9.953 Gbps XGS-PON port speed Upstream 9.953 Gbps, Downstream 9.953 Gbps Wavelength GPON: TX 1490nm, RX 1310nm Wavelength XG-PON, XGS-PON: TX 1577nm, RX 1270nm Connector SC/UPC Fiber Type 9/125μm SMF Power Supply AC Working Voltage Range: 100 ~ 240V, Rated Voltage: 110V/220V DC Working Voltage Range: -36 ~ -75V, Rated Voltage: -48V/-60V Management Mode WEB, Telnet, CLI
Especificaciones técnicas
- Chassis
- Rack | 1U 19Inch Standard Box
- Uplink Port
- QTY | 4
- RJ45(GE)
- 2
- SFP(GE) / SFP+(10GE)
- 2
- XG-PON/ XGS-PON Port
- QTY | 2
- Physical Interface
- SFP+ Slots
- Optical splitting ratio
- 1:256 (Maximum), 1:128 (Recommended)

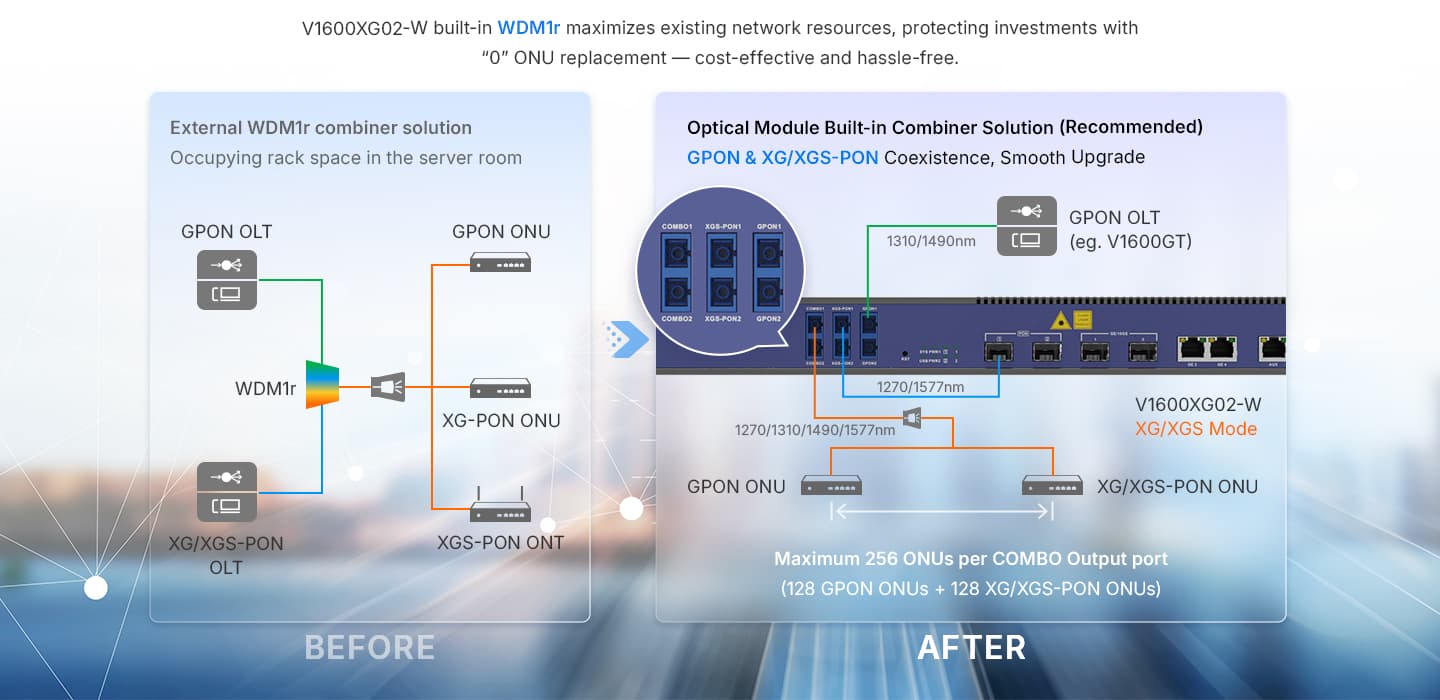

- Built in WDM1r
- GPON Input ports | 2
- XGS-PON Input ports
- 2
- COMBO Output ports
- 2
- Management Ports
- 1*10/100/1000M BASE-T out-band LAN port, 1*CONSOLE port,1*USB-COM, 1*USB2.0
- Backplane Bandwidth (Gbps)
- 208
- Port Forwarding Rate (Mpps)
- 124.992
- PON Port Specification
- Transmission Distance | 20KM
- GPON port speed
- Upstream 1.244 Gbps, Downstream 2.488Gbps
- XG-PON port speed
- Upstream 2.488Gbps, Downstream 9.953 Gbps
- XGS-PON port speed
- Upstream 9.953 Gbps, Downstream 9.953 Gbps
- Wavelength
- GPON: TX 1490nm, RX 1310nm
- Wavelength
- XG-PON, XGS-PON: TX 1577nm, RX 1270nm
- Connector
- SC/UPC
- Fiber Type
- 9/125μm SMF
- Power Supply
- AC | Working Voltage Range: 100 ~ 240V, Rated Voltage: 110V/220V
- DC
- Working Voltage Range: -36 ~ -75V, Rated Voltage: -48V/-60V
- Management Mode
- WEB, Telnet, CLI
