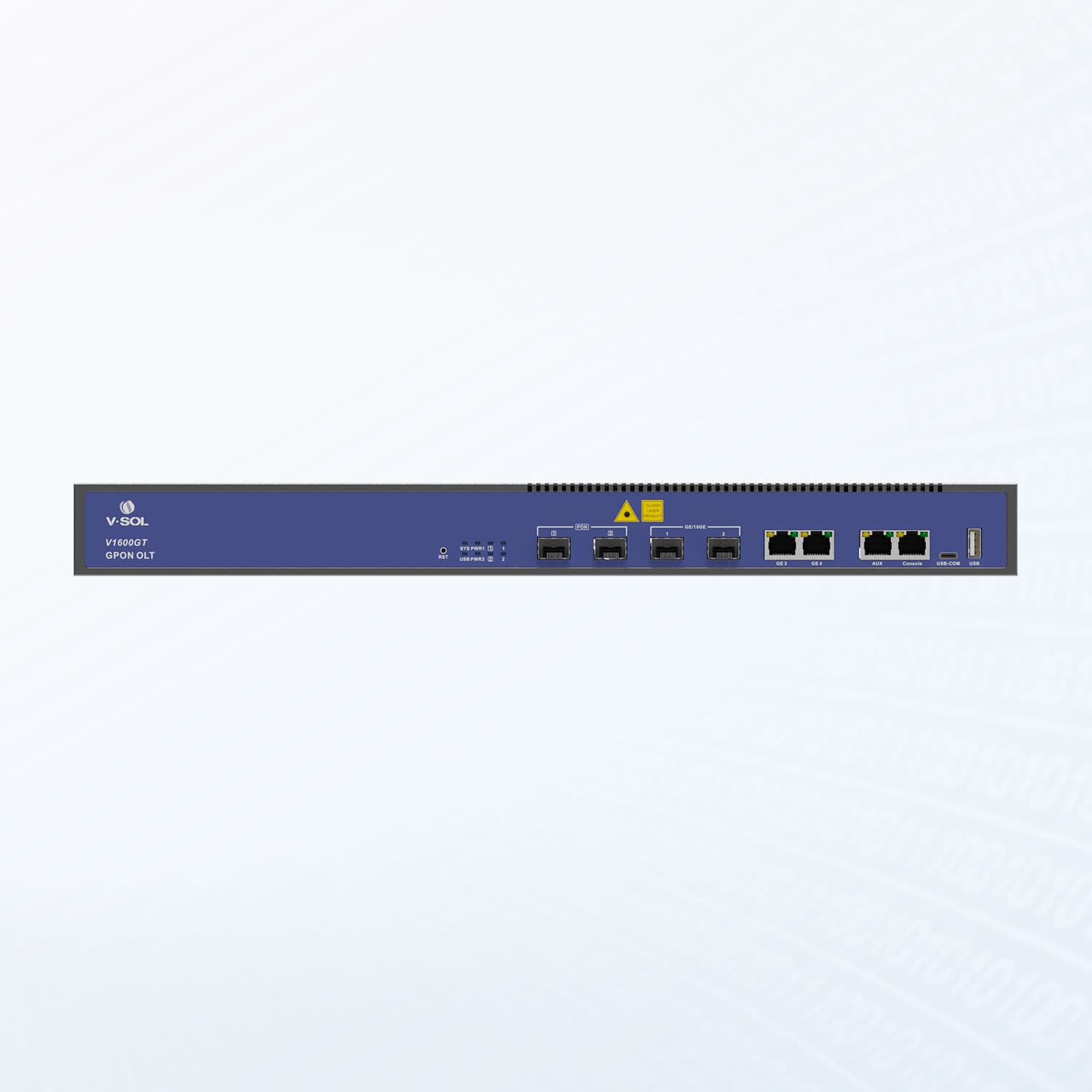

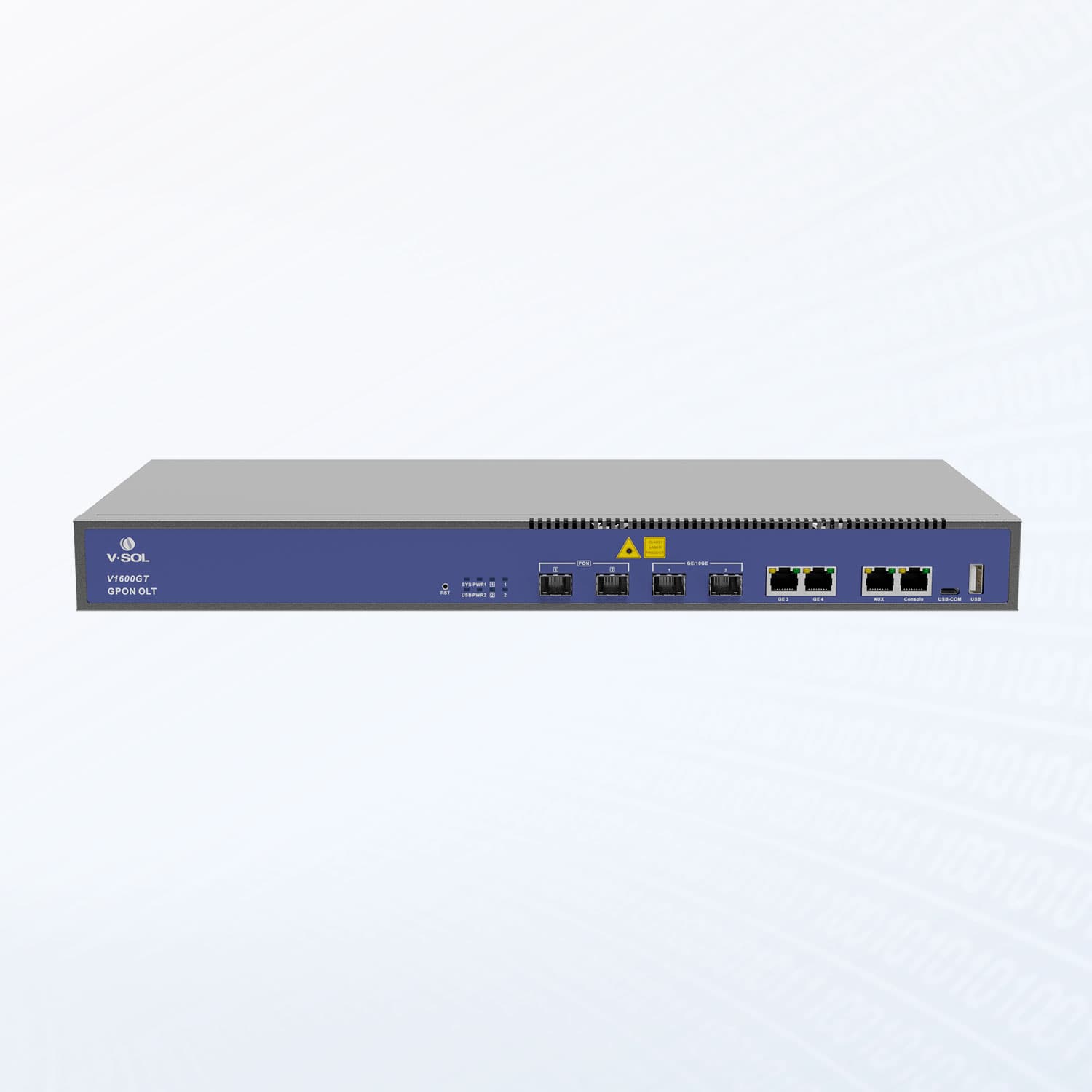

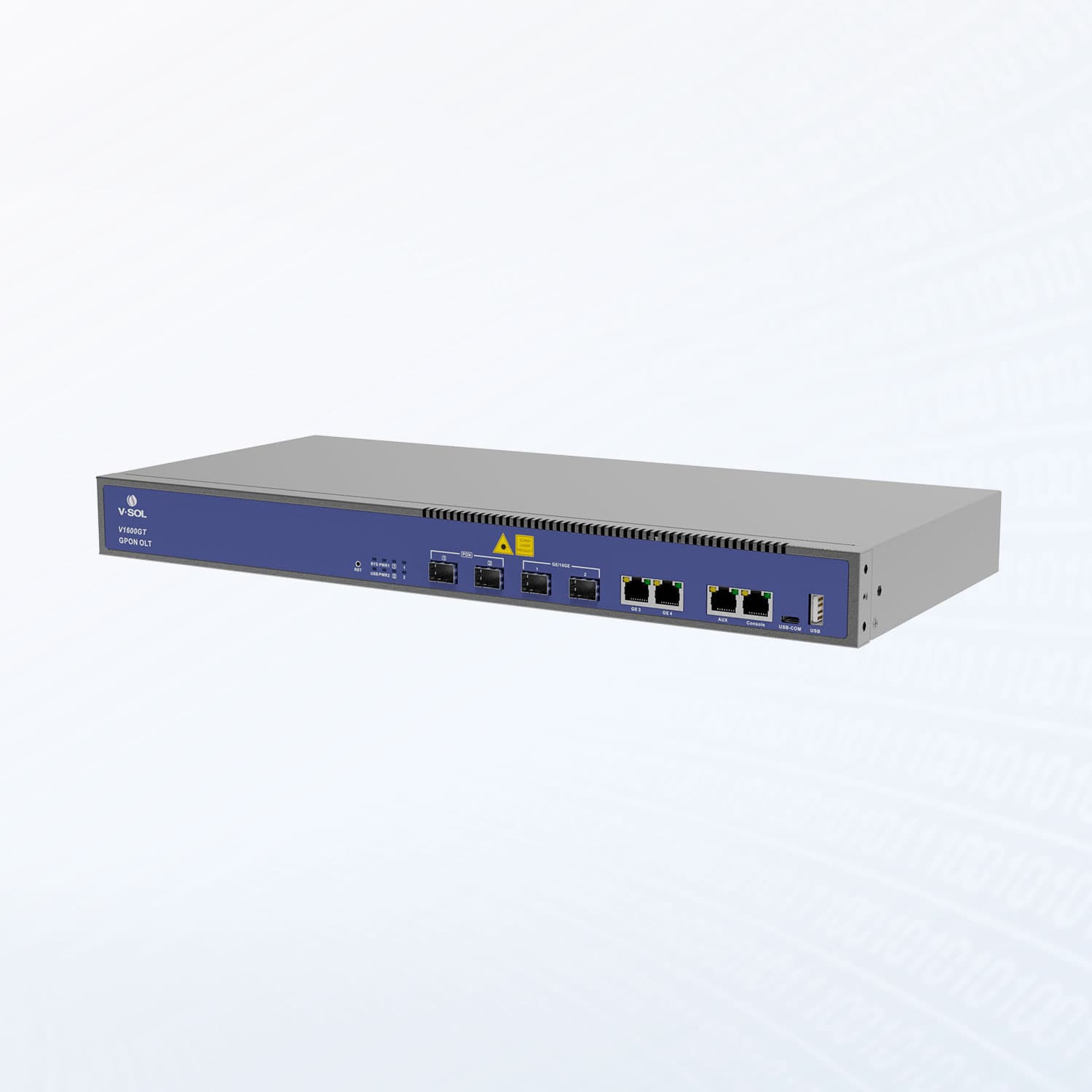

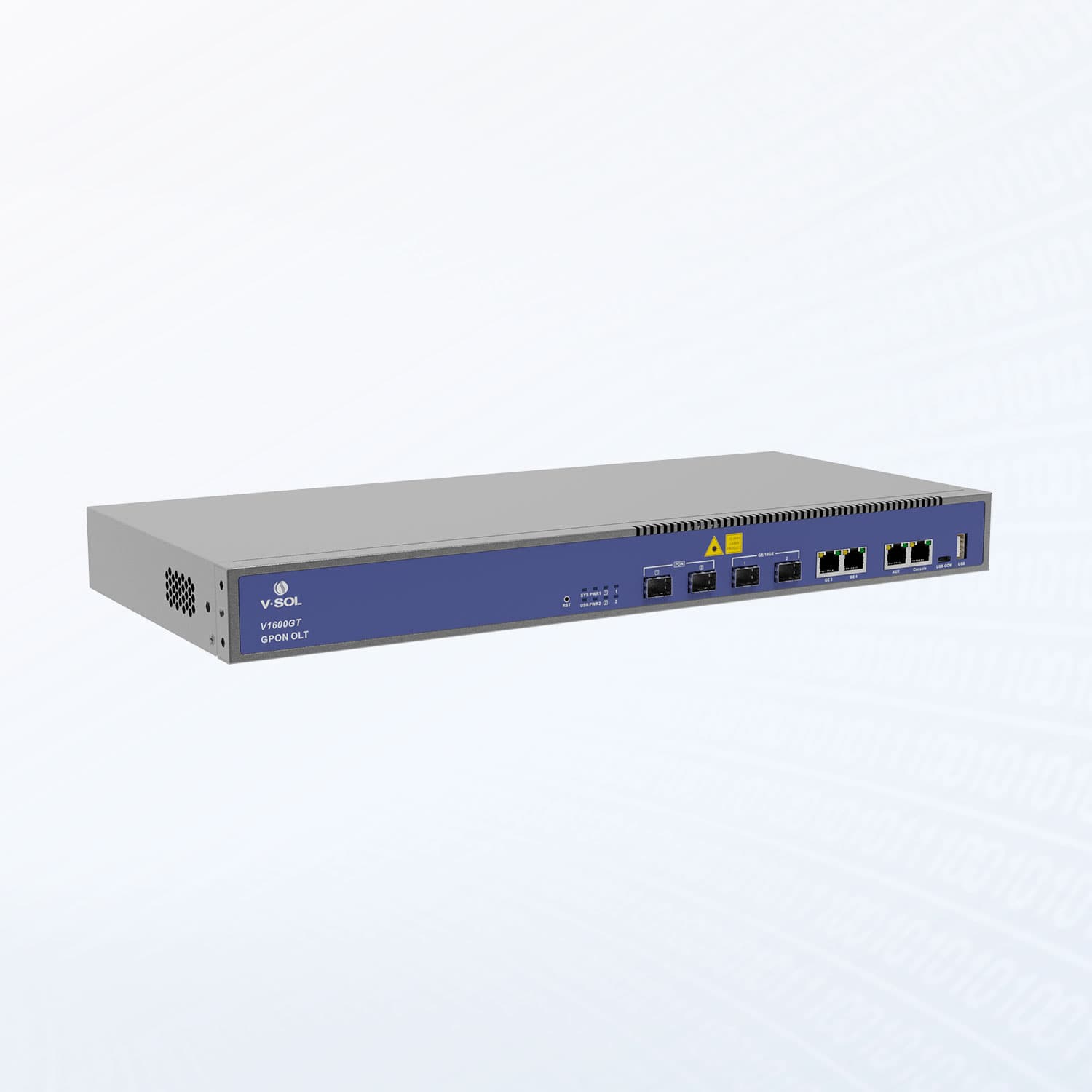

V1600GT — 2 Port GPON OLT

Descripción

OLT minimalista diseñada para aplicaciones a pequeña escala Asistencia técnica completa Para aplicaciones a pequeña escala Optimización significativa de TCO Seguridad de nivel Telecom Diversos escenarios de despliegue V1600GT Chassis Rack 1U 19Inch Standard Box Uplink Port QTY 4 RJ45(GE) 2 SFP(GE) / SFP+(10GE) 2 GPON Port QTY 2 Physical Interface SFP+ Slots Supported PON module level Class C++ / Class C+++ / Class C++++ Max splitting ratio 1:128 Management Ports 1*10/100/1000BASE-T out-band port, 1*CONSOLE port,1*USB-COM, 1*USB2.0 Backplane Bandwidth (Gbps) 208 Port Forwarding Rate (Mpps) 40.176 PON Port Specification (Class C+++) Transmission Distance 20KM PON port speed Upstream 1.244Gbps, Downstream 2.488 Gbps Wavelength TX 1310nm, RX 1490nm Connector SC/UPC Fiber Type 9/125μm SMF TX Power +4.5 ~ +10dBm Rx Sensitivity ≤ -30dBm Saturation Optical Power -12dBm Power Supply AC Working Voltage Range: 100~240V, Rated Voltage: 110V/220V DC Working Voltage Range: -36~-75V, Rated Voltage: -48V/-60V Management Mode WEB, Telnet, CLI

Especificaciones técnicas

Chassis

Rack | 1U 19Inch Standard Box

Uplink Port

QTY | 4

RJ45(GE)

2

SFP(GE) / SFP+(10GE)

2

GPON Port

QTY | 2

Physical Interface

SFP+ Slots

Supported PON module level

Class C++ / Class C+++ / Class C++++

Max splitting ratio

1:128

Management Ports

1*10/100/1000BASE-T out-band port, 1*CONSOLE port,1*USB-COM, 1*USB2.0

Backplane Bandwidth (Gbps)

208

Port Forwarding Rate (Mpps)

40.176

PON Port Specification (Class C+++)

Transmission Distance | 20KM

PON port speed

Upstream 1.244Gbps, Downstream 2.488 Gbps

Wavelength

TX 1310nm, RX 1490nm

Connector

SC/UPC

Fiber Type

9/125μm SMF

TX Power

+4.5 ~ +10dBm

Rx Sensitivity

≤ -30dBm

Saturation Optical Power

-12dBm

Power Supply

AC | Working Voltage Range: 100~240V, Rated Voltage: 110V/220V

DC

Working Voltage Range: -36~-75V, Rated Voltage: -48V/-60V

Management Mode

WEB, Telnet, CLI
