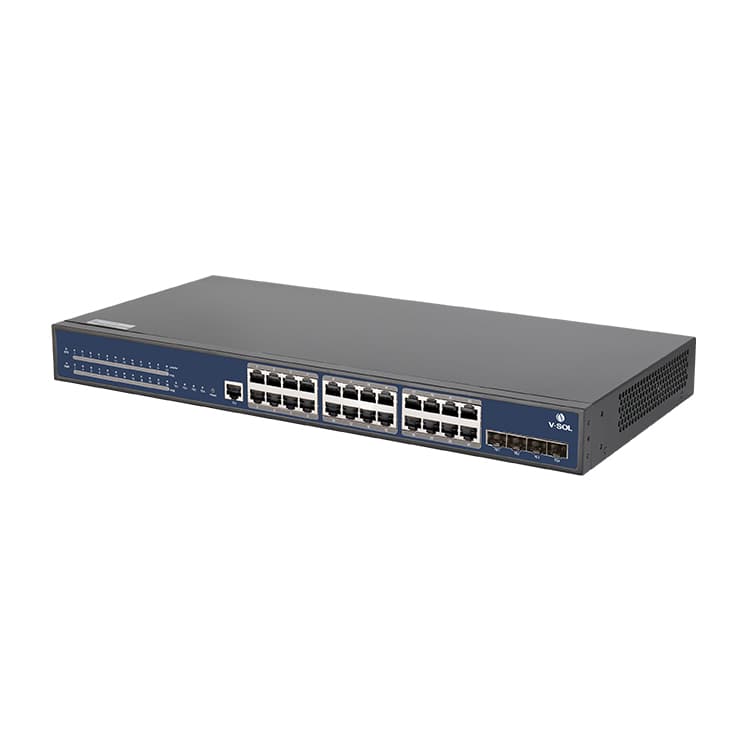

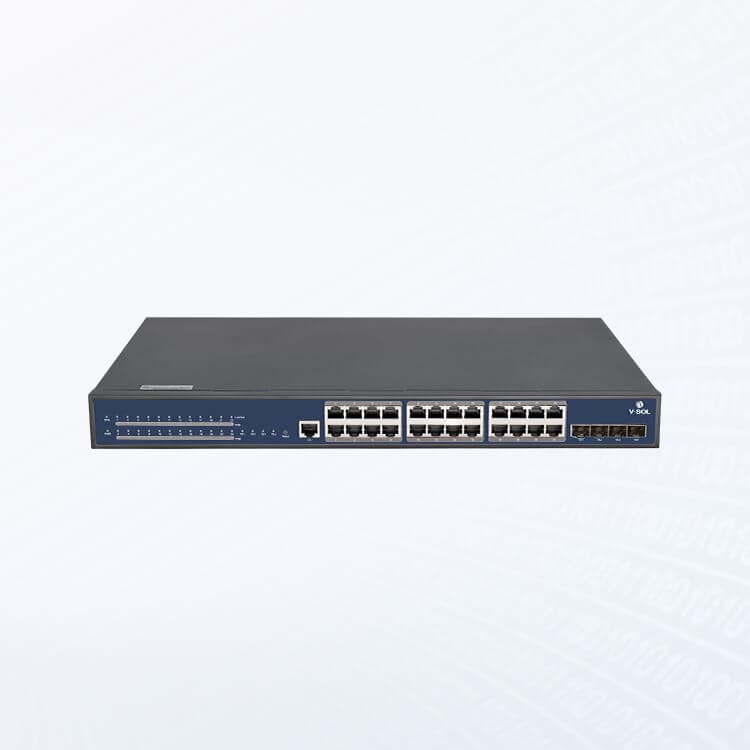

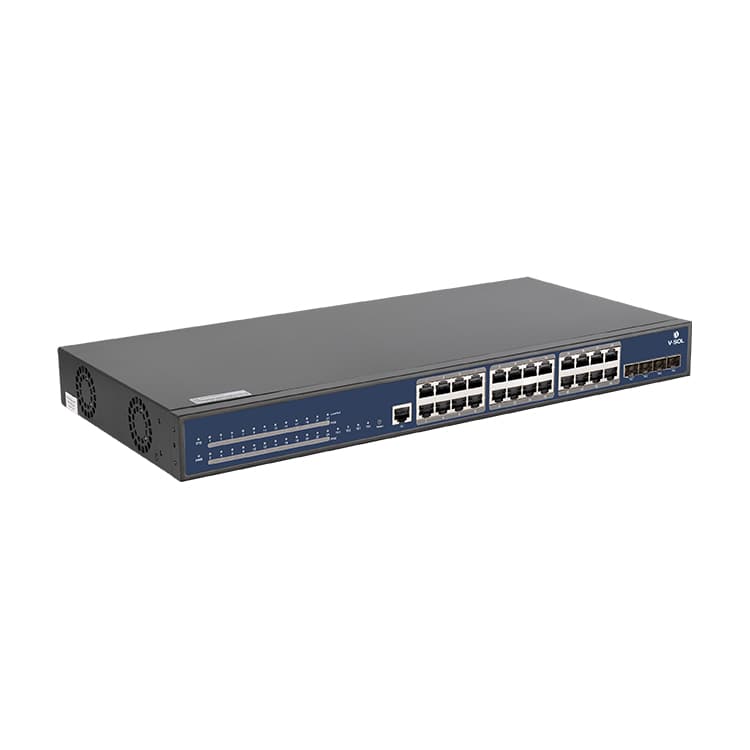

V3528-P — 24*GE(RJ45, POE)+4*10GE/GE(SFP+) Switch
24GE Ports | Alimentación PoE | MAN IP de Operador | Alta Eficiencia Modelo: V3528-P
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
Product introduct V-SOL V35XX Series is a new-generation smart switch developed for carrier IP MAN and enterprise networks. Based on the new high-performance hardware and the ROS platform, V35XX supports ACL, selective QinQ, 1:1 and N:1 VLAN switching, Ethernet OAM, carrier-level QoS, industry-level 10G Ethernet ring, etc. V3528E V3528EF 24*GE (RJ45) ports 4*10GE/GE (SFP+) ports 16*GE (SFP) ports 8*GE (SFP/RJ45 combo) ports 4*10GE/GE (SFP+) ports V3528-P V3552E 24*GE (RJ45, POE) ports 4*10GE/GE (SFP+) ports 48*GE (RJ45) ports 4*10GE/GE (SFP+) ports Technical parameters Parameter V3528E V3528EF V3528-P V3552E Interfaces 24*GE (RJ45)+ 4*10GE/GE (SFP+) 16*GE (SFP) + 8*GE (SFP/RJ45 combo) + 4*10GE/GE (SFP+) 24*GE (RJ45, POE) + 4*10GE/GE (SFP+) 48*GE (RJ45) + 4*10GE/GE (SFP+) Console(RJ45) 1 1 1 1 Backplane(Gbps) 128 128 128 216 Forwarding rate(Mpps with 64 bytes) 96 96 96 162 Chassis Dimensions (WxDxH)(mm) 440x180x44 440x280x44 440x280x44 440x280x44 Weight (KG)(empty) 2.4/3.4 3.5 3.5 3.8 Package Dimensions (WxDxH)(mm) 500x320x80 576x448x94 555x448x94 576x448x94 Weight(KG) 3.4/4.4 4.5 4.5 4.6 Power consumption no-load ＜ 22W ＜ 18W ＜ 25W ＜ 25W full-load 35W ＜ 38W ＜ 408W ＜ 48W Power supply AC:100V-240V, 50-60Hz 45W 45W 410W 50W POE power budgest / / 370W / Total output BTU(1000BTU/H=293W) 153.58 153.58 1392.49 163.82 Fan number / 2 2 2 Noise@25 ℃ (dBA) 0 45 37.5 45 MTBF(H) ＞ 200,000 ＞ 200,000 ＞ 200,000 ＞ 200,000 Forwarding mode Store-forward Store-forward Store-forward Store-forward Flash(MB) 16 16 16 16 DRAM(MB) 256 256 256 512 MAC 16K 16K 16K 16K Buffer size(MB) 1.5 1.5 1.5 1.5 Interface VLAN 64 64 64 64 Routing table 512 512 512 512 Jumbo frame 9K 9K 9K 9K
Especificaciones técnicas
- V3528E
- V3528EF
- 24*GE (RJ45) ports 4*10GE/GE (SFP+) ports
- 16*GE (SFP) ports 8*GE (SFP/RJ45 combo) ports 4*10GE/GE (SFP+) ports
- V3528-P
- V3552E
- 24*GE (RJ45, POE) ports 4*10GE/GE (SFP+) ports
- 48*GE (RJ45) ports 4*10GE/GE (SFP+) ports
- Parameter
- V3528E | V3528EF | V3528-P | V3552E
- Interfaces
- 24*GE (RJ45)+ 4*10GE/GE (SFP+) | 16*GE (SFP) + 8*GE (SFP/RJ45 combo) + 4*10GE/GE (SFP+) | 24*GE (RJ45, POE) + 4*10GE/GE (SFP+) | 48*GE (RJ45) + 4*10GE/GE (SFP+)
- Console(RJ45)
- 1 | 1 | 1 | 1
- Backplane(Gbps)
- 128 | 128 | 128 | 216
- Forwarding rate(Mpps with 64 bytes)
- 96 | 96 | 96 | 162
- Chassis
- Dimensions (WxDxH)(mm) | 440x180x44 | 440x280x44 | 440x280x44 | 440x280x44
- Weight (KG)(empty)
- 2.4/3.4 | 3.5 | 3.5 | 3.8
- Package
- Dimensions (WxDxH)(mm) | 500x320x80 | 576x448x94 | 555x448x94 | 576x448x94
- Weight(KG)
- 3.4/4.4 | 4.5 | 4.5 | 4.6
- Power consumption
- no-load | ＜ 22W | ＜ 18W | ＜ 25W | ＜ 25W
- full-load
- 35W | ＜ 38W | ＜ 408W | ＜ 48W
- Power supply
- AC:100V-240V, 50-60Hz | 45W | 45W | 410W | 50W
- POE power budgest
- / | / | 370W | /
- Total output BTU(1000BTU/H=293W)
- 153.58 | 153.58 | 1392.49 | 163.82
- Fan number
- / | 2 | 2 | 2
- Noise@25 ℃ (dBA)
- 0 | 45 | 37.5 | 45
- MTBF(H)
- ＞ 200,000 | ＞ 200,000 | ＞ 200,000 | ＞ 200,000
- Forwarding mode
- Store-forward | Store-forward | Store-forward | Store-forward
- Flash(MB)
- 16 | 16 | 16 | 16
- DRAM(MB)
- 256 | 256 | 256 | 512
- MAC
- 16K | 16K | 16K | 16K
- Buffer size(MB)
- 1.5 | 1.5 | 1.5 | 1.5
- Interface VLAN
- 64 | 64 | 64 | 64
- Routing table
- 512 | 512 | 512 | 512
- Jumbo frame
- 9K | 9K | 9K | 9K
