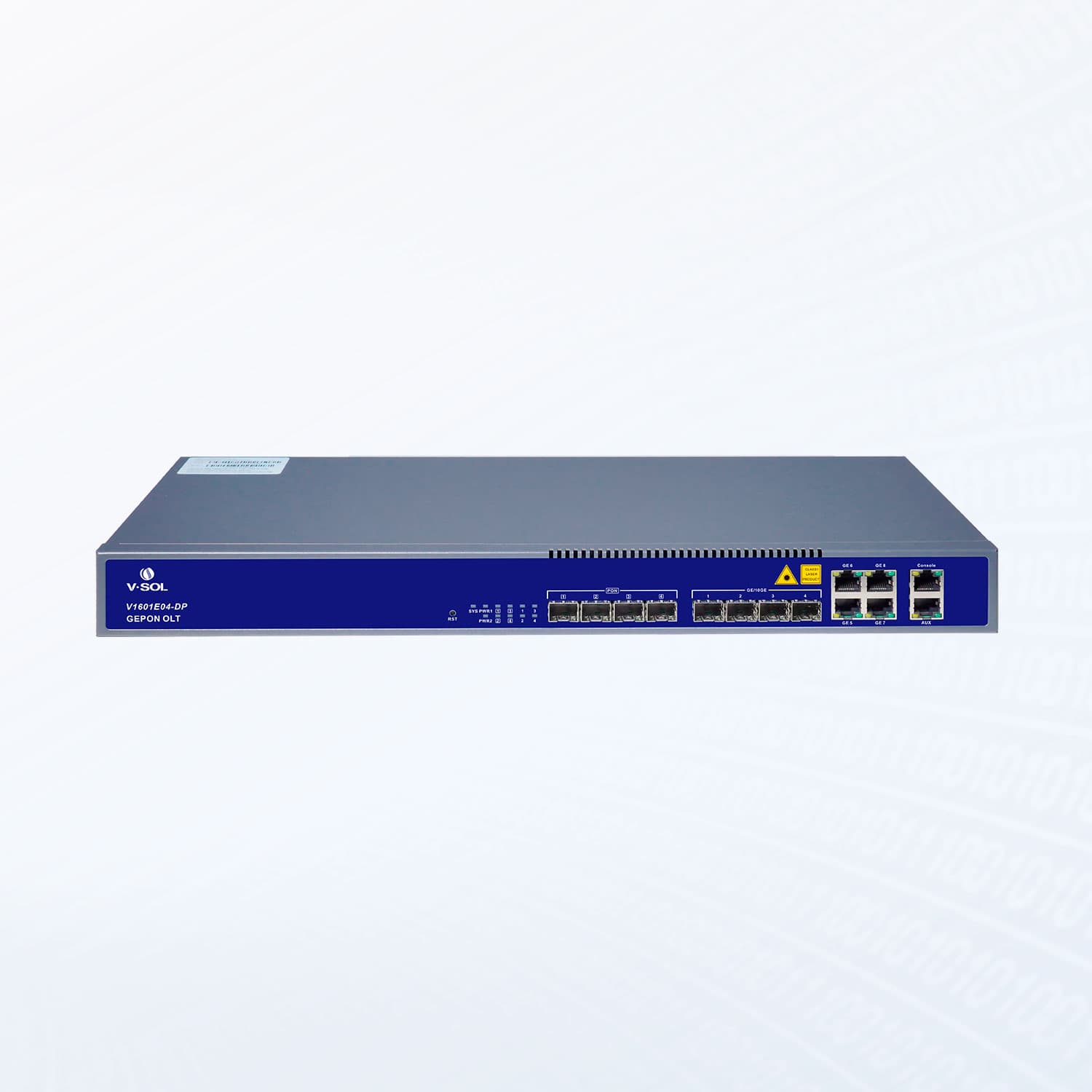

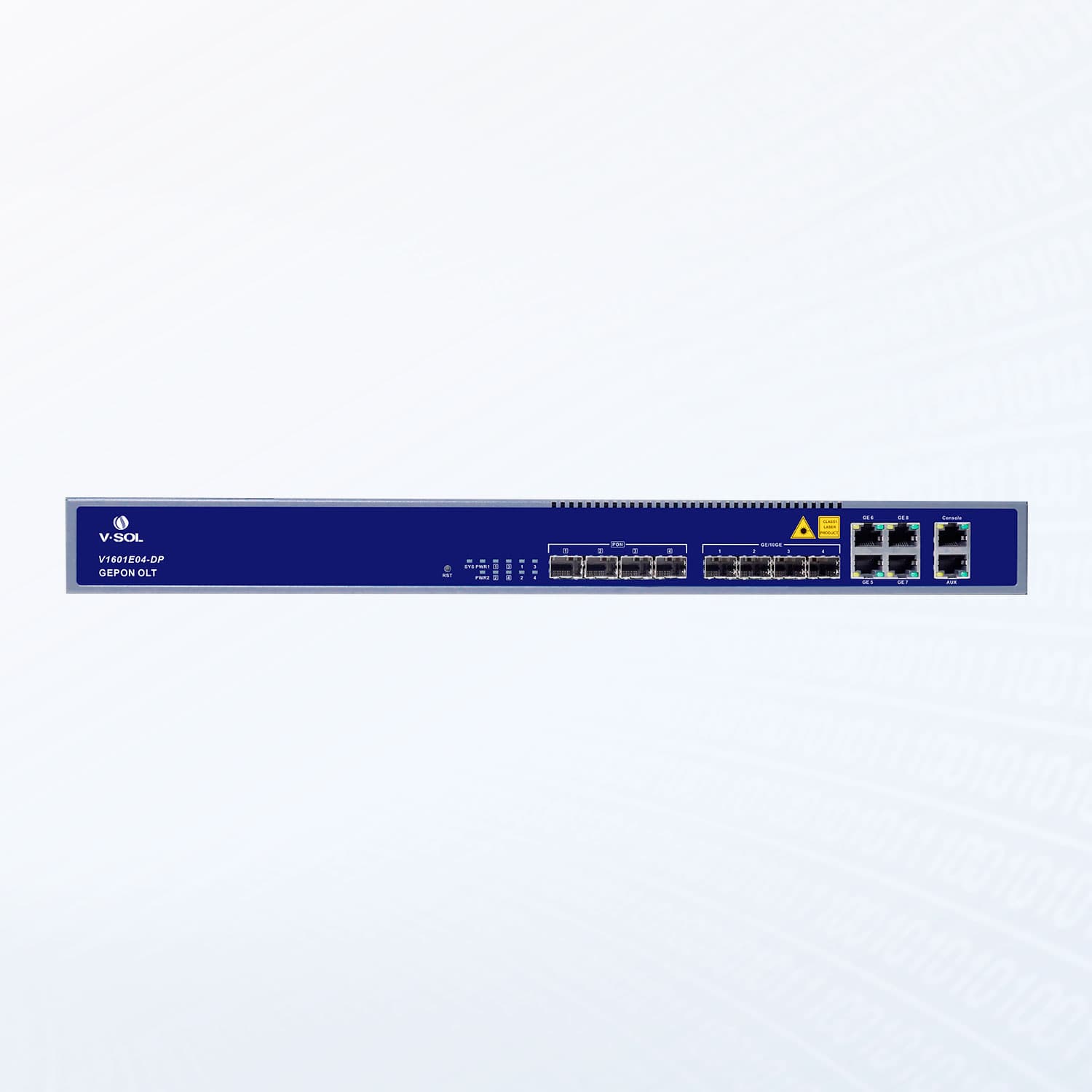

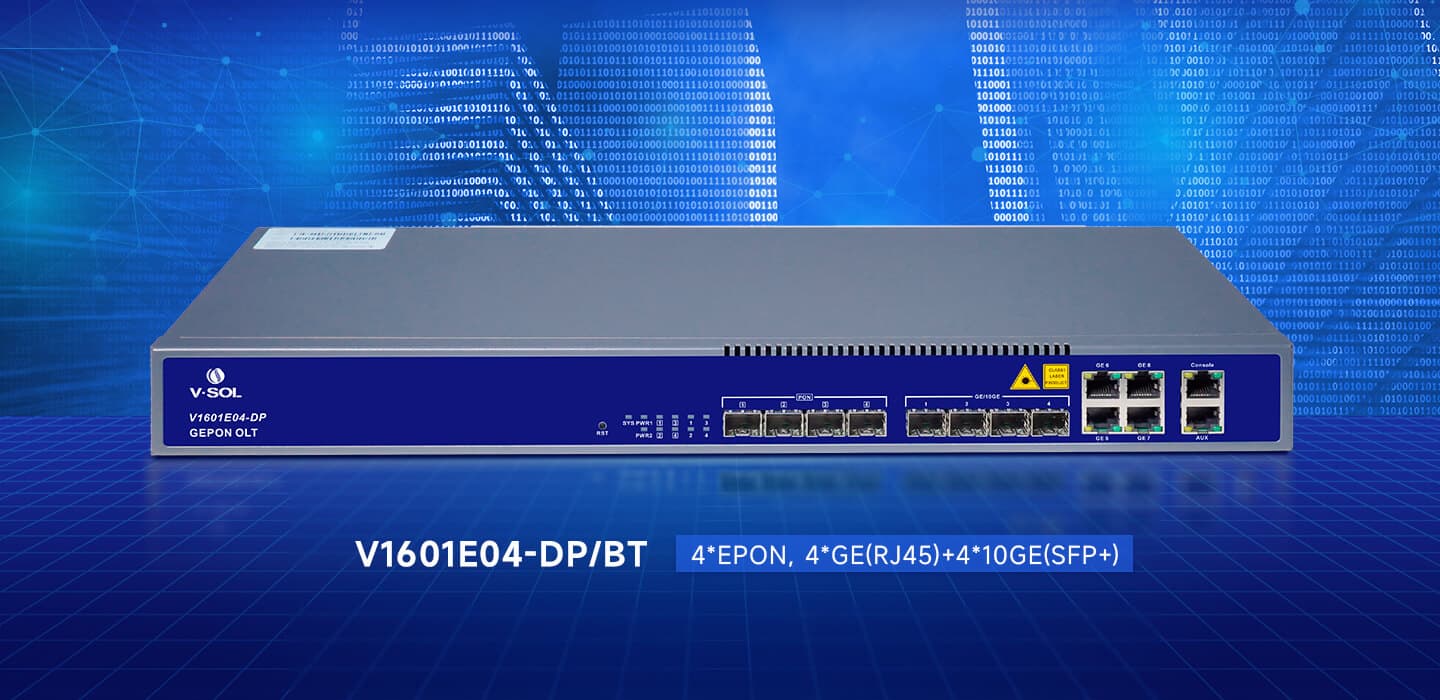

V1601E04-DP/BT — 4 Port EPON OLT
1.25Gbps | Capa 3 | Alimentación Redundante Opcional Modelo: V1601E04-DP/BT
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
Capa3 4 Puertos EPON OLT Despliegue de ONU de gran capacidad Puertos de enlace ascendente/descendente de gran ancho de banda BT (Respaldo de batería) Opcional DP (Fuente de alimentación doble) Opcional Fácil implantación y gestión flexible V1601E04-DP/BT Layer3 4 Ports EPON OLT Chassis Rack 1U 19 inch standard box Uplink Port QTY 8 RJ45 4 SFP/SFP+ 4 EPON Port QTY 4 Physical Interface SFP Slots Max splitting ratio 1:64 Supported PON module level PX20, PX20+, PX20++, PX20+++ Backplane Bandwidth (Gbps) 128 Port Forwarding Rate (Mpps) 71.424 Dimension (L × W × H) 442mm*200mm*43.6mm Weight 2.705KG Power Supply AC 100~240 V, 50/60 Hz DC Power Supply DC: -36V ~ -75V Power Consumption 30W Operating Environment Working Temperature -20 ~ +60°C Storage Temperature -40 ~ +70°C Relative Humidity 5~9 5 % (non-condensing) Power supply AC Working Voltage Range: 100 ~ 240V, Rated Voltage: 110V/220V DC Working Voltage Range: -36 ~ -75V, Rated Voltage: -48V/-60V
Especificaciones técnicas
- Chassis
- Rack | 1U 19 inch standard box

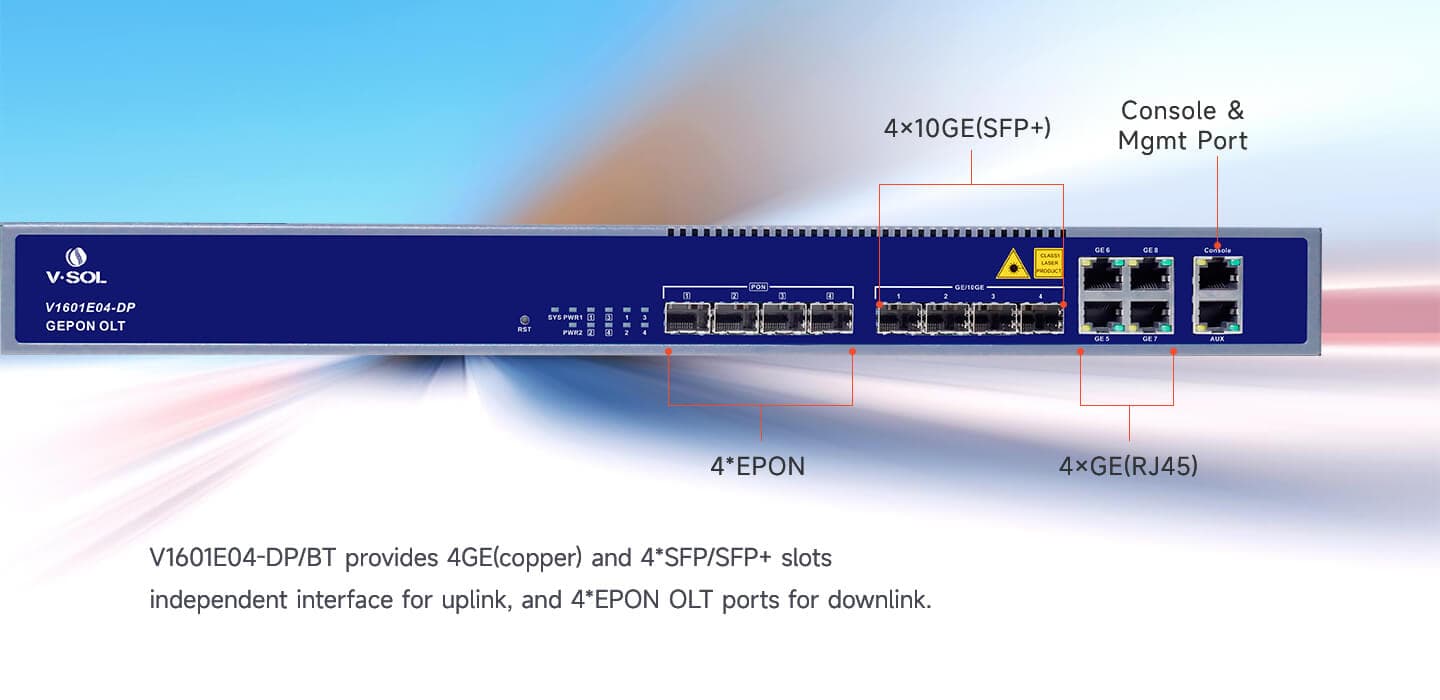

- Uplink Port
- QTY | 8
- RJ45
- 4
- SFP/SFP+
- 4
- EPON Port
- QTY | 4
- Physical Interface
- SFP Slots

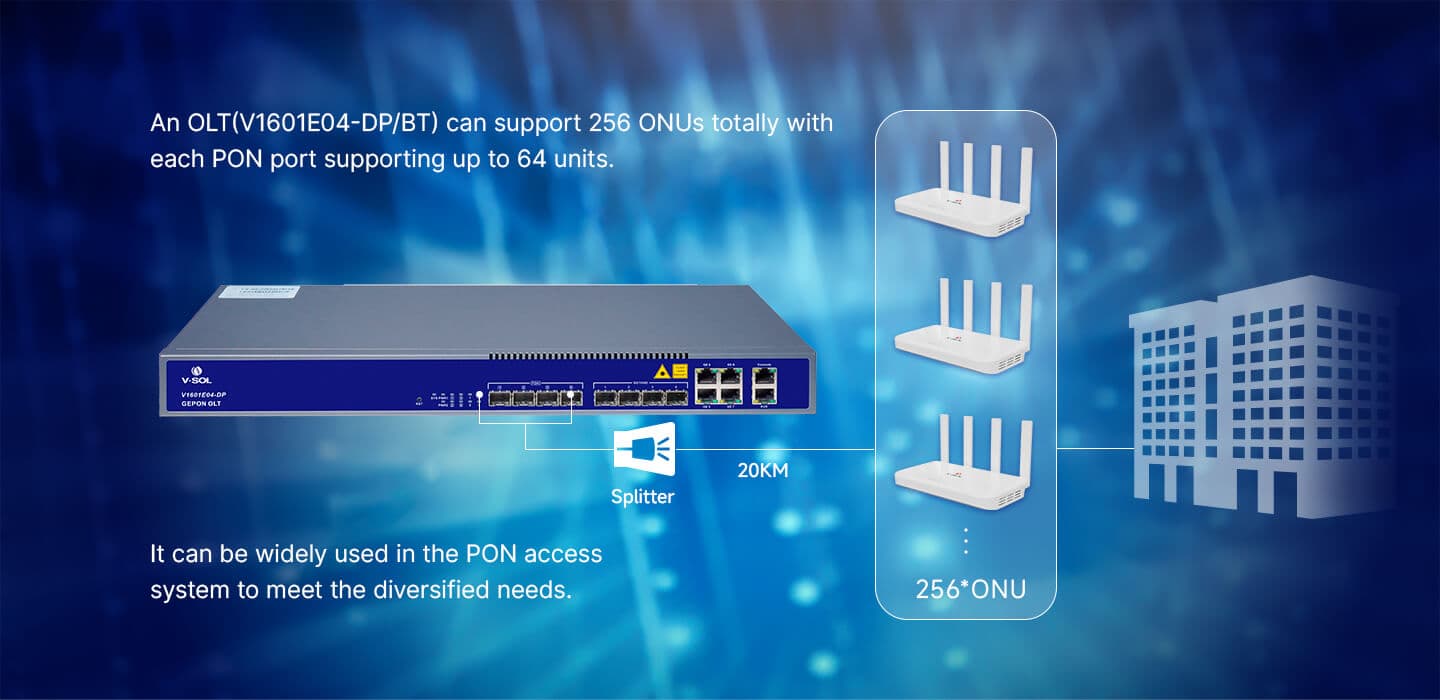

- Max splitting ratio
- 1:64
- Supported PON module level
- PX20, PX20+, PX20++, PX20+++
- Backplane Bandwidth (Gbps)
- 128
- Port Forwarding Rate (Mpps)
- 71.424
- Dimension (L × W × H)
- 442mm*200mm*43.6mm
- Weight
- 2.705KG

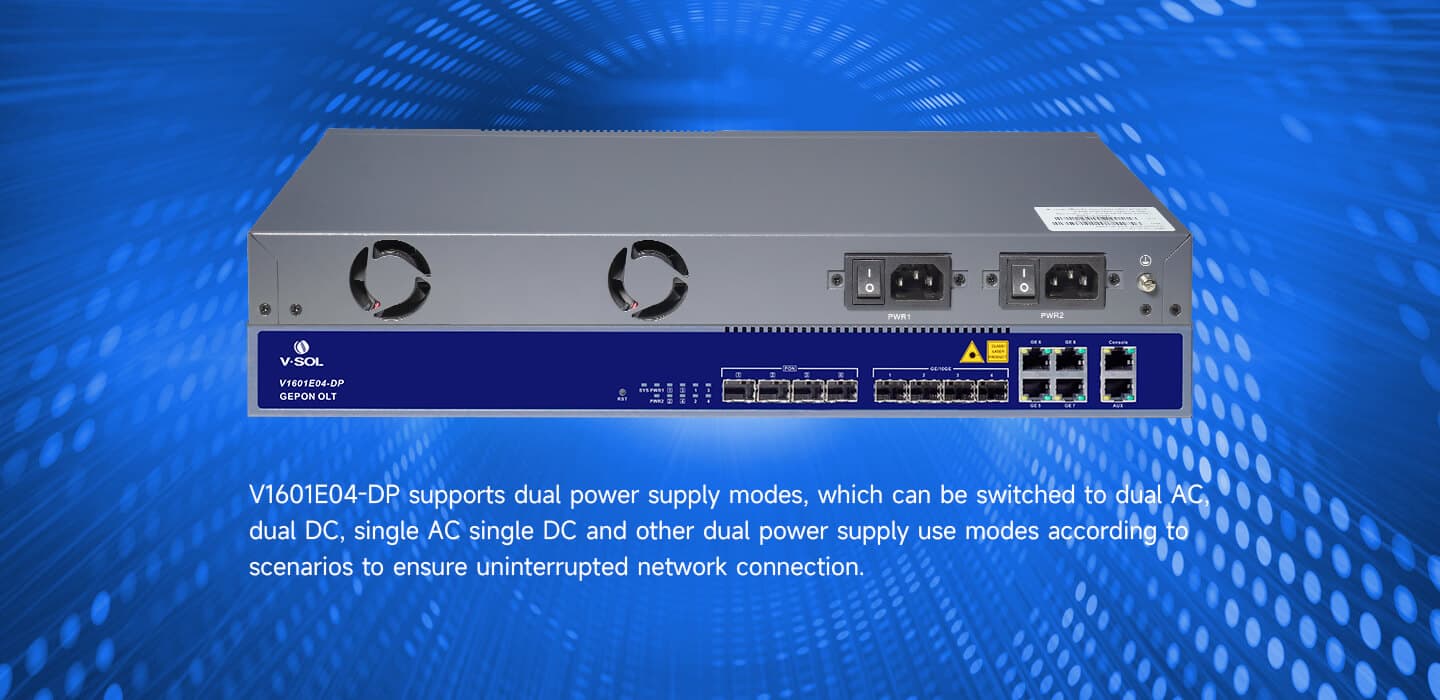

- Power Supply
- AC 100~240 V, 50/60 Hz
- DC Power Supply
- DC: -36V ~ -75V
- Power Consumption
- 30W
- Operating Environment
- Working Temperature | -20 ~ +60°C
- Storage Temperature
- -40 ~ +70°C
- Relative Humidity
- 5~9 5 % (non-condensing)
- Power supply
- AC | Working Voltage Range: 100 ~ 240V, Rated Voltage: 110V/220V
- DC
- Working Voltage Range: -36 ~ -75V, Rated Voltage: -48V/-60V
