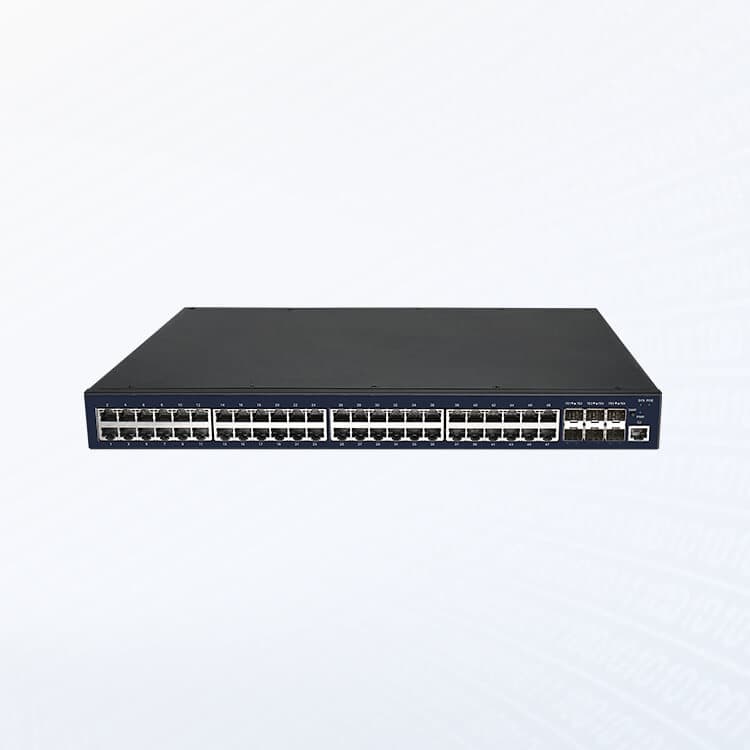

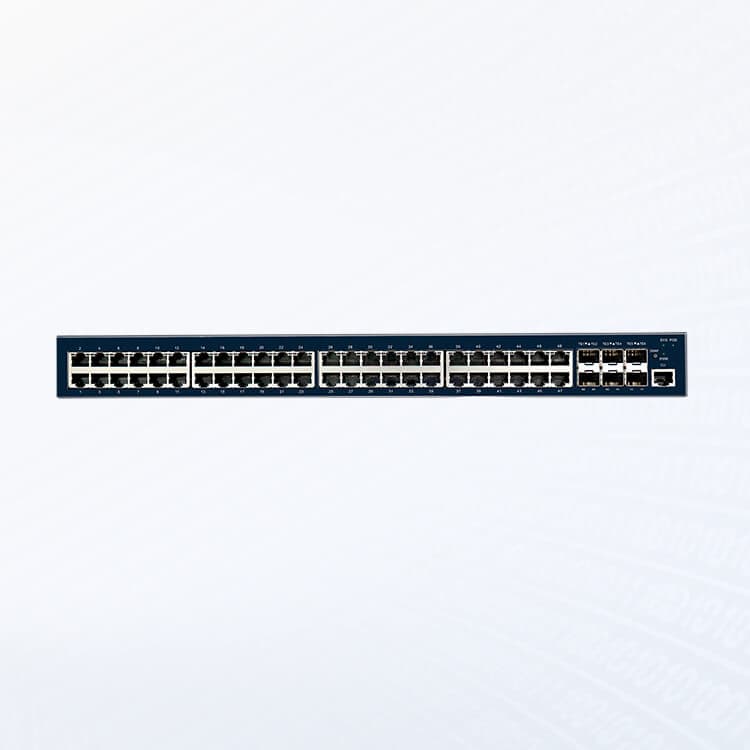

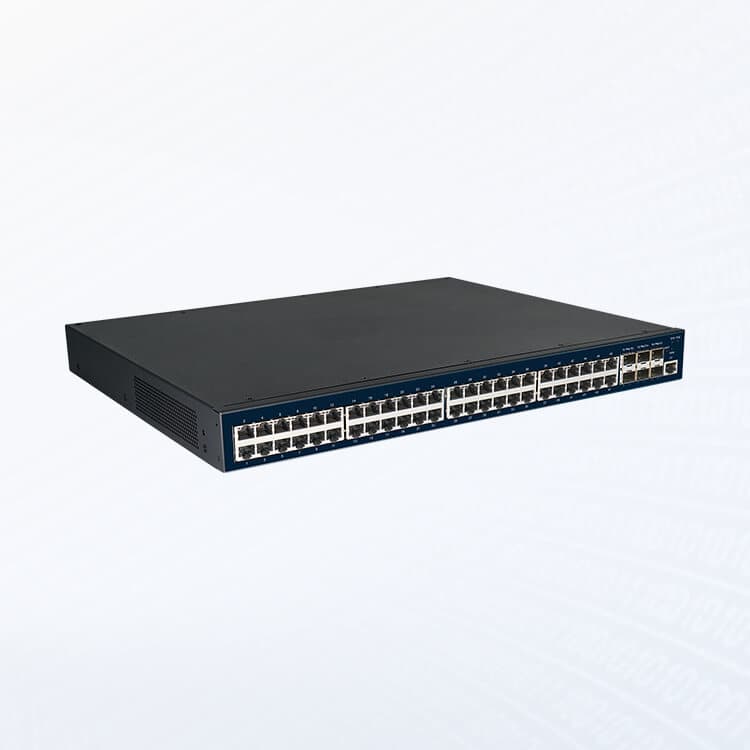

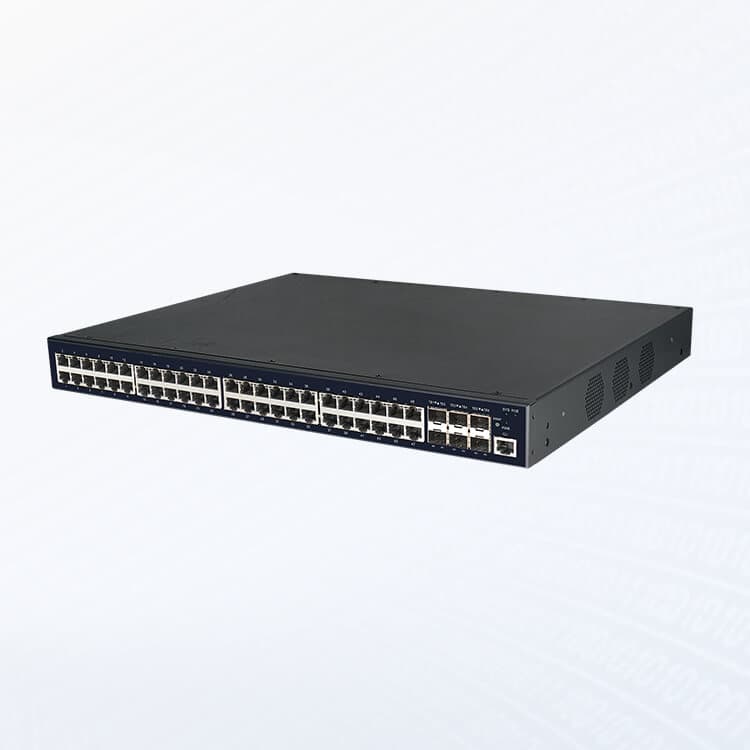

V3554-P — 48*GE(RJ45, POE)+6*10GE/GE(SFP+) Switch
48GE Ports | Alimentación PoE | MAN IP de Operador | Alta Eficiencia Modelo: V3554-P
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
Product introduct V-SOL V35XX Series is a new-generation smart switch developed for carrier IP MAN and enterprise networks. Based on the new high-performance hardware and the ROS platform, V35XX supports ACL, selective QinQ, 1:1 and N:1 VLAN switching, Ethernet OAM, carrier-level QoS, industry-level 10G Ethernet ring, etc. Technical parameters Parameter V3528E V3528EF V3528-P V3552E V 355 4-P Interfaces 24*GE (RJ45)+ 4*10GE/GE (SFP+) 16*GE (SFP) + 8*GE (SFP/RJ45 combo) + 4*10GE/GE (SFP+) 24*GE (RJ45, POE) + 4*10GE/GE (SFP+) 48*GE (RJ45) + 4*10GE/GE (SFP+) 48* GE ( RJ 45, POE ) + 6*10 GE / GE ( SFP + ) Console(RJ45) 1 1 1 1 1 Backplane(Gbps) 128 128 128 216 216 Forwarding rate(Mpps with 64 bytes) 96 96 96 162 1 62 Chassis Dimensions (WxDxH)(mm) 440x180x44 440x280x44 440x280x44 440x280x44 440 x 300 x 4 4 Weight (KG)(empty) 2.4/3.4 3.5 3.5 3.8 4.8 Package Dimensions (WxDxH)(mm) 500x320x80 576x448x94 555x448x94 576x448x94 5 76 x 448 x 94 Weight(KG) 3.4/4.4 4.5 4.5 4.6 6. 0 Power consumption no-load ＜ 22W ＜ 18W ＜ 25W ＜ 25W <2 5 W full-load 35W ＜ 38W ＜ 408W ＜ 48W < 48 W ( without POE ) Power supply AC:100V-240V, 50-60Hz 45W 45W 410W 50W 450 W AC or 8 00 W DC POE power budgest / / 370W / 370 W AC or 740 W DC Total output BTU(1000BTU/H=293W) 153.58 153.58 1392.49 163.82 1 535.84@ AC , 2730.38 @ DC Fan number / 2 2 2 2 Noise@25 ℃ (dBA) 0 45 37.5 45 4 5 MTBF(H) ＞ 200,000 ＞ 200,000 ＞ 200,000 ＞ 200,000 > 200,000 Forwarding mode Store-forward Store-forward Store-forward Store-forward Store – forward Flash(MB) 16 16 16 16 1 6 DRAM(MB) 256 256 256 512 5 12 MAC 16K 16K 16K 16K 16K Buffer size(MB) 1.5 1.5 1.5 1.5 1.5 Interface VLAN 64 64 64 64 6 4 Routing table 512 512 512 512 512 Jumbo frame 9K 9K 9K 9K 9K
Especificaciones técnicas
- Parameter
- V3528E | V3528EF | V3528-P | V3552E | V 355 4-P
- Interfaces
- 24*GE (RJ45)+ 4*10GE/GE (SFP+) | 16*GE (SFP) + 8*GE (SFP/RJ45 combo) + 4*10GE/GE (SFP+) | 24*GE (RJ45, POE) + 4*10GE/GE (SFP+) | 48*GE (RJ45) + 4*10GE/GE (SFP+) | 48* GE ( RJ 45, POE ) + 6*10 GE / GE ( SFP + )
- Console(RJ45)
- 1 | 1 | 1 | 1 | 1
- Backplane(Gbps)
- 128 | 128 | 128 | 216 | 216
- Forwarding rate(Mpps with 64 bytes)
- 96 | 96 | 96 | 162 | 1 62
- Chassis
- Dimensions (WxDxH)(mm) | 440x180x44 | 440x280x44 | 440x280x44 | 440x280x44 | 440 x 300 x 4 4
- Weight (KG)(empty)
- 2.4/3.4 | 3.5 | 3.5 | 3.8 | 4.8
- Package
- Dimensions (WxDxH)(mm) | 500x320x80 | 576x448x94 | 555x448x94 | 576x448x94 | 5 76 x 448 x 94
- Weight(KG)
- 3.4/4.4 | 4.5 | 4.5 | 4.6 | 6. 0
- Power consumption
- no-load | ＜ 22W | ＜ 18W | ＜ 25W | ＜ 25W | <2 5 W
- full-load
- 35W | ＜ 38W | ＜ 408W | ＜ 48W | < 48 W ( without POE )
- Power supply
- AC:100V-240V, 50-60Hz | 45W | 45W | 410W | 50W | 450 W AC or 8 00 W DC
- POE power budgest
- / | / | 370W | / | 370 W AC or 740 W DC
- Total output BTU(1000BTU/H=293W)
- 153.58 | 153.58 | 1392.49 | 163.82 | 1 535.84@ AC , 2730.38 @ DC
- Fan number
- / | 2 | 2 | 2 | 2
- Noise@25 ℃ (dBA)
- 0 | 45 | 37.5 | 45 | 4 5
- MTBF(H)
- ＞ 200,000 | ＞ 200,000 | ＞ 200,000 | ＞ 200,000 | > 200,000
- Forwarding mode
- Store-forward | Store-forward | Store-forward | Store-forward | Store – forward
- Flash(MB)
- 16 | 16 | 16 | 16 | 1 6
- DRAM(MB)
- 256 | 256 | 256 | 512 | 5 12
- MAC
- 16K | 16K | 16K | 16K | 16K
- Buffer size(MB)
- 1.5 | 1.5 | 1.5 | 1.5 | 1.5
- Interface VLAN
- 64 | 64 | 64 | 64 | 6 4
- Routing table
- 512 | 512 | 512 | 512 | 512
- Jumbo frame
- 9K | 9K | 9K | 9K | 9K
