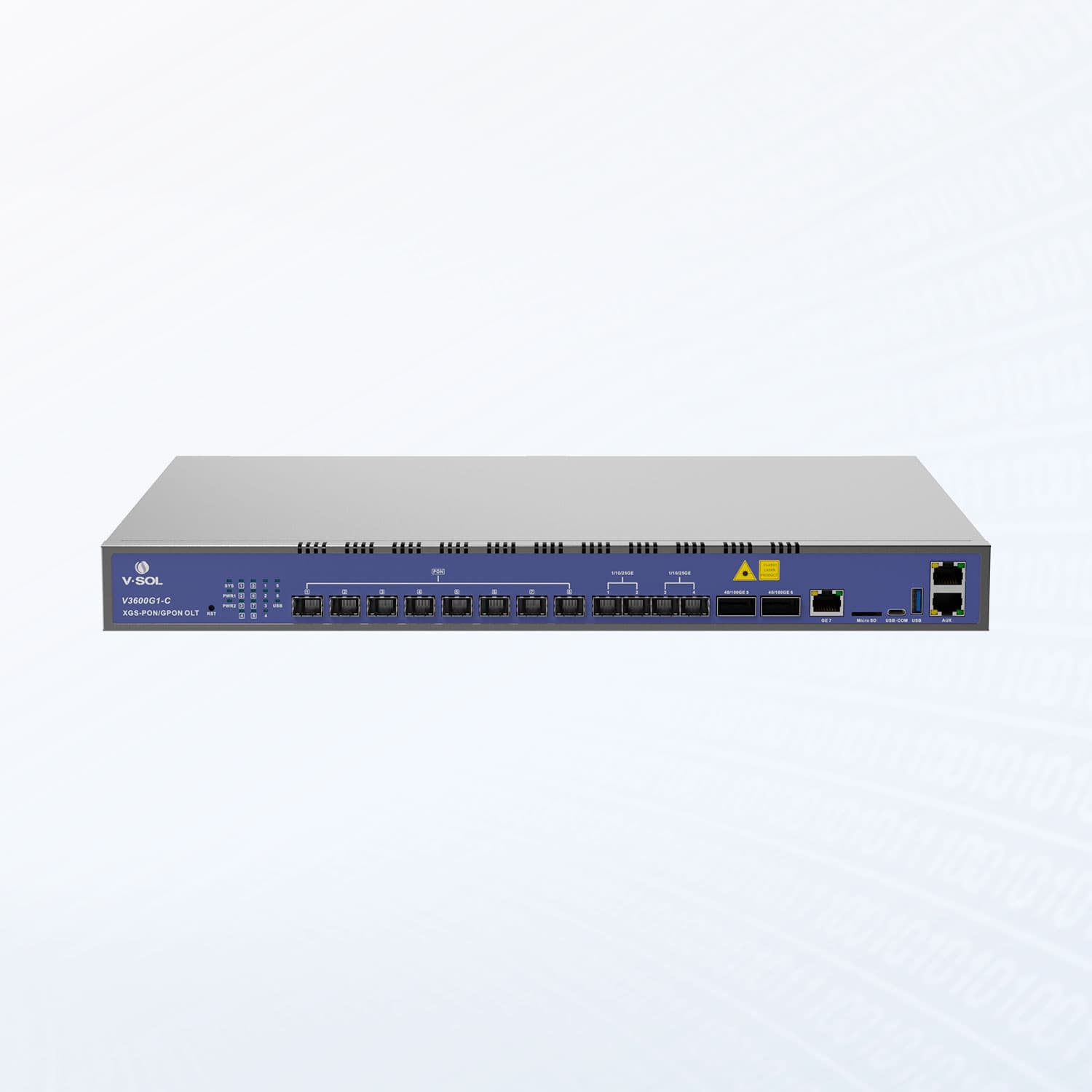

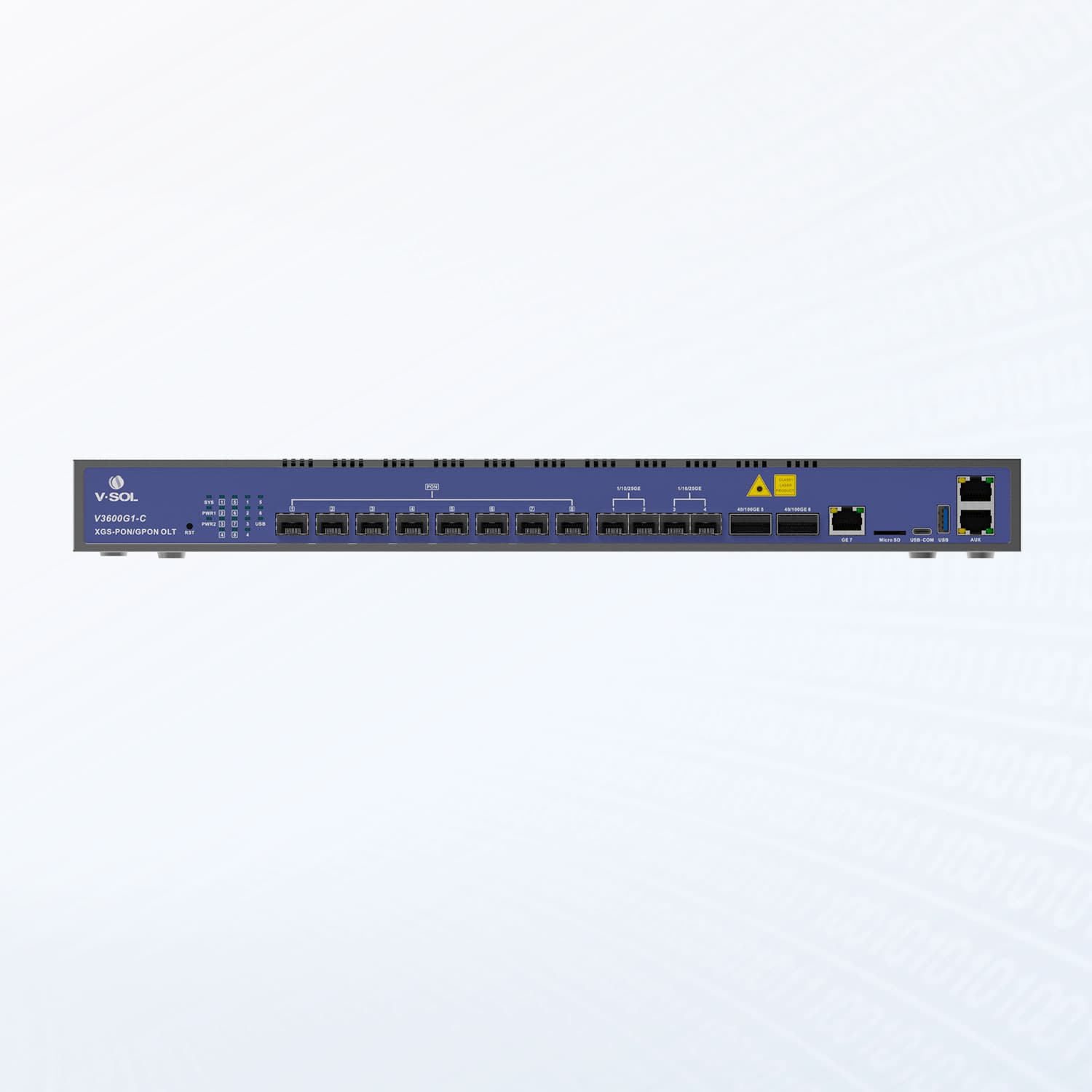

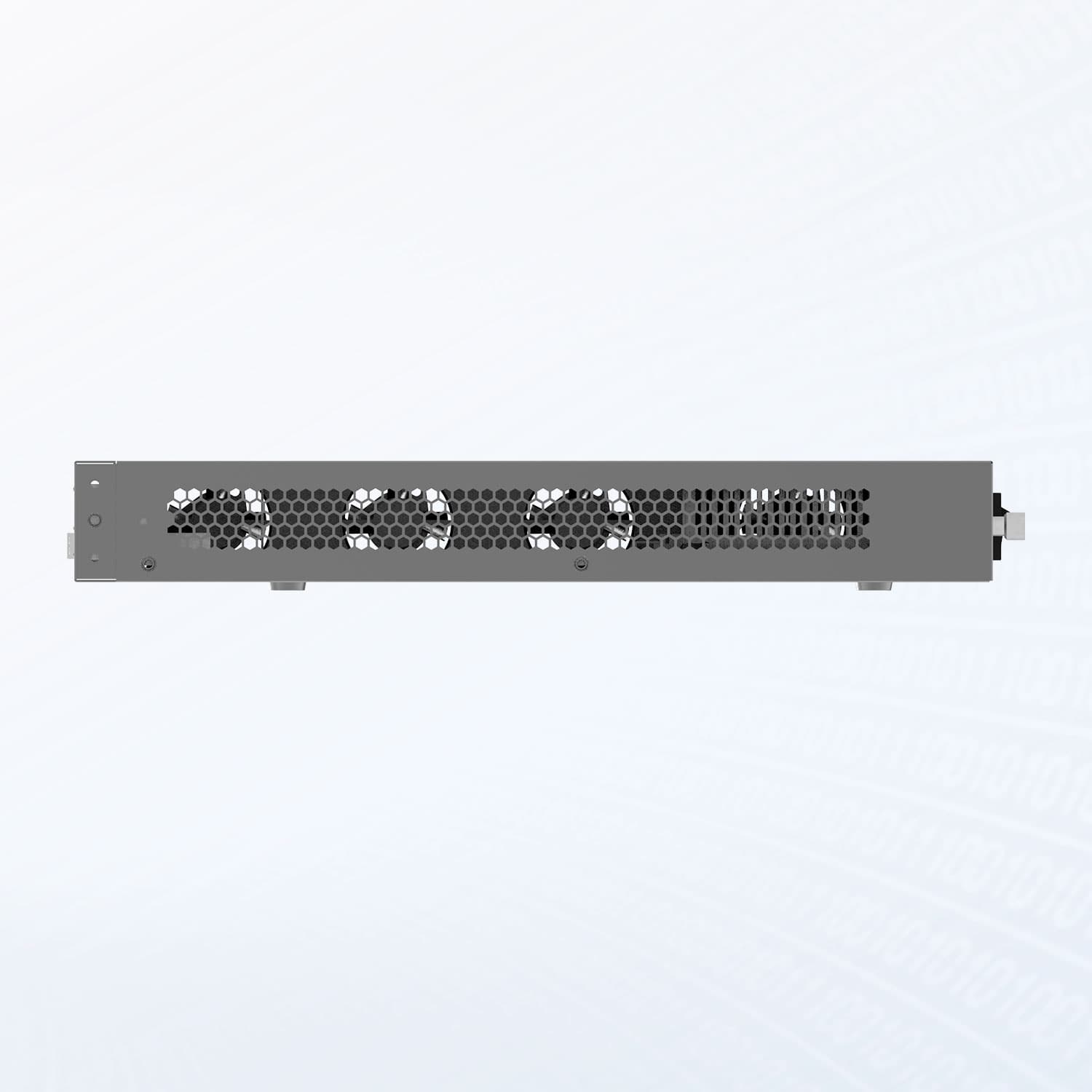

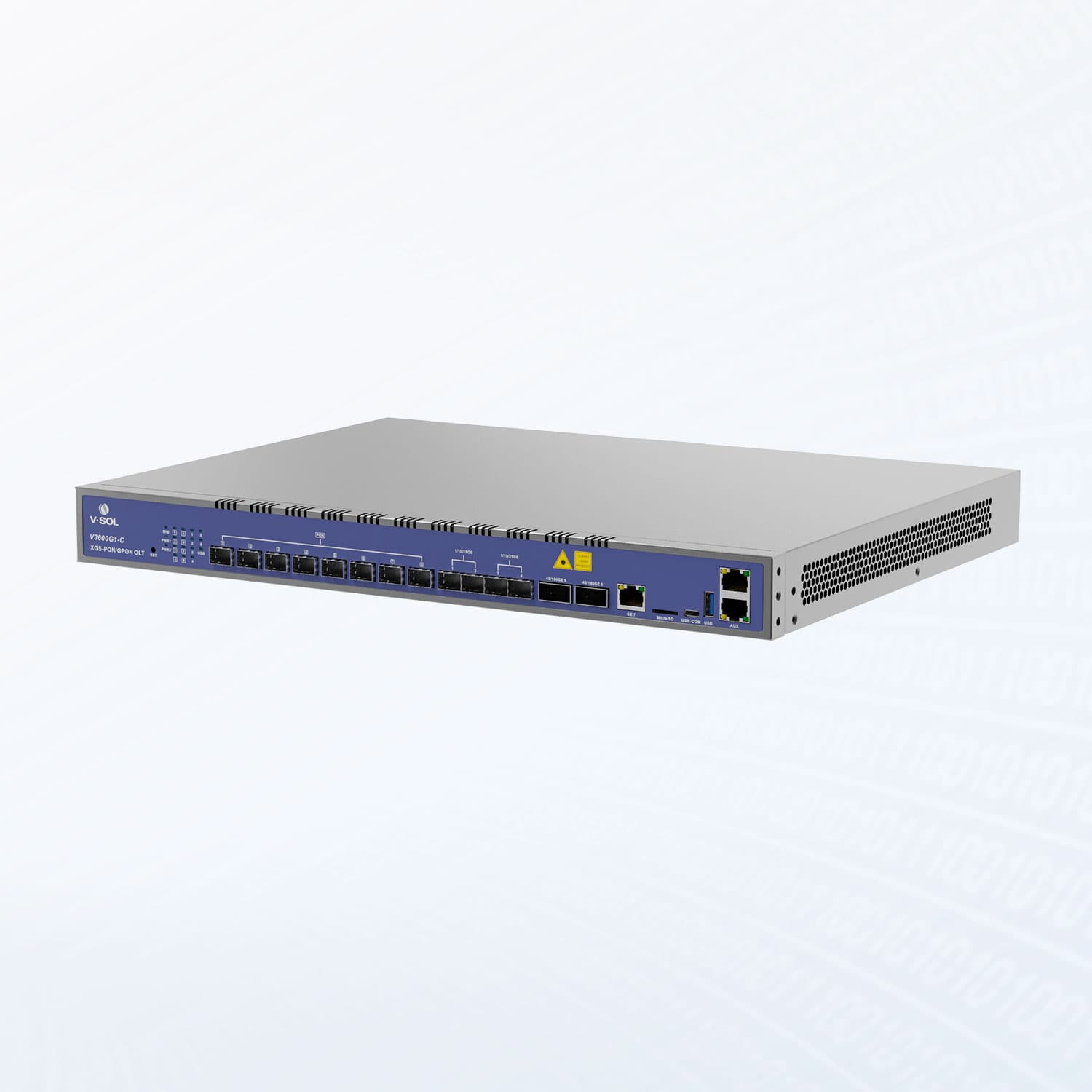

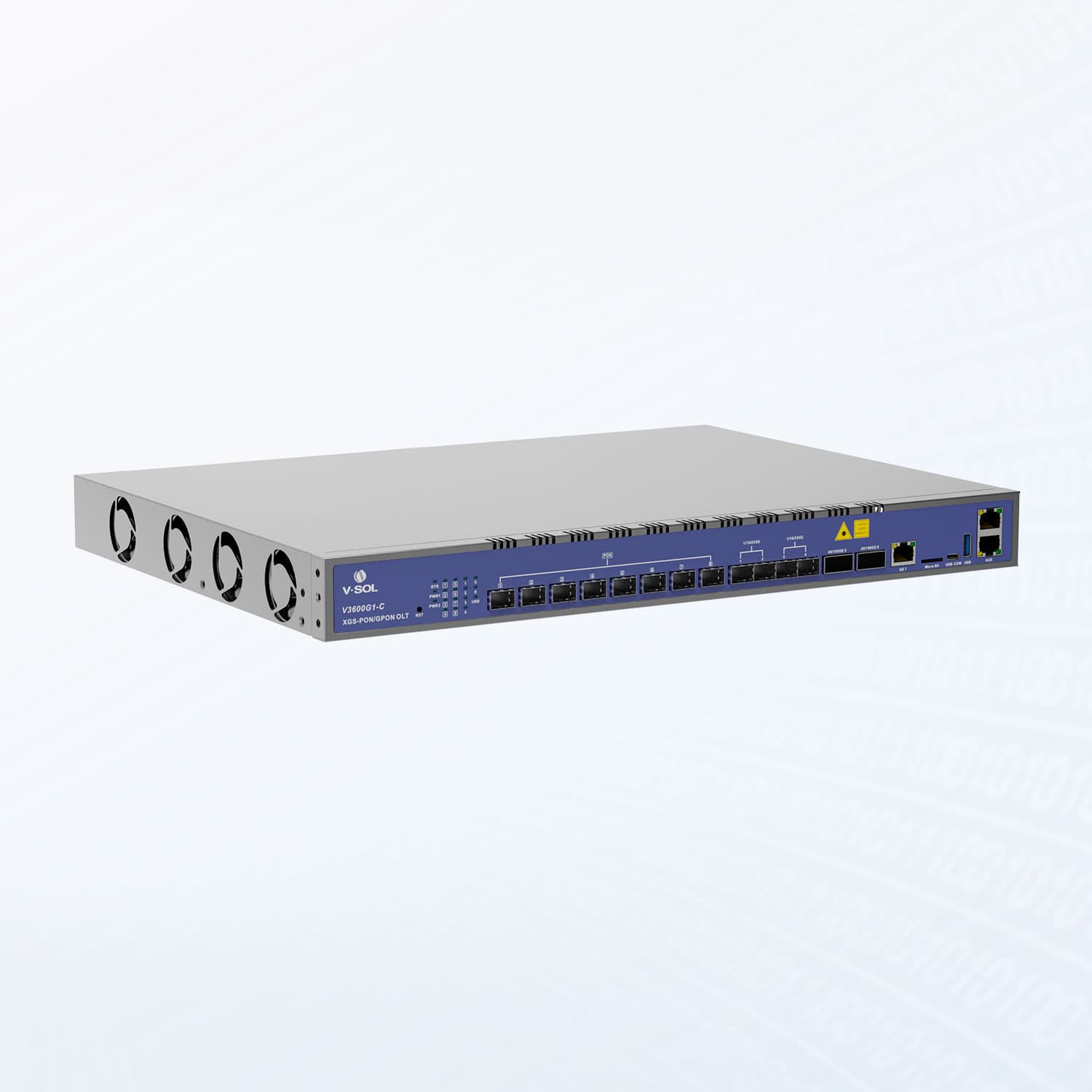

V3600G1-C — 8 Port XG(S) Combo PON OLT
100Gbps QSFP28 | Acceso Ultraancho | Red Flexible Modelo: V3600G1-C
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
OLT PON combo 10G compacta de 8 puertos líder del sector ¿Por qué V3600G1-C? Conmutación flexible de modos de puerto PON Evolución fluida de GPON a 10G PON Experiencia 10G PON sin precedentes Solución única 10G GPON Combo PON Item V3600G1-C Chassis Rack 1U 19Inch Standard Box Uplink Port QTY 8 RJ45(GE) 1 SFP28(25GE) 4 QSFP28 (40GE/50GE/100GE) 2 XG(S)-PON/ GPON Port QTY 8 Physical Interface SFP+ Slots Connector Type XG(S)-PON & GPON Combo Mode: N2_C+ Single GPON mode: Class B+/C/C+/C++/C+++/C++++ Optical Splitting Ratio 1:256 (maximum), 1:128 (recommended) Management Ports 1*10/1000/1000BASE-T out-band port, 1*CONSOLE port, 1*USB3.0, 1*Type-C USB console, 1*MicroSD port Backplane Bandwidth (Gbps) 1960 Port Forwarding Rate (Mpps) 566.928 XG(S)-PON&GPON Combo Port Specification Transmission Distance 20KM XG(S)-PON Port Speed GPON: Uplink: 1.244Gbps, downlink: 2.488Gbps XG-PON: Uplink: 2.488Gbps, downlink: 9.953Gbps XGS-PON: Uplink: 9.953Gbps, downlink: 9.953Gbps Wavelength GPON: Uplink: 1310nm, downlink: 1490nm XG(S)-PON: Uplink: 1270nm, downlink: 1577nm Supports PON ports PON 1~8 (8 PON ports are in XG(S)-PON&GPON Combo mode by default) GPON Port Specification Transmission Distance 20KM GPON Port Speed Upstream: 1.244Gbps, Upstream: 2.488Gbps Wavelength Upstream: 1310nm, Upstream: 1490nm Supports PON ports PON 1~8 (Each PON port can be manually hot-switched to GPON mode) Lightning Protection Power Lightning Protection 6KV Interface Lightning Protection 4KV Power Supply AC Working Voltage Range: 100~240V, Working Voltage Range: 110V/220V Number of Fans 4 Management Mode CLI(Console/Telnet/SSH)/WEB/SNMP
Especificaciones técnicas
- Item
- V3600G1-C
- Chassis
- Rack | 1U 19Inch Standard Box
- Uplink Port
- QTY | 8
- RJ45(GE)
- 1
- SFP28(25GE)
- 4
- QSFP28 (40GE/50GE/100GE)
- 2
- XG(S)-PON/ GPON Port
- QTY | 8
- Physical Interface
- SFP+ Slots
- Connector Type

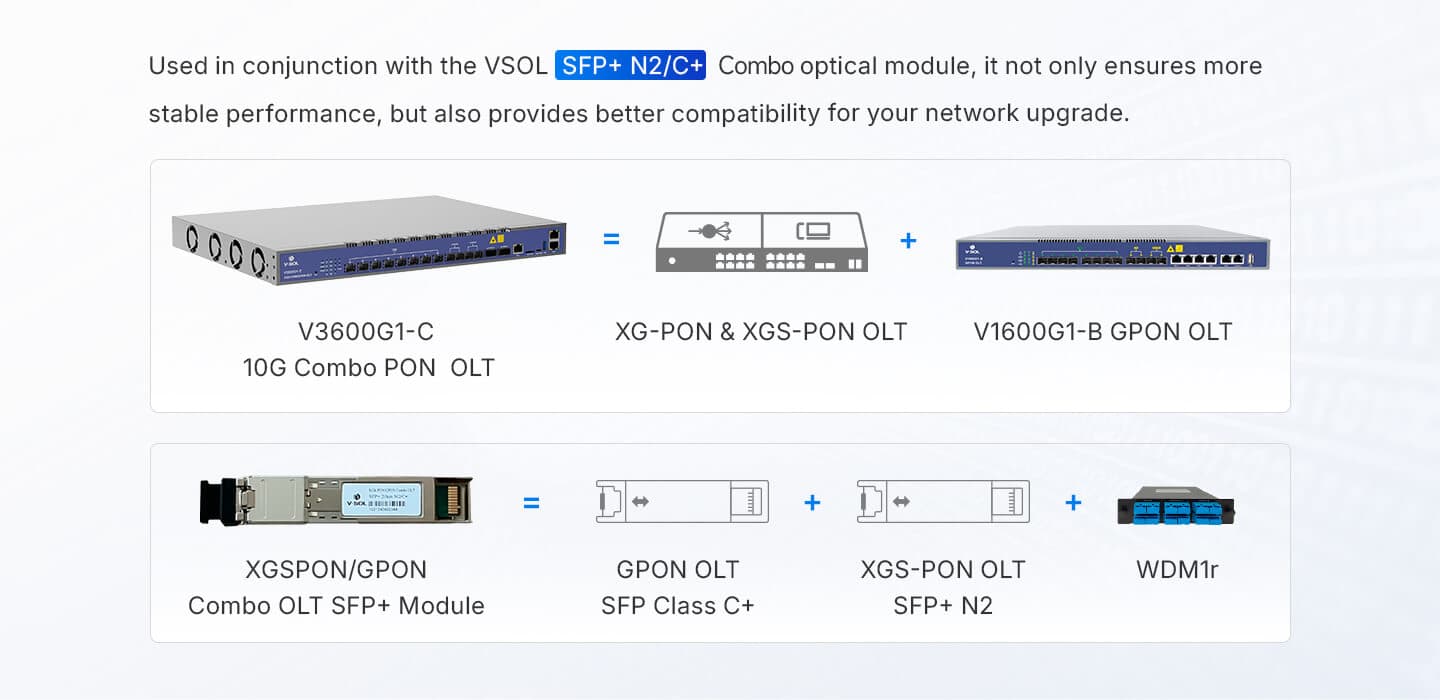

- XG(S)-PON & GPON Combo Mode: N2_C+
- Optical Splitting Ratio
- 1:256 (maximum), 1:128 (recommended)
- Management Ports
- 1*10/1000/1000BASE-T out-band port, 1*CONSOLE port, 1*USB3.0, 1*Type-C USB console, 1*MicroSD port
- Backplane Bandwidth (Gbps)
- 1960
- Port Forwarding Rate (Mpps)
- 566.928
- XG(S)-PON&GPON Combo Port Specification
- Transmission Distance | 20KM
- XG(S)-PON Port Speed
- GPON: Uplink: 1.244Gbps, downlink: 2.488Gbps XG-PON: Uplink: 2.488Gbps, downlink: 9.953Gbps XGS-PON: Uplink: 9.953Gbps, downlink: 9.953Gbps
- Wavelength
- GPON: Uplink: 1310nm, downlink: 1490nm XG(S)-PON: Uplink: 1270nm, downlink: 1577nm
- Supports PON ports

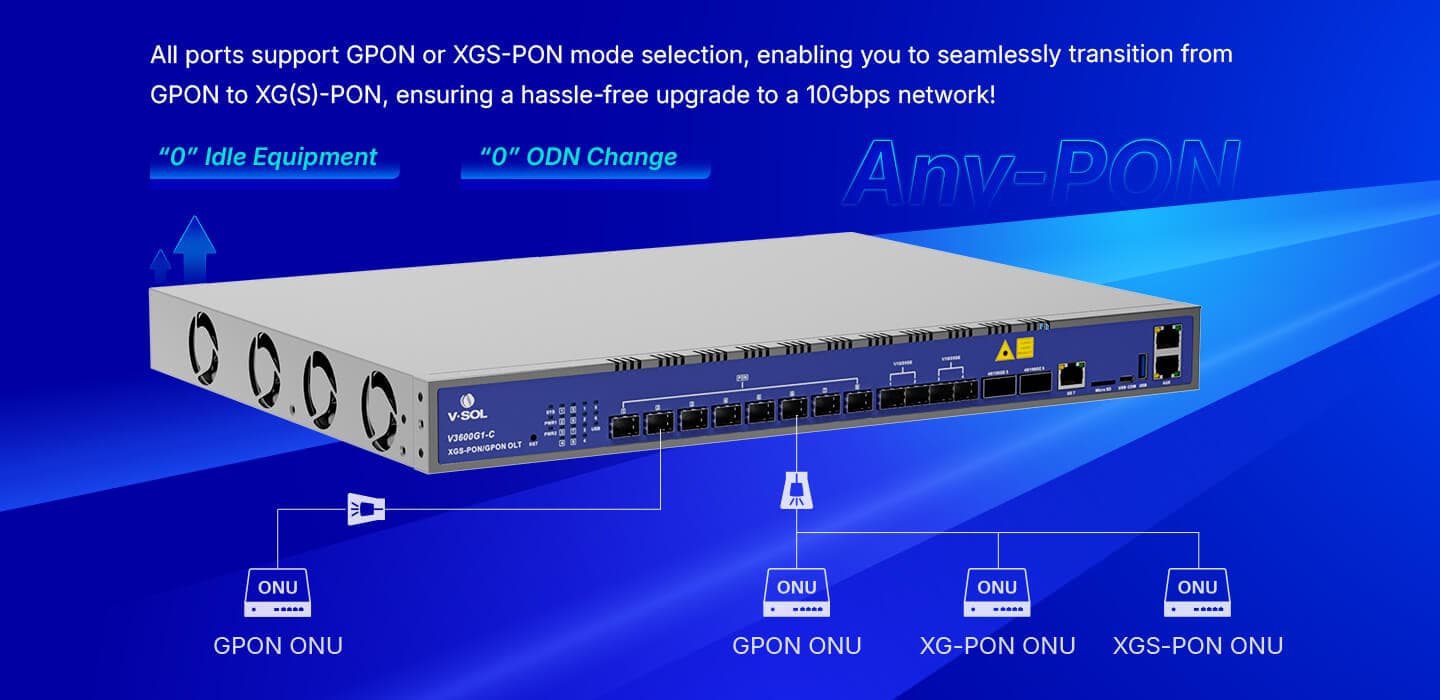

- PON 1~8 (8 PON ports are in XG(S)-PON&GPON Combo mode by default)
- GPON Port Specification
- Transmission Distance | 20KM
- GPON Port Speed
- Upstream: 1.244Gbps, Upstream: 2.488Gbps
- Wavelength
- Upstream: 1310nm, Upstream: 1490nm
- Supports PON ports
- PON 1~8 (Each PON port can be manually hot-switched to GPON mode)
- Lightning Protection
- Power Lightning Protection | 6KV
- Interface Lightning Protection
- 4KV
- Power Supply
- AC | Working Voltage Range: 100~240V, Working Voltage Range: 110V/220V
- Number of Fans
- 4
- Management Mode
- CLI(Console/Telnet/SSH)/WEB/SNMP
