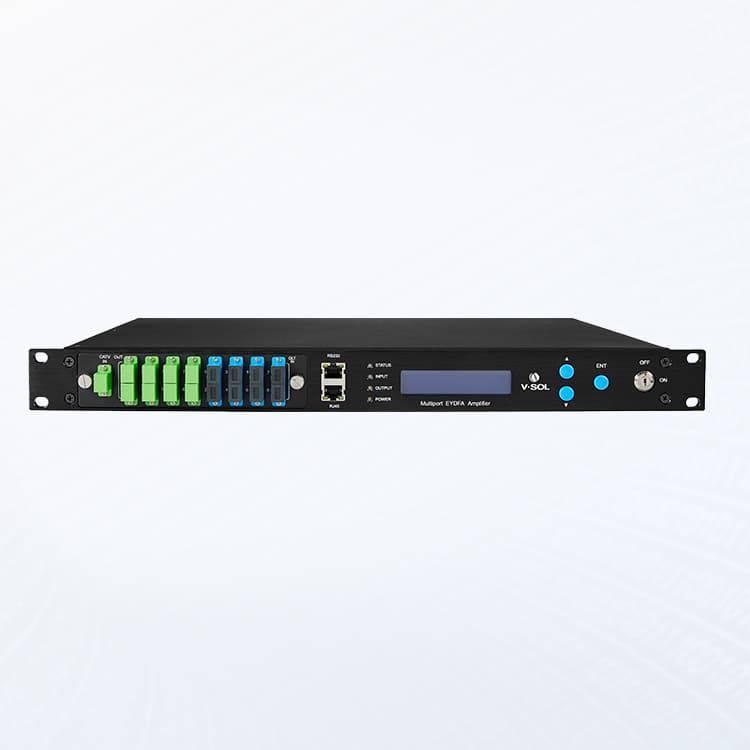

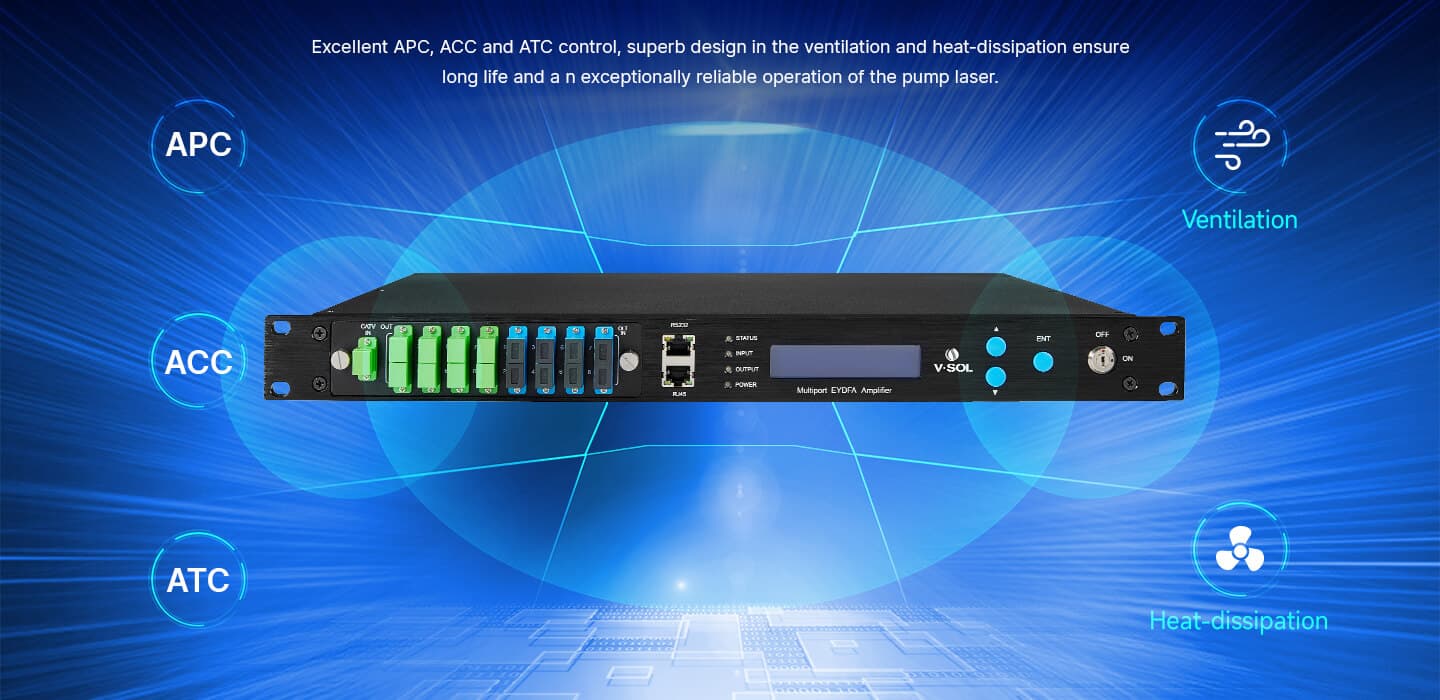

V8816W-8P — 8 Port 1550nm PON EYDFA
CWDM Integrado | Salida 0-40dBm | Redundancia Dual de Alimentación Modelo: V8816W-8P
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

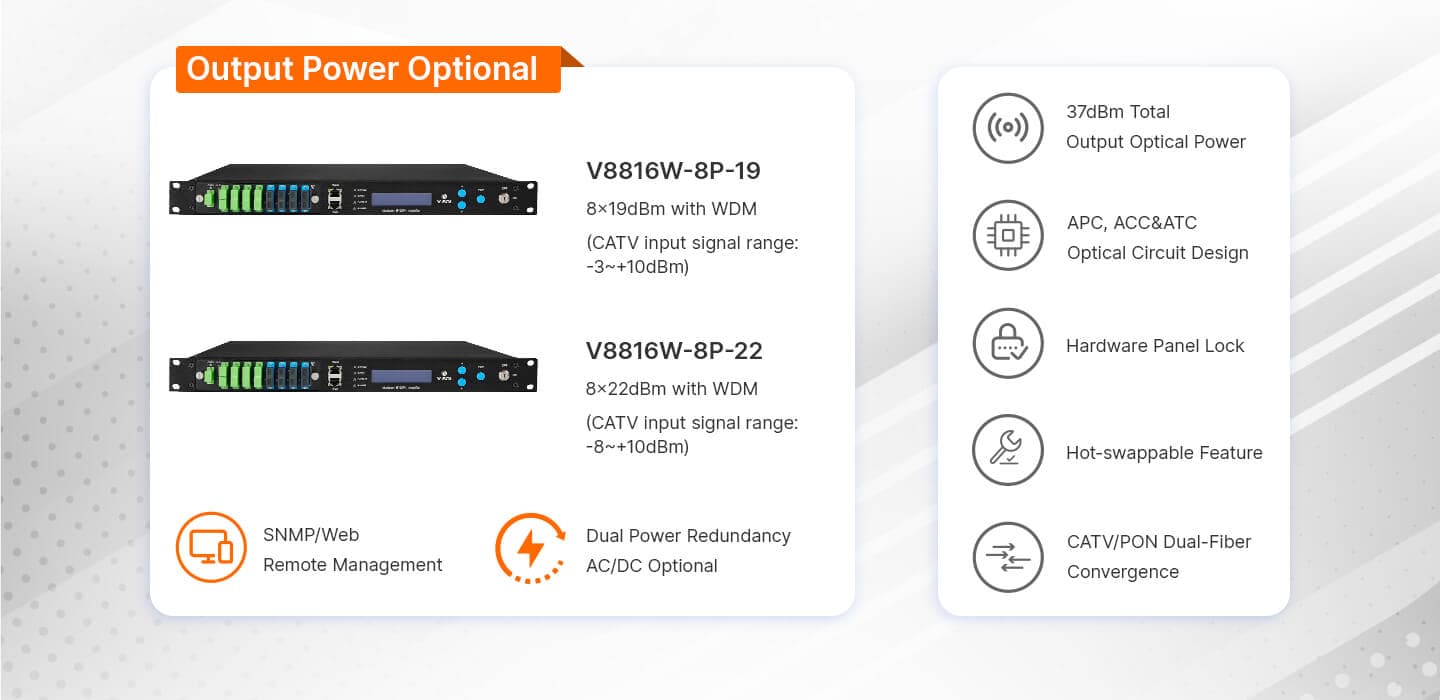

8 Puertos 1550nm Alta potencia PON EYDFA Características del producto 37dBm Salida de alta potencia Ingenioso diseño de circuitos ópticos Excelente rendimiento y calidad fiable EDFA Aplicación 4-port 8-port 16-port 32-port 19dBm 22dBm Dimension (W x L x H) (mm) 370×483×44 370×483×44 370×483×88 370×483×88 Weight(kg) 5.5 5.5 7.5 7.5 Output of Port(dBm) V8816W-4P-19: 4×19 V8816W-4P-22: 4×22 V8816W-8P-19: 8×19 V8816W-8P-22: 8×22 V8816W-16P-19: 16×19 V8816W-16P-22: 16×22 V8816W-32P-19: 32×19 V8816W-32P-22: 32×22 Optical Input Range(dBm) V8816W-4P-19: -3 ~ +10 V8816W-4P-22: -3 ~ +10 V8816W-8P-19: -3 ~ +10 V8816W-8P-22: -8 ~ +10 V8816W-16P-19: -8 ~ +10 V8816W-16P-22: -8 ~ +10 V8816W-32P-19: -8 ~ +10 V8816W-32P-22: -8 ~ +10 Category Items Unit Index Remarks Min. Typ. Max. Optical Index CATV Operating Wavelength nm 1545 1565 OLT PON Pass Wavelength nm XPON: 1310/1490 10G PON: 1270/1577 Optical Input Range dBm -3 +10 V8816W-8P-19: -3~+10 Output Power dBm 37 1dBm interval No. of OLT PON Ports No. 8 SC/UPC No. of COM Ports No. 8 CATV Pass Loss dB 0.8 SC/APC OLT Pass Loss dB 0.8 Output Adjustment Range dB -4 0 0.1dB each step Output Ports Uniformity dB 0.7 Output Power Stability dB 0.3 Isolation between CATV and OLT dB 40 Switching Time of Optical Switch ms 8 Optional Insertion Loss of Optical Switch dB 0.8 Optional Noise Figure dB 6 Pin ： 0dBm PDL dB 0.3 PDG dB 0.4 PMD ps 0.3 Remnant Pump Power dBm -30 Optical Return Loss dB 45 Fiber Connector SC/APC FC/APC, LC/APC General Index RF Test dBμV 78 82 Optional Network Management Interface SNMP, WEB supported Power Supply V 90 265 AC -72 -36 DC Power Consumption W 70 Dual power supply ， Output 37dBm Operating Temp ℃ -5 65 Storage Temp ℃ -40 85 Operating Relative Humidity % 5 95 Dimension mm 370×483×44 W 、 L 、 H Weight Kg 5.5
Especificaciones técnicas
- Dimension (W x L x H) (mm)
- 370×483×44 | 370×483×44 | 370×483×88 | 370×483×88
- Weight(kg)
- 5.5 | 5.5 | 7.5 | 7.5

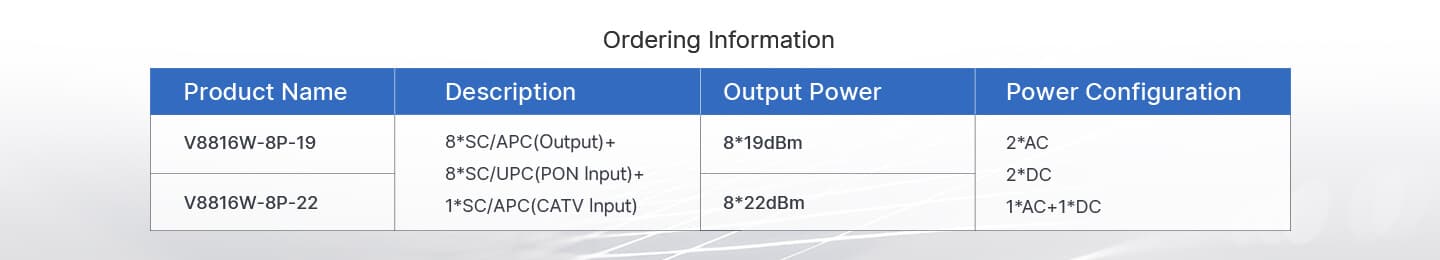

- Output of Port(dBm)
- V8816W-4P-19: 4×19 V8816W-4P-22: 4×22 | V8816W-8P-19: 8×19 V8816W-8P-22: 8×22 | V8816W-16P-19: 16×19 V8816W-16P-22: 16×22 | V8816W-32P-19: 32×19 V8816W-32P-22: 32×22
- Optical Input Range(dBm)
- V8816W-4P-19: -3 ~ +10 V8816W-4P-22: -3 ~ +10 | V8816W-8P-19: -3 ~ +10 V8816W-8P-22: -8 ~ +10 | V8816W-16P-19: -8 ~ +10 V8816W-16P-22: -8 ~ +10 | V8816W-32P-19: -8 ~ +10 V8816W-32P-22: -8 ~ +10
- Category
- Items | Unit | Index | Remarks
- Min.
- Typ. | Max.
- Optical Index
- CATV Operating Wavelength | nm | 1545 | | 1565 |
- OLT PON Pass Wavelength
- nm | XPON: 1310/1490 10G PON: 1270/1577 |
- Optical Input Range
- dBm | -3 | | +10 | V8816W-8P-19: -3~+10

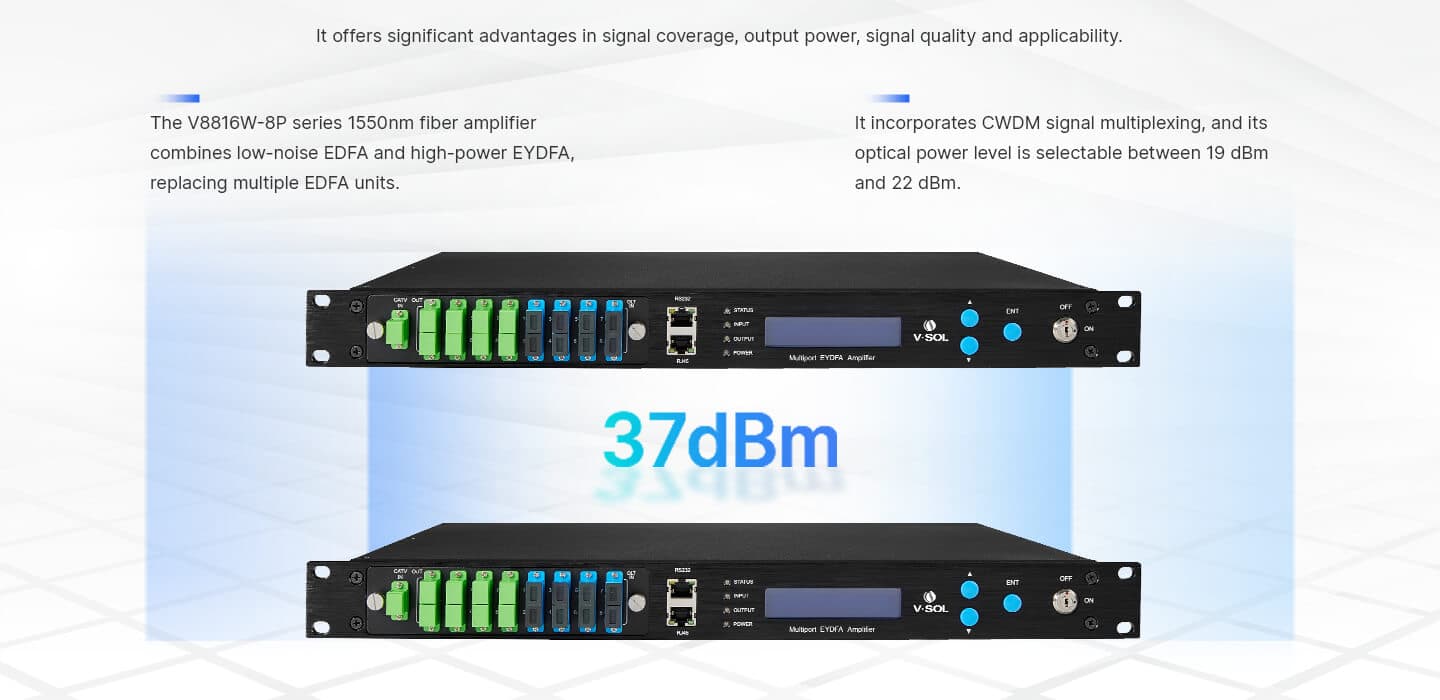

- Output Power
- dBm | | | 37 | 1dBm interval
- No. of OLT PON Ports
- No. | | | 8 | SC/UPC
- No. of COM Ports
- No. | | | 8 |
- CATV Pass Loss
- dB | | | 0.8 | SC/APC
- OLT Pass Loss
- dB | | | 0.8 |
- Output Adjustment Range
- dB | -4 | | 0 | 0.1dB each step
- Output Ports Uniformity
- dB | | | 0.7 |
- Output Power Stability
- dB | | | 0.3 |
- Isolation between CATV and OLT
- dB | 40 | | |
- Switching Time of Optical Switch
- ms | | | 8 | Optional
- Insertion Loss of Optical Switch
- dB | | | 0.8 | Optional
- Noise Figure
- dB | | | 6 | Pin ： 0dBm
- PDL
- dB | | | 0.3 |
- PDG
- dB | | | 0.4 |
- PMD
- ps | | | 0.3 |
- Remnant Pump Power
- dBm | | | -30 |
- Optical Return Loss
- dB | 45 | | |
- Fiber Connector
- | SC/APC | FC/APC, LC/APC
- General Index
- RF Test | dBμV | 78 | | 82 | Optional

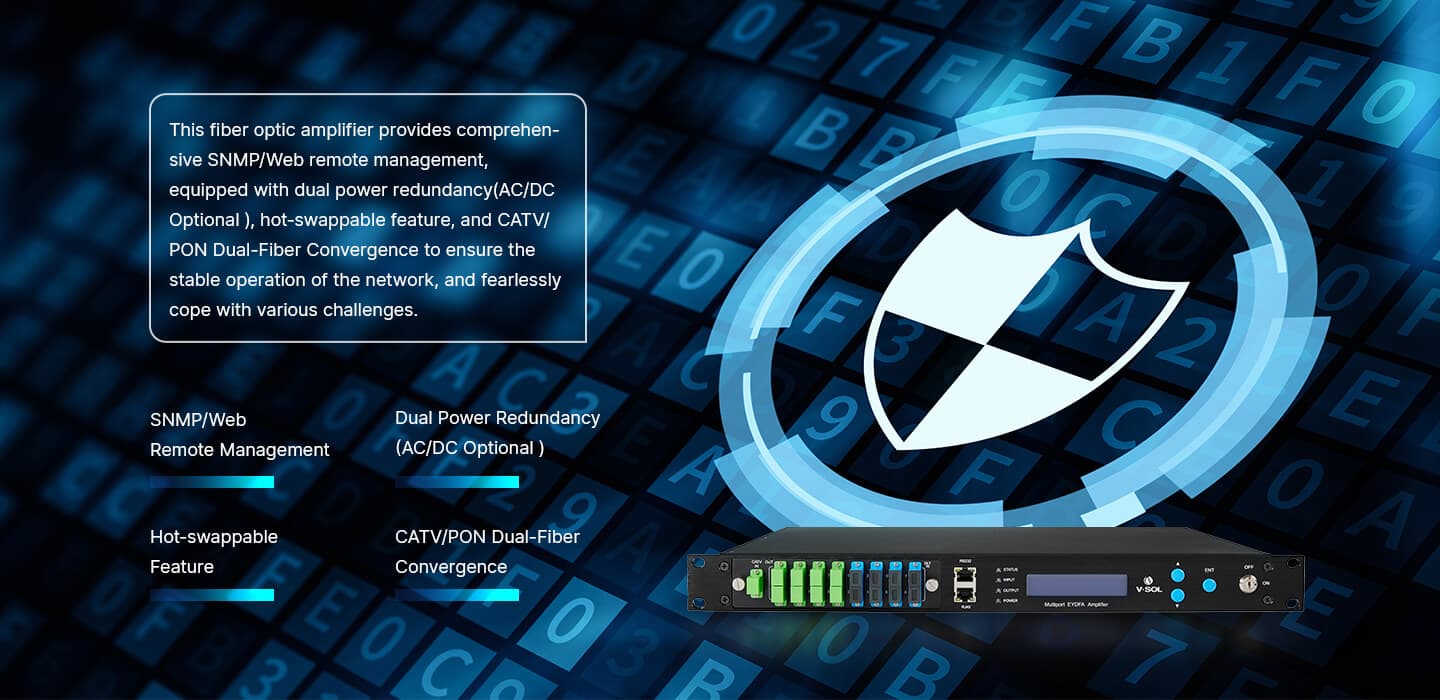

- Network Management Interface
- | SNMP, WEB supported |
- Power Supply
- V | 90 | | 265 | AC
- -72
- | -36 | DC
- Power Consumption
- W | | | 70 | Dual power supply ， Output 37dBm
- Operating Temp
- ℃ | -5 | | 65 |
- Storage Temp
- ℃ | -40 | | 85 |
- Operating Relative Humidity
- % | 5 | | 95 |
- Dimension
- mm | 370×483×44 | W 、 L 、 H
- Weight
- Kg | 5.5 |
