ASU GYFXTY

Name: ASU GYFXTY
Brand: V-SOL

Miniature All-Dielectric Self-Supporting Optical Cable

Cotizar

Confirma disponibilidad, instalación y entrega con un asesor.

Descripción

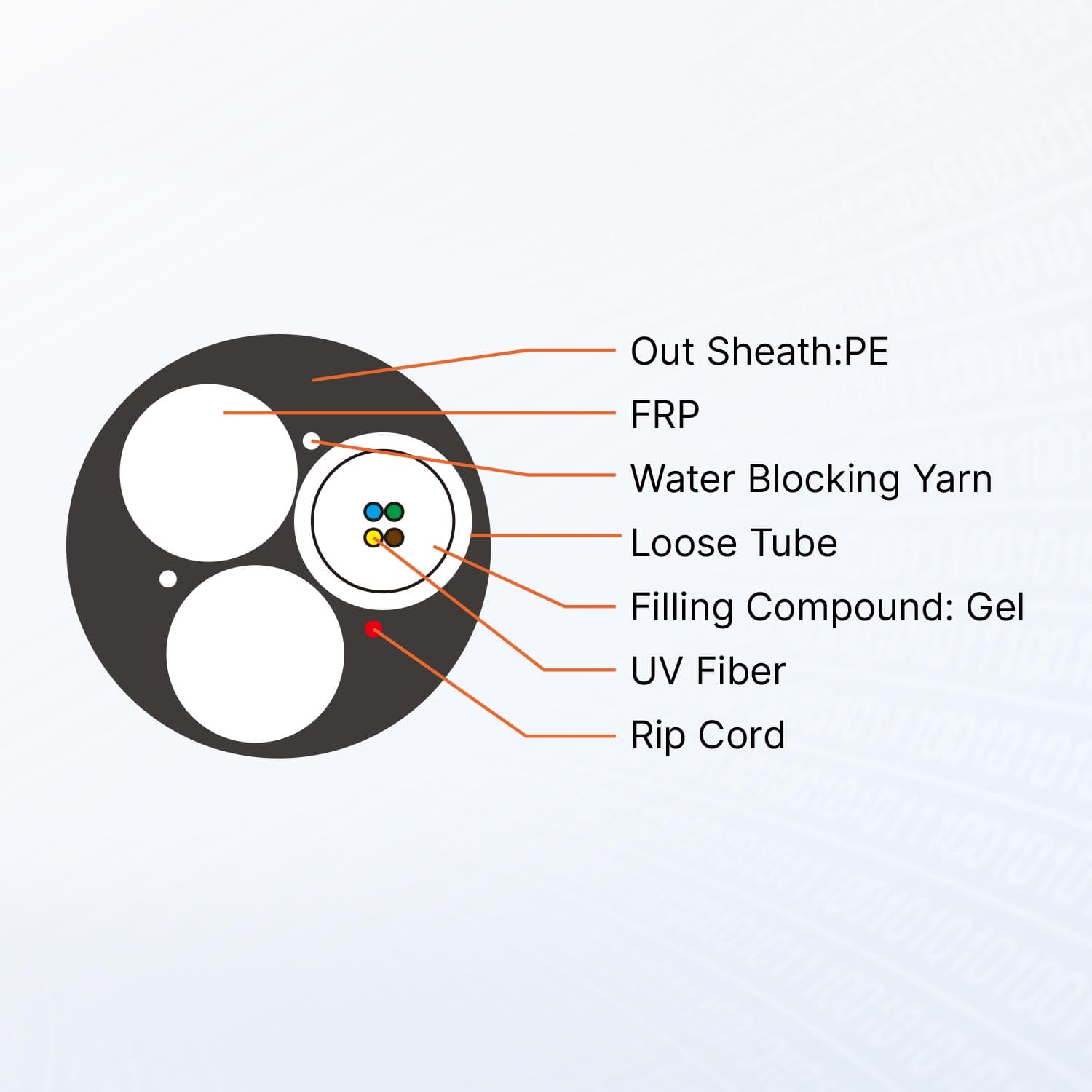

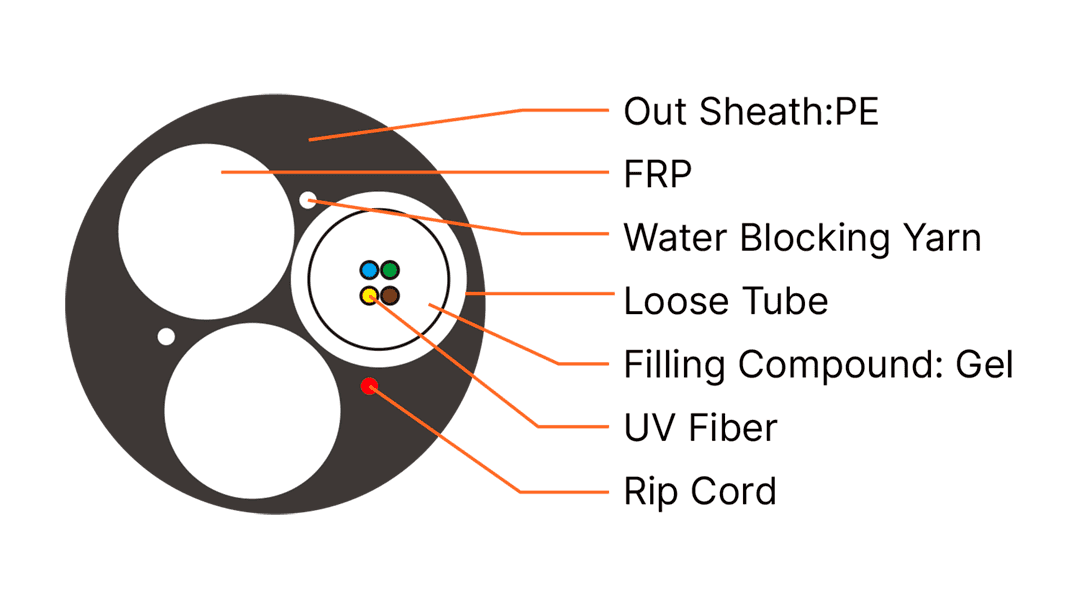

Cable Cross-section Dielectric Unitube Standing CABLE SPECIFICATION 1. description Name: 4–12 Core Single-Mode Unitube Cable，G.652D，PE Black； Model: Unitube-G.652D 2. scope of application 1. Mainly used for connecting optical access system and outdoor system; 2. Apply to aerial(120m) and duct. 3. Can be matched connectors for pre-assembling or field assembling. 3. Dimensions Item Index Loose tube size 2. 3 ±0.1 mm ； Outer sheath size 7. 7 ±0. 3mm ， thickness≥0.9mm Weight Approx ： 60kg/km 4. Cable mechanical performence Item Index Attenuation of cabled fiber ≤ 0. 4 dB/km@1310nm ， ≤ 0. 3 dB/km@1550nm Tensile performance 1250 N /2min (Short term), additional attenuation≤0. 4 dB/km ； 750 N /2min (Long term), additional attenuation≤0. 1 dB/km ； Cable crush: 10 00N/100mm /5min ( Plane ) , additional attenuation≤0. 1 dB/km Cable impact: 1.5 J/ 3 times ， n o fiber breakage Cable repeated bending 20 D / 2 0N/ 25 times ， additional attenuation≤0. 1 dB/km Cable torsion 1m /± 18 0°/10times ， additional attenuation≤0. 1 dB/km Min bending radius 10D (Operation) ， 24D (Installation) Temperature cycling – 20 ～ + 65 ℃ / 12 h/ 2cycles ， additional attenuation≤0. 1 dB/km Environmental friendly RoHS compliant 5. Cable environmental performance Operation temperature – 20 ～ + 7 0 ℃ Storage temperature – 30 ～ + 70 ℃ Installation temperature – 20 ～ +7 0 ℃

Especificaciones técnicas

Item: Index
Loose tube size: 2. 3 ±0.1 mm ；
Outer sheath size: 7. 7 ±0. 3mm ， thickness≥0.9mm
Weight: Approx ： 60kg/km
Attenuation of cabled fiber: ≤ 0. 4 dB/km@1310nm ， ≤ 0. 3 dB/km@1550nm
Tensile performance: 1250 N /2min (Short term), additional attenuation≤0. 4 dB/km ； 750 N /2min (Long term), additional attenuation≤0. 1 dB/km ；
Cable crush: : 10 00N/100mm /5min ( Plane ) , additional attenuation≤0. 1 dB/km
Cable impact: : 1.5 J/ 3 times ， n o fiber breakage
Cable repeated bending: 20 D / 2 0N/ 25 times ， additional attenuation≤0. 1 dB/km
Cable torsion: 1m /± 18 0°/10times ， additional attenuation≤0. 1 dB/km
Min bending radius: 10D (Operation) ， 24D (Installation)
Temperature cycling: – 20 ～ + 65 ℃ / 12 h/ 2cycles ， additional attenuation≤0. 1 dB/km
Environmental friendly: RoHS compliant
Operation temperature: – 20 ～ + 7 0 ℃ | Storage temperature | – 30 ～ + 70 ℃ | Installation temperature | – 20 ～ +7 0 ℃
