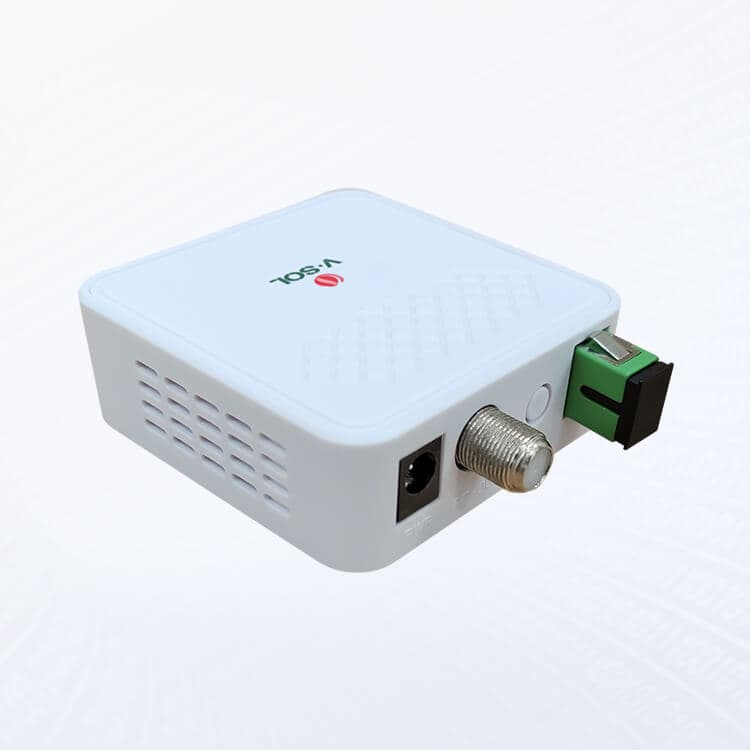

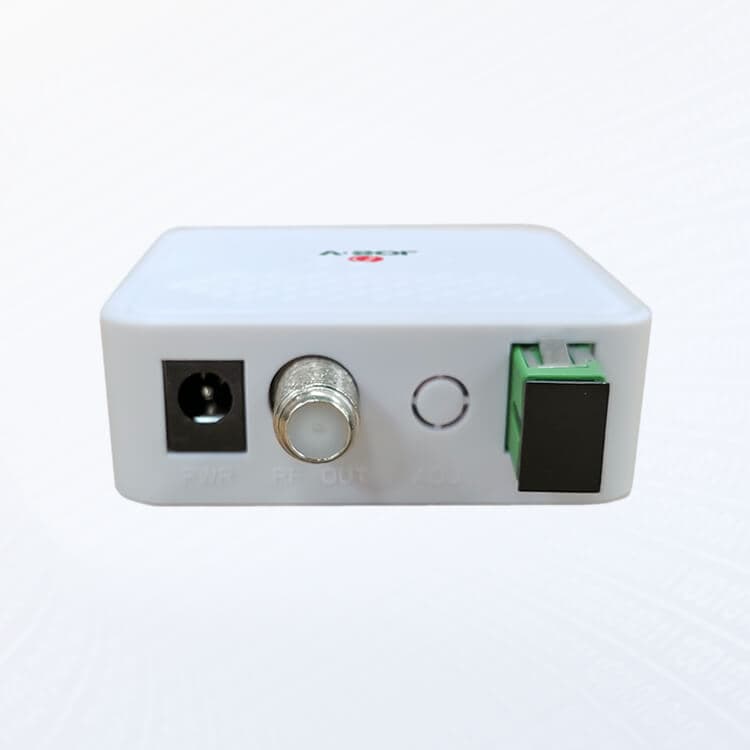

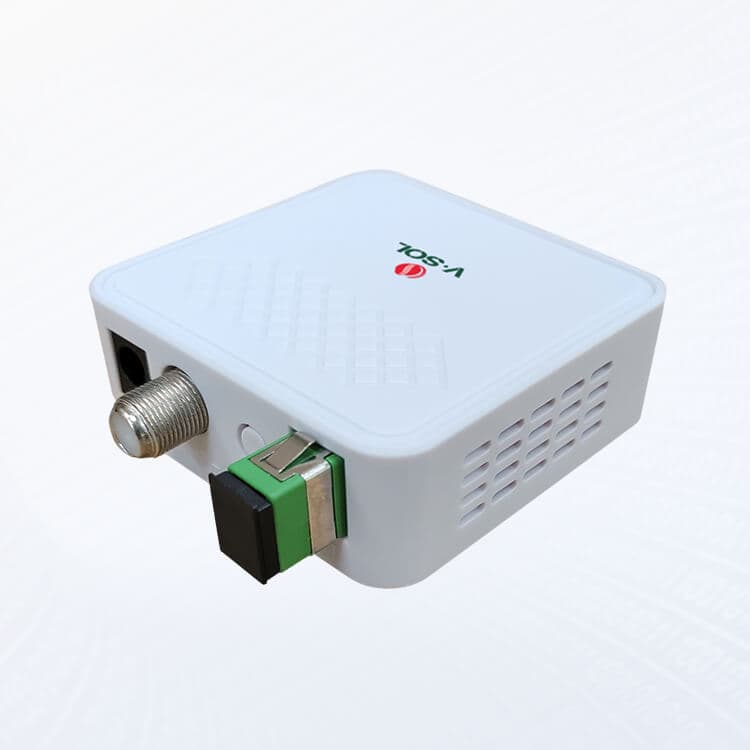

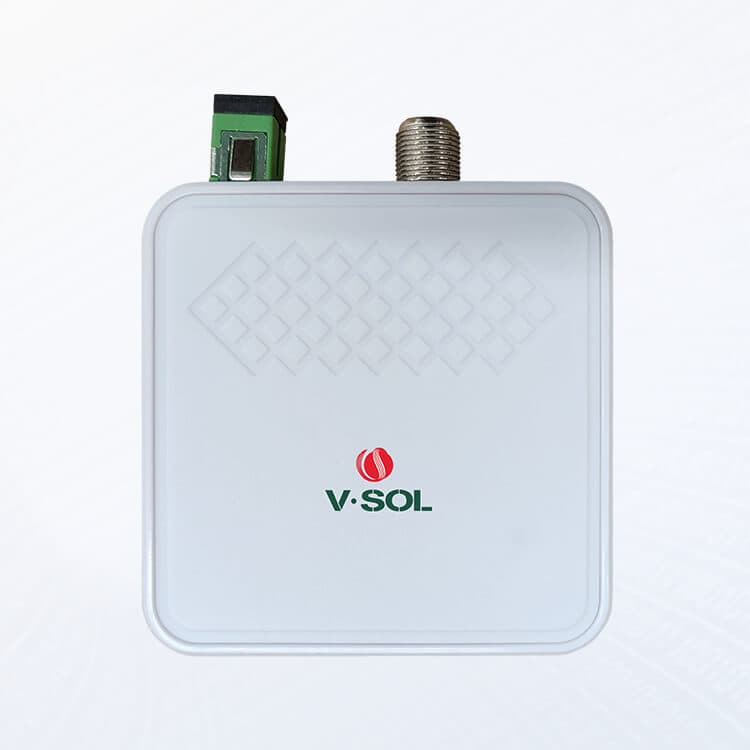

V8601H-1 — CATV Receiver
Optional AGC | Consumo de Potencia Bajo <1.0 W | Costo - Efectivo Model: V8601H-1
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
Product introduction V8601H-1 FTTH Optical Receiver has high performance, lower receiver optical power and lower cost for CATV operators providing high quality and excellent FTTH network solution. Technical parameters Description value Unit Conditions / Notes Wavelength 1100～1600 nm Optical Power Input Range -20～-1 dBm Recommend -18 to -1 Optical Input Return Loss ≥45 dB Bandwidth 47～1003 MHz Flatness ±0.75 dB 47～1000MHz，At 25 ℃ Slope 0~1.0 dB 47～1000MHz，At 25 ℃ Temperature Stability ±1.0 dB In the operating tem range (-25 ~ +65 ℃) Output Level 78 dBuV -15dBm input optical power, per channel modulation 4.0%, in the 860MHz point test, at 25 ℃ Impedance 75 Ohm Return Loss（47～1000MHz） ≥14 dB At 25 ℃ MER ≥34 dB -15~-4dBm input optical power Power < 0.8 W Operating Temperature -25～65 ℃ Storage Temperature -40～70 ℃ Storage Humidity ≤95 ％ Non- condensation Optical Connector Type SC/APC FC/ST Optional Power interface DC12V/1A External adapter RF Output Connector F connector 2 out optional Dimension 74×64×27 mm Net weight 0.102 kg Gross weight 0.116 kg
Especificaciones técnicas
- Description
- value | Unit | Conditions / Notes
- Wavelength
- 1100～1600 | nm |
- Optical Power Input Range
- -20～-1 | dBm | Recommend -18 to -1
- Optical Input Return Loss
- ≥45 | dB |
- Bandwidth
- 47～1003 | MHz |
- Flatness
- ±0.75 | dB | 47～1000MHz，At 25 ℃
- Slope
- 0~1.0 | dB | 47～1000MHz，At 25 ℃
- Temperature Stability
- ±1.0 | dB | In the operating tem range (-25 ~ +65 ℃)
- Output Level
- 78 | dBuV | -15dBm input optical power, per channel modulation 4.0%, in the 860MHz point test, at 25 ℃
- Impedance
- 75 | Ohm |
- Return Loss（47～1000MHz）
- ≥14 | dB | At 25 ℃
- MER
- ≥34 | dB | -15~-4dBm input optical power
- Power
- < 0.8 | W |
- Operating Temperature
- -25～65 | ℃ |
- Storage Temperature
- -40～70 | ℃ |
- Storage Humidity
- ≤95 | ％ | Non- condensation
- Optical Connector Type
- SC/APC | | FC/ST Optional
- Power interface
- DC12V/1A | | External adapter
- RF Output Connector
- F connector | | 2 out optional
- Dimension
- 74×64×27 | mm |
- Net weight
- 0.102 | kg |
- Gross weight
- 0.116 | kg |
