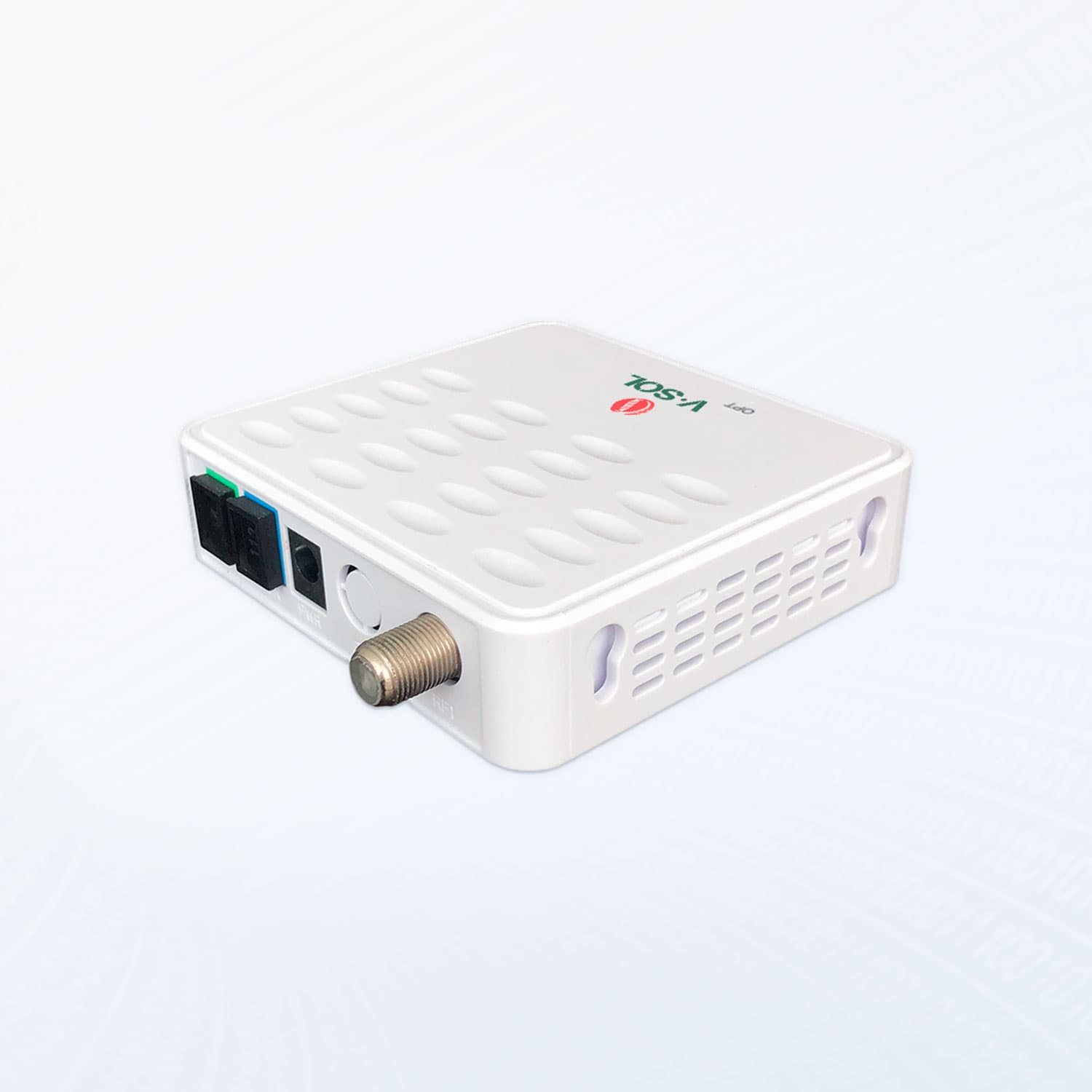

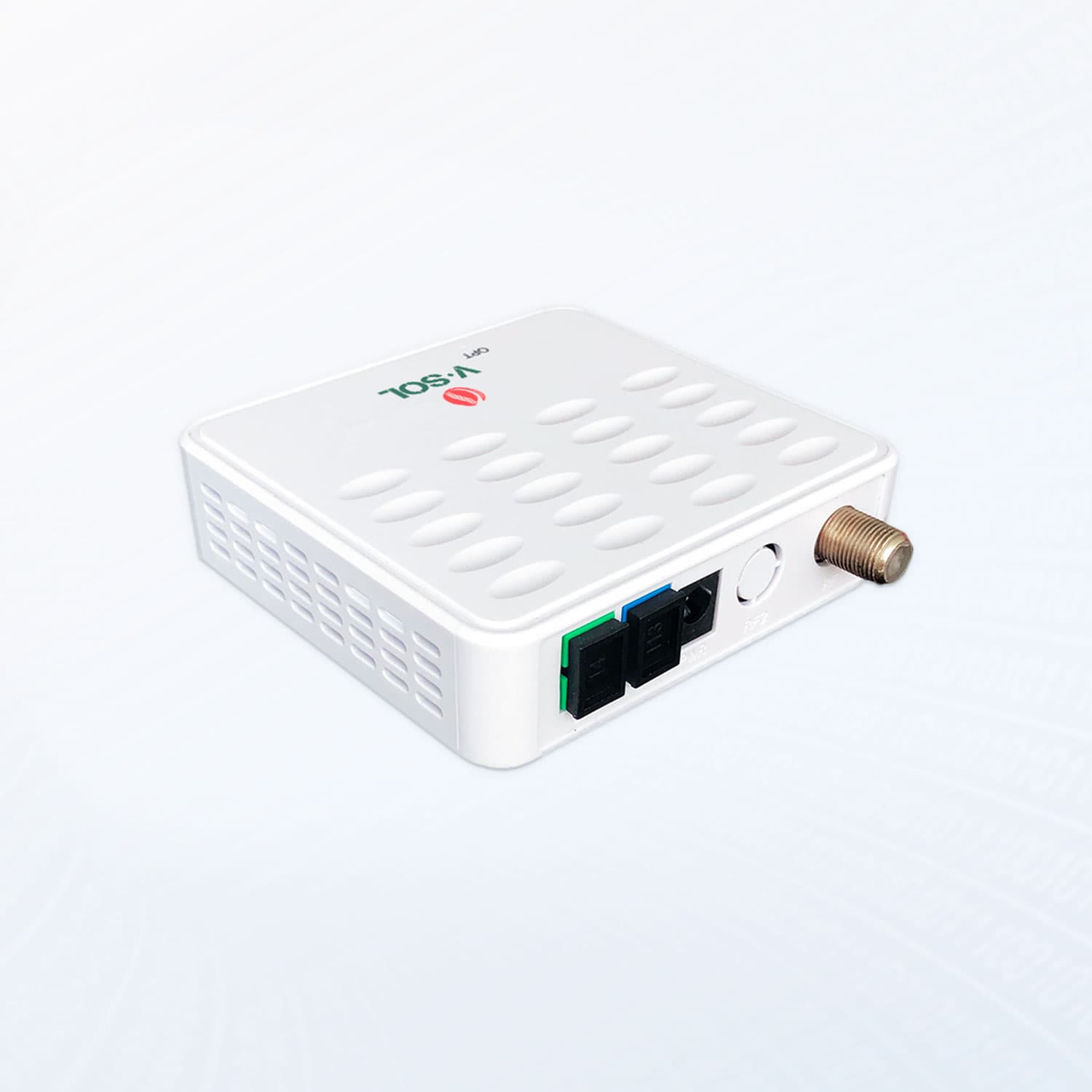

V8601C-1 — CATV Receiver with WDM

Descripción

1.1 Product Introduction The VSOL V8601C-1 is a mini in-door CATV optical receiver built-in WDM, designed for FTTP/FTTH transmission applications. It delivers excellent frequency and distortion responses with low noise, high RF output, and low power consumption. The V8601C-1 package is single-mode fiber-pig-tailed and is available with various connector options. Features 1 GHz operating bandwidth; Lower input optical range:+2~-20dBm; Output level up to 75dBuV (@-15dBm power input); 1 RF Output(1*71dBuV) Low power consumption<1.0W; 1.2 Product Categories Product model Specifications Describe V8601C-1 1 RF Output, with WDM Table 1 Product categories 1.3 Block Diagram Figure 1 Block Diagram 1.4 Technical Parameters Item Description Value Unit Conditions / Notes Optical Specifications (Forward Path) 1 Wavelength 1550 nm CATV 1490/1310 nm XPON 1577/1270 nm 10G PON 2 3 Optical Power Input Range +2 ～ -20 dBm AGC Range +2 ～ -15 dBm 4 Optical Input Return Loss ≥45 dB RF Specifications (Forward Path) 4 Bandwidth 47 ～ 1003 MHz 5 Flatness ±1.0 dB 47 ～ 1003MHz ， At 25 ℃ 6 Slope 0~2.0 dB 47 ～ 1003MHz ， At 25 ℃ 7 Temperature Stability ±1.5 dB In the operating temperature range (-25 ~ +65 ℃) 8 Output Level 75±2 dBuV -15dBm input optical power, The analog channel ， per channel modulation 4.0%, in the 860MHz point test, at 25℃ 9 Impedance 75 Ohm 10 Return Loss （ 47 ～ 1000MHz ） ≥12 dB At 25 ℃ 11 MER ≥30 dB -15~-5dBm input optical power ≥24 dB -20~-16, input optical power 12 Power < 1.0 W Environmental Parameters 13 Operating Temperature -25 ～ 65 ℃ 14 Storage Temperature -40 ～ 70 ℃ 15 Storage Humidity ≤95 ％ Non- condensation User Interface 16 Optical Connector Type SC/APC in, SC/PC out Optical Connector Optional 17 Power supply DC12V/1A 18 RF Output RG6 Connector 1 port 19 Optical Indicator Shine Red or Green color Optical power <-16dBm ,red Optical power >–16dBm ,green 20 Housing 90×85×25 mm 21 Weight 0.15 kg Table 2 Technical parameters 1.5 Interface Description Figure 2 Interface Description Port Type Function 1 RF OUT RF OUT1 F connector 2 PWR Power adaptor port 3 PON 1490/1310 /1577/1270 n m data interface SC/PC 4 Optical Input 1550/1490/1310 /1577/1270nm Optical input SC/APC 5 OPT LED Indicator Table 3 Interface description

Especificaciones técnicas

Product model

Specifications Describe

V8601C-1

1 RF Output, with WDM

Item

Description | Value | Unit | Conditions / Notes

1

Wavelength | 1550 | nm | CATV

1490/1310

nm | XPON

1577/1270

nm | 10G PON

2 3

Optical Power Input Range | +2 ～ -20 | dBm |

AGC Range

+2 ～ -15 | dBm |

4

Optical Input Return Loss | ≥45 | dB |

4

Bandwidth | 47 ～ 1003 | MHz |

5

Flatness | ±1.0 | dB | 47 ～ 1003MHz ， At 25 ℃

6

Slope | 0~2.0 | dB | 47 ～ 1003MHz ， At 25 ℃

7

Temperature Stability | ±1.5 | dB | In the operating temperature range (-25 ~ +65 ℃)

8

Output Level | 75±2 | dBuV | -15dBm input optical power, The analog channel ， per channel modulation 4.0%, in the 860MHz point test, at 25℃

9

Impedance | 75 | Ohm |

10

Return Loss （ 47 ～ 1000MHz ） | ≥12 | dB | At 25 ℃

11

MER | ≥30 | dB | -15~-5dBm input optical power

≥24

dB | -20~-16, input optical power

12

Power | < 1.0 | W |

13

Operating Temperature | -25 ～ 65 | ℃ |

14

Storage Temperature | -40 ～ 70 | ℃ |

15

Storage Humidity | ≤95 | ％ | Non- condensation

16

Optical Connector Type | SC/APC in, SC/PC out | | Optical Connector Optional

17

Power supply | DC12V/1A | |

18

RF Output | RG6 Connector 1 port | |

19

Optical Indicator | Shine Red or Green color | | Optical power <-16dBm ,red Optical power >–16dBm ,green

20

Housing | 90×85×25 | mm |

21

Weight | 0.15 | kg |

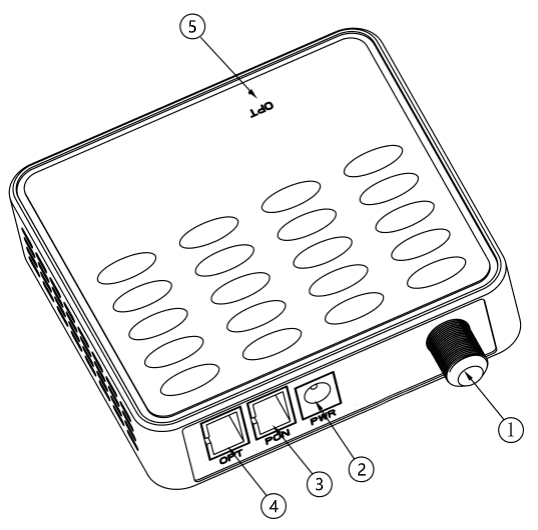

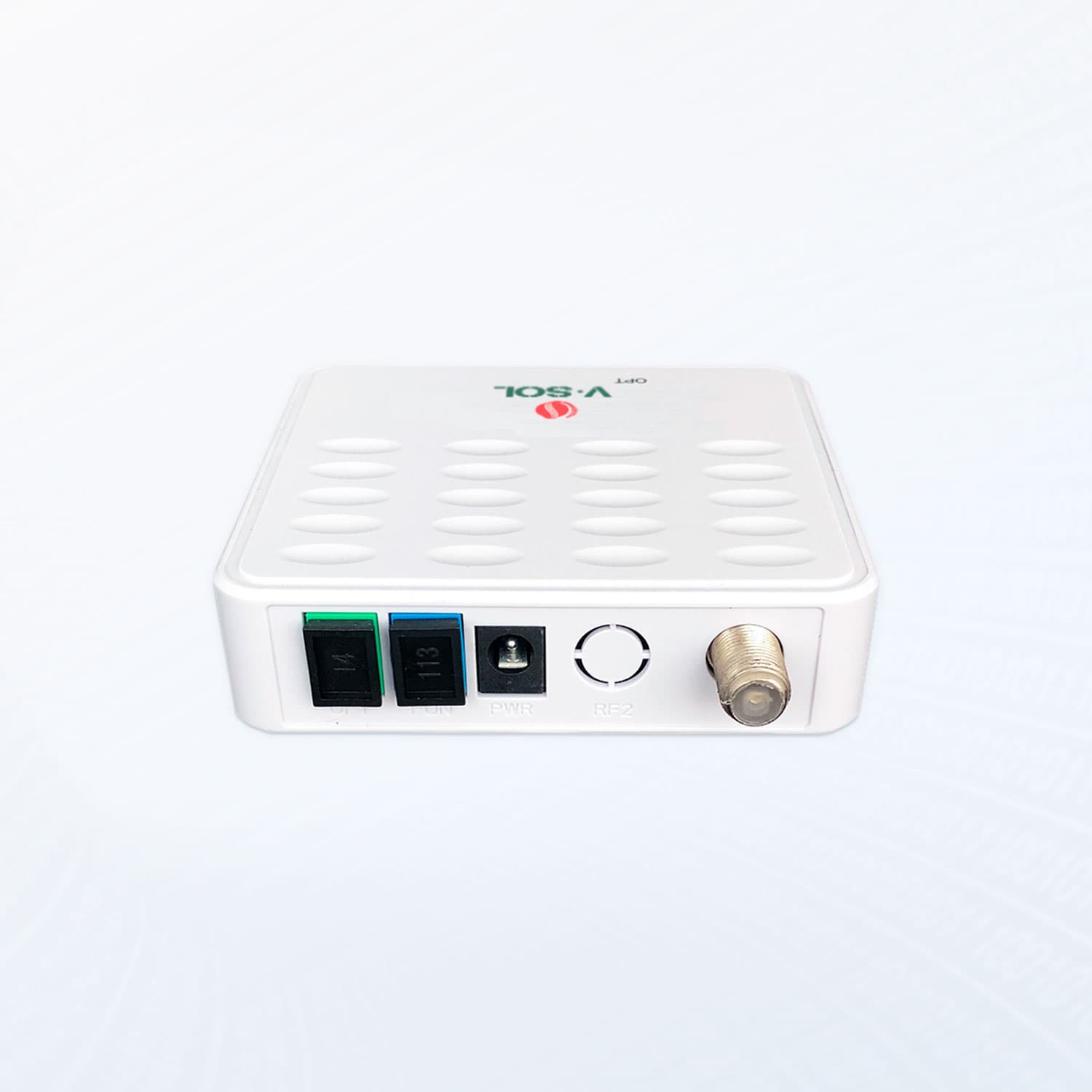

Port Type

Function |

1

RF OUT | RF OUT1 F connector

2

PWR | Power adaptor port

3

PON | 1490/1310 /1577/1270 n m data interface SC/PC

4

Optical Input | 1550/1490/1310 /1577/1270nm Optical input SC/APC

5

OPT | LED Indicator
