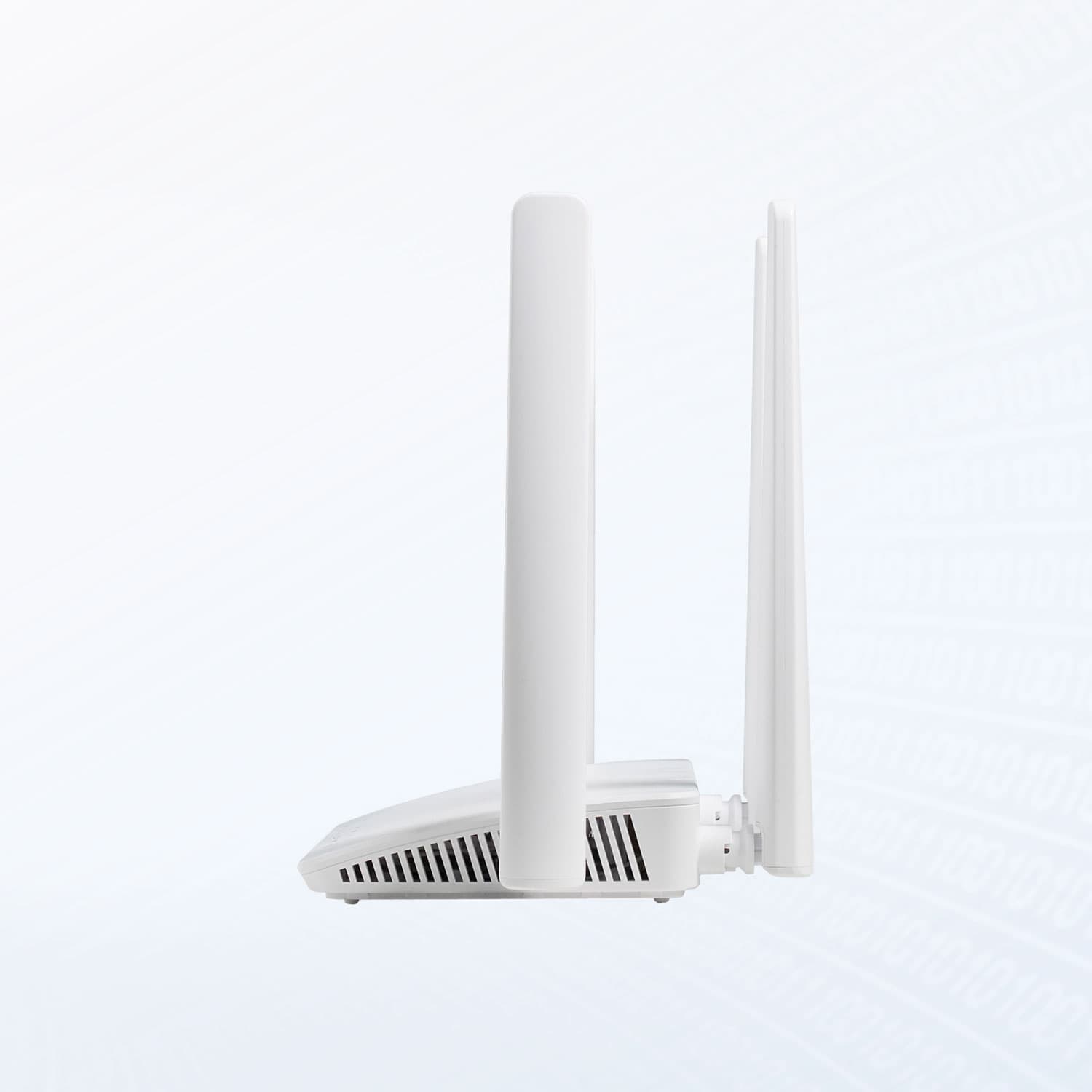

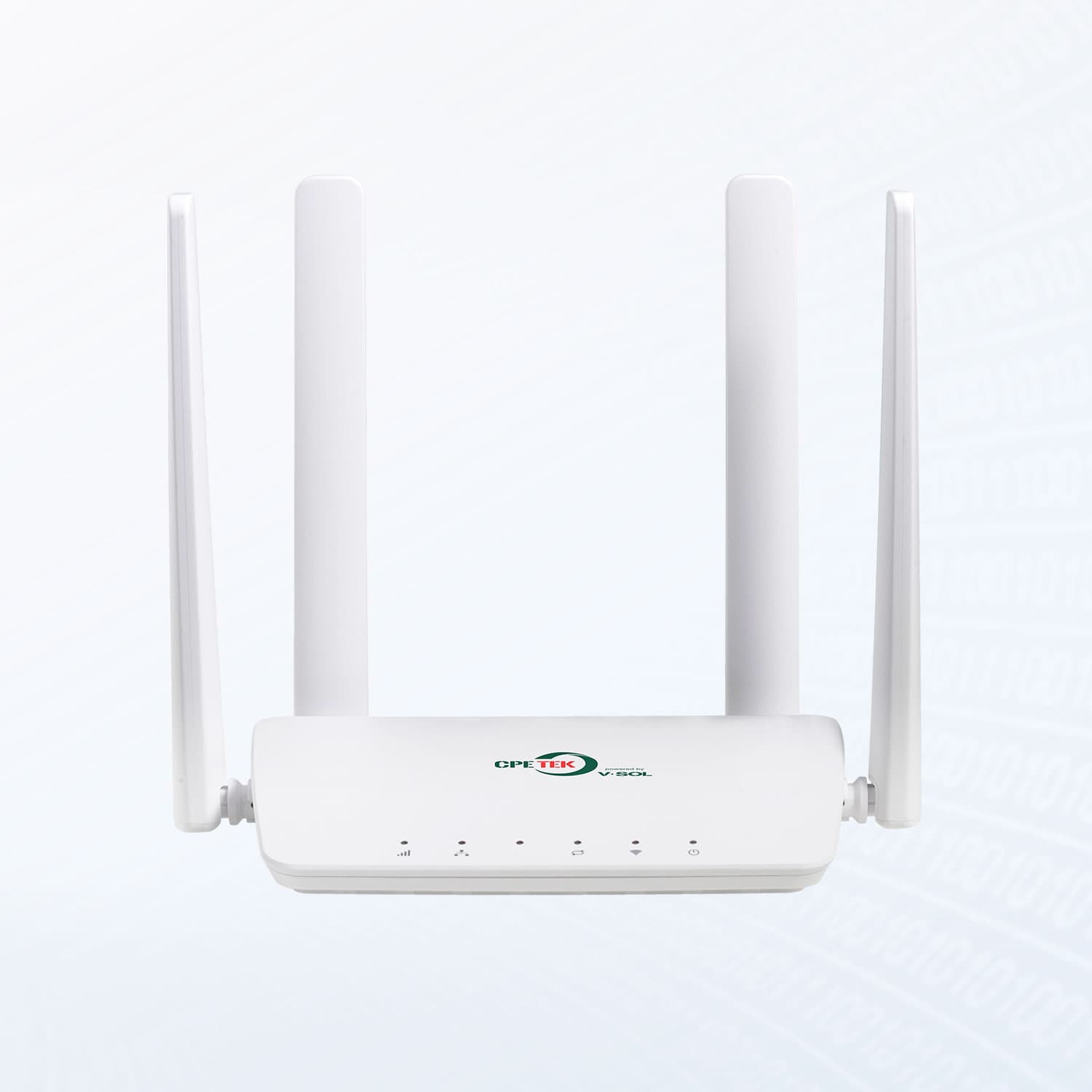

XMC5151-NV — Cost-effective 5G Indoor CPE
2.6Gbps | Antena 4+5G | Type-C | USIM Modelo: XMC5151-NV
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

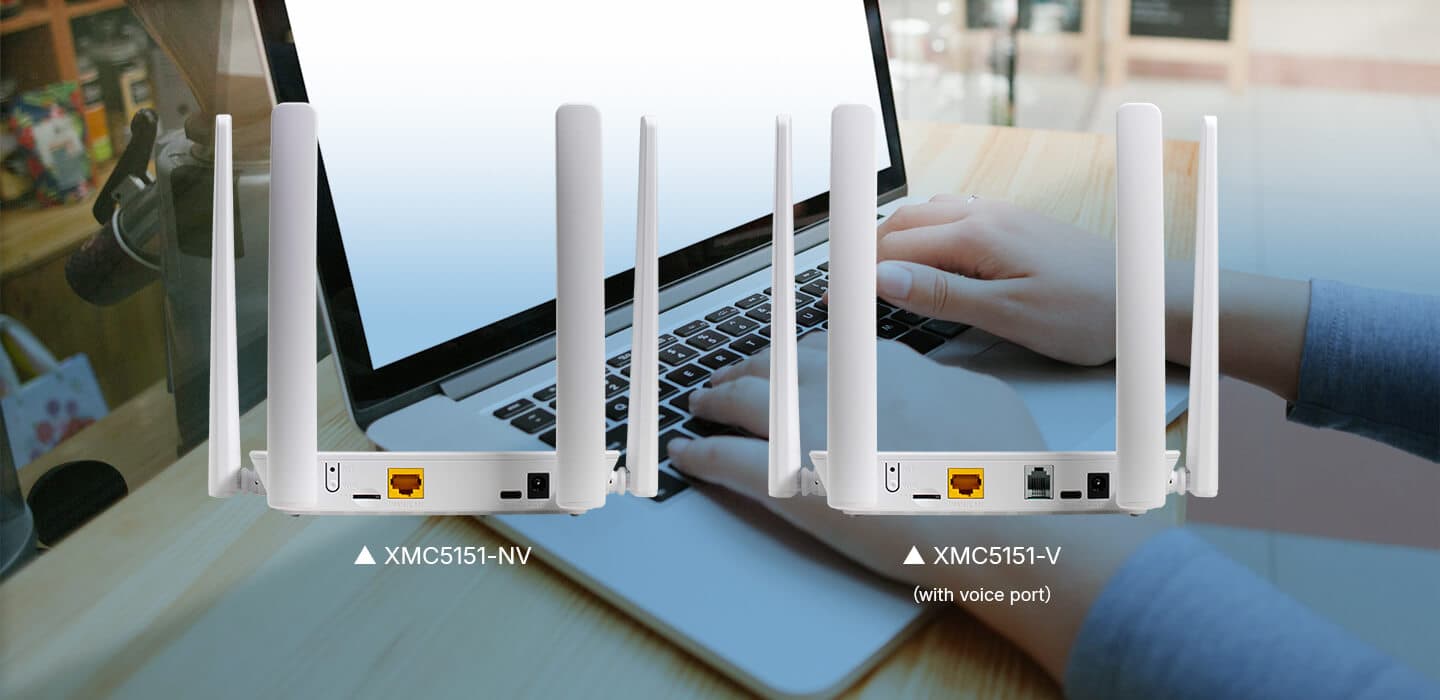

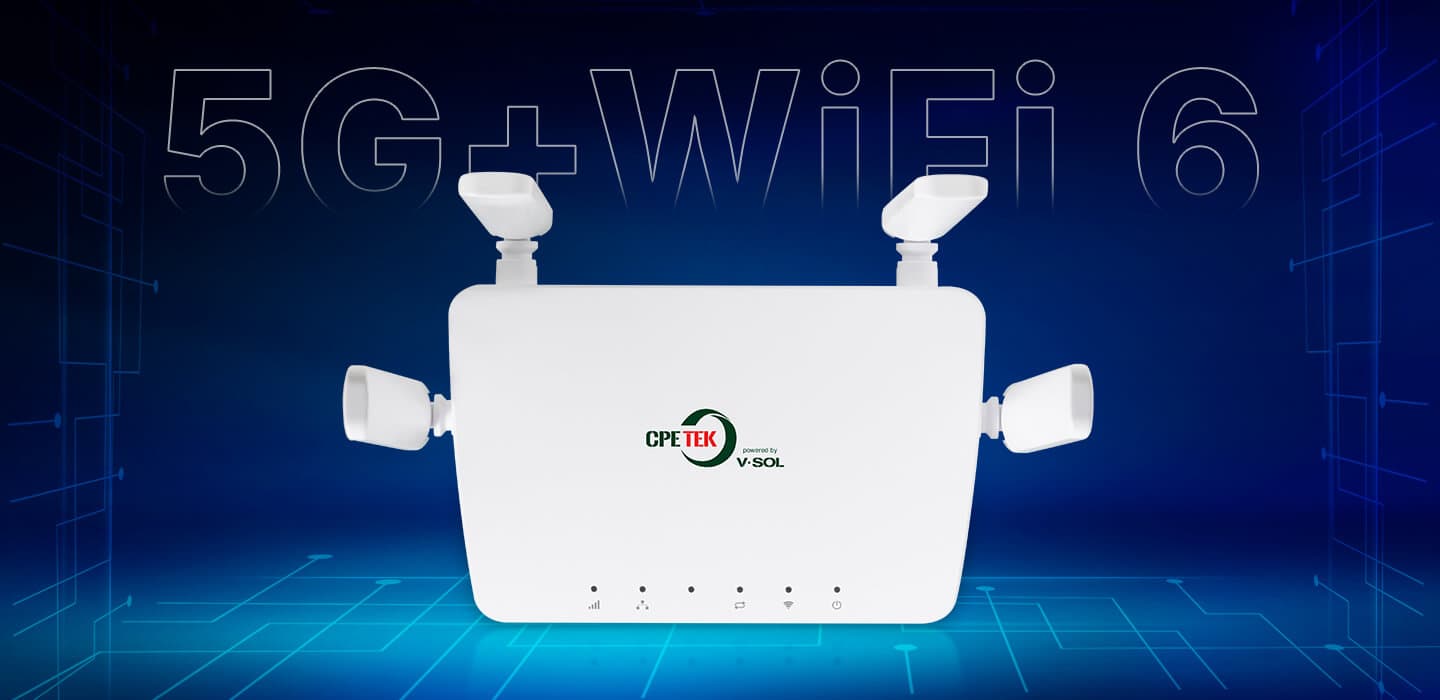

Unprecedented Cost-effectiveness 5G + Wi-Fi 6 at Your Fingertips Equipped with the latest WIFI6 technology and 4*5G antennas, it boasts a peak download speed of 2.6Gbps. One Investment for Long Term Benefits Equipped with Gigabit Ethernet port, fully compatible with 3G/4G/5G, covering SA and NSA. Two Versions for Your Choice Dual-band Wi-Fi 6 for better performance. Comes in two versions for your choice. Multi-technology Protection Technical parameter Product Name XMC5151-NV Chip Platform UDX710 Network Mode NSA&SA Frequency Bands 5G NR NSA: n1/n3/n7/n20/n28/n38/n40/n41/n77/n78 5G NR SA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n66/n77/n78 FDD LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28/B66 TDD LTE: B38/B40/B41 WCDMA: B1/B2/B5/B8 Protocol Version 3GPP Release 15 Antennas External 4*5G antenna, Built-in Wi-Fi antenna, 2.4Ghz ： 1*1 SISO, 5.8Ghz ： 1*1 SISO LTE+5G EN-DC Peak Data Rate 5G: NSA: 2.6 Gbps (DL)/650 Mbps (UL); SA: 2 Gbps (DL)/1 Gbps (UL) LTE: Cat 12 (DL)/Cat 13 (UL); 600 Mbps (DL)/150 Mbps (UL) WCDMA: 3GPP-R9 DC-HSDPA: 42.2 Mbps (DL)/HSUPA: 11 Mbps (UL); WCDMA: 384 kbps (DL)/384 kbps (UL) Wi-Fi Standard 802.11b/g/n/ac/ax; WIFI 6 2.4GHz 1*1 SISO 802.11ax, 40MHz: Up to 286.8 Mbps 5.8GHz 1*1 SISO 802.11ax, 80MHz: Up to 600.5 Mbps Size 150*105*30mm Power Supply 12V/1.5A Physical interface 1 x GE WAN/LAN Port, 1 x Type C I/F Port, 1 x SIM Card (4FF NANO), 1 x DC Power Supply (12V/1.5A) LED Power indicator (white), Wi-Fi indicator (white), 5G network indicator (white), WAN/LAN indicator (white), 3G/4G/5G network indicator (white) Button Reset/WPS, Restore Factory Settings or active WPS Characteristic APN management; IPv4/IPv6; VPN Pass through contains IPSecVPN ， PPTP VPN ， L2TP VPN; DHCP Server, Dynamic IP, Static IP; UPnP, DMZ; Firewall: PORT Filtering/ Port Mapping/ Port Forwarding; DDNS, NAT, USSD; Traffic Control (IP QoS); Access Control, Local Management
Especificaciones técnicas
- Product Name
- XMC5151-NV
- Chip Platform
- UDX710
- Network Mode
- NSA&SA
- Frequency Bands
- 5G NR NSA: n1/n3/n7/n20/n28/n38/n40/n41/n77/n78 5G NR SA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n66/n77/n78 FDD LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28/B66 TDD LTE: B38/B40/B41 WCDMA: B1/B2/B5/B8
- Protocol Version
- 3GPP Release 15
- Antennas

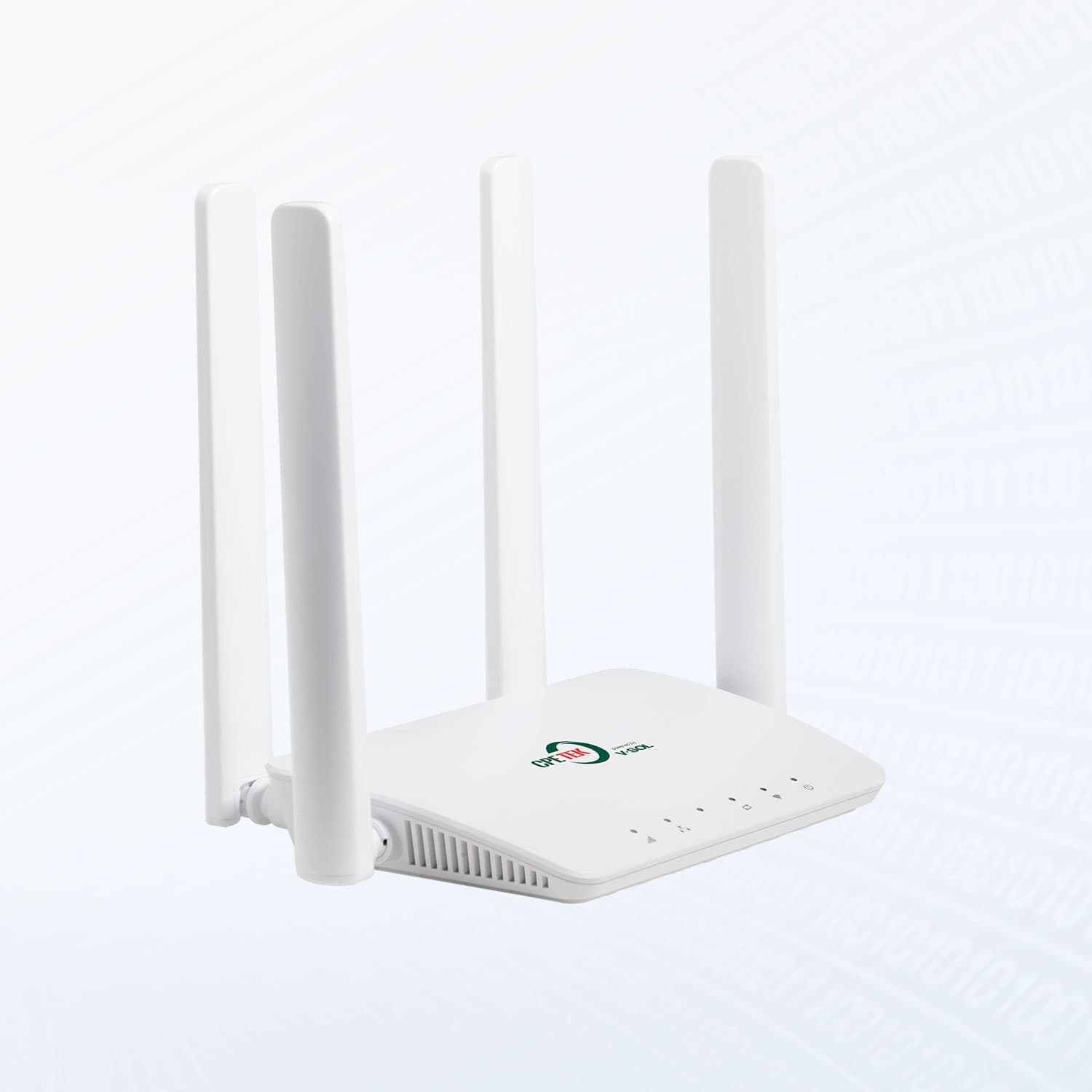

- External 4*5G antenna, Built-in Wi-Fi antenna, 2.4Ghz ： 1*1 SISO, 5.8Ghz ： 1*1 SISO
- LTE+5G EN-DC Peak Data Rate
- 5G: NSA: 2.6 Gbps (DL)/650 Mbps (UL); SA: 2 Gbps (DL)/1 Gbps (UL) LTE: Cat 12 (DL)/Cat 13 (UL); 600 Mbps (DL)/150 Mbps (UL) WCDMA: 3GPP-R9 DC-HSDPA: 42.2 Mbps (DL)/HSUPA: 11 Mbps (UL); WCDMA: 384 kbps (DL)/384 kbps (UL)
- Wi-Fi Standard
- 802.11b/g/n/ac/ax; WIFI 6 2.4GHz 1*1 SISO 802.11ax, 40MHz: Up to 286.8 Mbps 5.8GHz 1*1 SISO 802.11ax, 80MHz: Up to 600.5 Mbps
- Size
- 150*105*30mm
- Power Supply
- 12V/1.5A
- Physical interface

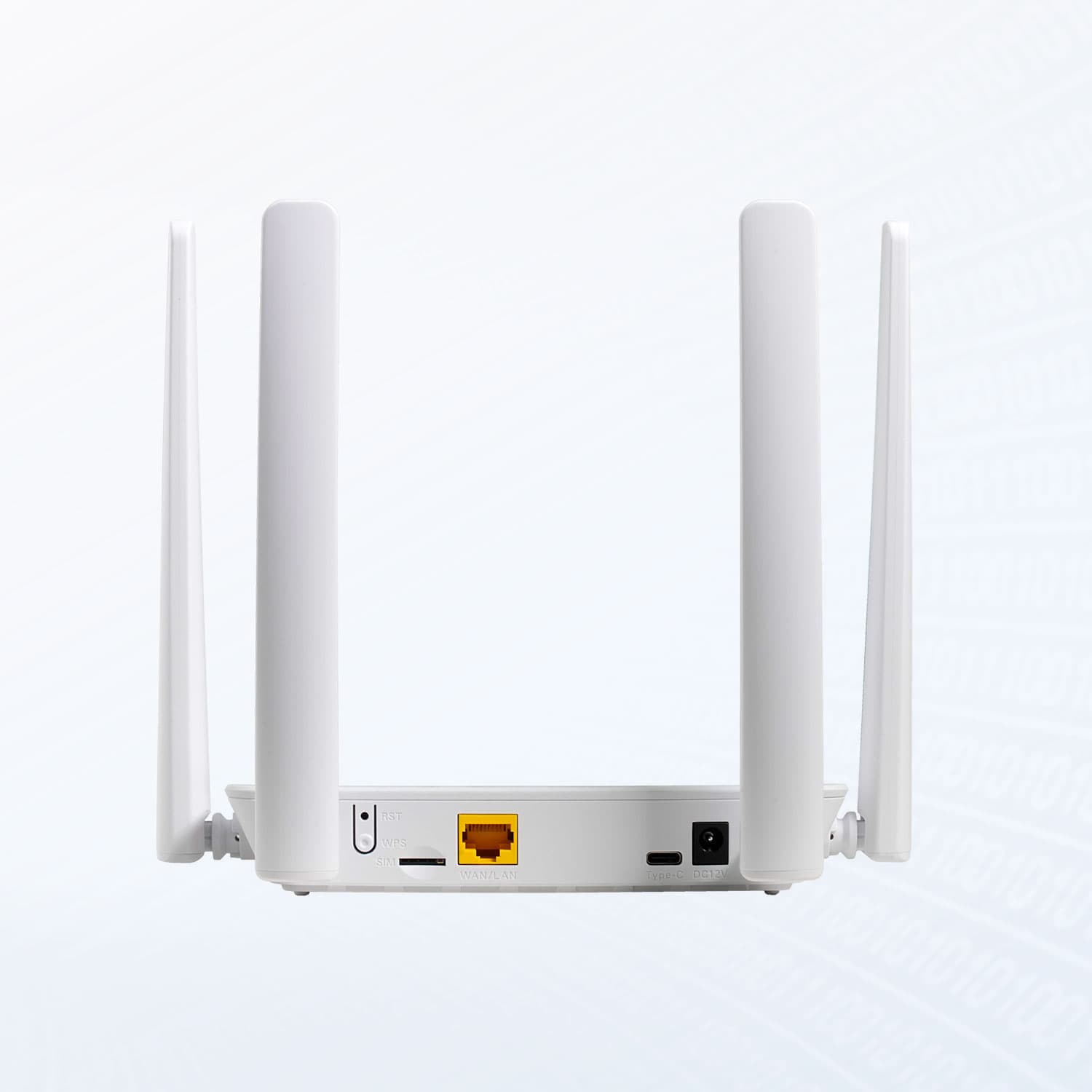

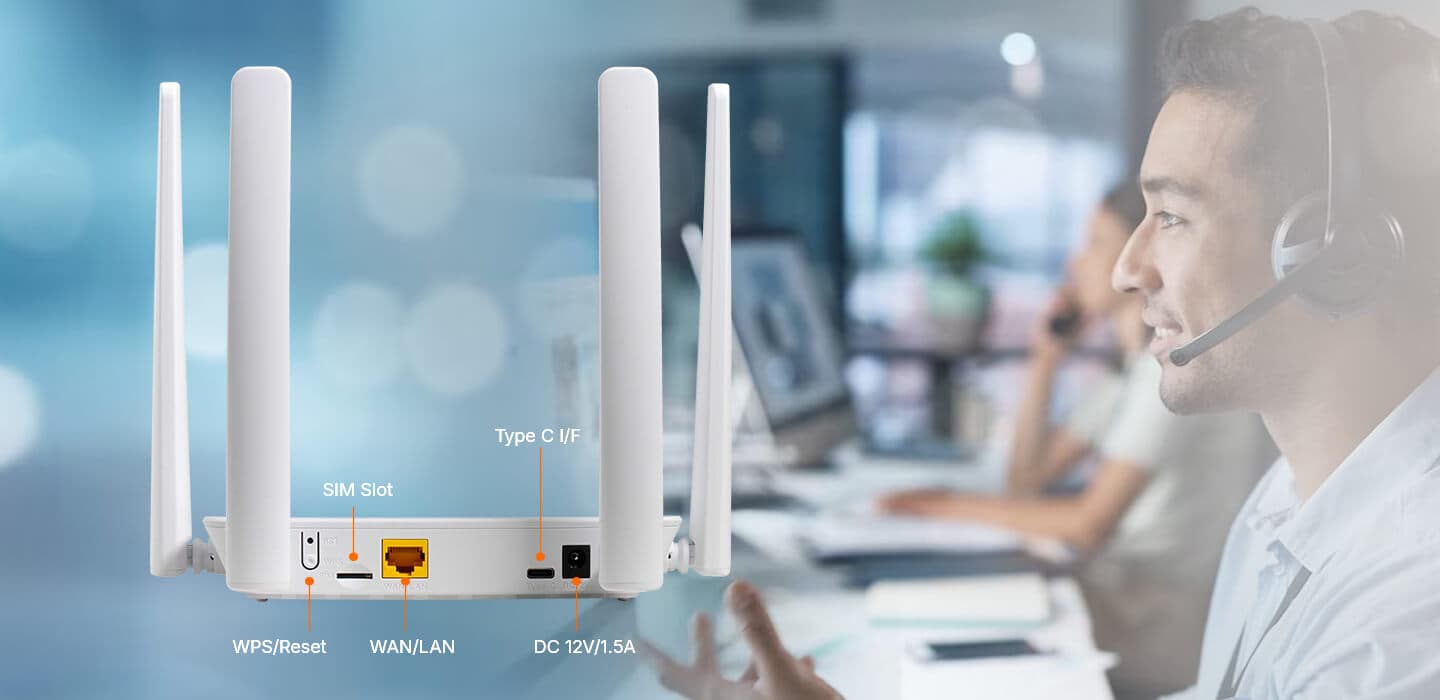

- 1 x GE WAN/LAN Port, 1 x Type C I/F Port, 1 x SIM Card (4FF NANO), 1 x DC Power Supply (12V/1.5A)
- LED

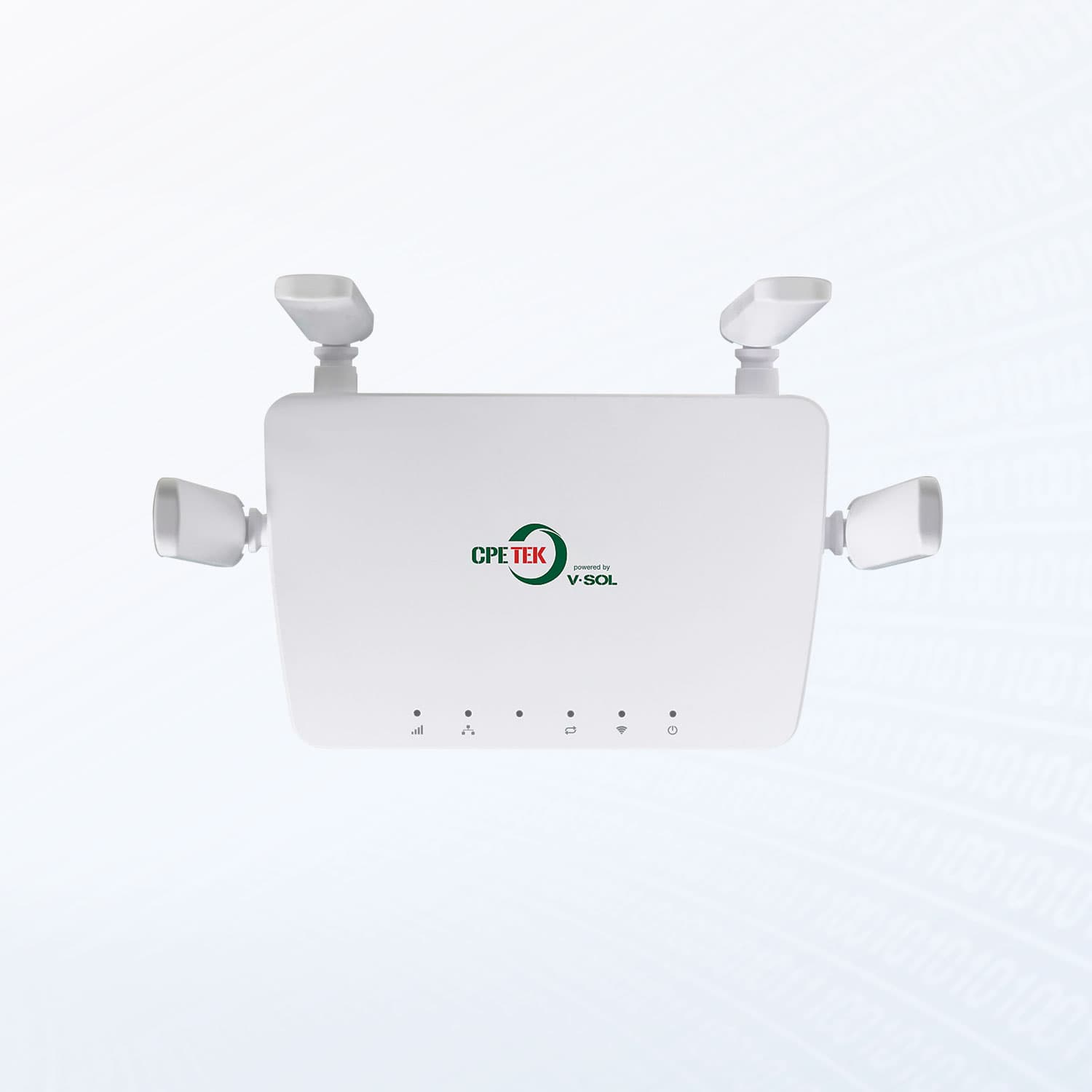

- Power indicator (white), Wi-Fi indicator (white), 5G network indicator (white), WAN/LAN indicator (white), 3G/4G/5G network indicator (white)
- Button
- Reset/WPS, Restore Factory Settings or active WPS
- Characteristic
- APN management; IPv4/IPv6; VPN Pass through contains IPSecVPN ， PPTP VPN ， L2TP VPN; DHCP Server, Dynamic IP, Static IP; UPnP, DMZ; Firewall: PORT Filtering/ Port Mapping/ Port Forwarding; DDNS, NAT, USSD; Traffic Control (IP QoS); Access Control, Local Management
