GJXFH-1,2,4B6
TPU introducción circular cable óptico unipolar
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

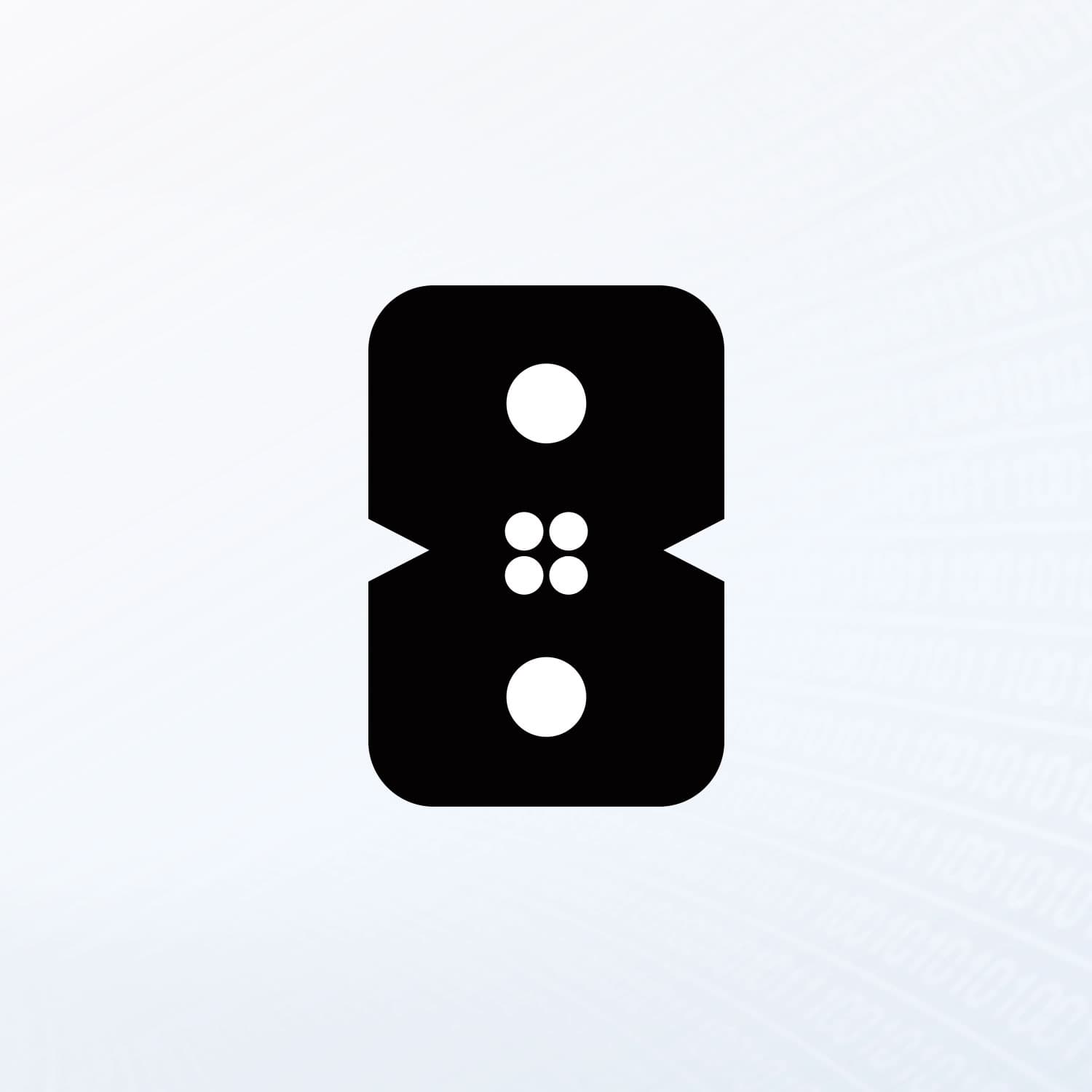

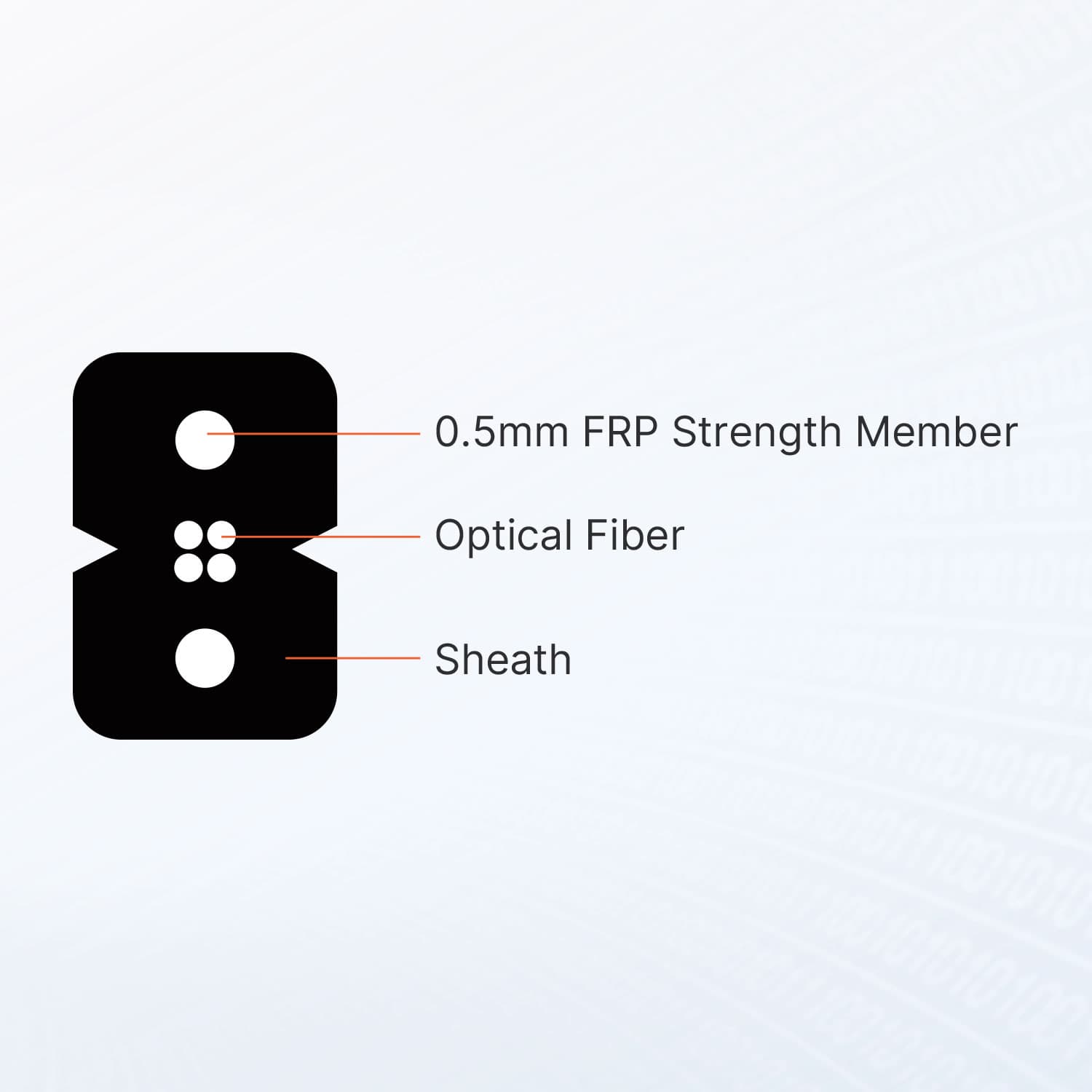

Cable Cross-section Cable Specification Item Technology parameter C able type GJXFH-1B6 GJXFH-2B6 GJXFH-4B6 Cable specification 3.0 ×2 .0 F iber type 9/125 (G.657A2) F iber counts 1 2 4 F iber color Red Blue, orange B lue, o range, g reen , brown S heath color B lack S heath material LSZH C able dimension mm 3.0(±0.1)*2.0(±0.1) C able weight Kg/km A pprox. 8.5 Min. bending radius mm 10 (Static) 25 (D ynamic ) A ttenuation dB/km ≦ 0.4 at 1310nm , ≦ 0.3 at 1550nm S hort term tensile N 80 Long term tensile N 40 S hort term crush N/100mm 10 00 Long term crush N/100mm 500 O peration temperature ℃ – 20 ~ +60 Packing 1Km/Roll/Box Size: 32*21.5*32cm Weight: 10KG
Especificaciones técnicas
- Item
- Technology parameter
- C able type
- GJXFH-1B6 | GJXFH-2B6 | GJXFH-4B6
- Cable specification
- 3.0 ×2 .0
- F iber type
- 9/125 (G.657A2)
- F iber counts
- 1 | 2 | 4
- F iber color
- Red | Blue, orange | B lue, o range, g reen , brown
- S heath color
- B lack
- S heath material
- LSZH
- C able dimension mm
- 3.0(±0.1)*2.0(±0.1)
- C able weight Kg/km
- A pprox. 8.5
- Min. bending radius mm
- 10 (Static) 25 (D ynamic )
- A ttenuation dB/km
- ≦ 0.4 at 1310nm , ≦ 0.3 at 1550nm
- S hort term tensile N
- 80
- Long term tensile N
- 40
- S hort term crush N/100mm
- 10 00
- Long term crush N/100mm
- 500
- O peration temperature ℃
- – 20 ~ +60
