GJXH-1,2,4B6
Indoor metal butterfly shaped introduction optical cable
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

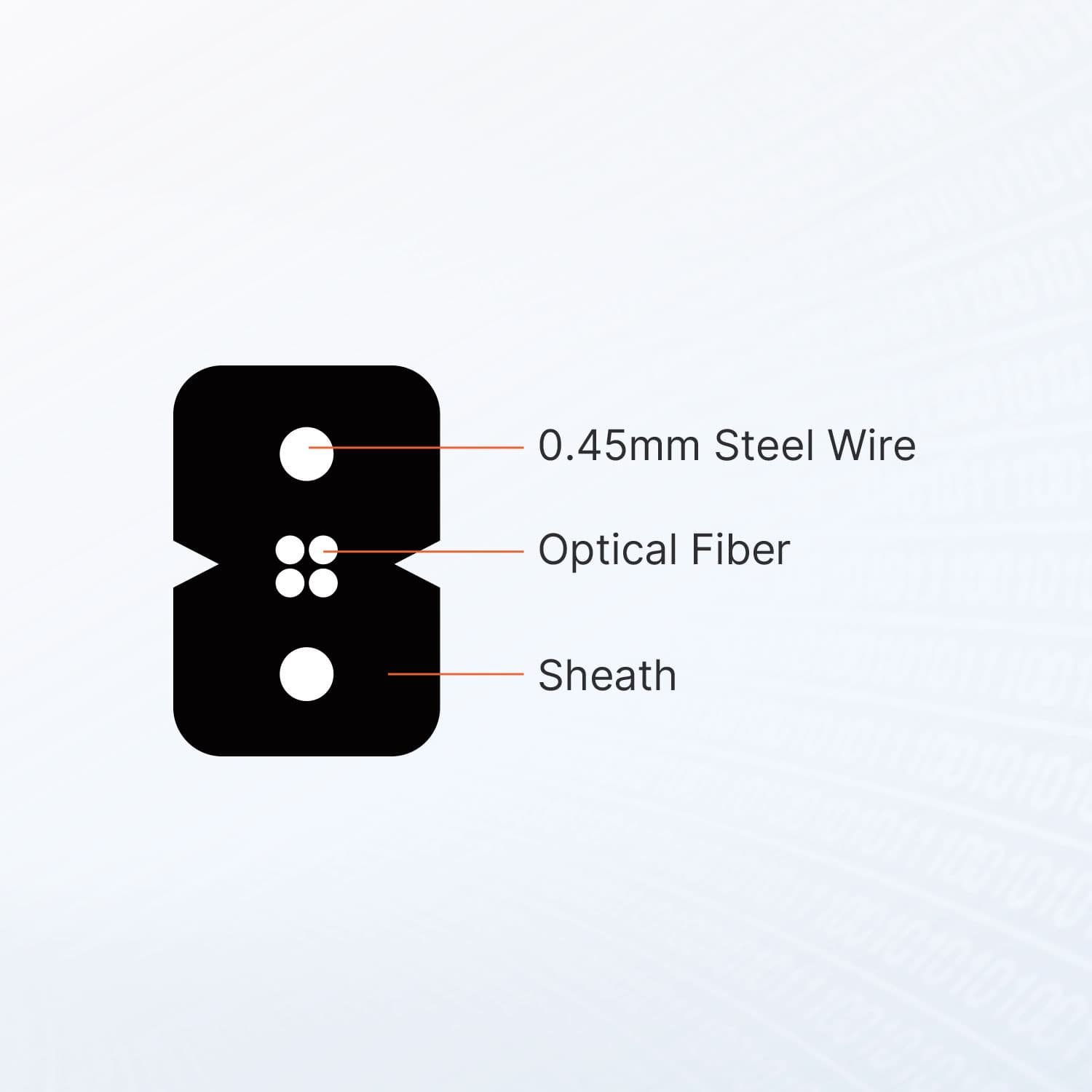

Cable Cross-section Cable Specification Item Technology parameter Cable type GJXH-1B6 GJXH-2B6 GJXH-4B6 Cable specification 3.0×2.0 Fiber type 9/125 (G.657A2) Fiber counts 1 2 4 Fiber color Red Blue, orange Blue, orange, green, brown Sheath color Black Sheath material LSZH Cable dimension mm 3.0(±0.1)*2.0(±0.1) Cable weight Kg/km Approx. 10.0 Min. bending radius mm 10 (Static) 25 (Dynamic) Attenuation dB/km ≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm Short term tensile N 200 Long term tensile N 100 Short term crush N/100mm 2200 Long term crush N/100mm 1100 Operation temperature ℃ -20~+60 Packing 1Km/Roll/Box Size: 32*21.5*32cm Weight: 10KG
Especificaciones técnicas
- Item
- Technology parameter
- Cable type
- GJXH-1B6 | GJXH-2B6 | GJXH-4B6
- Cable specification
- 3.0×2.0
- Fiber type
- 9/125 (G.657A2)
- Fiber counts
- 1 | 2 | 4
- Fiber color
- Red | Blue, orange | Blue, orange, green, brown
- Sheath color
- Black
- Sheath material
- LSZH
- Cable dimension mm
- 3.0(±0.1)*2.0(±0.1)
- Cable weight Kg/km
- Approx. 10.0
- Min. bending radius mm
- 10 (Static) 25 (Dynamic)
- Attenuation dB/km
- ≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
- Short term tensile N
- 200
- Long term tensile N
- 100
- Short term crush N/100mm
- 2200
- Long term crush N/100mm
- 1100
- Operation temperature ℃
- -20~+60
