GJYXFCH-1,2,4B6
Outdoor non-metallic self-supporting butterfly shaped fiber optic cable
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

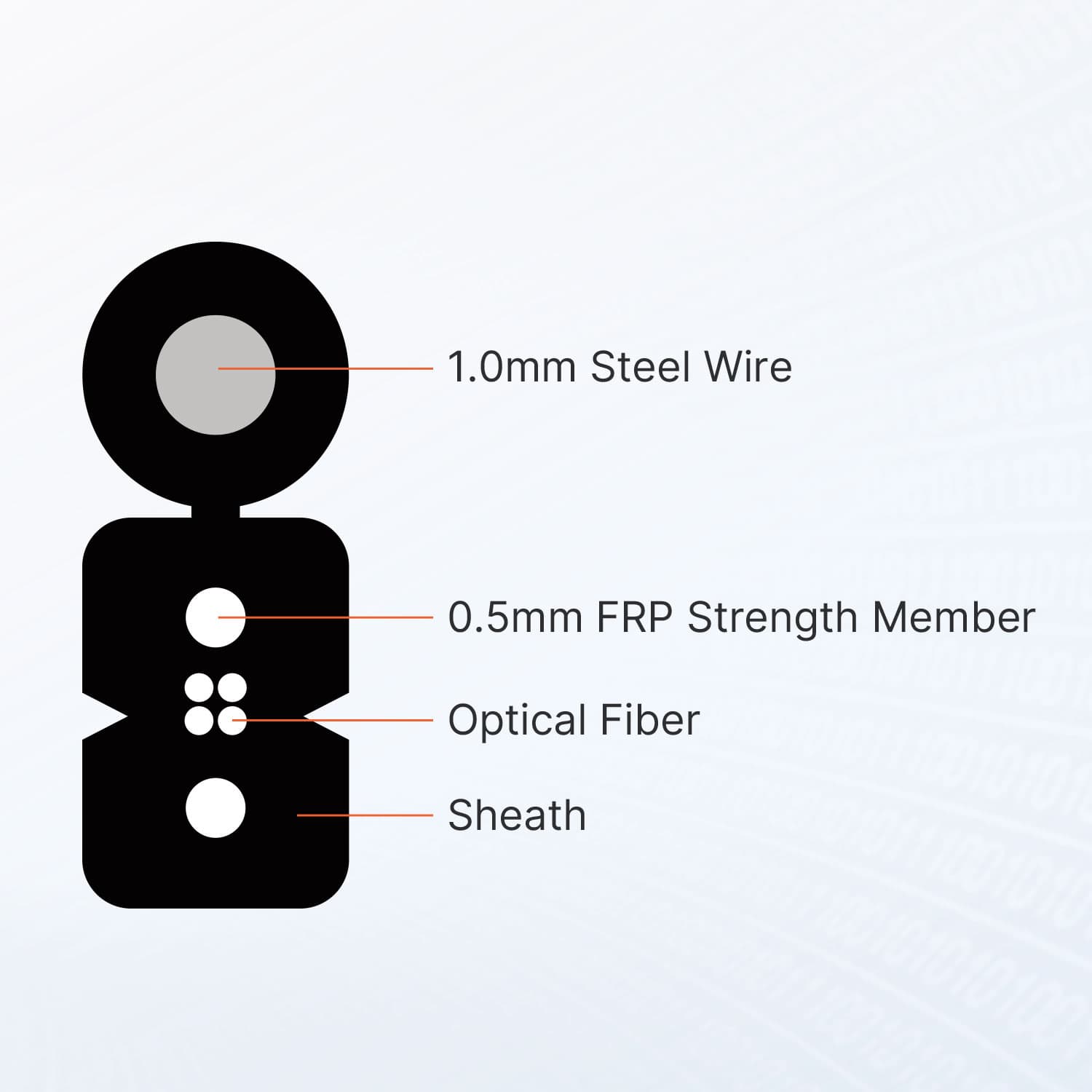

Cable Cross-section Cable Specification Item Technology parameter Cable type GJYXFCH-1B6 GJYXFCH-2B6 GJYXFCH-4B6 Cable specification 5.2×2.0 Fiber type 9/125 (G.657A 1 ) Fiber counts 1 2 4 Fiber color Red Blue, orange Blue, orange, green, brown Sheath color Black Sheath material LSZH Cable dimension mm 5.2(±0.2)*2.0(±0.2) Cable weight Kg/km Approx. 17.5 Min. bending radius mm 120 Min. bending radius mm (Excluding messenger wire) 10 (Static) 25 (Dynamic) Attenuation dB/km ≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm Short term tensile N 600 Long term tensile N 300 Short term crush N/100mm 2200 Long term crush N/100mm 1100 Operation temperature ℃ -20~+60 Packing 1Km/Roll/Box Size: 31*31*32cm Weight: 20.5KG
Especificaciones técnicas
- Item
- Technology parameter
- Cable type
- GJYXFCH-1B6 | GJYXFCH-2B6 | GJYXFCH-4B6
- Cable specification
- 5.2×2.0
- Fiber type
- 9/125 (G.657A 1 )
- Fiber counts
- 1 | 2 | 4
- Fiber color
- Red | Blue, orange | Blue, orange, green, brown
- Sheath color
- Black
- Sheath material
- LSZH
- Cable dimension mm
- 5.2(±0.2)*2.0(±0.2)
- Cable weight Kg/km
- Approx. 17.5
- Min. bending radius mm
- 120
- Min. bending radius mm (Excluding messenger wire)
- 10 (Static) 25 (Dynamic)
- Attenuation dB/km
- ≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
- Short term tensile N
- 600
- Long term tensile N
- 300
- Short term crush N/100mm
- 2200
- Long term crush N/100mm
- 1100
- Operation temperature ℃
- -20~+60
