GYFXBY
All dielectric non-metallic flat self-supporting single tube optical cable
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

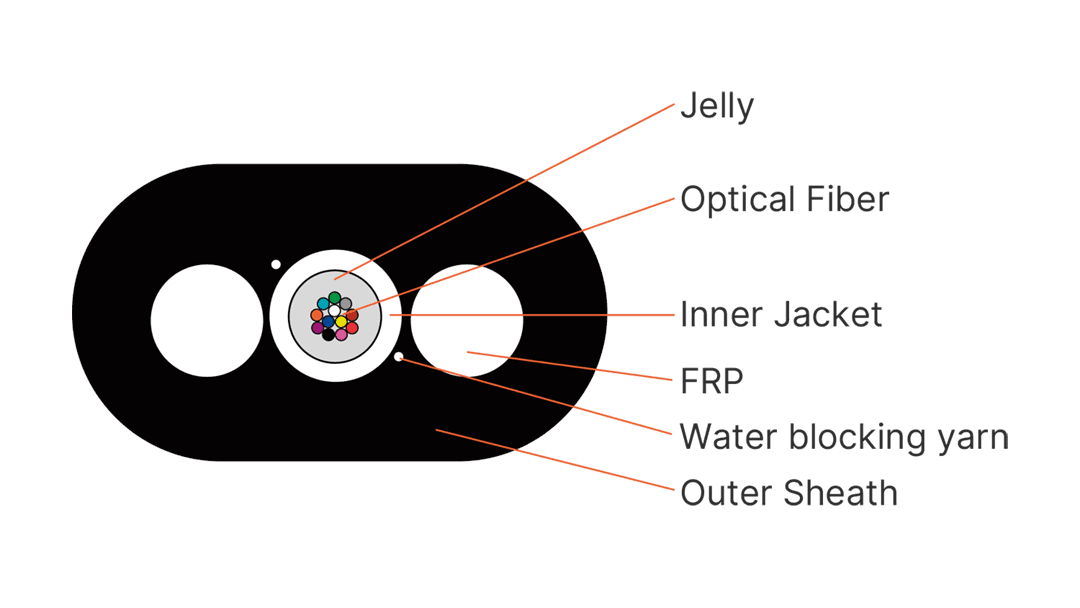

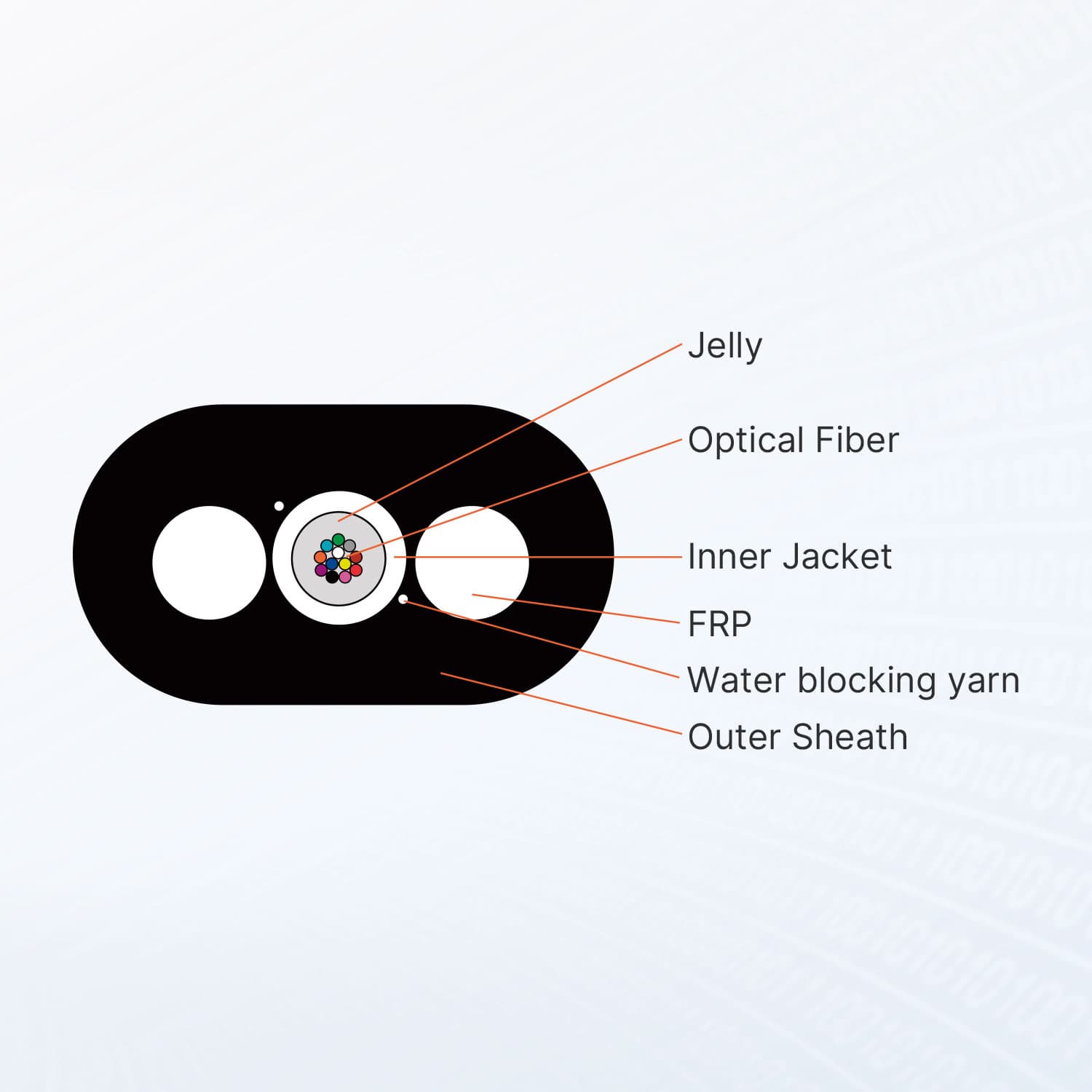

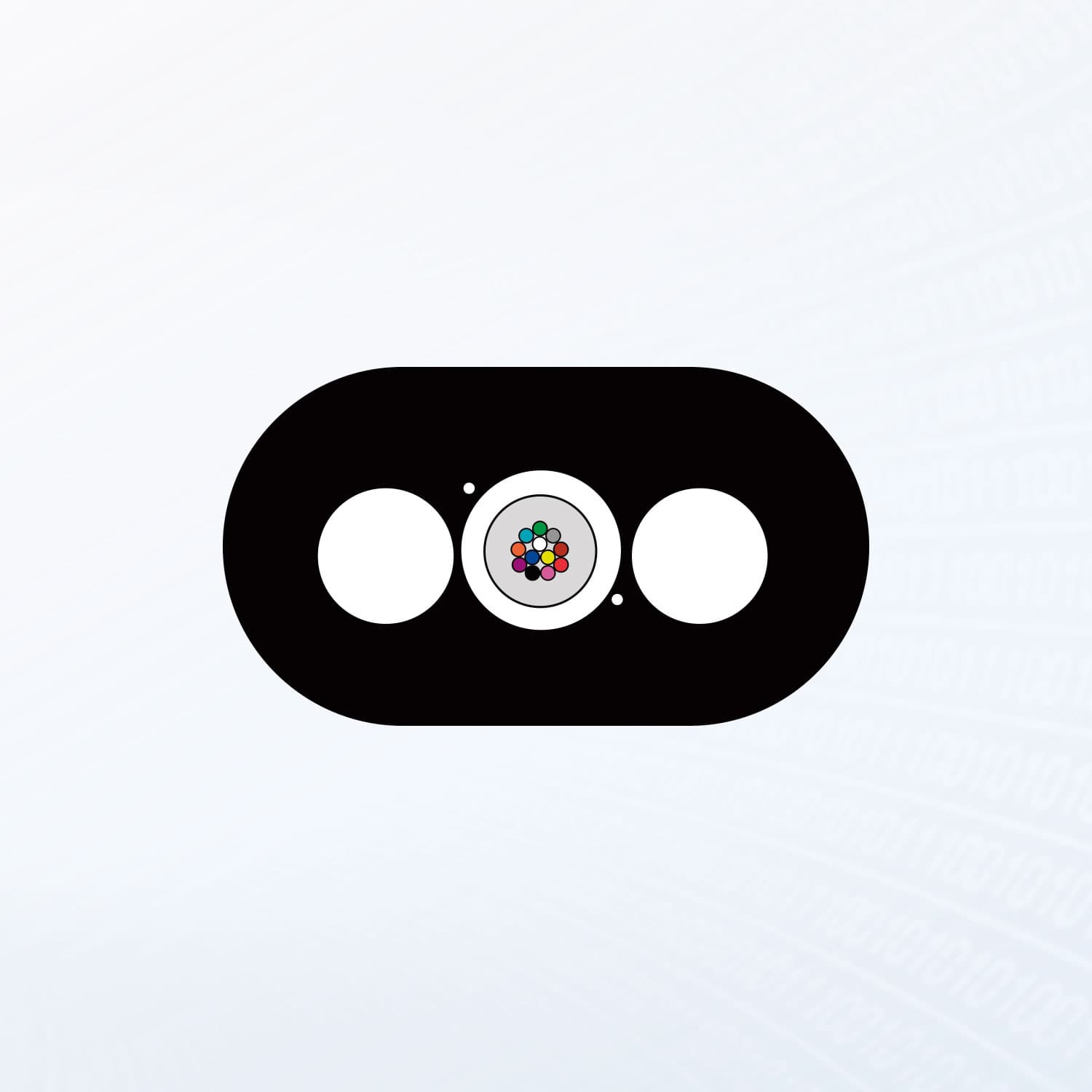

Cable Cross-section Cable Specification 1. Introduction Flat optical cable uses several fibers as optical communication medium. Widely used in Metro ODN network especially inside buildings which have multi-floors and room and two parallel fiber reinforced plastics (FRP) are its strength member. The cable is completed with a PE jacket. 2. Fiber color code No. 1 2 3 4 5 6 Color Blue Orange Green Brown Gray White No. 7 8 9 10 11 12 Color Red Black Yellow Violet Pink Aqua 3. Optical fiber type and properties Item Unit Specification G. 652D Mode field diameter 1310nm m m 9.2 ± 0.4 1550nm m m 10.4 ± 0.5 Cladding diameter m m 124.3~125.0 Cladding non-circularity % £ 1.0 Core concentricity error m m £ 0.5 Coating diameter m m 245 ± 5 Coating/cladding concentricity error m m £ 10 Cable cut-off wavelength nm £ 1260 Attenuation Coefficient 1310nm dB/km £ 0.35 1550nm dB/km £ 0.21 Proof stress level kpsi 100 Other parameters meet standard ITU-T G.652 Item Unit Specification G. 657A1 Mode field diameter 1310nm m 9.2 ± 0.4 1550nm m 10.4 ± 0.5 Cladding diameter m 124.3~125.0 Cladding non-circularity % 1.0 Core concentricity error m 0.5 Coating diameter m 245 ± 5 Coating/cladding concentricity error m 10 Cable cut-off wavelength nm 1260 Attenuation Coefficient 1310nm dB/km 0.35 1550nm dB/km 0.21 Macro-bend loss (1 turn, 10mm radius) 1550nm dB 0.75 1625nm dB 1.5 Proof stress level kpsi 100 Other parameters meet standard ITU-T G.657 4. Cable structure and parameter Item Contents Unit Value Optical Fiber / / 4-12 Strength member Material / FRP (*2) Diameter mm 1.6 Inner jacket Diameter mm 3.0 ± 0.1 Material / PBT Filler / Jelly Color / Natural Outer jacket Diameter mm 8.1( ± 0.4) × 4.5 （ ± 0.3) Material / PE Color / Black Tensile performance Short term N 1350 Long term N 400 Crush Short term N/100mm 2000 Long term N/100mm 1000 Cable attenuation dB/km SM: ≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm Cable weight (Approx.) kg/km 38 Characteristics of Optical Cable 1. Min. bending radius Static: 20 x Cable height Dynamic: 40 x Cable height 2. Application temperature range Operation: – 40℃ ~ +70℃ Installation: -30℃ ~ +70℃ Storage/transportation: – 40℃ ~ +70℃ 3. Main mechanical & environmental performance test Item Test Method Acceptance Condition Tensile Strength IEC 60794-1-2-E1 – Load: Short term tension – Length of cable: ≥ 50m – Load time: 5min – Fiber strain £ 0.6% – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage. – Load: Long term tension – Length of cable: ≥ 50m – Load time: 5min – Fiber strain £ 0.2% – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage. Crush Test IEC 60794-1-2-E3 – Load: Short term crush – Load time: 1min – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage. – Load: Long term crush – Load time: 10min – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage. Impact Test IEC 60794-1-2-E4 – Points of impact: 3 – Times of per point: 1 – Impact energy: 1J – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage. Repeated Bending IEC 60794-1-2-E6 – Bending radius: 20 x OD – No. of cycle: 100 – Load: 20N – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage. Torsion IEC 60794-1-2-E7 – Length: 1m – Twist angle: ±180° – No. of cycle: 10 – Load: 20N – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage. Kink IEC 60794-1-2-E10 – Loop diameter:20 x OD – No kink occurs. Temperature Cycling IEC 60794-1-2-F1 – Temperature: -40 ℃ ~+70 ℃ – Time of each step: 8h – Number of cycle: 2 – Loss change £ 0.5dB@1550nm. – No fiber break and no sheath damage. Water penetration -Time:24h -H:1m -L: ＜ 3m -No water leakage Packing Optional 2Km 3Km 4Km 5Km
Especificaciones técnicas
- No.
- 1 | 2 | 3 | 4 | 5 | 6
- Color
- Blue | Orange | Green | Brown | Gray | White
- No.
- 7 | 8 | 9 | 10 | 11 | 12
- Color
- Red | Black | Yellow | Violet | Pink | Aqua
- Item
- Unit | Specification
- Mode field diameter
- 1310nm | m m | 9.2 ± 0.4
- 1550nm
- m m | 10.4 ± 0.5
- Cladding diameter
- m m | 124.3~125.0
- Cladding non-circularity
- % | £ 1.0
- Core concentricity error
- m m | £ 0.5
- Coating diameter
- m m | 245 ± 5
- Coating/cladding concentricity error
- m m | £ 10
- Cable cut-off wavelength
- nm | £ 1260
- Attenuation Coefficient
- 1310nm | dB/km | £ 0.35
- 1550nm
- dB/km | £ 0.21
- Proof stress level
- kpsi | 100
- Mode field diameter
- 1310nm | m | 9.2 ± 0.4
- 1550nm
- m | 10.4 ± 0.5
- Cladding diameter
- m | 124.3~125.0
- Cladding non-circularity
- % | 1.0
- Core concentricity error
- m | 0.5
- Coating diameter
- m | 245 ± 5
- Coating/cladding concentricity error
- m | 10
- Cable cut-off wavelength
- nm | 1260
- Attenuation Coefficient
- 1310nm | dB/km | 0.35
- 1550nm
- dB/km | 0.21
- Macro-bend loss (1 turn, 10mm radius)
- 1550nm | dB | 0.75
- 1625nm
- dB | 1.5
- Item
- Contents | Unit | Value
- Optical Fiber
- / | / | 4-12
- Strength member
- Material | / | FRP (*2)
- Diameter
- mm | 1.6
- Inner jacket
- Diameter | mm | 3.0 ± 0.1
- Material
- / | PBT
- Filler
- / | Jelly
- Color
- / | Natural
- Outer jacket
- Diameter | mm | 8.1( ± 0.4) × 4.5 （ ± 0.3)
- Material
- / | PE
- Color
- / | Black
- Tensile performance
- Short term | N | 1350
- Long term
- N | 400
- Crush
- Short term | N/100mm | 2000
- Long term
- N/100mm | 1000
- Cable attenuation
- dB/km | SM: ≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
- Cable weight (Approx.)
- kg/km | 38
- Item
- Test Method | Acceptance Condition
- Tensile Strength IEC 60794-1-2-E1
- – Load: Short term tension – Length of cable: ≥ 50m – Load time: 5min | – Fiber strain £ 0.6% – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage.
- – Load
- Long term tension – Length of cable: ≥ 50m – Load time: 5min: – Fiber strain £ 0.2% – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage.
- Crush Test IEC 60794-1-2-E3
- – Load: Short term crush – Load time: 1min | – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage.
- – Load
- Long term crush – Load time: 10min: – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage.
- Impact Test IEC 60794-1-2-E4
- – Points of impact: 3 – Times of per point: 1 – Impact energy: 1J | – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage.
- Repeated Bending IEC 60794-1-2-E6
- – Bending radius: 20 x OD – No. of cycle: 100 – Load: 20N | – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage.
- Torsion IEC 60794-1-2-E7
- – Length: 1m – Twist angle: ±180° – No. of cycle: 10 – Load: 20N | – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage.
- Kink IEC 60794-1-2-E10
- – Loop diameter:20 x OD | – No kink occurs.
- Temperature Cycling IEC 60794-1-2-F1
- – Temperature: -40 ℃ ~+70 ℃ – Time of each step: 8h – Number of cycle: 2 | – Loss change £ 0.5dB@1550nm. – No fiber break and no sheath damage.
- Water penetration
- -Time:24h -H:1m -L: ＜ 3m | -No water leakage
