GYTS
Outdoor optical cable for communication with metal reinforcing member, loose tube stranded and filled, steel-polyethylene bonded sheath
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción

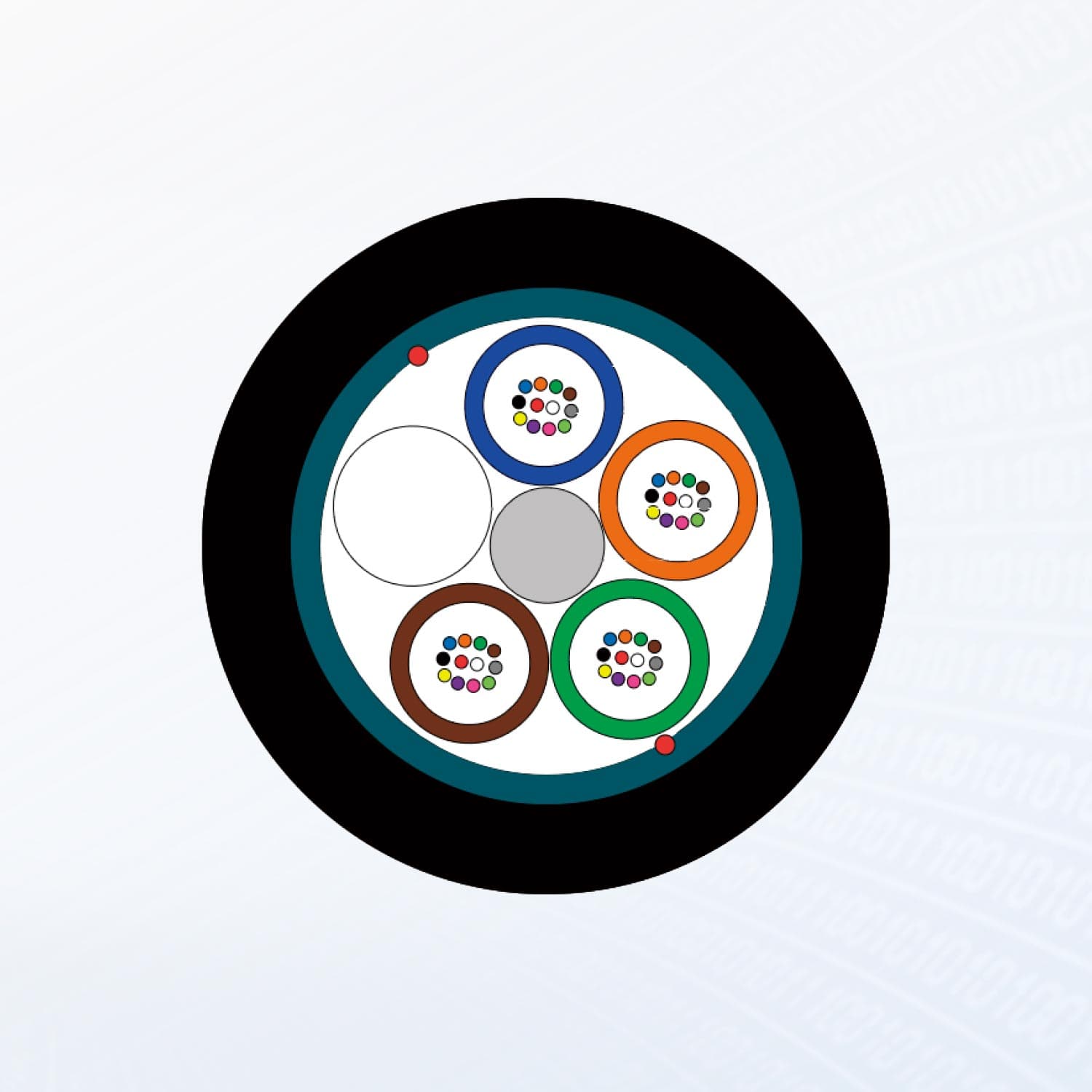

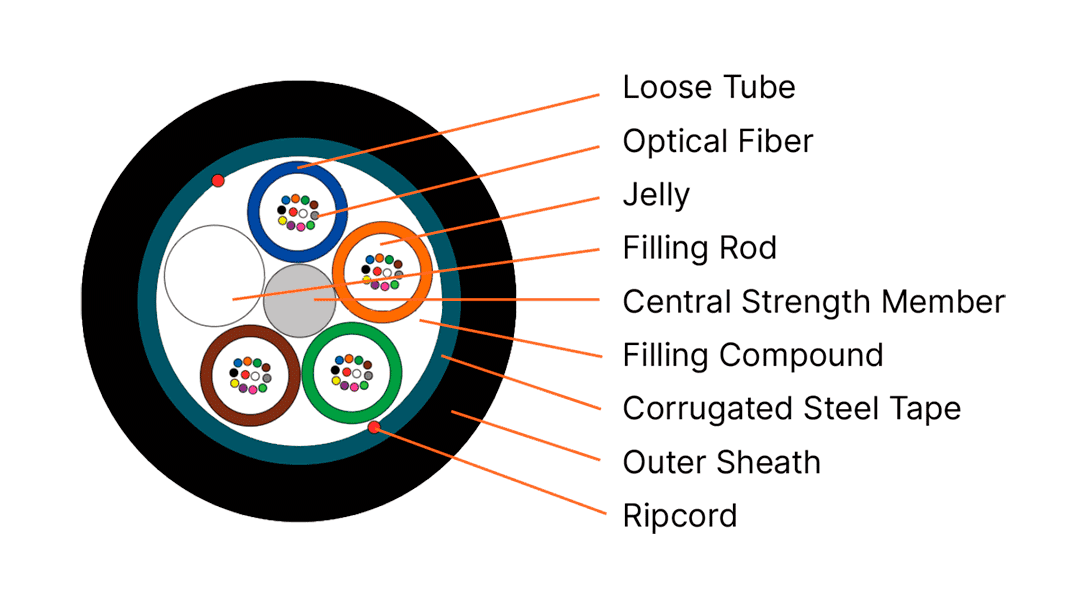

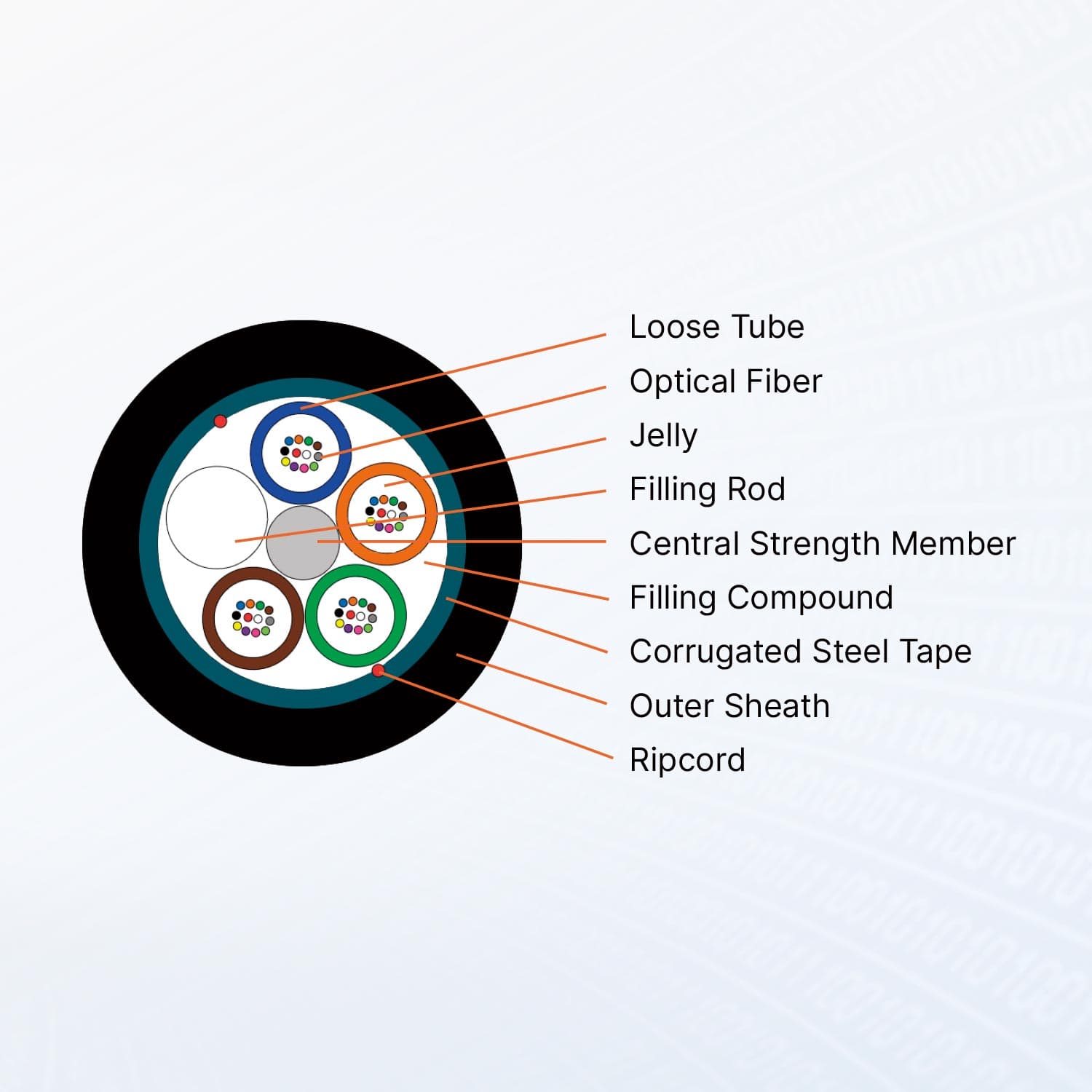

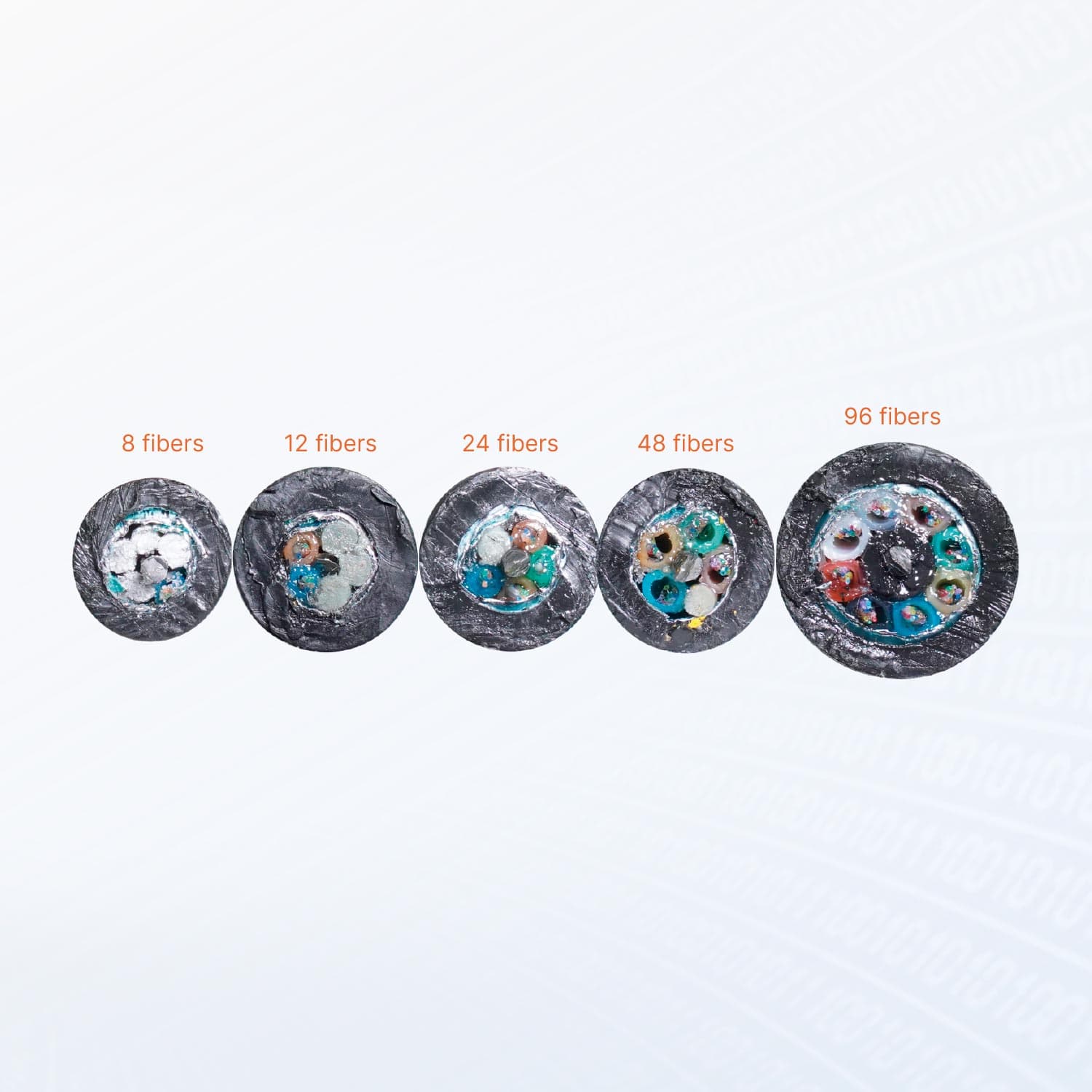

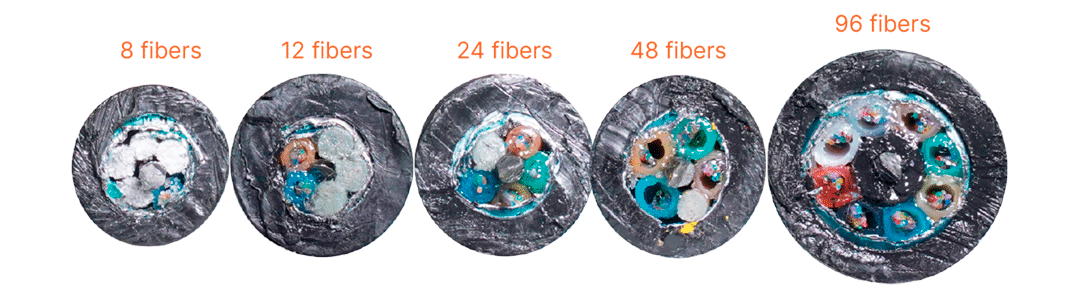

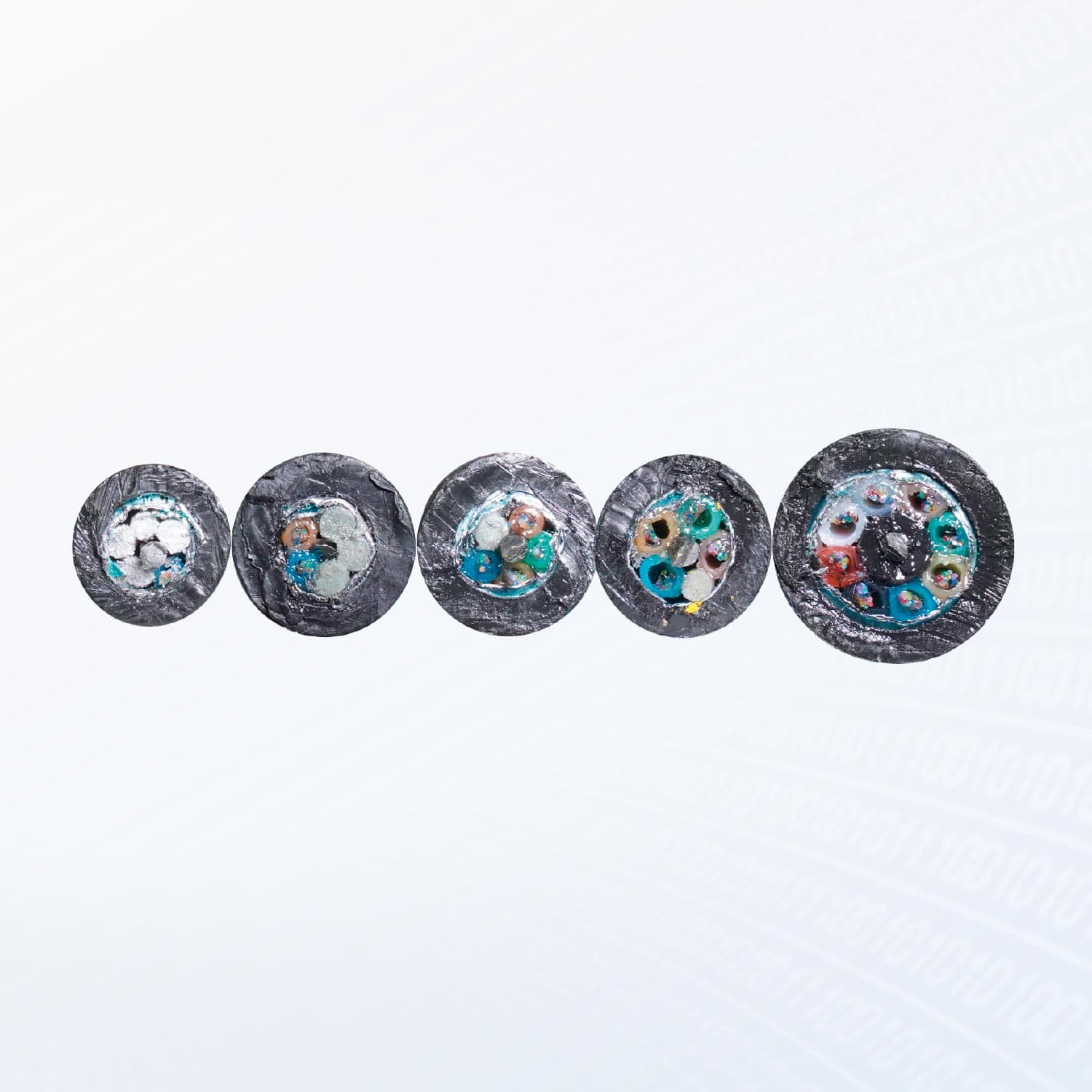

Cable Cross-section (only for reference, not to scale) Cable Description Loose tube construction, tubes jelly filled, elements (tubes and fillers when necessary) laid up around metallic central strength member, polyester yarns used to bind the cable core, filling compound filled in the apertures of the cable core, two ripcords, steel tape armored, then PE outer sheath. Fiber & Tube Color Fiber color code. No. 1 2 3 4 5 6 Color Blue Orange Green Brown Gray White No. 7 8 9 10 11 12 Color Red Black Yellow Violet Pink Aqua Loose tubes color code. No. 1 2 3 4 5 6 7 8 Color Blue Orange Green Brown Gray White Red Black Structure Parameter Item Contents Unit Value Fiber count Number / 12 24 48 96 Cable structure / / 1+5 1+5 1+5 1+8 Fiber No. per tube Number / 12 Loose tube Number / 1 2 4 8 Central strength member Material / Steel wire with cushion when necessary Outer sheath Nominal thickness mm 1.6 1.6 1.6 1.7 Cable diameter ±5% mm 9.6 9.6 9.6 11.9 Cable weight ±10% kg/km 93 94 98 146 Max. tensile load Short term N 1500 1500 1500 3000 Breaking force / N 3000 3000 3000 4000 Note: Sheath thickness not consider ripcord portion, sizes and values without tolerances are nominal values. Mechanical & Environmental Performance Item Contents Value Max. crush resistance Short term 1500 N/100mm Min. bending radius Installation 20 x cable diameter Operation 15 x cable diameter Temperature range Operation -40℃ ~ +60℃ Installation -10℃ ~ +60℃ Storage/transportation -40℃ ~ +60℃ Main Mechanical & Environment Performance Test Item T est M ethod Acceptance Condition Tensile Strength IEC 60794-1-21-E1 – Load: Short term tension – Length of cable: ≥ 50m – Load time: 1min – Fiber strain £ 0.6% – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage. Crush Test IEC 60794-1-21-E3 – Load: Short term crush – Load time: 1min – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage. Impact Test IEC 60794-1-21-E4 – Points of impact: 3 – Times of per point: 1 – Impact energy: 4.5J – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage. Repeated Bending IEC 60794-1-21-E6 – Bending radius: 20 x OD – No. of cycle: 25 – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage. Torsion IEC 60794-1-21-E7 – Length: 1m – Twist angle: ±90° – No. of cycle: 10 – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage. Water Penetration IEC 60794-1-22-F5 – Height of water: 1m – Sample length: 3m – Time: 24h – No water leak from the cable core of the opposite end. Temperature Cycling IEC 60794-1-22-F1 – Temperature: -40 ℃ ~+60 ℃ – Time of each step: 12h – Number of cycles: 2 – Loss change £ 0.1dB/km @1550nm. – No fiber break and no sheath damage. Remark: “No attenuation changes” is considered as the attenuation changes ≤ 0.05 dB. Optical Fible Item Contents Value G.652D Optical characteristics Attenuation @1310nm ≤0.36dB/km @1550nm ≤0.22dB/km Dispersion @1288nm ～ 1339nm ≤3.5ps/(nm·km) @1550nm ≤18ps/(nm·km) Zero-Dispersion wavelength 1300nm ～ 1324nm Zero-Dispersion slope ≤0.092ps/(nm 2 ·km) Mode field diameter (MFD) @1310nm 9.2±0.4μm @1550nm 10.4±0.5μm Cable cutoff wavelength λcc(nm) ≤1260nm Micro bending Attenuation @1550nm (100turns; Φ60mm) ≤0.05dB Link polarization dispersion (PMD Q ) ≤0.1ps/km 1/2 Product Dispaly For reference only, the actual product shall prevail
Especificaciones técnicas
- No.
- 1 | 2 | 3 | 4 | 5 | 6
- Color
- Blue | Orange | Green | Brown | Gray | White
- No.
- 7 | 8 | 9 | 10 | 11 | 12
- Color
- Red | Black | Yellow | Violet | Pink | Aqua
- No.
- 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8
- Color
- Blue | Orange | Green | Brown | Gray | White | Red | Black
- Item
- Contents | Unit | Value
- Fiber count
- Number | / | 12 | 24 | 48 | 96
- Cable structure
- / | / | 1+5 | 1+5 | 1+5 | 1+8
- Fiber No. per tube
- Number | / | 12
- Loose tube
- Number | / | 1 | 2 | 4 | 8
- Central strength member
- Material | / | Steel wire with cushion when necessary
- Outer sheath
- Nominal thickness | mm | 1.6 | 1.6 | 1.6 | 1.7
- Cable diameter
- ±5% | mm | 9.6 | 9.6 | 9.6 | 11.9
- Cable weight
- ±10% | kg/km | 93 | 94 | 98 | 146
- Max. tensile load
- Short term | N | 1500 | 1500 | 1500 | 3000
- Breaking force
- / | N | 3000 | 3000 | 3000 | 4000
- Item
- Contents | Value
- Max. crush resistance
- Short term | 1500 N/100mm
- Min. bending radius
- Installation | 20 x cable diameter
- Operation
- 15 x cable diameter
- Temperature range
- Operation | -40℃ ~ +60℃
- Installation
- -10℃ ~ +60℃
- Storage/transportation
- -40℃ ~ +60℃
- Item
- T est M ethod | Acceptance Condition
- Tensile Strength IEC 60794-1-21-E1
- – Load: Short term tension – Length of cable: ≥ 50m – Load time: 1min | – Fiber strain £ 0.6% – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage.
- Crush Test IEC 60794-1-21-E3
- – Load: Short term crush – Load time: 1min | – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage.
- Impact Test IEC 60794-1-21-E4
- – Points of impact: 3 – Times of per point: 1 – Impact energy: 4.5J | – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage.
- Repeated Bending IEC 60794-1-21-E6
- – Bending radius: 20 x OD – No. of cycle: 25 | – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage.
- Torsion IEC 60794-1-21-E7
- – Length: 1m – Twist angle: ±90° – No. of cycle: 10 | – Loss change £ 0.1dB@1550nm after test. – No fiber break and no sheath damage.
- Water Penetration IEC 60794-1-22-F5
- – Height of water: 1m – Sample length: 3m – Time: 24h | – No water leak from the cable core of the opposite end.
- Temperature Cycling IEC 60794-1-22-F1
- – Temperature: -40 ℃ ~+60 ℃ – Time of each step: 12h – Number of cycles: 2 | – Loss change £ 0.1dB/km @1550nm. – No fiber break and no sheath damage.
- Attenuation
- @1310nm | ≤0.36dB/km
- @1550nm
- ≤0.22dB/km
- Dispersion
- @1288nm ～ 1339nm | ≤3.5ps/(nm·km)
- @1550nm
- ≤18ps/(nm·km)
- Zero-Dispersion wavelength
- 1300nm ～ 1324nm
- Zero-Dispersion slope
- ≤0.092ps/(nm 2 ·km)
- Mode field diameter (MFD)
- @1310nm | 9.2±0.4μm
- @1550nm
- 10.4±0.5μm
- Cable cutoff wavelength λcc(nm)
- ≤1260nm
- Micro bending Attenuation
- @1550nm (100turns; Φ60mm) | ≤0.05dB
- Link polarization dispersion (PMD Q )
- ≤0.1ps/km 1/2
