GYXTC8Y

Descripción

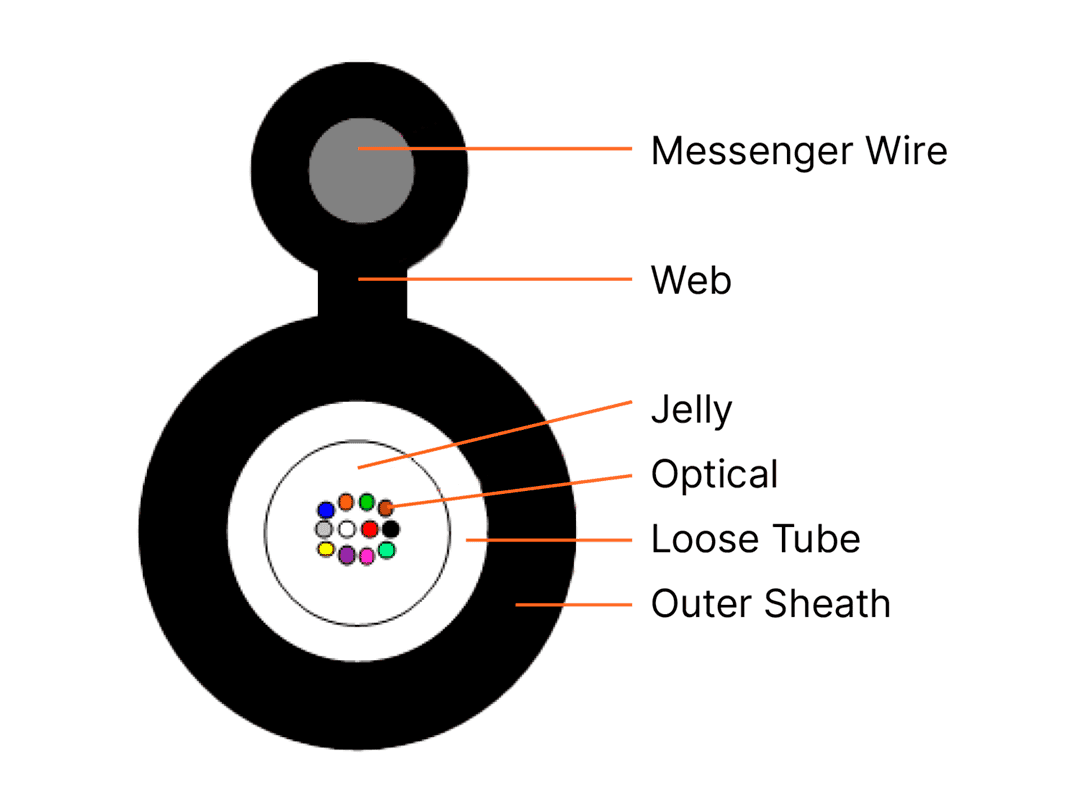

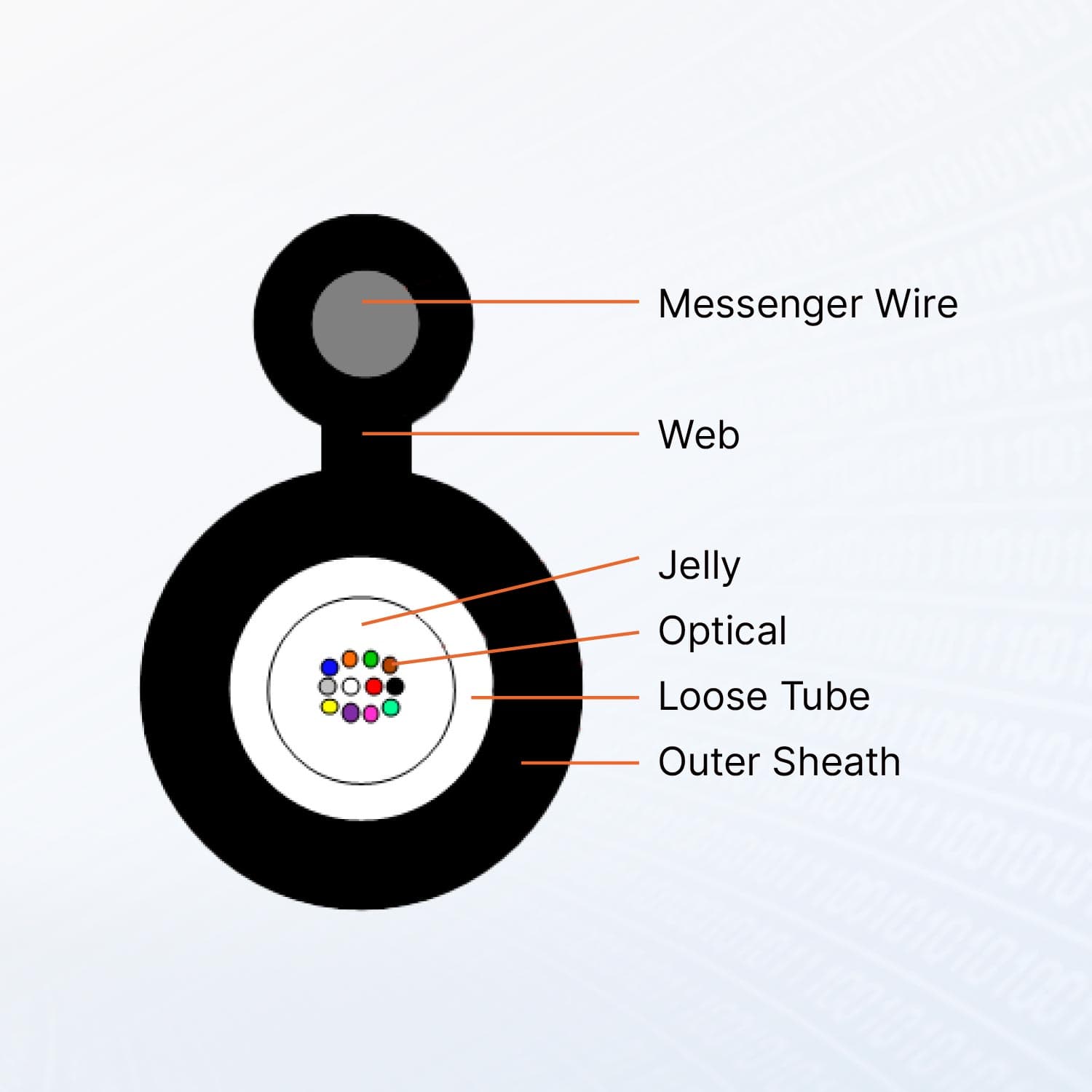

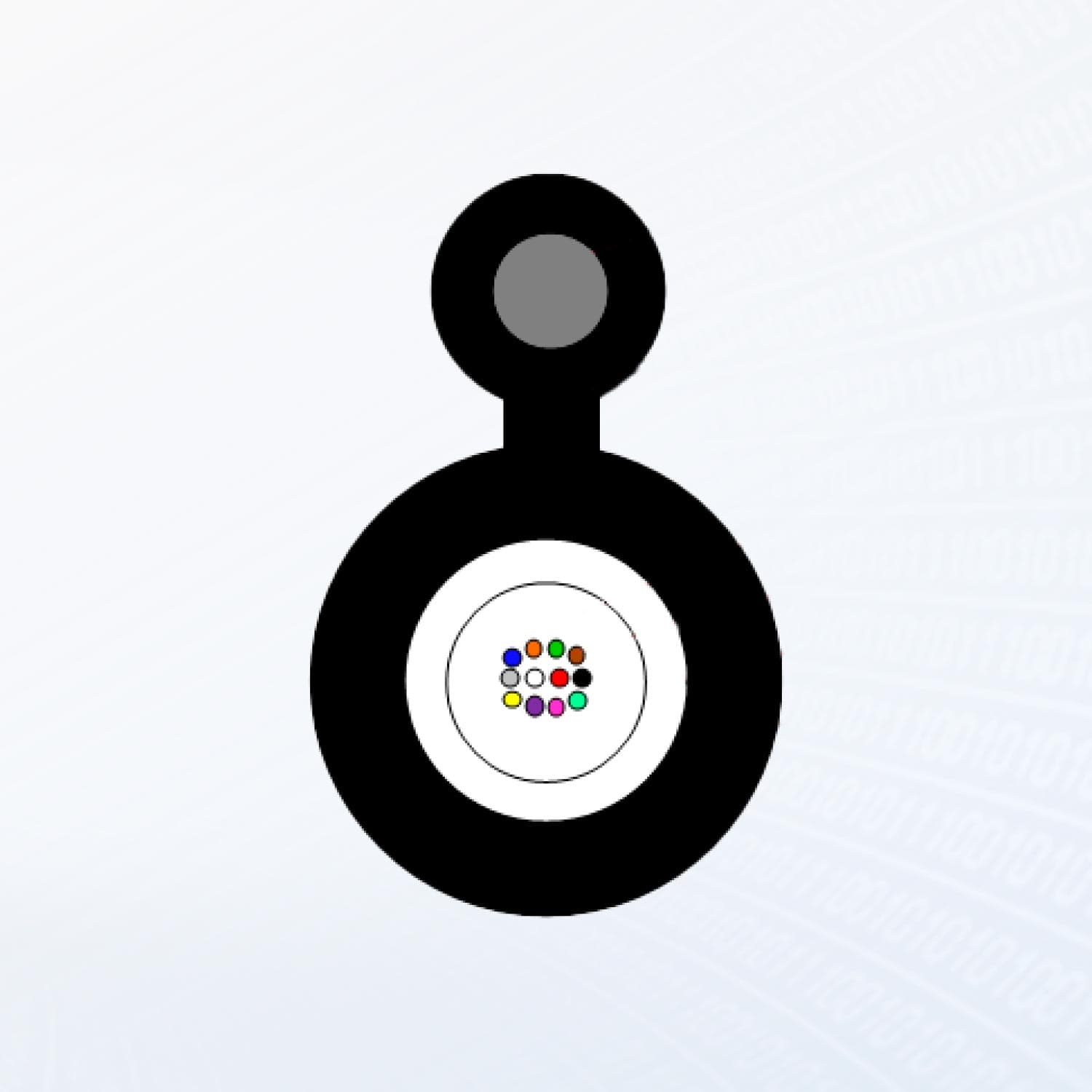

Cable Cross-section Cable Specification 1. Introduction Central single loose tube construction, jelly compound filled, and PE outer sheath with a steel messenger wire combined. 2. Color code The tube color is nature. And fiber color in the tube starts from No. 1 Blue. No. 1 2 3 4 5 6 Color Blue Orange Green Brown Gray White No. 7 8 9 10 11 12 Color Red Black Yellow Purple Pink Aqua No. 13 14 15 16 17 18 Color S100Blue S100Orange S100Green S100Brown S100Gray S100White No. 19 20 21 22 23 24 Color S100Red S100 Nature S100Yellow S100Purple S100Pink S100Aqua Note: S100 means interval 100mm black circle. 3. Cable structure and parameter SN Item Unit Value 1 N o. of fibers count 2~12 16-24 2 Tube diameter(±5%) mm 3.0 3.6 3 Messenger wire(NOM.) mm 1.6 1.6 4 O uter sheath thickness(NOM.) mm 1 1 5 Cable diameter (±5%) mm 5.1 5.7 6 Cable height(±10%) Mm 10.1 10.7 7 Cable weight (±10%) kg/km 47 52 8 Short term t ension N 1000 1000 9 Short term crush N/10 0m m 500 500 Characteristics of Optical Cable 1. Min. bending radius for installation Static: 10 x cable diameter Dynamic: 20 x cable diameter 2. Application temperature range Operation: – 20℃ ~ +60℃ Installation: -20℃ ~ +50℃ Storage/transportation: – 20℃ ~ +70℃ 3. Main mechanical & environmental performance test Item T est M ethod Acceptance Condition Tensile Strength IEC 794-1- 2- E1 – Load: Short term t ensi on – Length of cable: about 50m – Fiber strain £ 0.6% – No fiber break and no sheath damage. Crush Test IEC 60794-1- 2- E3 – Load: Short term crush – Load time : 1min – L oss change £ 0. 1 dB@1550nm – No fiber break and no sheath damage. Impact Test IEC 60794-1- 2- E4 – Points of impact: 3 – Times of per point: 1 – Impact energy : 1J – L oss change £ 0.1dB@1550nm – No fiber break and no sheath damage. Repeated Bending IEC 60794-1- 2- E6 – Bending radius : 2 0 x OD – No. of cycle: 30 – L oss change £ 0.1dB@1550nm – No fiber break and no sheath damage. Torsion IEC 60794-1- 2- E7 – Length: 1 m – Twist angle: ± 180 ° – No. of cycle: 10 – L oss change £ 0.1dB@1550nm – No fiber break and no sheath damage. Cable bend IEC 60794-1-2-E11 – Diameter of mandrel:20 x OD – Number of turns:4 – Number of cycles:3 – L oss change £ 0.1dB@1550nm – No fiber break and no sheath damage. C ompound flow IEC 60 794-1- 2- E 14 – Length: 30c m – Temperature:70 o C ±2 o C – Period:24h – No outflow or dripping Characteristics of Optical Fiber G652D fiber information Mode field diameter (1310nm) 9.2 m m ± 0.4 m m Mode field diameter (1550nm) 10.4 m m ± 0.8 m m Cut off wavelength of cabled fiber ( l cc ) £ 1260nm Attenuation at 1310nm £ 0.36dB/km Attenuation at 1550nm £ 0.22dB/km Bending loss at 1550nm (100 turns, 30mm radius) £ 0.05dB Dispersion in the range 1288 to 1339nm £ 3.5ps/ (nm•km) Dispersion at 1550nm £ 18ps/ (nm•km) Dispersion slope at zero dispersion wavelength £ 0.092ps/ (nm 2 •km)

Especificaciones técnicas

No.

1 | 2 | 3 | 4 | 5 | 6

Color

Blue | Orange | Green | Brown | Gray | White

No.

7 | 8 | 9 | 10 | 11 | 12

Color

Red | Black | Yellow | Purple | Pink | Aqua

No.

13 | 14 | 15 | 16 | 17 | 18

Color

S100Blue | S100Orange | S100Green | S100Brown | S100Gray | S100White

No.

19 | 20 | 21 | 22 | 23 | 24

Color

S100Red | S100 Nature | S100Yellow | S100Purple | S100Pink | S100Aqua

SN

Item | Unit | Value

1

N o. of fibers | count | 2~12 | 16-24

2

Tube diameter(±5%) | mm | 3.0 | 3.6

3

Messenger wire(NOM.) | mm | 1.6 | 1.6

4

O uter sheath thickness(NOM.) | mm | 1 | 1

5

Cable diameter (±5%) | mm | 5.1 | 5.7

6

Cable height(±10%) | Mm | 10.1 | 10.7

7

Cable weight (±10%) | kg/km | 47 | 52

8

Short term t ension | N | 1000 | 1000

9

Short term crush | N/10 0m m | 500 | 500

Item

T est M ethod | Acceptance Condition

Tensile Strength IEC 794-1- 2- E1

– Load: Short term t ensi on – Length of cable: about 50m | – Fiber strain £ 0.6% – No fiber break and no sheath damage.

Crush Test IEC 60794-1- 2- E3

– Load: Short term crush – Load time : 1min | – L oss change £ 0. 1 dB@1550nm – No fiber break and no sheath damage.

Impact Test IEC 60794-1- 2- E4

– Points of impact: 3 – Times of per point: 1 – Impact energy : 1J | – L oss change £ 0.1dB@1550nm – No fiber break and no sheath damage.

Repeated Bending IEC 60794-1- 2- E6

– Bending radius : 2 0 x OD – No. of cycle: 30 | – L oss change £ 0.1dB@1550nm – No fiber break and no sheath damage.

Torsion IEC 60794-1- 2- E7

– Length: 1 m – Twist angle: ± 180 ° – No. of cycle: 10 | – L oss change £ 0.1dB@1550nm – No fiber break and no sheath damage.

Cable bend IEC 60794-1-2-E11

– Diameter of mandrel:20 x OD – Number of turns:4 – Number of cycles:3 | – L oss change £ 0.1dB@1550nm – No fiber break and no sheath damage.

C ompound flow IEC 60 794-1- 2- E 14

– Length: 30c m – Temperature:70 o C ±2 o C – Period:24h | – No outflow or dripping

Mode field diameter (1310nm)

9.2 m m ± 0.4 m m

Mode field diameter (1550nm)

10.4 m m ± 0.8 m m

Cut off wavelength of cabled fiber ( l cc )

£ 1260nm

Attenuation at 1310nm

£ 0.36dB/km

Attenuation at 1550nm

£ 0.22dB/km

Bending loss at 1550nm (100 turns, 30mm radius)

£ 0.05dB

Dispersion in the range 1288 to 1339nm

£ 3.5ps/ (nm•km)

Dispersion at 1550nm

£ 18ps/ (nm•km)

Dispersion slope at zero dispersion wavelength

£ 0.092ps/ (nm 2 •km)
