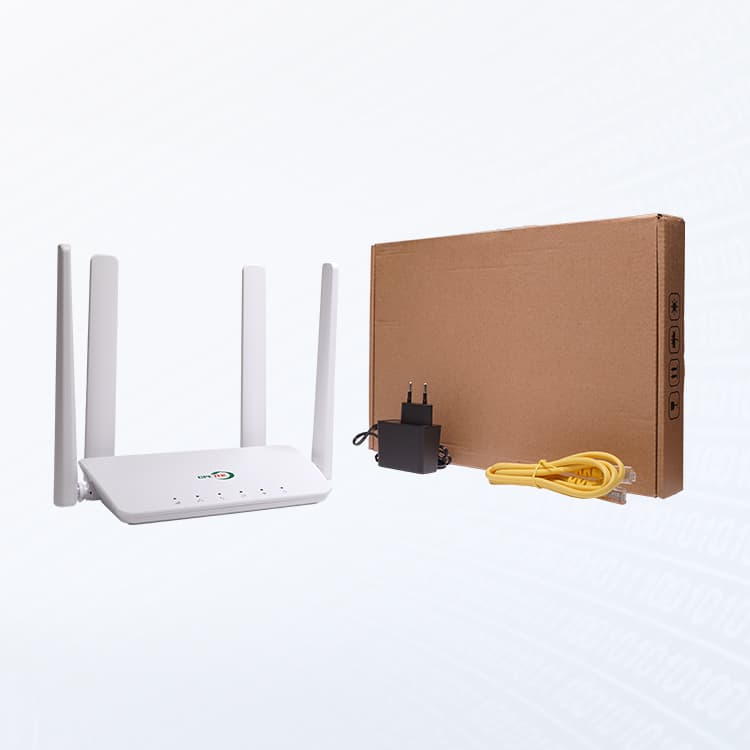

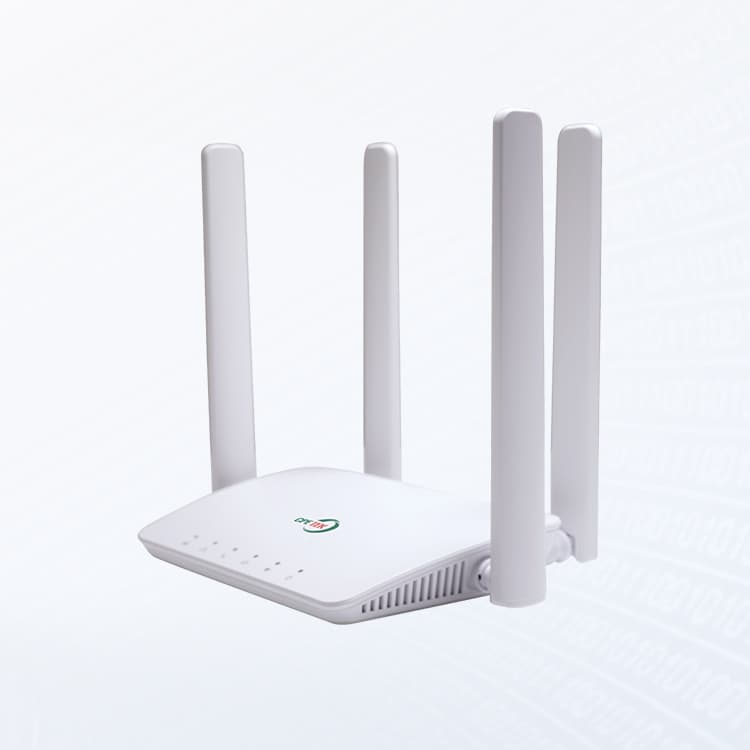

XMC1841m — High-performance LTE CAT4 CPE

Descripción

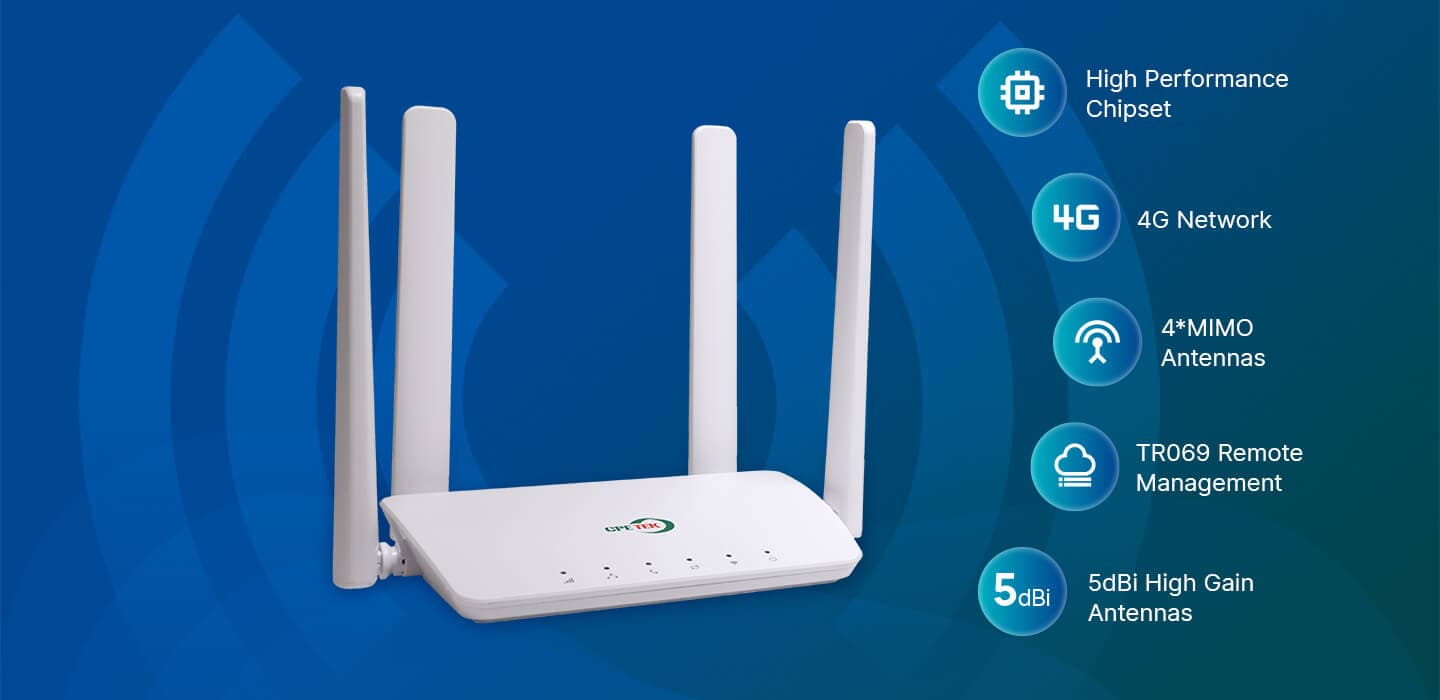

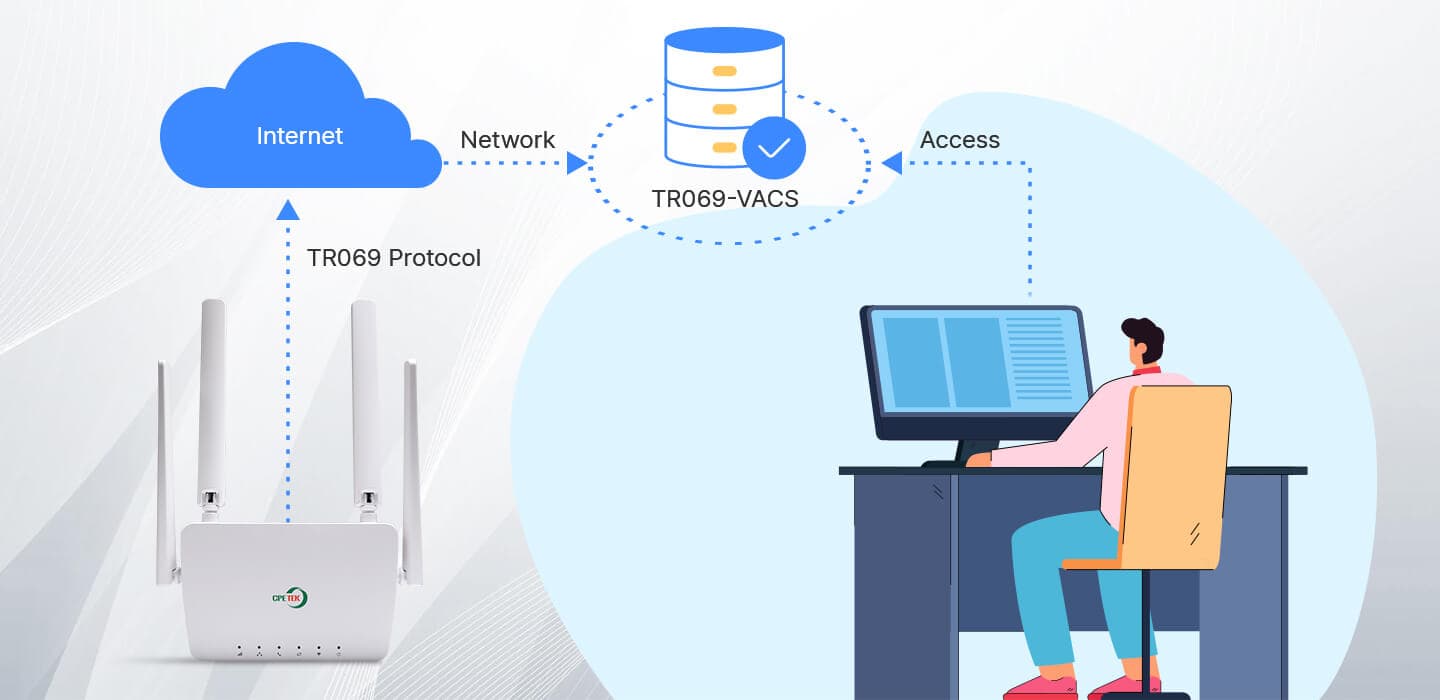

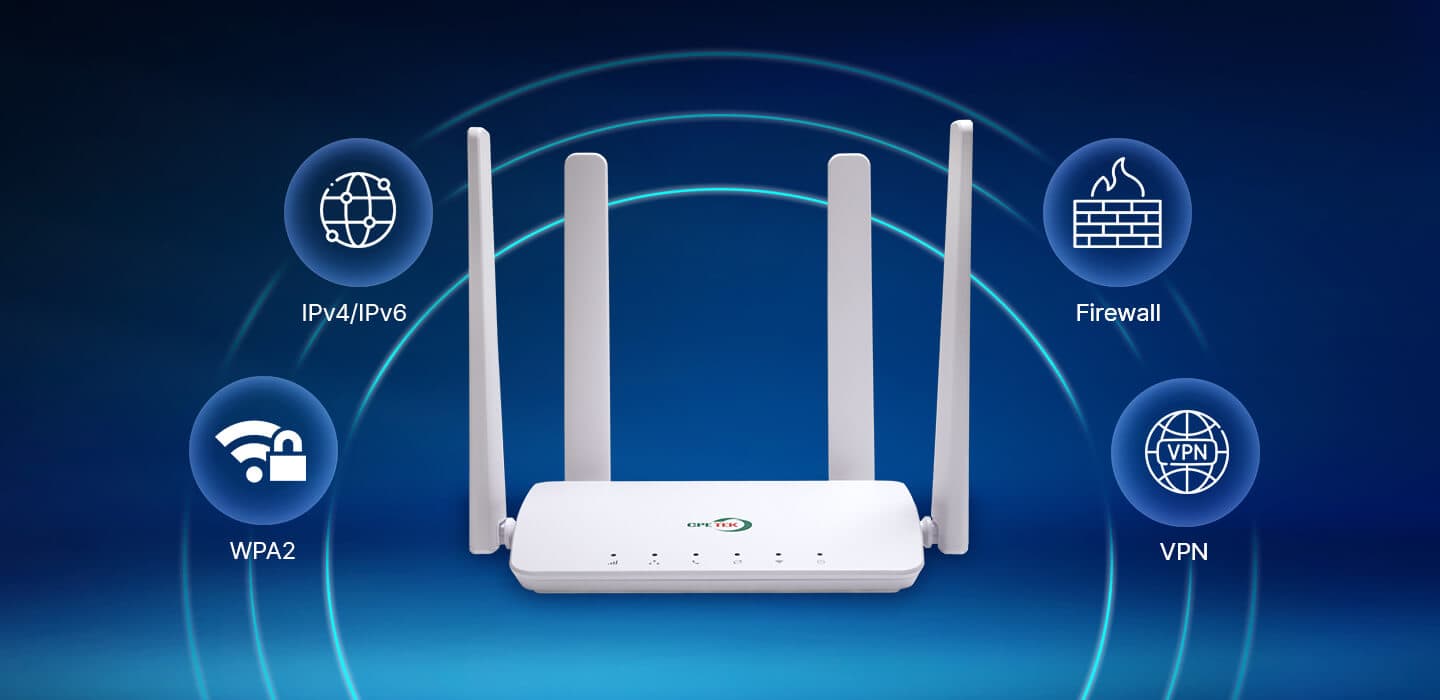

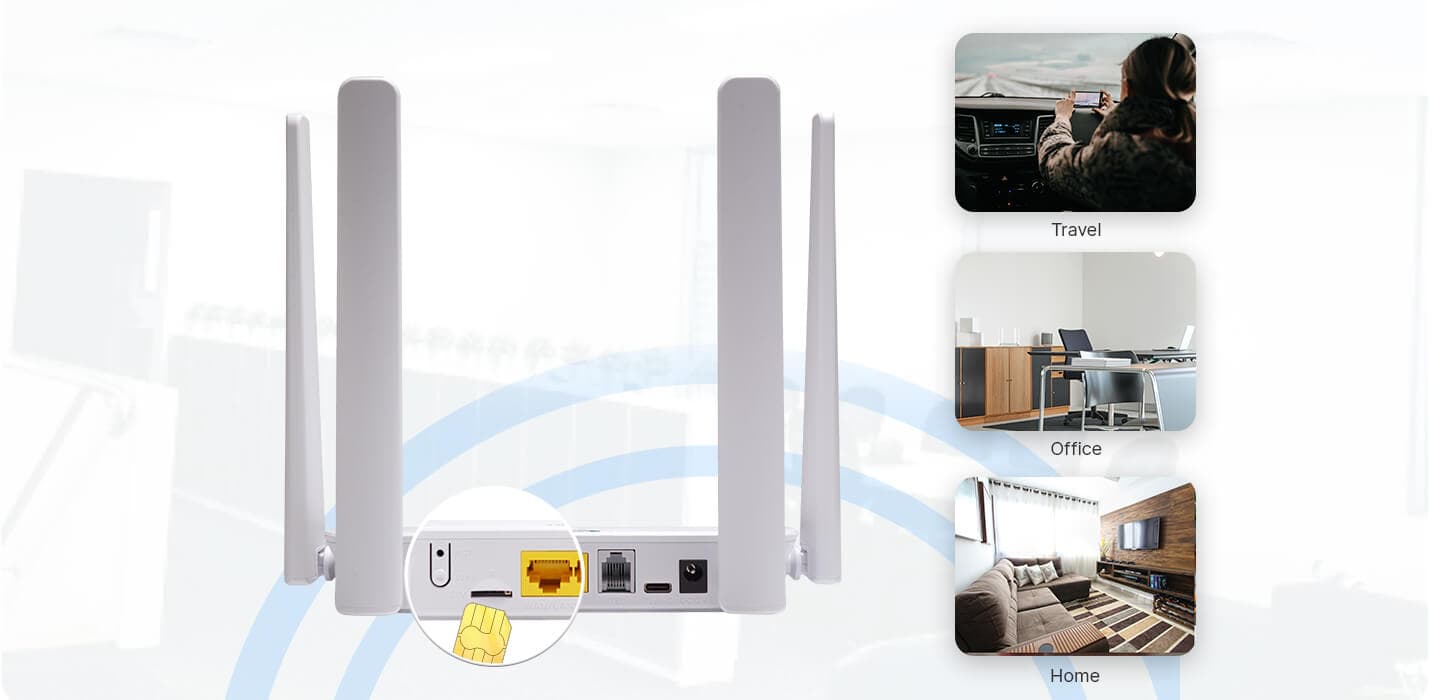

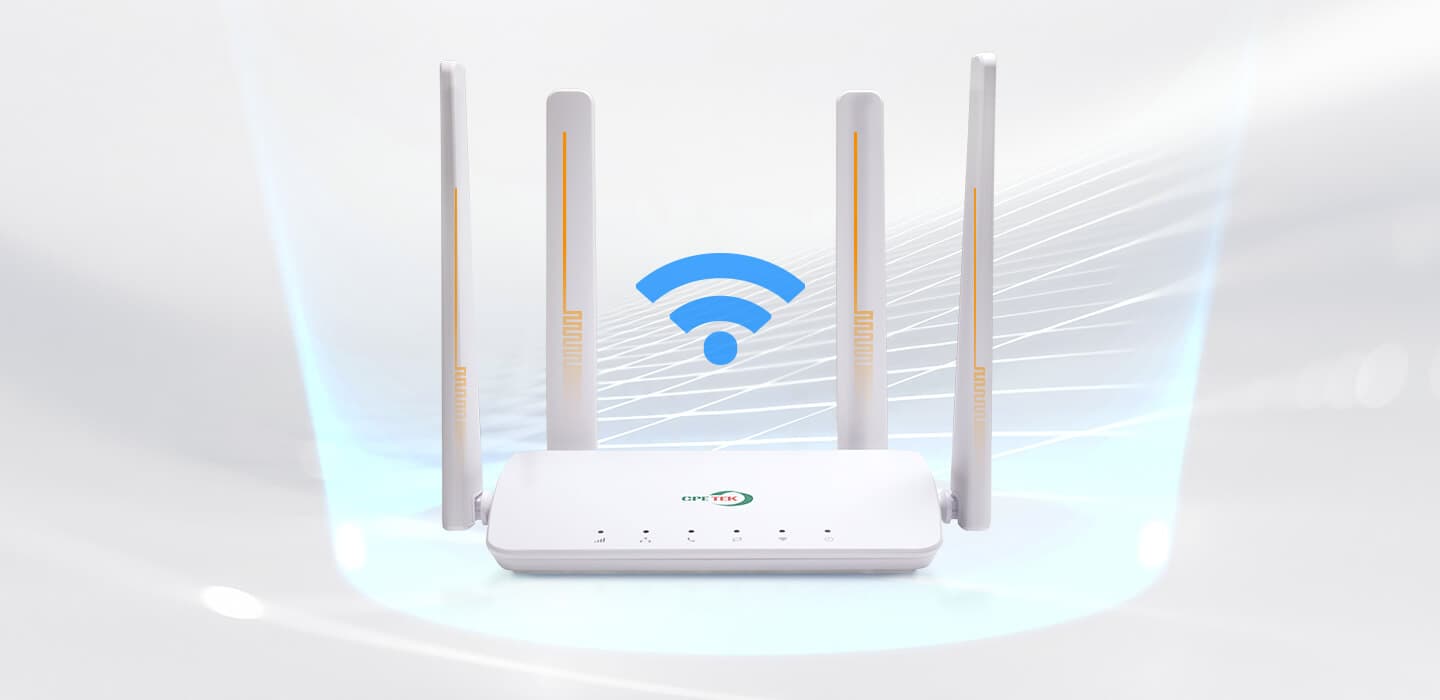

XMC1841m | LTE Cat4 CPE 4* Antenas externas de alta ganancia de 5dBi Con 2 antenas Wi-Fi externas y 2 antenas LTE externas, la señal inalámbrica es más fuerte, la capacidad de penetración de las paredes es mejor y el rango de cobertura de la señal es más amplio a través de un diseño interno preciso y profesional de la antena. Chipset rentable y de alto rendimiento ¡Adoptar chipset rendimiento inteligente, de alta velocidad de hasta 300 Mbps, más fuerte cobertura de la señal Wi-Fi! ¡Disfruta de la era de la navegación 4G! TR069 Gestión remota en la nube Soporta Gestión Remota TR069 y FOTA, fácil gestión y monitorización, O&M en cualquier momento y en cualquier lugar, soporta sistemas Window o Linux. Plug & Play Conecte la tarjeta SIM y conecte sus dispositivos, puede obtener la señal Wi-Fi en cualquier lugar y en cualquier momento. Other Functions WPA2 | IPv4/IPv6 | Firewall | VPN Management ○ Hardware Parameter Dimension 150mm×105mm×30mm(L×W×H) Net weight 230g Operating condition Operating temp: -20°C ~ +45°C Storing condition Storing temp: -20°C ~ +60°C Power adapter DC 12V,1A Power supply ≤12W Interface 2FE+USB+USIM+Wi-Fi4 Indicators 6, For Status of POWER, Wi-Fi, WAN/LAN, DATA, RJ11, LTE Buttons Reset / WPS ○ LTE WAN Feature Chipset ASR1803L Frequency Bands l XMC1841-EU: l FDD LTE: B1/B3/B5/B7/B8/B20/B28 l TDD LTE: B38/B40/B41 l UMTS: B1/B5/B8 l XMC1841-AU ： l LTE-FDD: B1\B2\B3\B4\B5\B7\B8\B28\B66 l LTE-TDD: B40 l WCDMA: B1\B2\B4\B5\B8 Bandwidth 1.4/3/5/10/15/20 MHz, comply with 3GPP Modulation l DL: QPSK/16-QAM/64-QAM, comply with 3GPP l UL: QPSK/16-QAM, comply with 3GPP LTE Antenna MIMO: 2 * 2 LTE Antennas RF Power Level l LTE: Power Class 3 (23 dBm + 2.7/-3.7dB) l UMTS: Power Class 3 (24 dBm +1.7/-3.7dB) Data Rate l 4G: 3GPP R9 Cat4, l FDD ： DL/UL up to 150Mbps/50Mbps, l TDD ： DL/UL up to 110Mbps/10Mbps 3G: 3GPP R7 DL/UL up to 21Mbps/5.76Mbps ○ WLAN Feature Chipset RTL8192ES Wi-Fi Frequency 2.4GHz, 1~13Channel Transmit Power l 17±2dBm @ 802.11b l 15±2dBm @ 802.11g l 14±2dBm @ 802.11n Receiver input level sensitivity l <-76dBm at the antenna port, QPSK,11Mbps,1024 Byte PSDU @ 802.11b l <-65dBm at the antenna port, 64QAM,54Mbps,1024 Byte PSDU @ 802.11g l -64dBm at the antenna port,64QAM,65Mbps,4096 Byte PSDU @ 802.11n(HT20) l <-61dBm at the antenna port,64QAM,135Mbps,4096 Byte PSDU@ 802.11n(HT40) Wi-Fi Antenna External, 2 x 2 MIMO Protocol 802.11b/g/n, 20MHz/40MHz Data Rate l 802.11b: Up to 11 Mbps l 802.11g: Up to 54 Mbps l 802.11n: Up to 300 Mbps ○ Function Data Interfaces l LAN/WAN: 1*RJ45 or 2* RJ45 with 10/100Mbps l CSFB / VoLTE Voice: RJ11 USIM Single, Standard SIM slot 4FF USB Type C I/F, Use for FW debug or ECM modem (USB RNDIS) WebUI System: Connection Status/Statistics/Device Management Language: Chinese/English/Español/Português, Customized Management: TR069/FOTA FW Upgrade: USB/FOTA Mobile Service l SMS Manager l Automatic APN matching according to USIM l Auto Data Connection l USSD Service optional l PIN/PUK Management l Network Mode Selection(3G/LTE/Auto) Router l Support SSID l APN management l Access Control, Local Management L3 l Support IPv4/IPv6 l DHCP Server, Dynamic IP, Static IP l UPnP, DMZ l NAT, USSD Security l Support WPA2(AES)-PSK/WPA-PSK/WPA2-PSK encryptions l Support Firewall l VPN Pass through contains IPSecVPN, PPTP VPN, L2TP VPN l PORT Filtering/ Port Mapping/ Port Forwarding Operating System l Windows 7/8/XP/10 l MAC OS 10.10+ l Android 10/11 l Linux Ubuntu 15.04+ l Browser IE9+, Firefox, Google Chrome, Safari, Opera Certification l CE, FCC, GCF(To be applied upon customer’s requirement) l RoHS Material

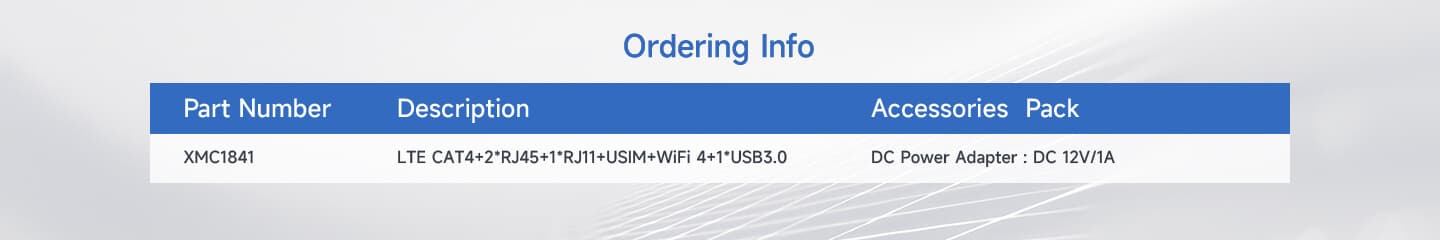

Especificaciones técnicas

Dimension

150mm×105mm×30mm(L×W×H)

Net weight

230g

Operating condition

Operating temp: -20°C ~ +45°C

Storing condition

Storing temp: -20°C ~ +60°C

Power adapter

DC 12V,1A

Power supply

≤12W

Interface

2FE+USB+USIM+Wi-Fi4

Indicators

6, For Status of POWER, Wi-Fi, WAN/LAN, DATA, RJ11, LTE

Buttons

Reset / WPS

Chipset

ASR1803L

Frequency Bands

l XMC1841-EU: l FDD LTE: B1/B3/B5/B7/B8/B20/B28 l TDD LTE: B38/B40/B41 l UMTS: B1/B5/B8 l XMC1841-AU ： l LTE-FDD: B1\B2\B3\B4\B5\B7\B8\B28\B66 l LTE-TDD: B40 l WCDMA: B1\B2\B4\B5\B8

Bandwidth

1.4/3/5/10/15/20 MHz, comply with 3GPP

Modulation

l DL: QPSK/16-QAM/64-QAM, comply with 3GPP l UL: QPSK/16-QAM, comply with 3GPP

LTE Antenna

MIMO: 2 * 2 LTE Antennas

RF Power Level

l LTE: Power Class 3 (23 dBm + 2.7/-3.7dB) l UMTS: Power Class 3 (24 dBm +1.7/-3.7dB)

Data Rate

l 4G: 3GPP R9 Cat4, l FDD ： DL/UL up to 150Mbps/50Mbps, l TDD ： DL/UL up to 110Mbps/10Mbps

Chipset

RTL8192ES

Wi-Fi Frequency

2.4GHz, 1~13Channel

Transmit Power

l 17±2dBm @ 802.11b l 15±2dBm @ 802.11g l 14±2dBm @ 802.11n

Receiver input level sensitivity

l <-76dBm at the antenna port, QPSK,11Mbps,1024 Byte PSDU @ 802.11b l <-65dBm at the antenna port, 64QAM,54Mbps,1024 Byte PSDU @ 802.11g l -64dBm at the antenna port,64QAM,65Mbps,4096 Byte PSDU @ 802.11n(HT20) l <-61dBm at the antenna port,64QAM,135Mbps,4096 Byte PSDU@ 802.11n(HT40)

Wi-Fi Antenna

External, 2 x 2 MIMO

Protocol

802.11b/g/n, 20MHz/40MHz

Data Rate

l 802.11b: Up to 11 Mbps l 802.11g: Up to 54 Mbps l 802.11n: Up to 300 Mbps

Interfaces

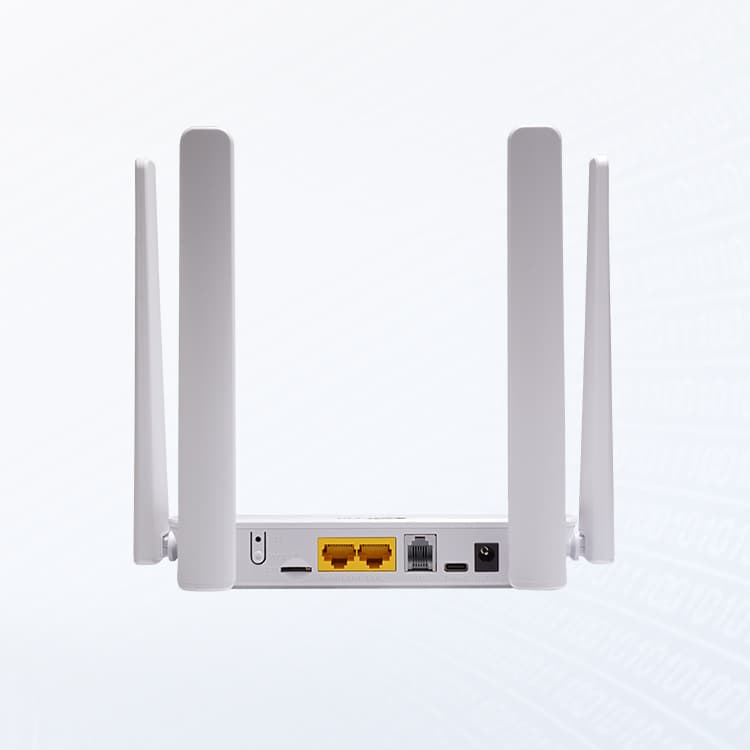

l LAN/WAN: 1*RJ45 or 2* RJ45 with 10/100Mbps l CSFB / VoLTE Voice: RJ11

USIM

Single, Standard SIM slot 4FF

USB

Type C I/F, Use for FW debug or ECM modem (USB RNDIS)

WebUI

System: Connection Status/Statistics/Device Management

Mobile Service

l SMS Manager l Automatic APN matching according to USIM l Auto Data Connection l USSD Service optional l PIN/PUK Management l Network Mode Selection(3G/LTE/Auto)

Router

l Support SSID l APN management l Access Control, Local Management

L3

l Support IPv4/IPv6 l DHCP Server, Dynamic IP, Static IP l UPnP, DMZ l NAT, USSD

Security

l Support WPA2(AES)-PSK/WPA-PSK/WPA2-PSK encryptions l Support Firewall l VPN Pass through contains IPSecVPN, PPTP VPN, L2TP VPN l PORT Filtering/ Port Mapping/ Port Forwarding

Operating System

l Windows 7/8/XP/10 l MAC OS 10.10+ l Android 10/11 l Linux Ubuntu 15.04+ l Browser IE9+, Firefox, Google Chrome, Safari, Opera

Certification

l CE, FCC, GCF(To be applied upon customer’s requirement) l RoHS Material
