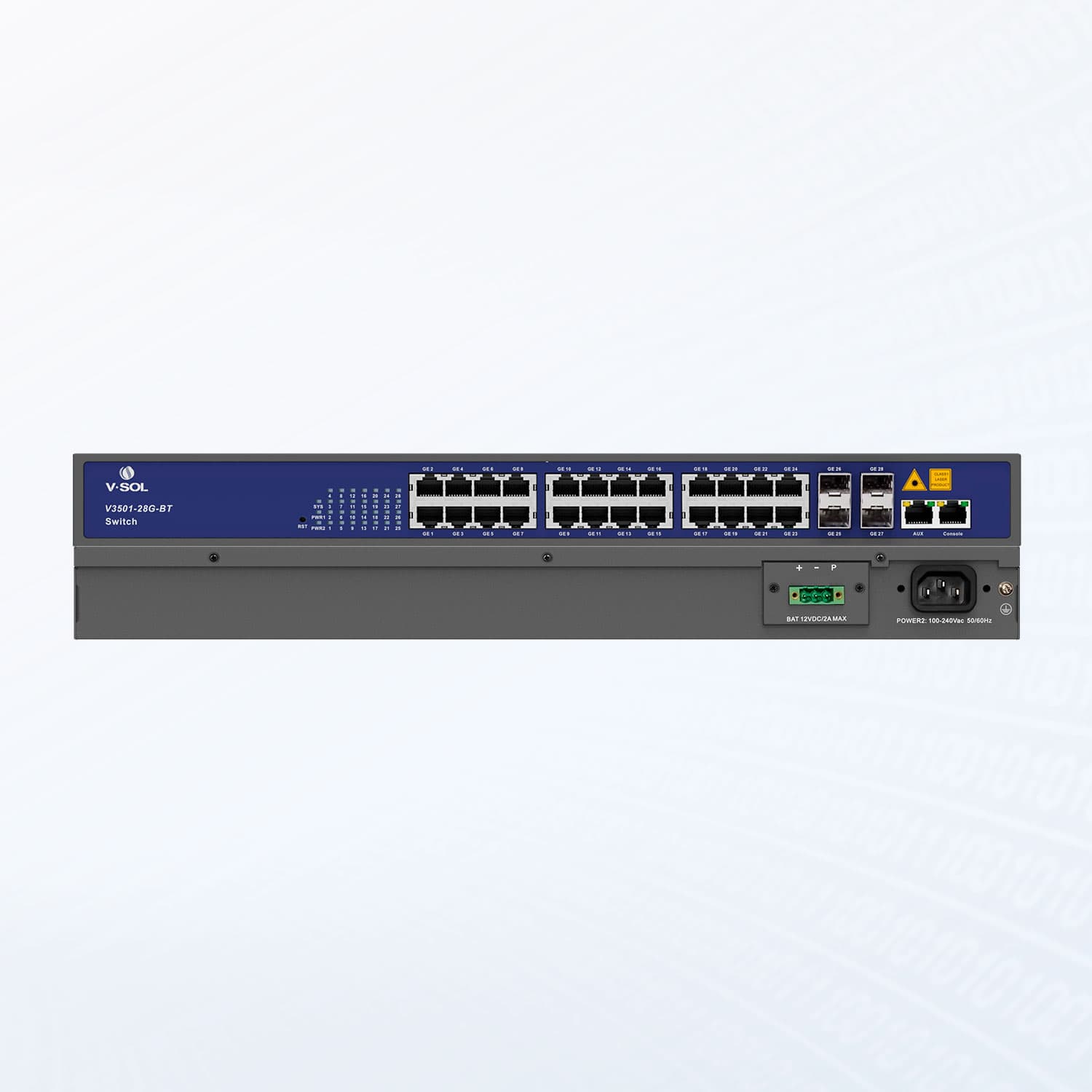

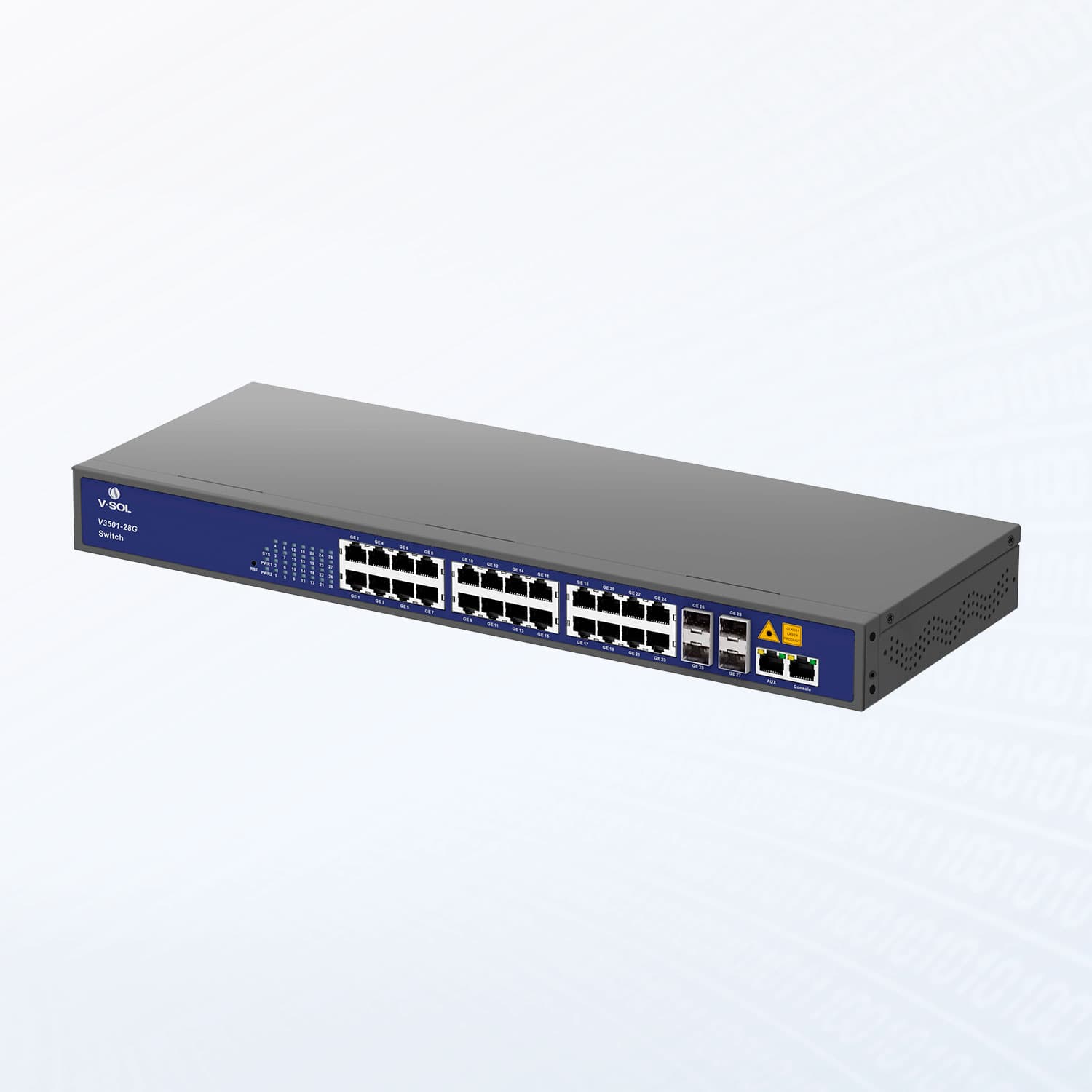

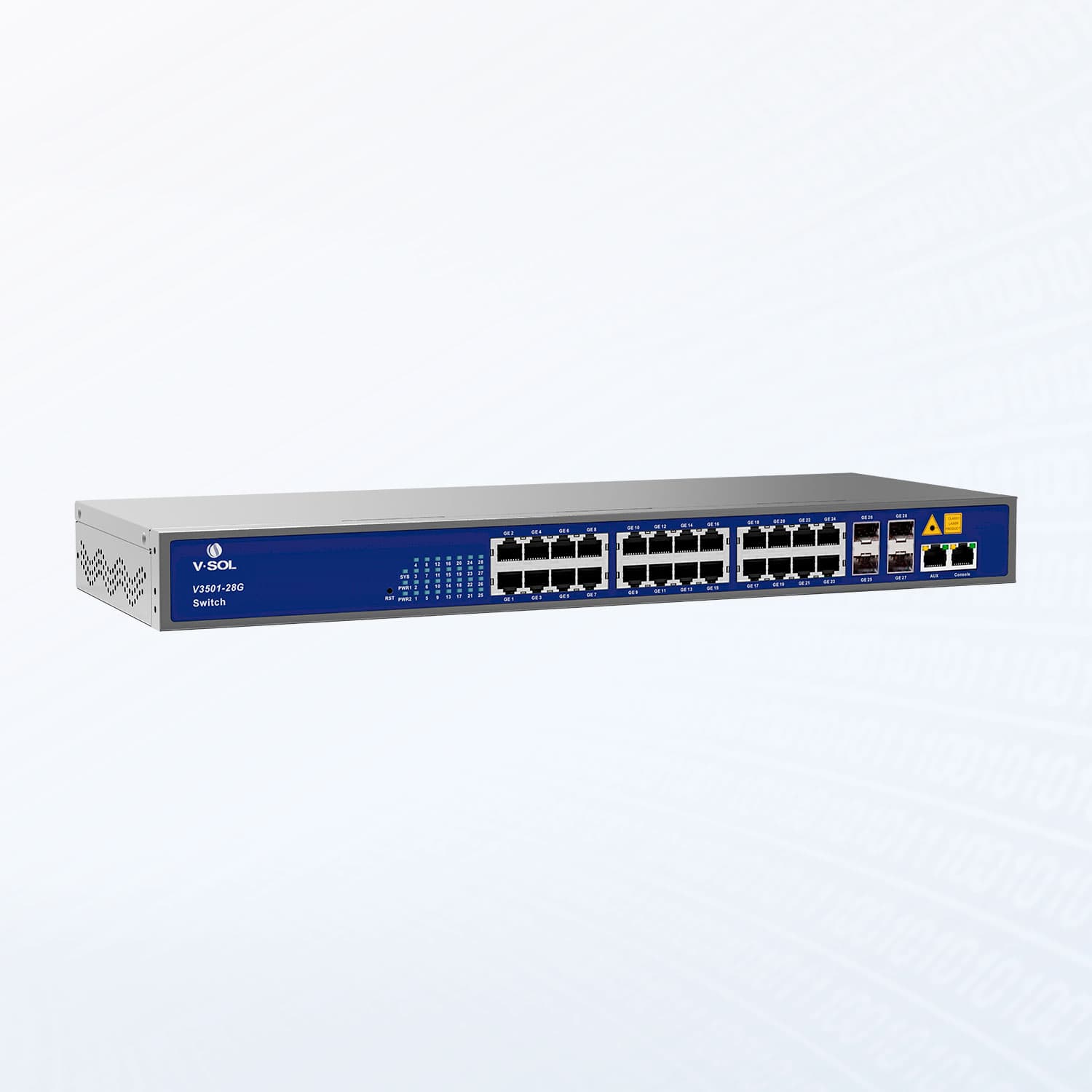

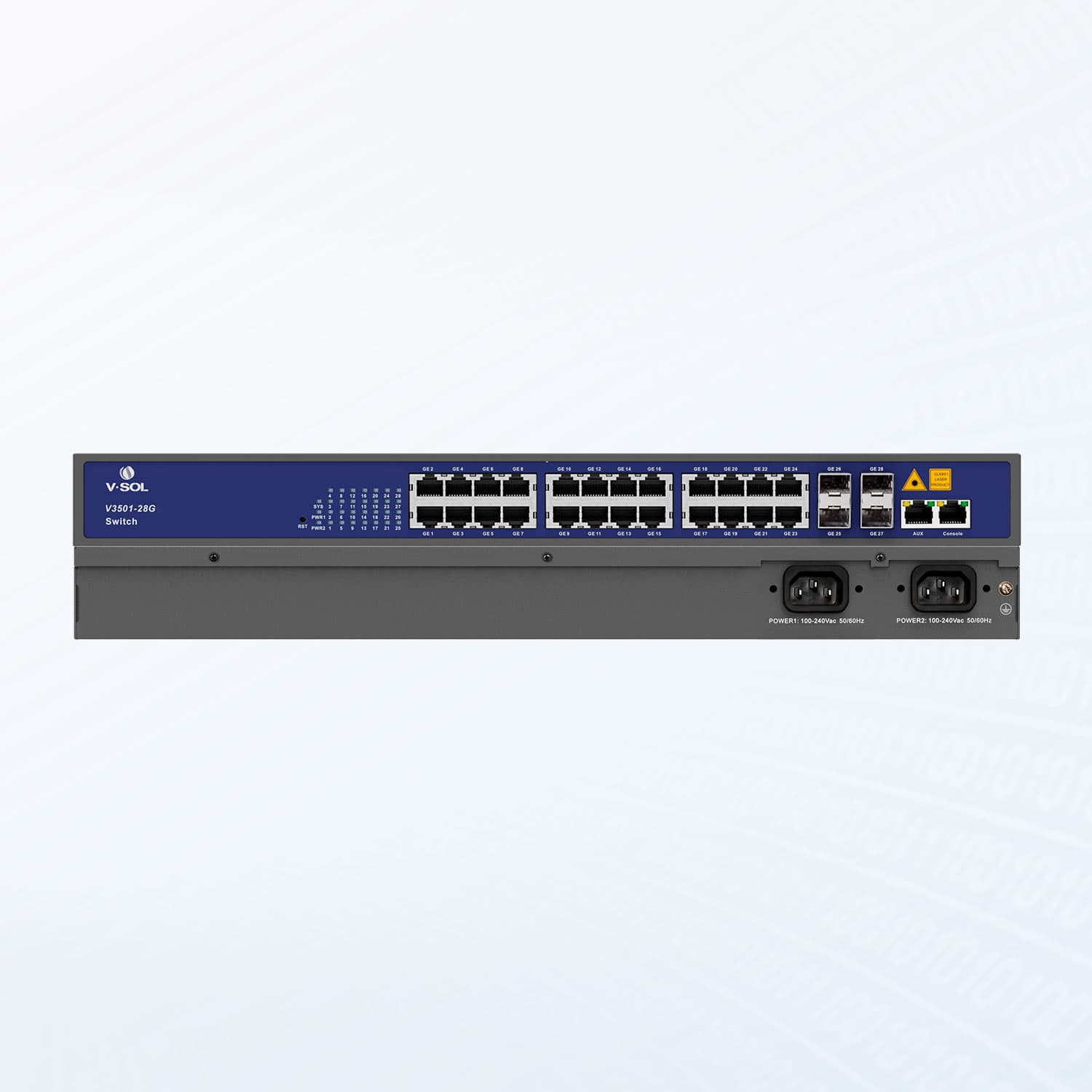

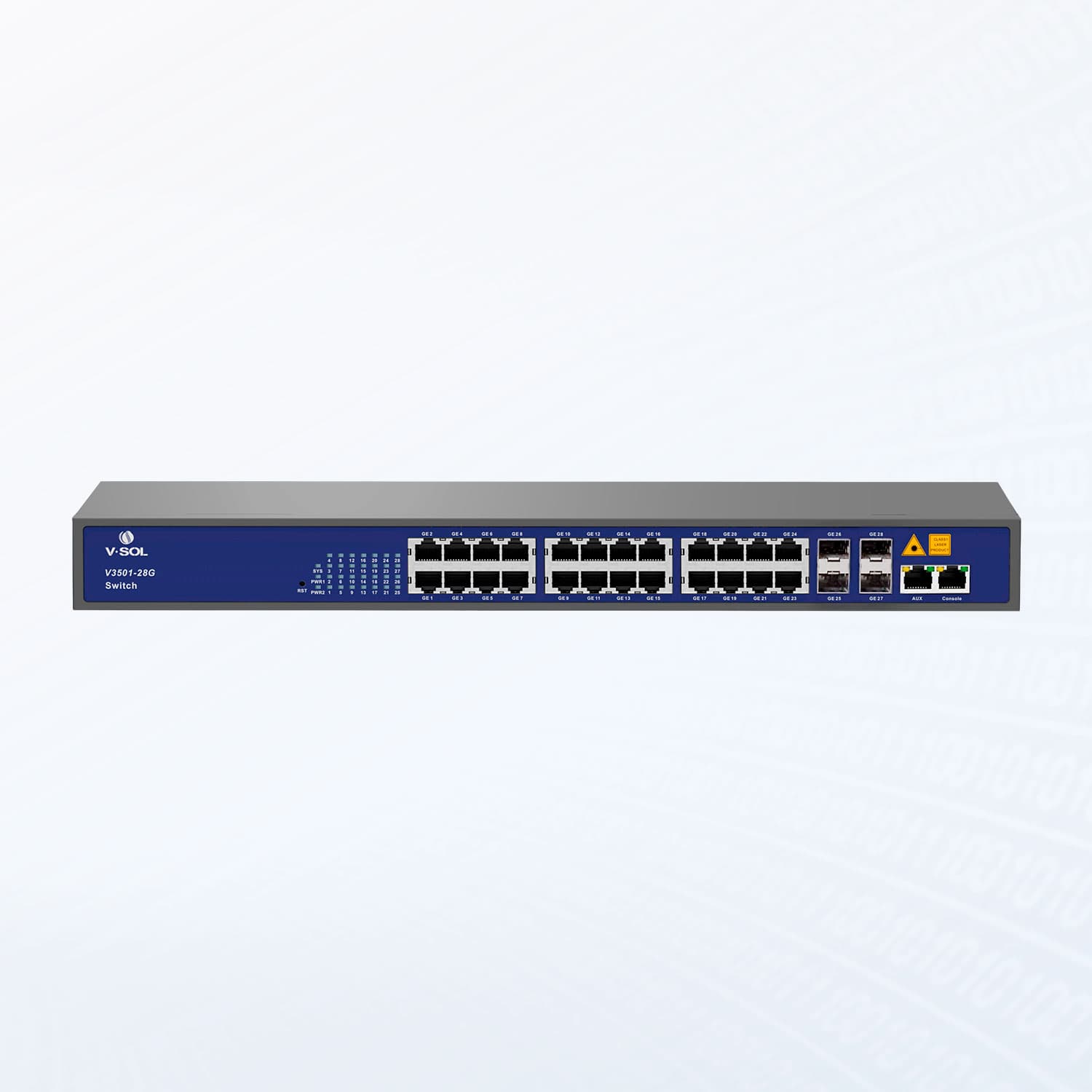

V3501-28G(-BT) — L3 Managed Ethernet Switch

Descripción

24 conmutadores Ethernet de red L3 de Puerto GE V3501 – 28G para operadores y empresas ISP 24 puertos GE | Enrutamiento de capa 3 | Redundancia de doble alimentación Puertos GE ultrarrápidos para una conexión en red sencilla y flexible Plug & Play para una gestión sin esfuerzo Alimentación estable y fiable Seguro y estable, para aplicaciones sin preocupaciones Protocolos de enrutamiento de capa 3 para facilitar la configuración Item V3501-28G V3501-28G-BT Chassis Rack 1U 19 inch standard box 1G User Port QTY 24 Physical Interface RJ45 (GE) Forward Rate 1000Mbps 10G Uplink Port QTY 4 Physical Interface SFP(GE)/SFP+(10GE) Forward Rate 10Gbps Management Ports 1*10/100/1000M BASE-T out-band port, 1*CONSOLE port 1*CONSOLE port , 1*AUX port Switching Capacity (Gbps) 128 Throughput (Mpps) 95.232 Dimension (LxWxH) 442*16 3 *43.6mm Weight 2.25kg AC Power Supply AC:100 ~ 240V, 50/60Hz AC: 100 ~ 240V , 110V/220V DC Power Supply DC: -36 ~ -75V / Power Consumption 23W Operating Environment Working Temperature -20 ~ +60°C Storage Temperature -40 ~ +70°C Relative Humidity 10 ~ 85% (non-condensing)

Especificaciones técnicas

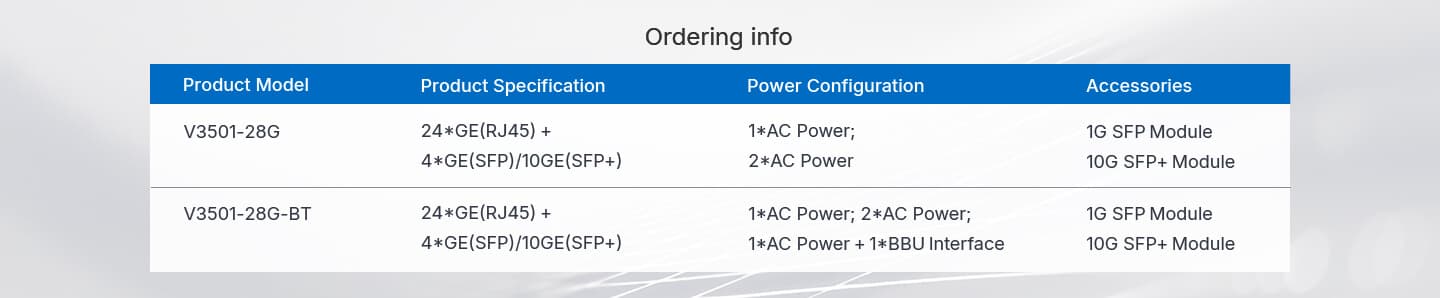

Item

V3501-28G | V3501-28G-BT

Chassis

Rack | 1U 19 inch standard box

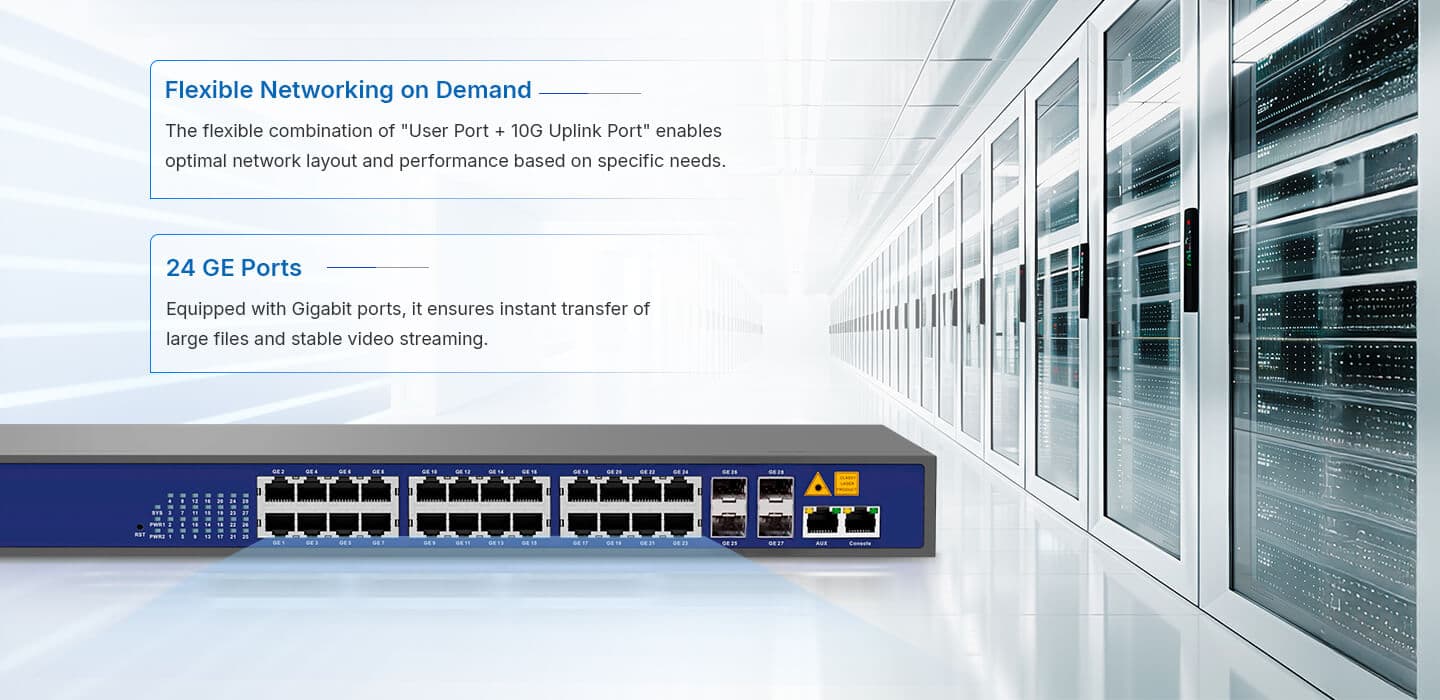

1G User Port

QTY | 24

Physical Interface

RJ45 (GE)

Forward Rate

1000Mbps

10G Uplink Port

QTY | 4

Physical Interface

SFP(GE)/SFP+(10GE)

Forward Rate

10Gbps

Management Ports

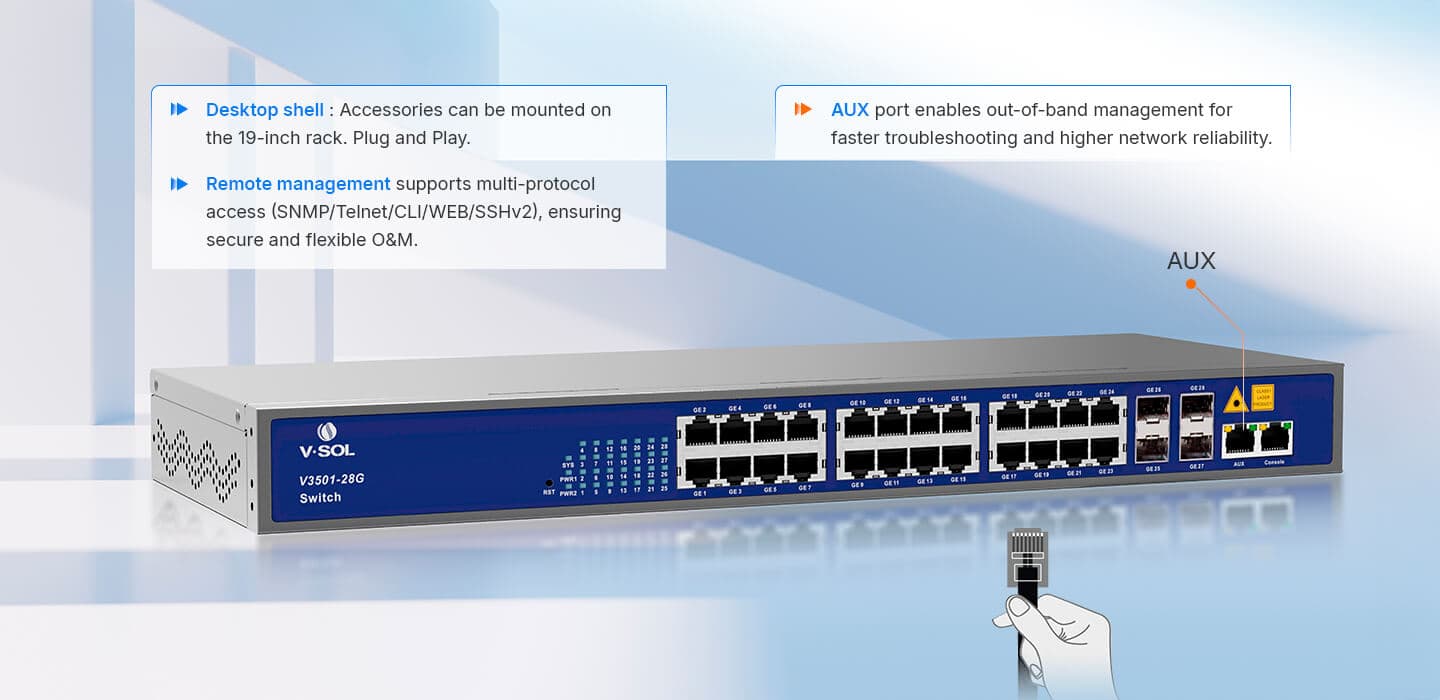

1*10/100/1000M BASE-T out-band port, 1*CONSOLE port | 1*CONSOLE port , 1*AUX port

Switching Capacity (Gbps)

128

Throughput (Mpps)

95.232

Dimension (LxWxH)

442*16 3 *43.6mm

Weight

2.25kg

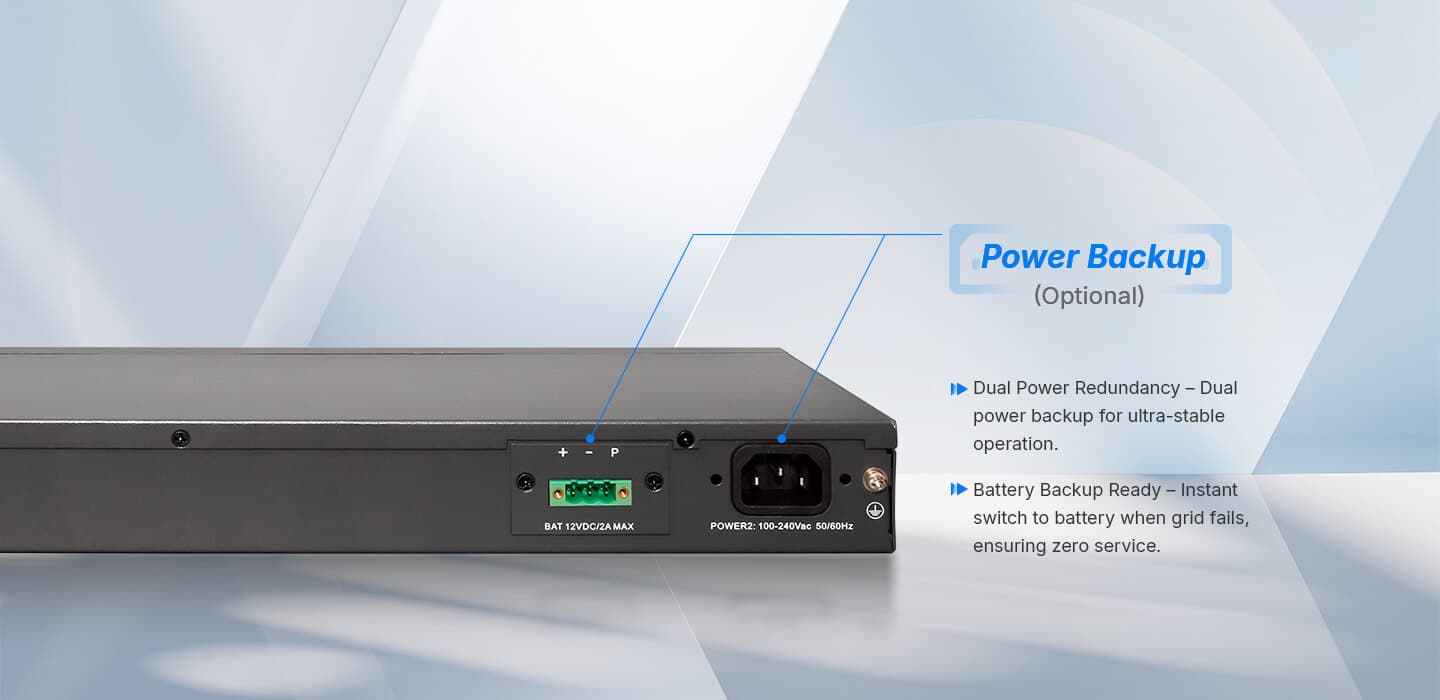

AC Power Supply

AC:100 ~ 240V, 50/60Hz | AC: 100 ~ 240V , 110V/220V

DC Power Supply

DC: -36 ~ -75V | /

Power Consumption

23W

Operating Environment

Working Temperature | -20 ~ +60°C

Storage Temperature

-40 ~ +70°C

Relative Humidity

10 ~ 85% (non-condensing)
