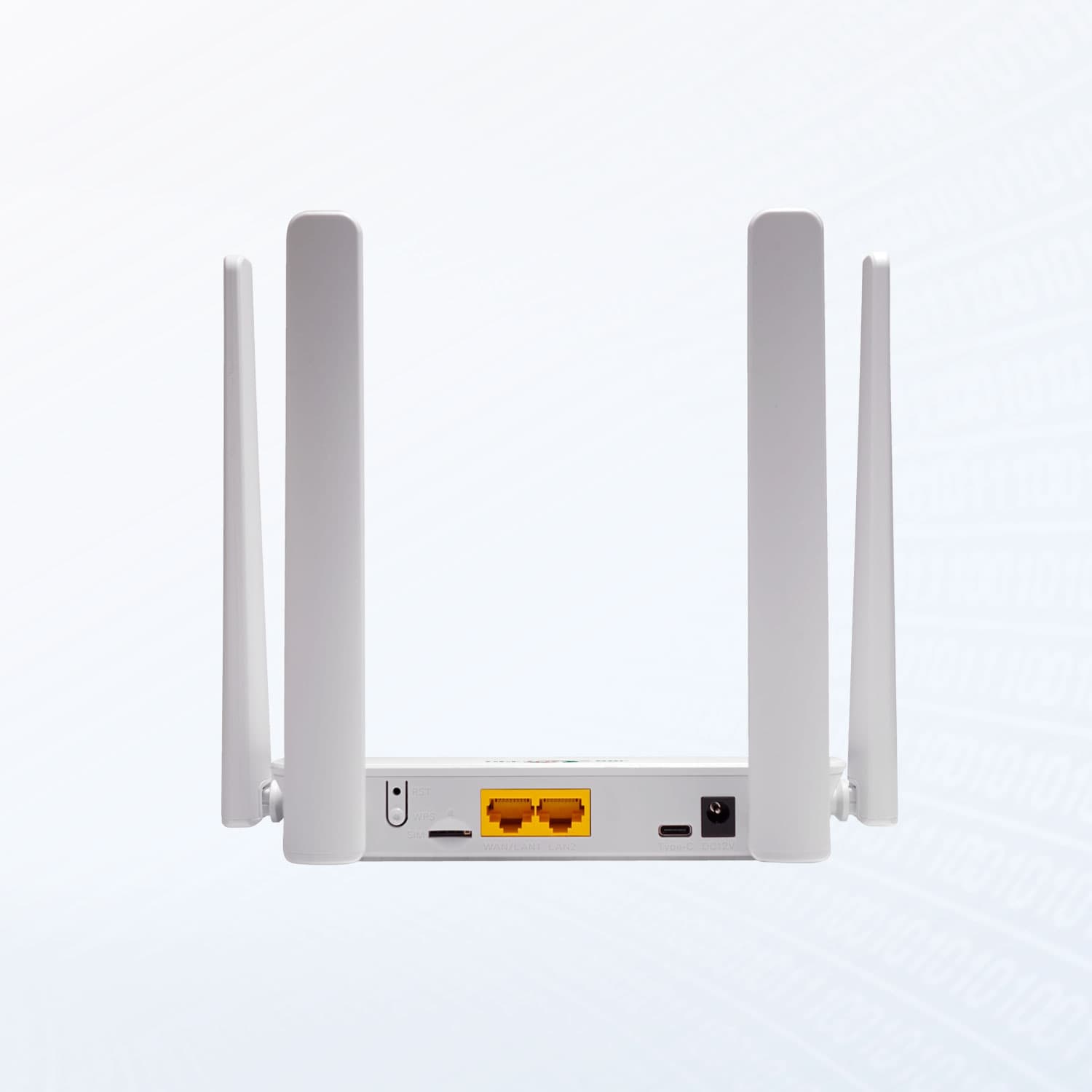

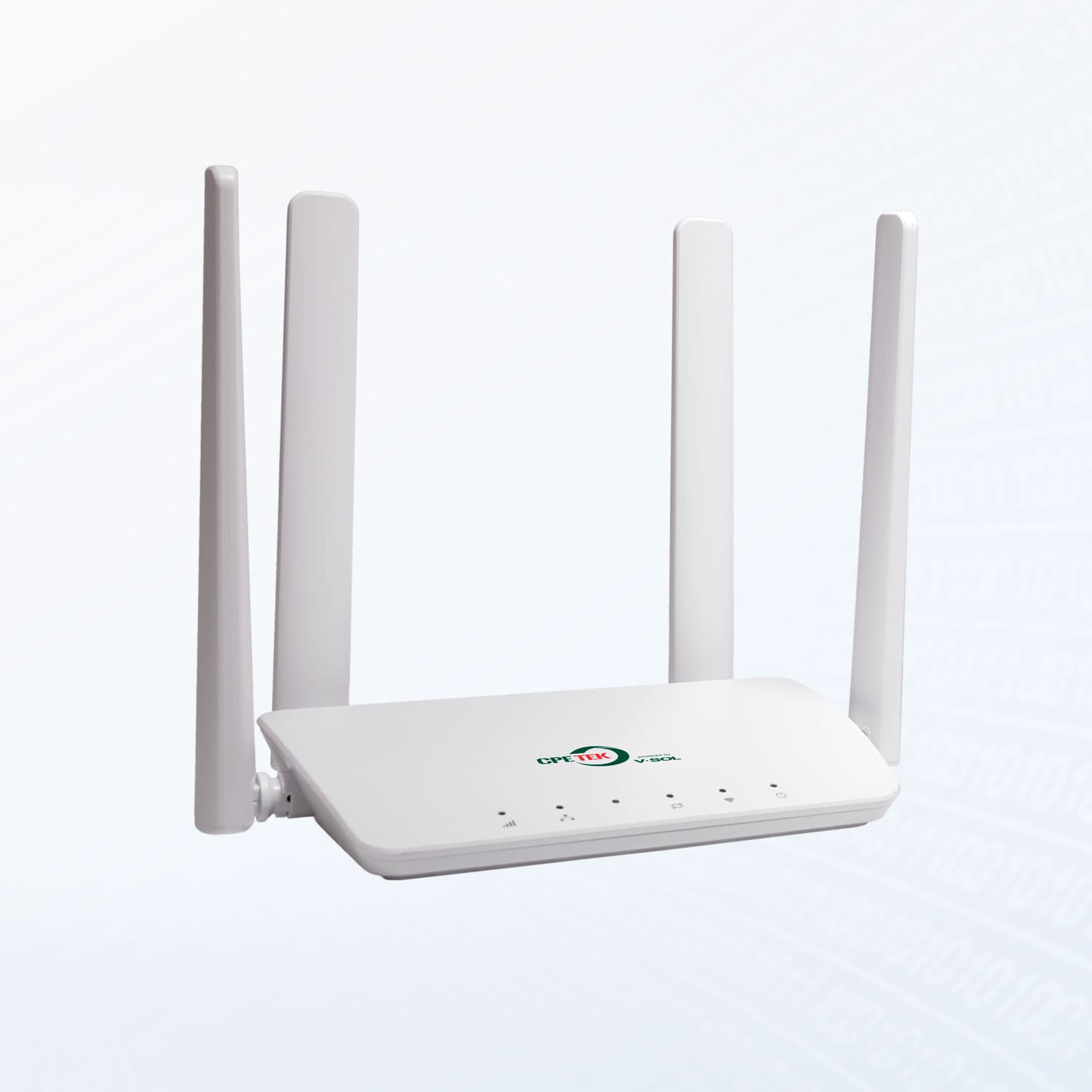

XMC2841-NV — LTE CAT6 CPE (2GE)
Dual Band Wi-Fi 5 | USIM | Antena 5G completa Модель: XMC2841-NV
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
XMC2841-NV | LTE CAT6 CPE Configuración Óptima | Interfaces Completas Gama Completa de Interfaces 4 Antenas Externas con Fuerte Recepción y Alta Estabilidad Soluciones de Chipset con Certificación Internacional Acceso por Cable y por Tarjeta SIM Technical parameter Chip Platform ASR1828 Frequent Band XMC2841-EU: FDD LTE: B1/B3/B5/B7/B8/B20/B28 TDD LTE: B38/B40/B41 UMTS: B1/B5/B8 2CA: B1 + B1/B3/B5/B7/B8/B20/B28; B3 + B3/B5/B7/B8/B20/B28; B7 + B5/B7/B8/B20/B28; B38 + B38, B40 + B40, B41 + B41 Protocol Version 4G: 3GPP R10 Cat6 + 3G: 3GPP R8 DL/UL Data Rate 802.11b: Up to 11 Mbps 802.11g: Up to 54 Mbps 802.11n: Up to 300 Mbps 802.11ac: Up to 866.7 Mbps Wi-Fi Standard 802.11a/b/g/n/ac, 20MHz/40MHz/80MHz Size 150mm×105mm×30mm(L×W×H) Weight About 233g Power Supply DC 12V,1A Physical Interface 2*GE+USB+USIM+Wi-Fi 5 LED POWER, Wi-Fi, WAN/LAN, DATA, LTE Button Reset/WPS Key Characteristics VPN Protocol: IPSec VPN, PPTP VPN & L2TP VPN TR069/FOTA
Especificaciones técnicas

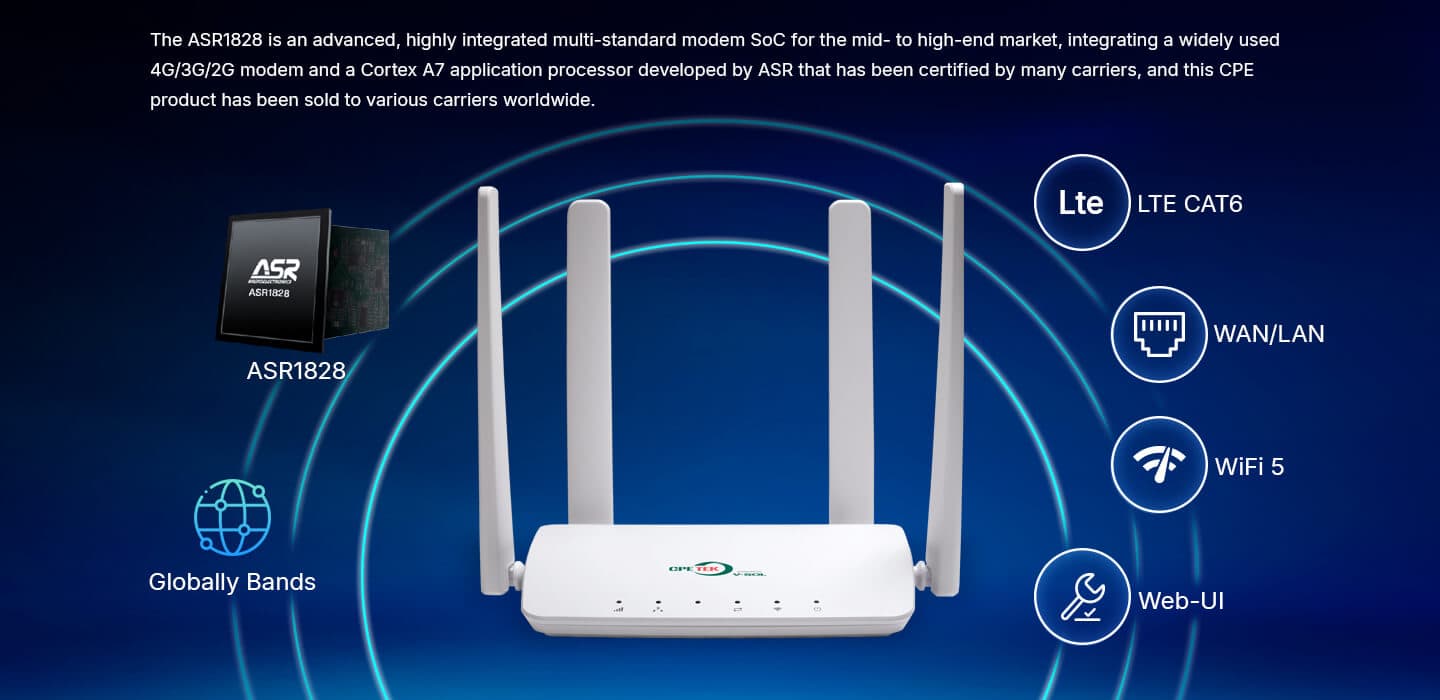

- Chip Platform
- ASR1828
- Frequent Band
- XMC2841-EU: FDD LTE: B1/B3/B5/B7/B8/B20/B28 TDD LTE: B38/B40/B41 UMTS: B1/B5/B8 2CA: B1 + B1/B3/B5/B7/B8/B20/B28; B3 + B3/B5/B7/B8/B20/B28; B7 + B5/B7/B8/B20/B28; B38 + B38, B40 + B40, B41 + B41
- Protocol Version
- 4G: 3GPP R10 Cat6 + 3G: 3GPP R8 DL/UL
- Data Rate

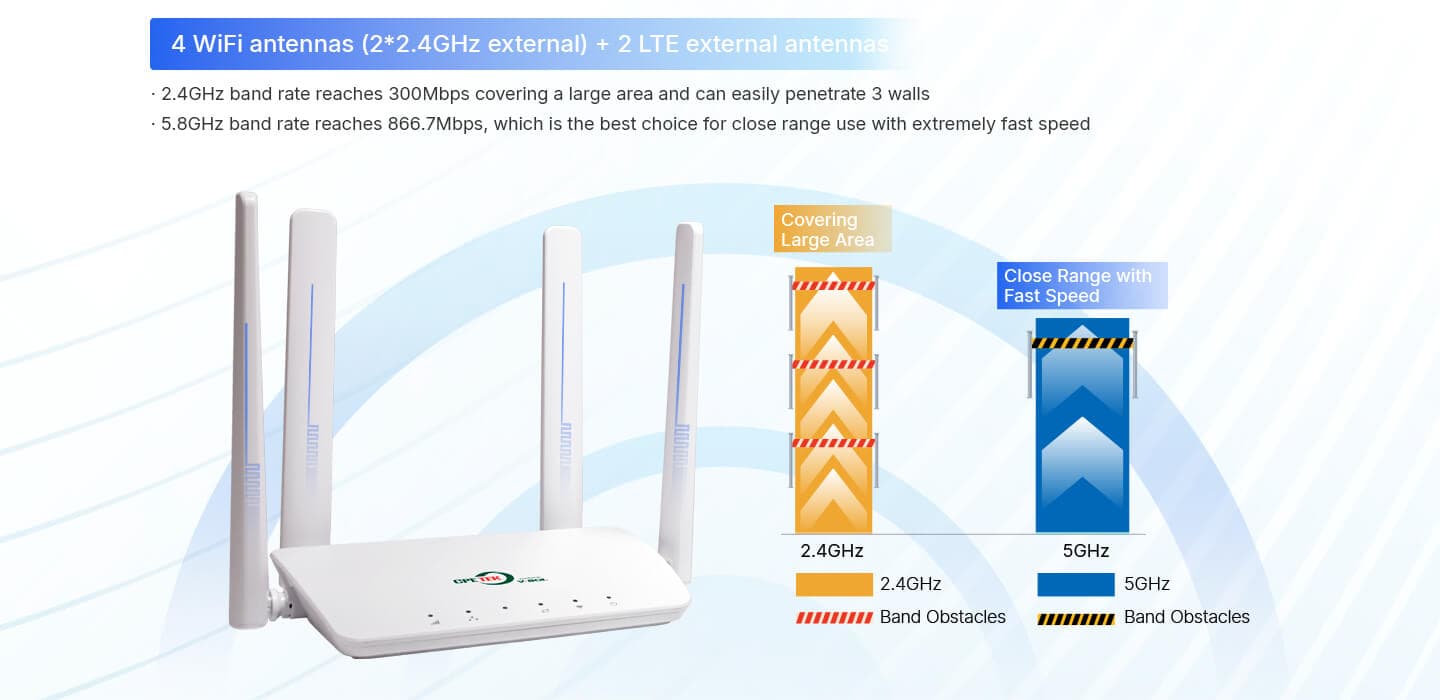

- 802.11b: Up to 11 Mbps 802.11g: Up to 54 Mbps 802.11n: Up to 300 Mbps 802.11ac: Up to 866.7 Mbps
- Wi-Fi Standard
- 802.11a/b/g/n/ac, 20MHz/40MHz/80MHz
- Size
- 150mm×105mm×30mm(L×W×H)
- Weight
- About 233g
- Power Supply
- DC 12V,1A

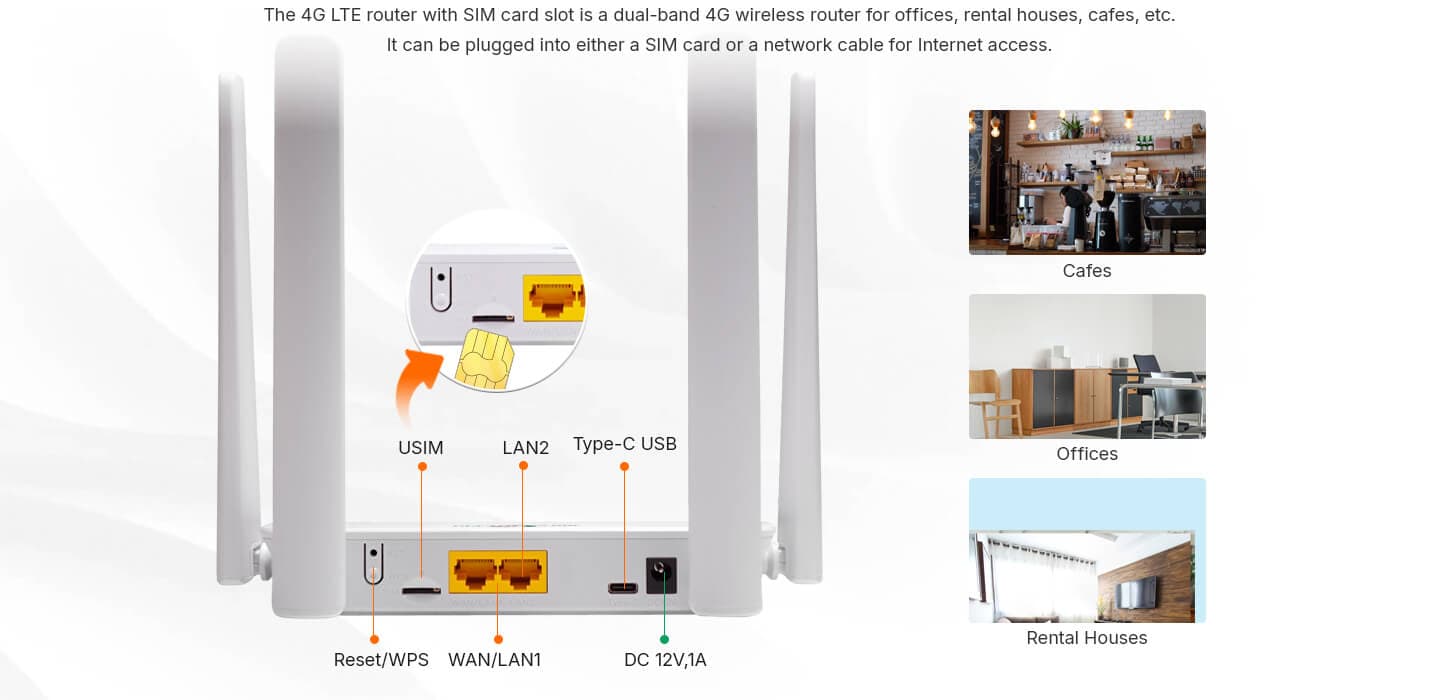

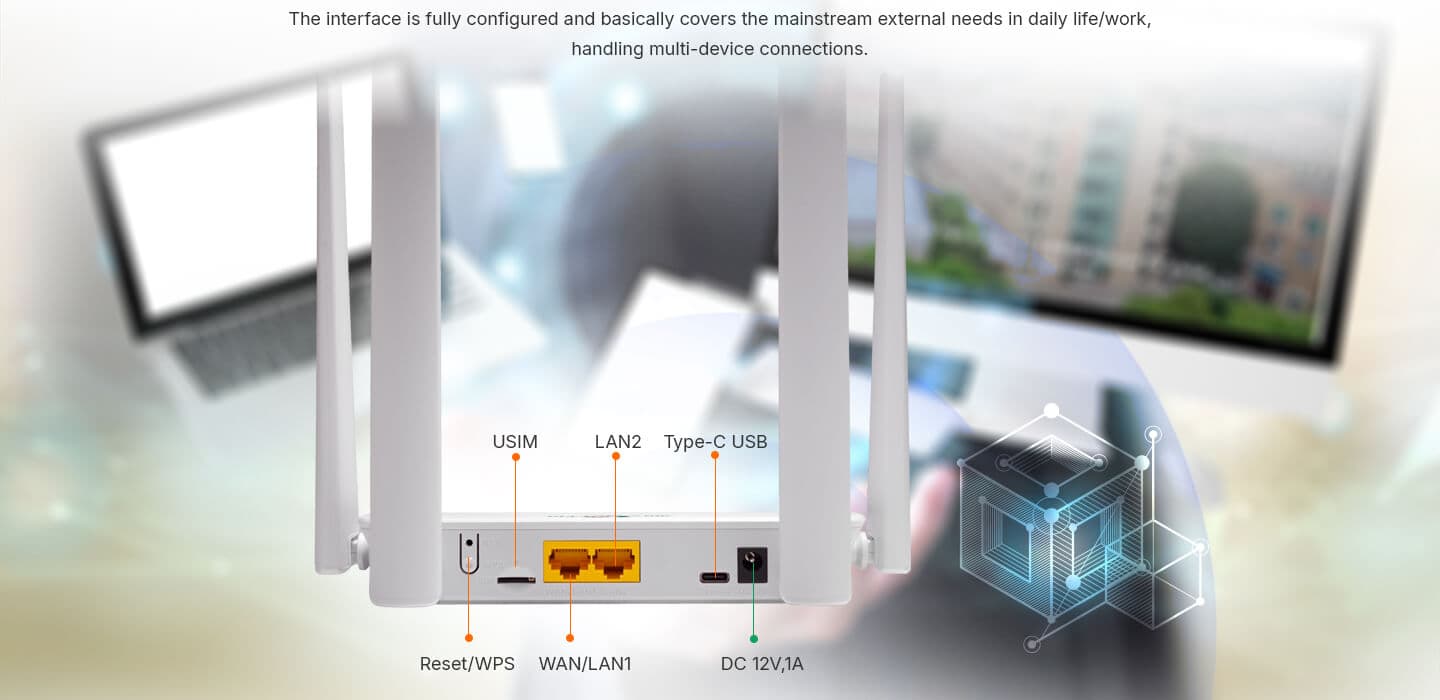

- Physical Interface
- 2*GE+USB+USIM+Wi-Fi 5

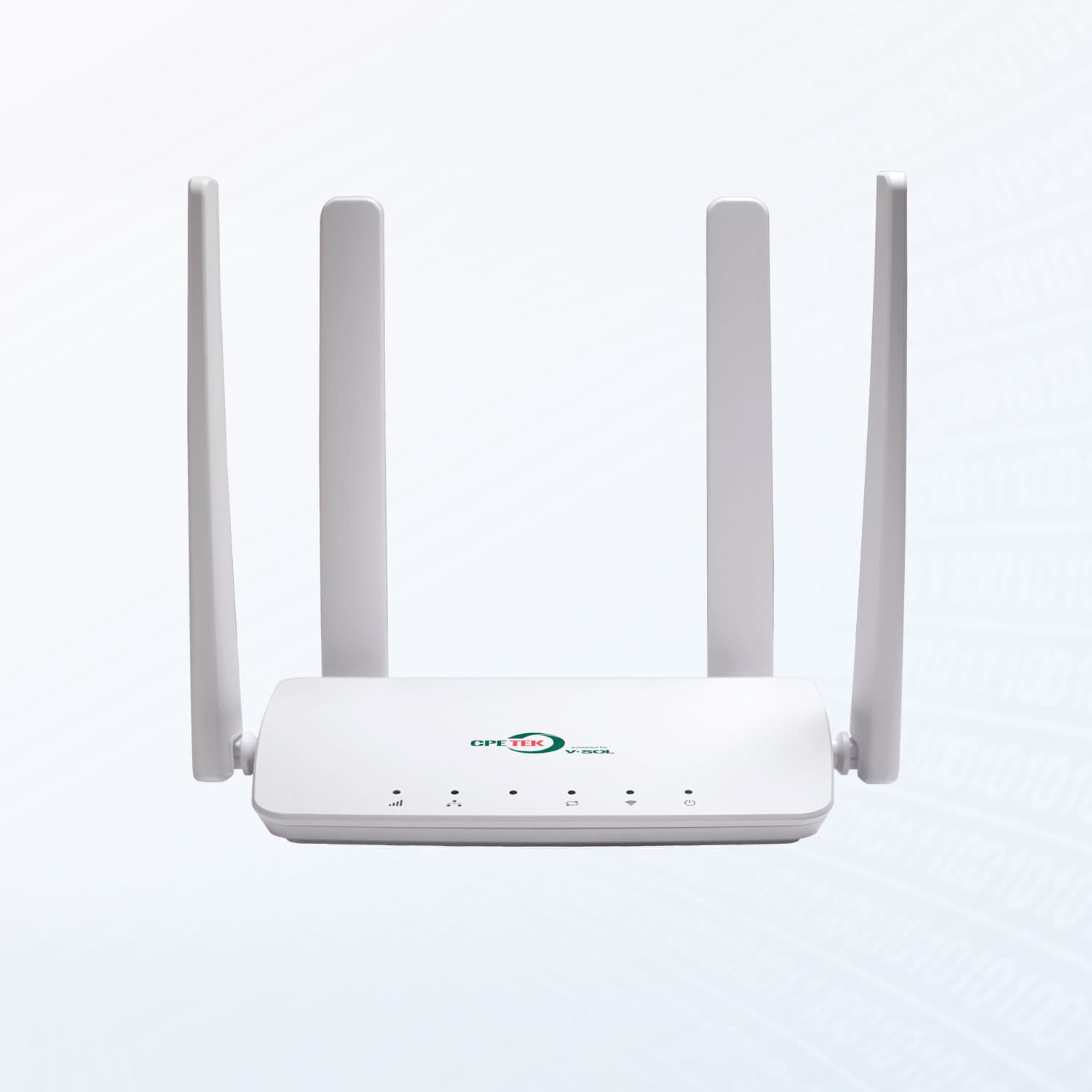

- LED
- POWER, Wi-Fi, WAN/LAN, DATA, LTE
- Button
- Reset/WPS Key
- Characteristics
- VPN Protocol: IPSec VPN, PPTP VPN & L2TP VPN TR069/FOTA
