V8801C-1 — Optical Receiver with WDM

Descripción

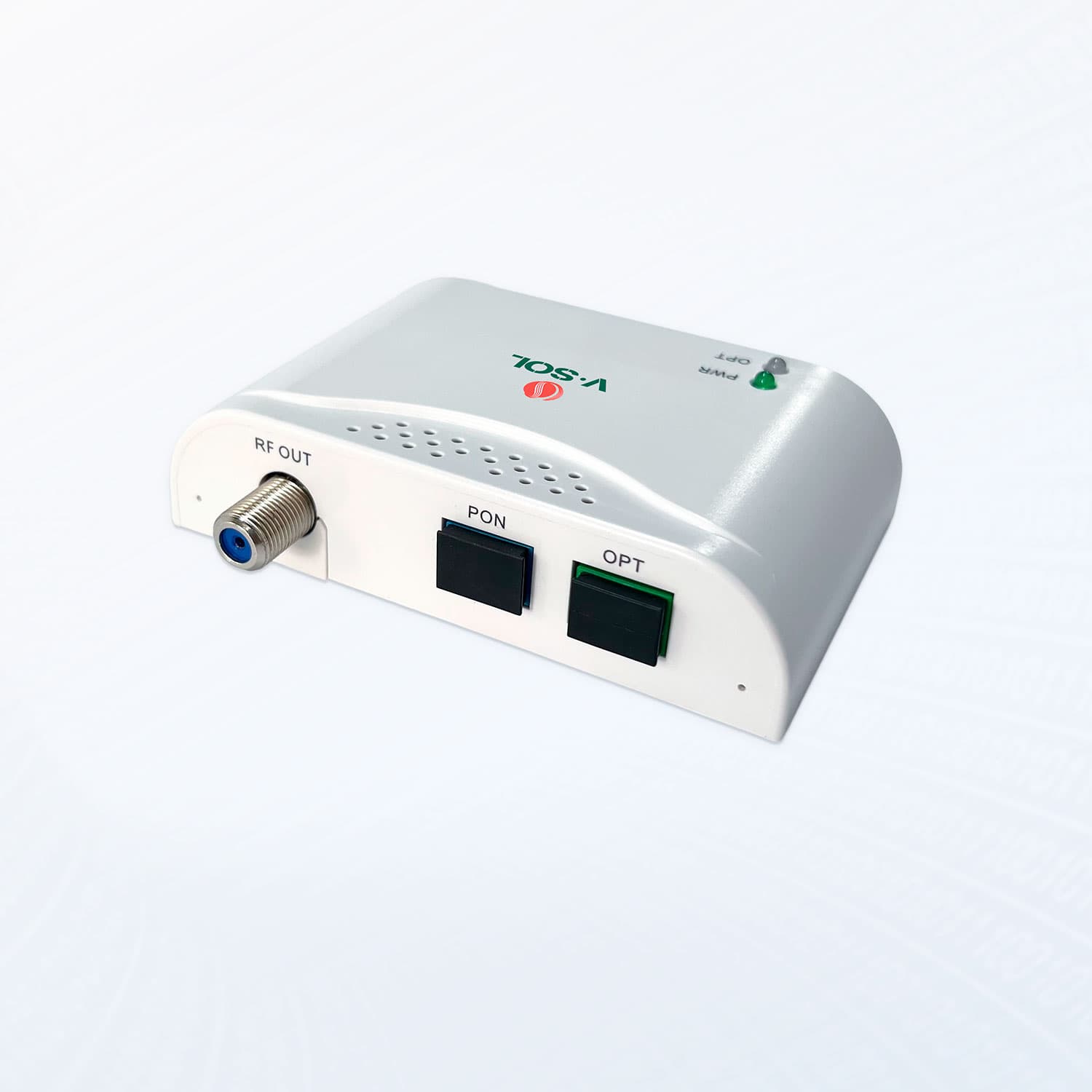

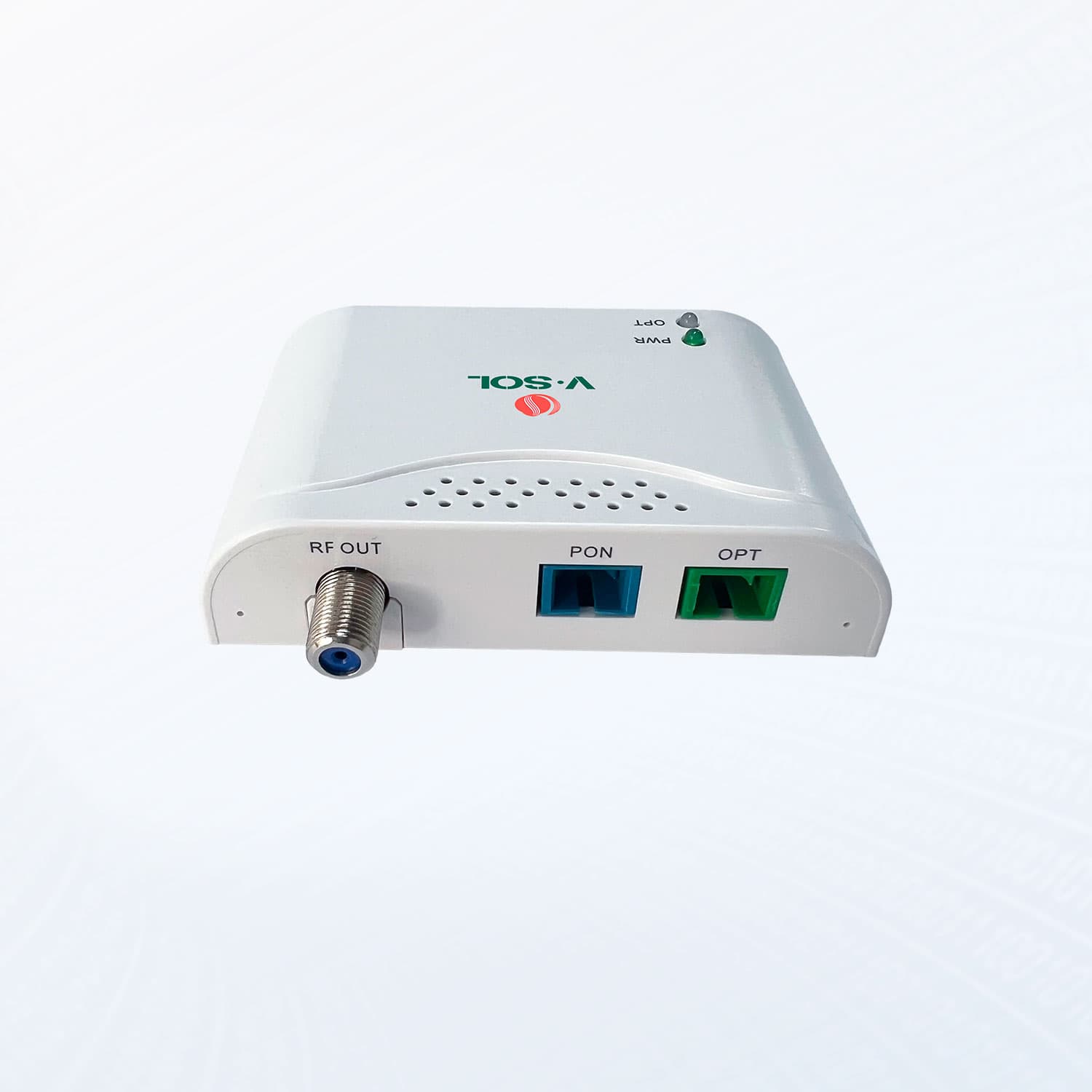

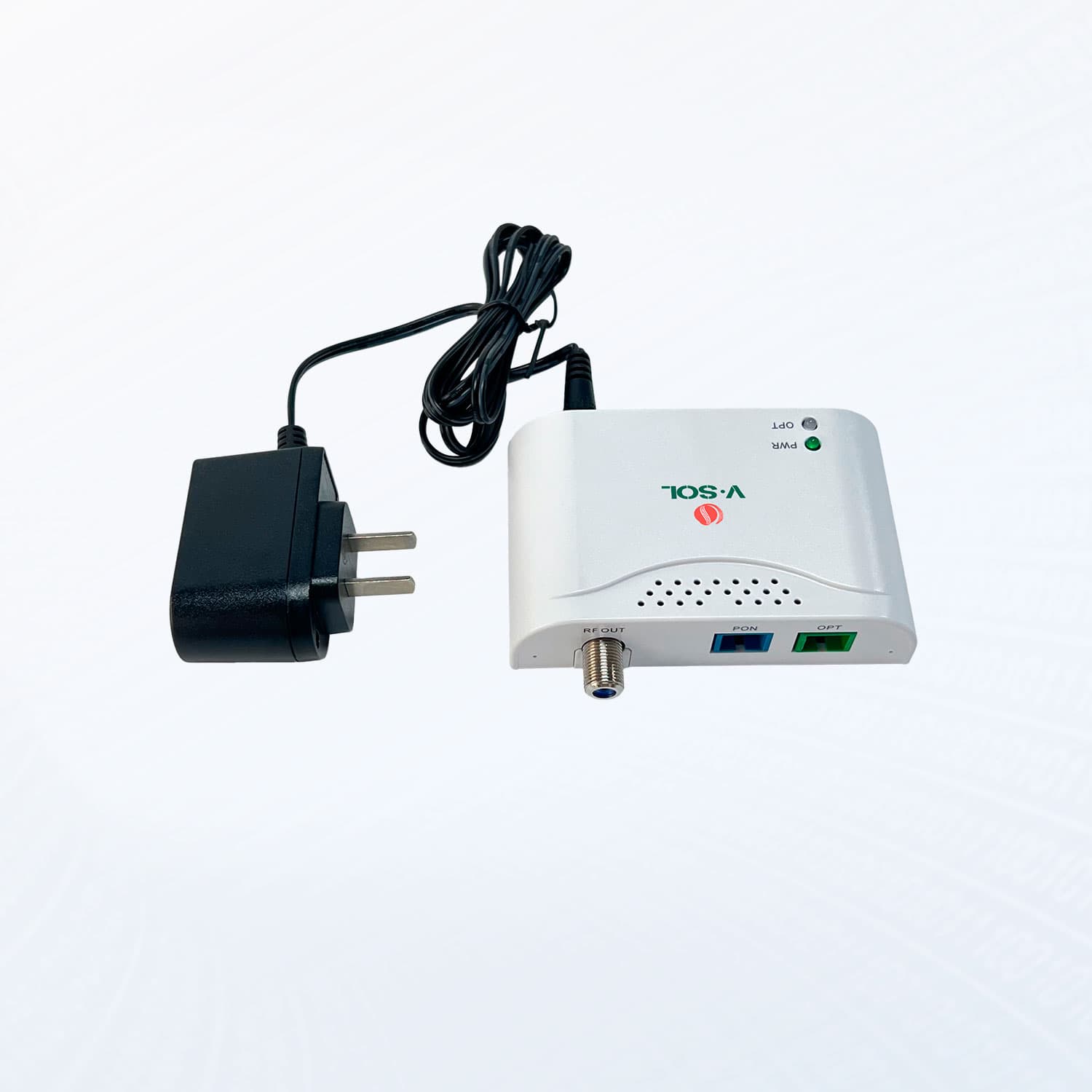

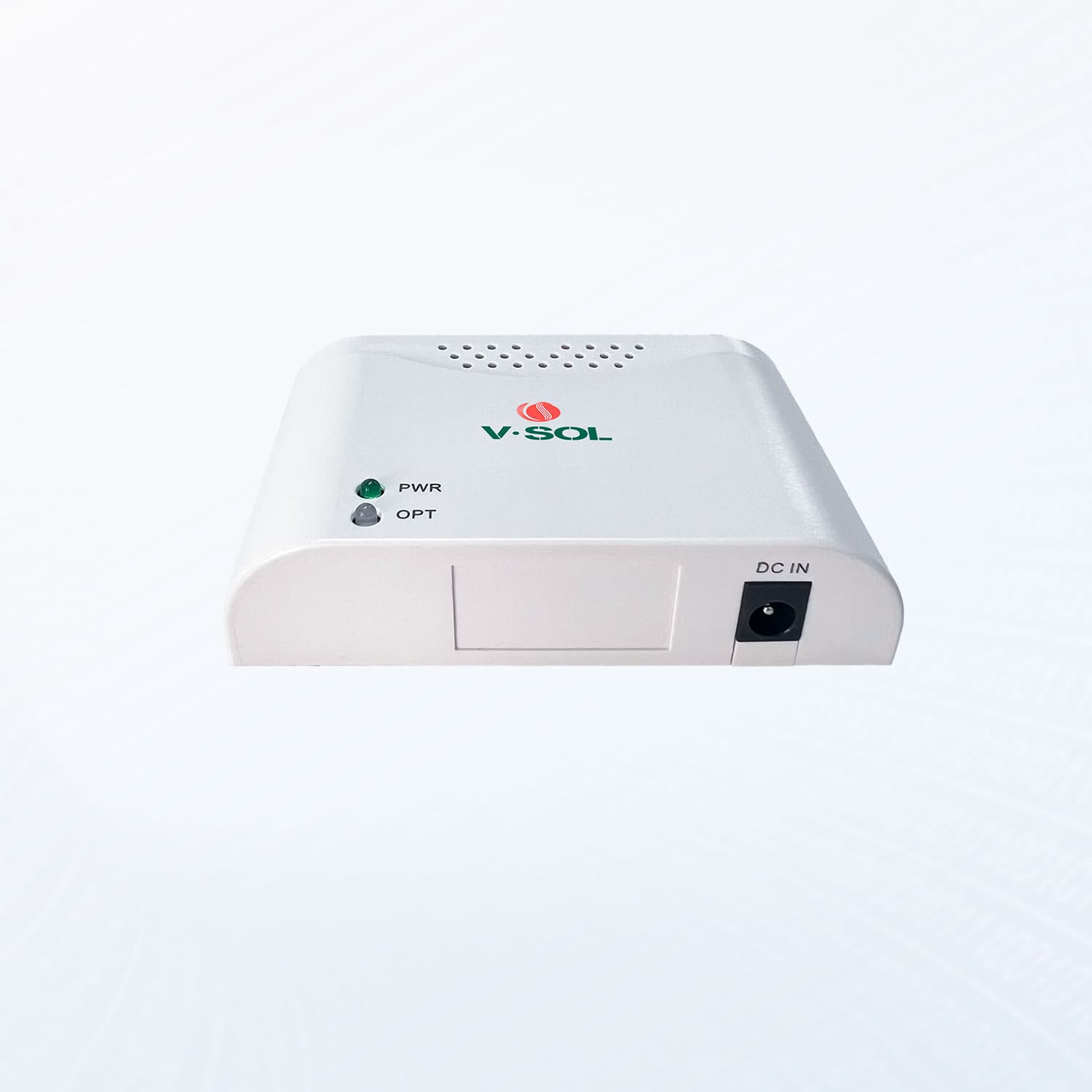

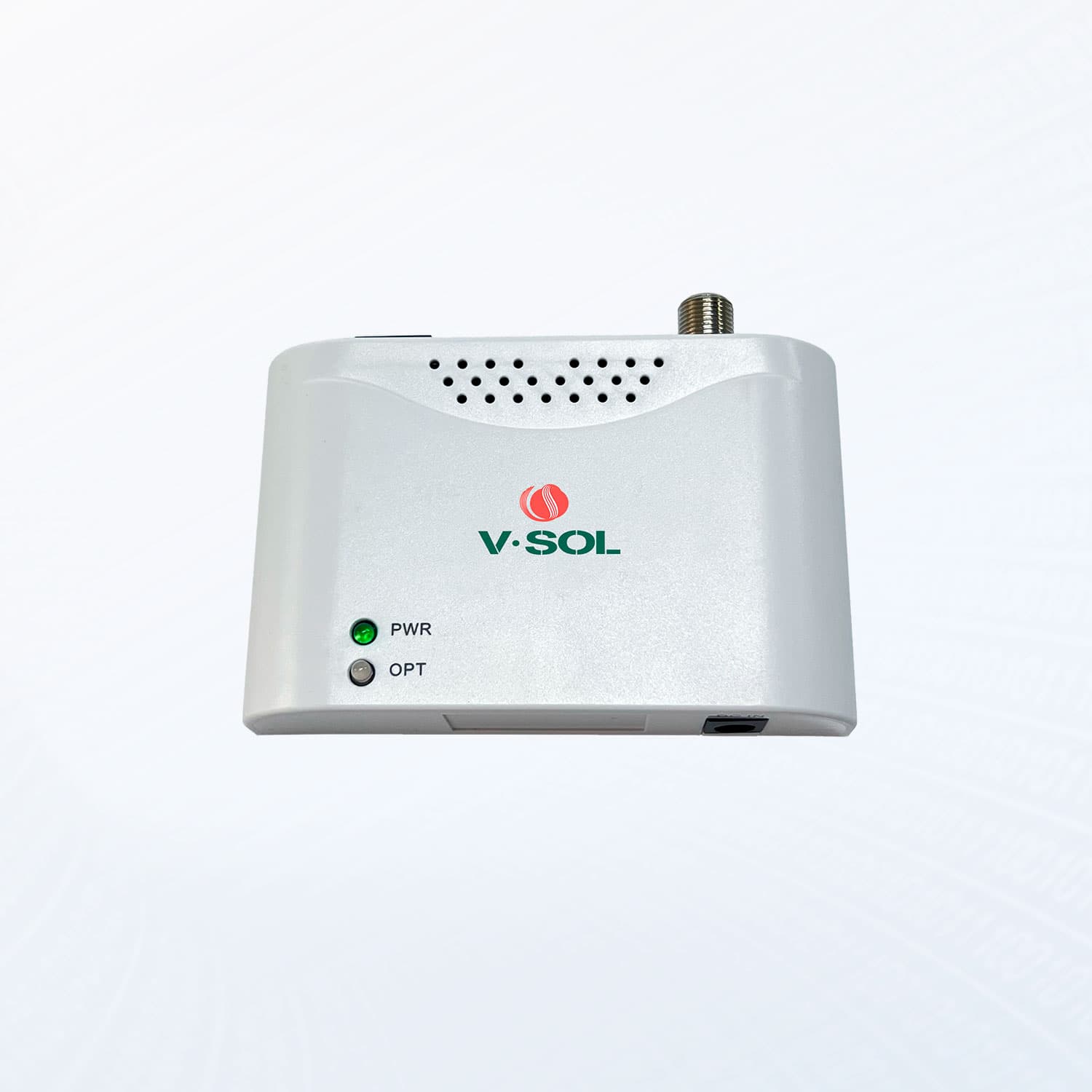

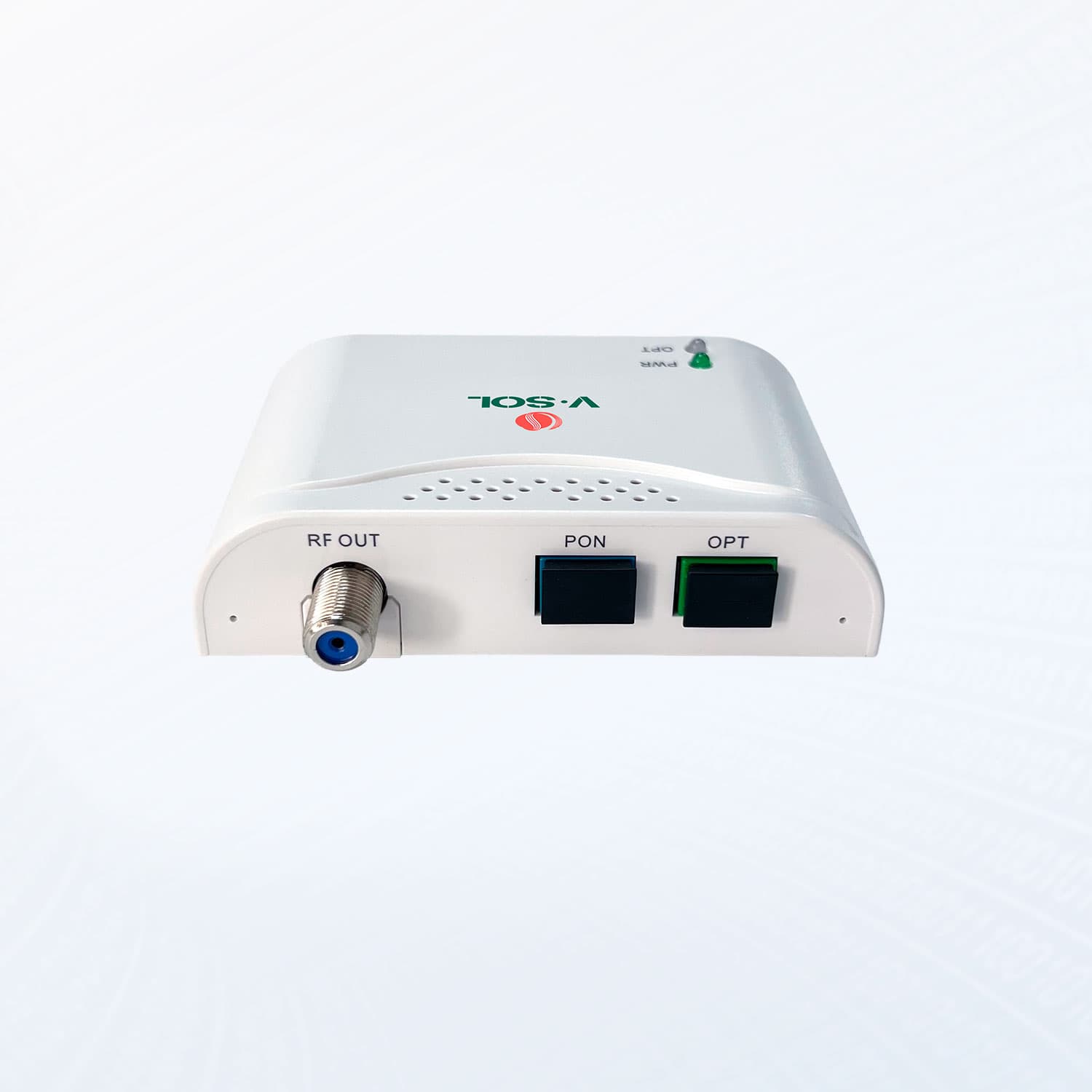

Introduction The VSOL V8801C-1 optical receiver is a compact optical unit with built-in WDM, designed for HFC broadband transmission networks. The device reflects PON optical signals through advanced photoelectric conversion technology and features AGC (Automatic Gain Control) to ensure that it always provides high-quality, low-noise signal transmission at different signal strengths. Its excellent frequency response and low distortion characteristics make it ideal for homes and small businesses to enjoy a stable, high-speed network experience. Features 47MHz to 1003MHz frequency bandwidth, built-in WDM Built-in optical AGC control circuit to ensure stable output level Adopt high efficiency switching power adapter, wide voltage adaption range Ultra-low current, ultra-low power consumption Compatible with EPON, GPON, and 10G PON optical signals Technical Specifications No. Item Technical Parameters note 1 CATV Receiving Optical Wavelength 1550±10nm 2 PON Received Wavelength 1310nm/1490nm XPON 1270nm/1577nm 10G PON 3 Channel Isolation >20dB 4 Optical reception responsiveness 0.85A/W(1550nm typical) 5 Input Optical Power Range – 20dBm~+2dBm 6 Fiber Optic Types Single mode(9/125mm) 7 Fiber Optic Connector Type SC/APC 8 Output Level ≥78dBuV 9 AGC Range – 15dBm~+2dBm Output level ±2dB 10 F-type RF connector fractional 11 Frequency Bandwidth 47MHz-1003MHz 12 RF In-Band Flatness ±1.5dB 13 System impedance 75Ω 14 Reflection Loss ≥14dB 15 MER ≥35dB 16 BER ＜ 10- 8 17 Product Size 95mm(L)×71mm(W)×25mm(H) 18 Product weight 75g 19 Work conditions Temperature: 0℃– +45℃ Humidity: 40%–70% (non- condensing) 20 Storage conditions Temperature: -25℃– +60℃ Humidity: 40%–95% (non- condensing) Performance Description Parameter Symbol Min. Typ. Max. Unit Test Conditions Transmission Working Wavelength λ1 1540 1550 1560 nm Reflected Working Wavelength λ2 1260 1310 1330 nm λ3 1480 1490 1500 nm λ4 1575 1577 1650 nm Degree of Response R 0.85 0.90 A/W po=0dBmλ=1550nm Transmission isolation ISO1 30 dB λ=1310&1490&1577nm Reflection isolation ISO2 18 dB λ=1550nm Return Loss RL – 40 dB λ=1550nm Insertion Loss IL 1 dB λ=1310&1490&1577nm

Especificaciones técnicas

No.

Item | Technical Parameters | note

1

CATV Receiving Optical Wavelength | 1550±10nm |

2

PON Received Wavelength | 1310nm/1490nm | XPON

1270nm/1577nm

10G PON

3

Channel Isolation | >20dB |

4

Optical reception responsiveness | 0.85A/W(1550nm typical) |

5

Input Optical Power Range | – 20dBm~+2dBm |

6

Fiber Optic Types | Single mode(9/125mm) |

7

Fiber Optic Connector Type | SC/APC |

8

Output Level | ≥78dBuV |

9

AGC Range | – 15dBm~+2dBm | Output level ±2dB

10

F-type RF connector | fractional |

11

Frequency Bandwidth | 47MHz-1003MHz |

12

RF In-Band Flatness | ±1.5dB |

13

System impedance | 75Ω |

14

Reflection Loss | ≥14dB |

15

MER | ≥35dB |

16

BER | ＜ 10- 8 |

17

Product Size | 95mm(L)×71mm(W)×25mm(H) |

18

Product weight | 75g |

19

Work conditions | Temperature: 0℃– +45℃ Humidity: 40%–70% (non- condensing) |

20

Storage conditions | Temperature: -25℃– +60℃ Humidity: 40%–95% (non- condensing) |

Parameter

Symbol | Min. | Typ. | Max. | Unit | Test Conditions

Transmission Working Wavelength

λ1 | 1540 | 1550 | 1560 | nm |

Reflected Working Wavelength

λ2 | 1260 | 1310 | 1330 | nm |

λ3

1480 | 1490 | 1500 | nm |

λ4

1575 | 1577 | 1650 | nm |

Degree of Response

R | 0.85 | 0.90 | | A/W | po=0dBmλ=1550nm

Transmission isolation

ISO1 | 30 | | | dB | λ=1310&1490&1577nm

Reflection isolation

ISO2 | 18 | | | dB | λ=1550nm

Return Loss

RL | – 40 | | | dB | λ=1550nm

Insertion Loss

IL | | | 1 | dB | λ=1310&1490&1577nm
