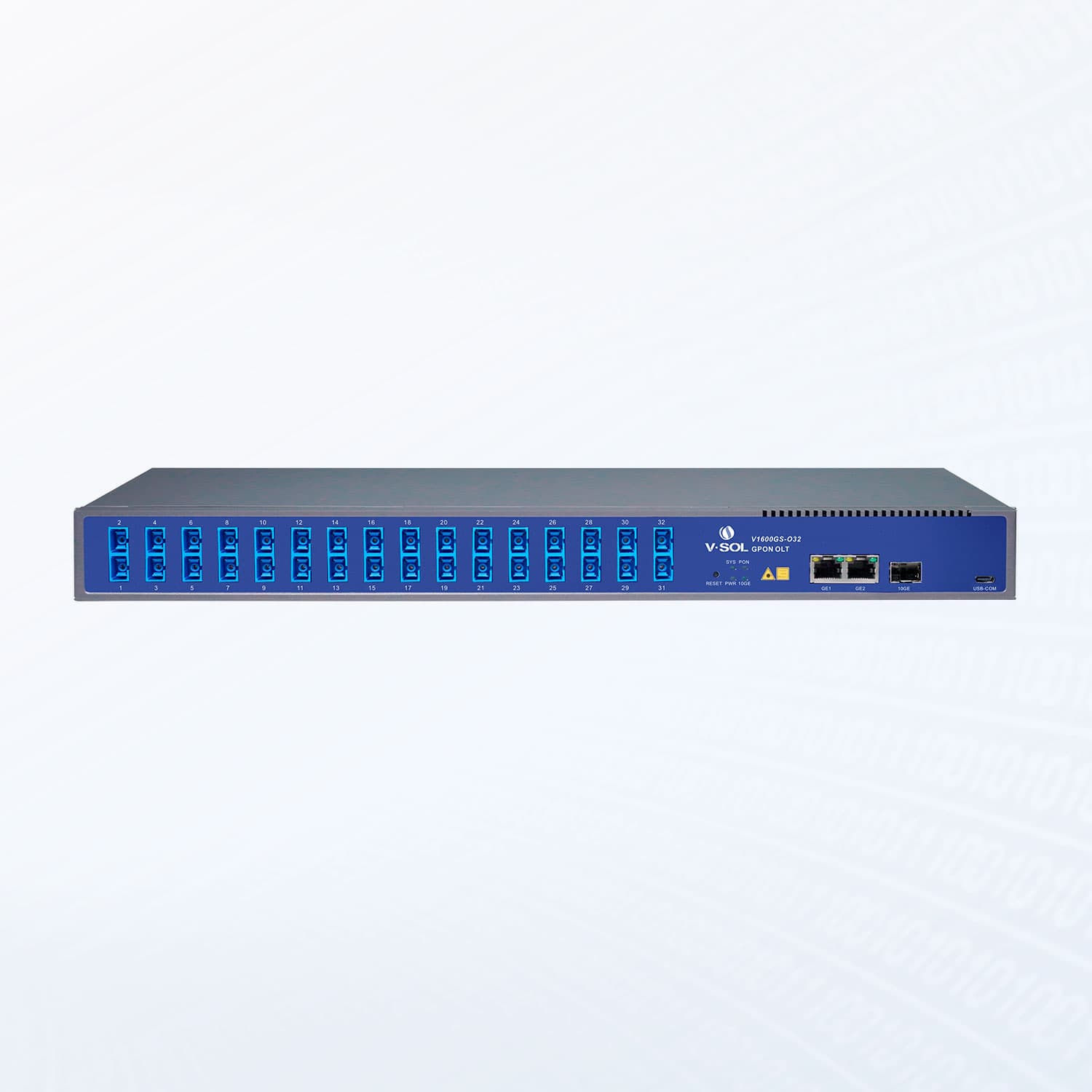

V1600GS-O32 — Single PON with 1×32 Splitter GPON OLT
2.5Gbps | Ventilador Integrado | FTTX Modelo: V1600GS-O32
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
OLT GPON de un puerto con ODN integrada (1×32) Rentabilidad y alto rendimiento Nueva experiencia innovadora Ideal para aplicaciones FTTX V1600GS -O32 Single pon with 1×32 splitter GPON OLT Chassis Rack 1U GE/10GE Uplink Port QTY 3 RJ45(GE) 2 SFP(GE)/SFP+(10GE) 1 GPON Port Specification QTY 1 Fiber Type 9/125 μm SM Connector SC/UPC, TX: 8dBm, Sen: -32dBm, Optical power per port after 1×32 splitting: ≥-10dBm GPON port speed Upstream 1.244Gbps Downstream 2.488Gbps Wavelength TX 1490nm, RX 1310nm Built-in splitter 1×32 Transmission Distance 20KM Optical Splitter 1×32, Built-in Management Ports 1* USB- CO M port Backplane Bandwidth (Gbps) 29 Port Forwarding Rate(Mpps) 2 1.576 Management Mode Console/WEB/Telnet/CLI Power Supply AC Working Voltage Range: 100~240V, Rated Voltage: 110V/220V DC Power Adapter DC 12V/2A Lightning Protection Level Power supply 4 KV Device Interface 1 KV
Especificaciones técnicas
- Chassis
- Rack | 1U
- GE/10GE Uplink Port
- QTY | 3
- RJ45(GE)
- 2
- SFP(GE)/SFP+(10GE)
- 1
- GPON Port Specification
- QTY | 1
- Fiber Type
- 9/125 μm SM
- Connector
- SC/UPC, TX: 8dBm, Sen: -32dBm, Optical power per port after 1×32 splitting: ≥-10dBm
- GPON port speed
- Upstream 1.244Gbps Downstream 2.488Gbps
- Wavelength
- TX 1490nm, RX 1310nm
- Built-in splitter
- 1×32
- Transmission Distance
- 20KM
- Optical Splitter
- 1×32, Built-in
- Management Ports
- 1* USB- CO M port
- Backplane Bandwidth (Gbps)
- 29
- Port Forwarding Rate(Mpps)
- 2 1.576
- Management Mode
- Console/WEB/Telnet/CLI
- Power Supply
- AC | Working Voltage Range: 100~240V, Rated Voltage: 110V/220V
- DC Power Adapter
- DC 12V/2A
- Lightning Protection Level
- Power supply | 4 KV
- Device Interface
- 1 KV
