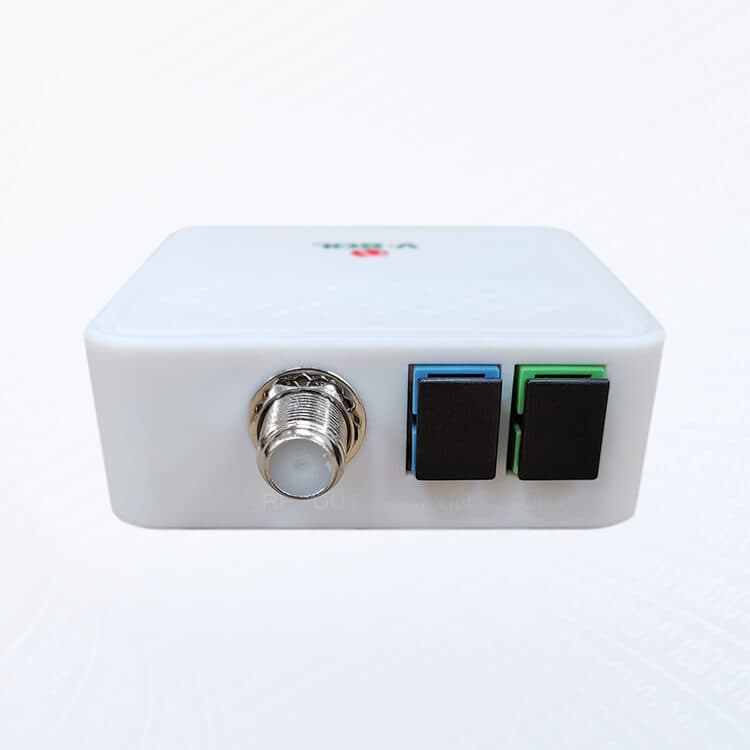

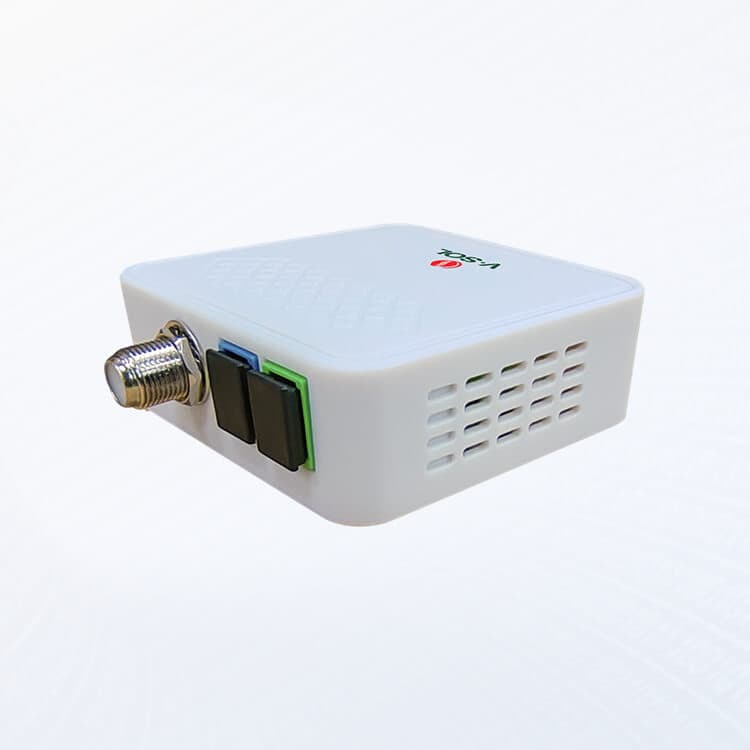

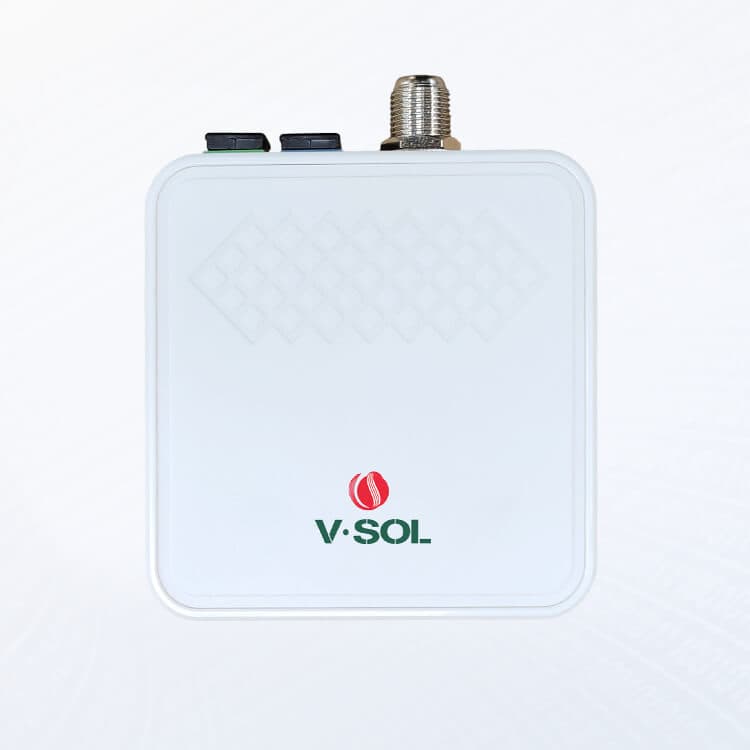

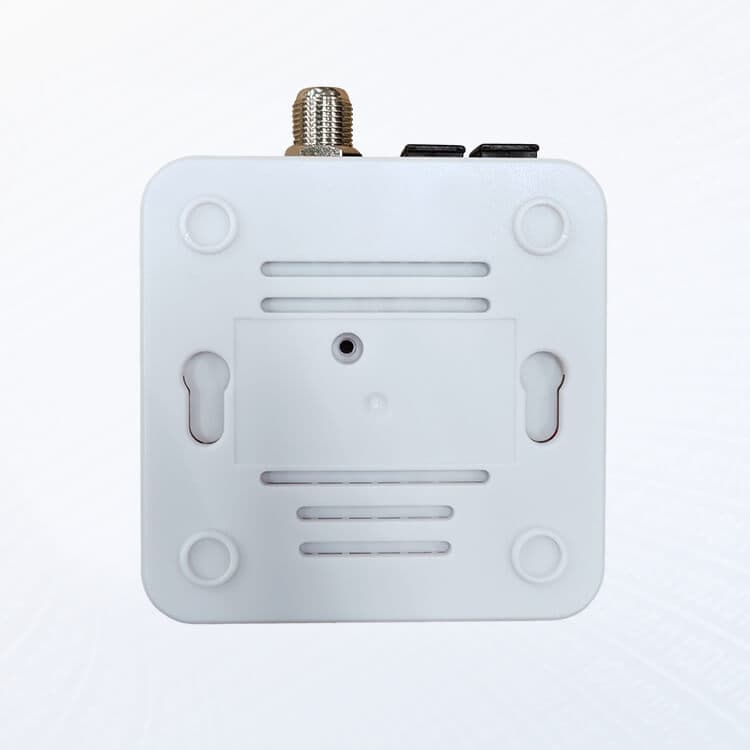

V8601C-P — WDM passive mini node
WDM Integrado | Ancho Banda 45-1050MHz | Sin Fuente de Alimentación Model: V8601C-P
Confirma disponibilidad, instalación y entrega con un asesor.
Descripción
Product Introduction V8601C-P CATV Passive optical receiver is designed for digital TV fiber to the home. It adopts high sensitivity optical receiver tube, no power supply, no power consumption. When input optical power Pin=0dBm, output level Vo=60dBμV. It can be economically and flexibly used in the application of fiber to the home. Built-in WDM, CATV bandwidth 1550±20nm. Features No power supply, no power consumption 1 GHz operating bandwidth Input optical range:+2~-9dBm Output level=60±2dBμV (Pin=0dBm) Specification Description Value Notes Optical Characteristics wavelength (nm) 1550 CATV 1490/1310 XPON 1577/1270 10G PON Respons e (A/W) ≥0.85 1310nm ≥0.9 1550nm Optical Power Input Range (dBm) +2~-9 Optical Return loss (dB) ≥55 connector SC/APC RF Characteristics Bandwidth (MHz) 45 ~ 1050 output level (dBμV) >60±2 Digital Tv(Pin ＝ 0dBm) output impendence (Ω) 75 Output port 1 RF connector F connector imperial Digital TV link Characteristics MER (dB) ≥33 Pin= -5dBm BER (dB) <1.0E-9 Pin= -5dBm Physical Characteristics Operating Temperature (℃) -20 ~ +50 Storage Temperature (℃) -40 ~ 85 Working Humidity (%) 5 ~ 95 Dimensions nm 75*55*28 Shipping Packaging Description Quantity Weight Carton Size Shipping packaging 100pcs/ctn 11kg/ctn 420*420*250mm
Especificaciones técnicas
- Description
- Value | Notes
- Optical Characteristics
- wavelength | (nm) | 1550 | CATV
- 1490/1310
- XPON
- 1577/1270
- 10G PON
- Respons e
- (A/W) | ≥0.85 | 1310nm
- ≥0.9
- 1550nm
- Optical Power Input Range
- (dBm) | +2~-9 |
- Optical Return loss
- (dB) | ≥55 |
- connector
- | SC/APC |
- RF Characteristics
- Bandwidth | (MHz) | 45 ~ 1050 |
- output level
- (dBμV) | >60±2 | Digital Tv(Pin ＝ 0dBm)
- output impendence
- (Ω) | 75 |
- Output port
- | 1 |
- RF connector
- | F connector | imperial
- Digital TV link Characteristics
- MER | (dB) | ≥33 | Pin= -5dBm
- BER
- (dB) | <1.0E-9 | Pin= -5dBm
- Physical Characteristics
- Operating Temperature | (℃) | -20 ~ +50 |
- Storage Temperature
- (℃) | -40 ~ 85 |
- Working Humidity
- (%) | 5 ~ 95 |
- Dimensions
- nm | 75*55*28 |
- Description
- Quantity | Weight | Carton Size
- Shipping packaging
- 100pcs/ctn | 11kg/ctn | 420*420*250mm
