HG3110AX — 2.5GE+3GE+1POTS+1USB3.0+Wi-Fi 6 HGU ONT

Descripción

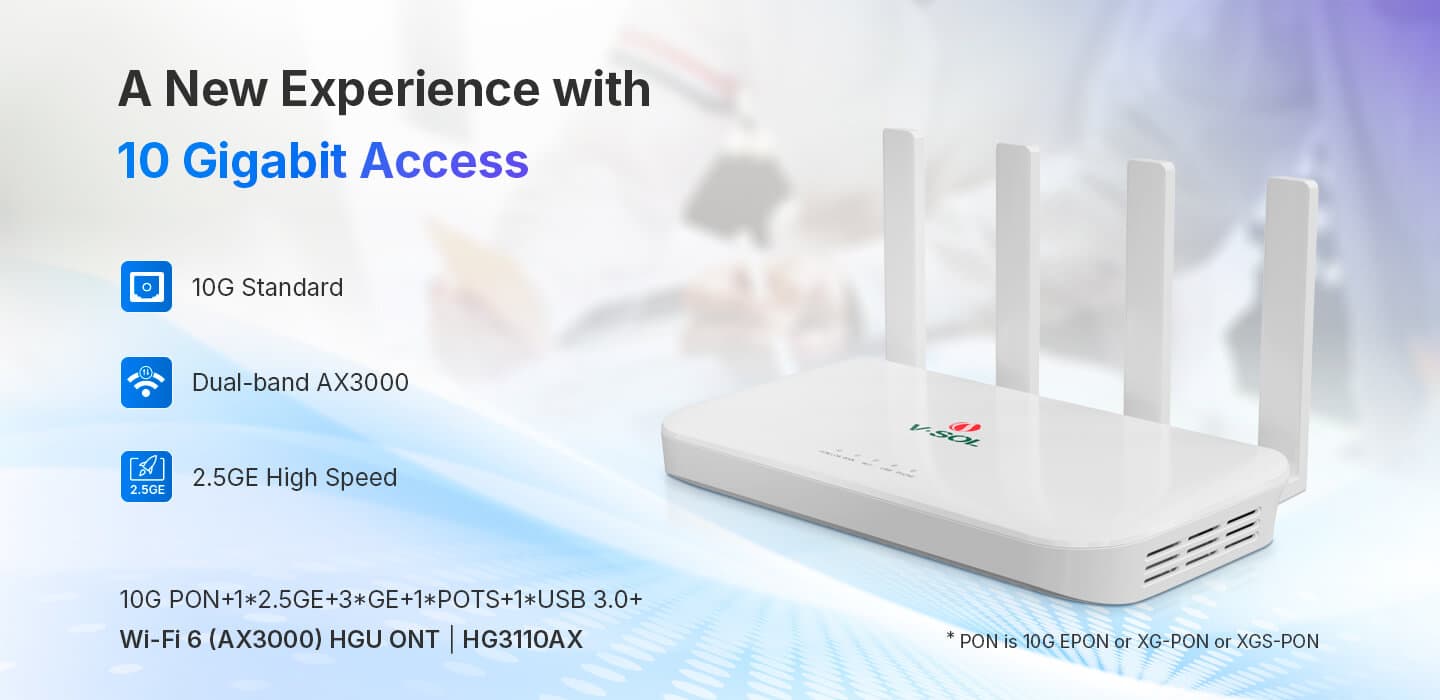

Una nueva experiencia con acceso a 10 Gigabits 10G Estándar | AX3000 Doble Banda | Nuevo Puerto 2.5G El nuevo PON 10G ONTS se adelanta a la era 10G Normas innovadoras para el acceso de banda ancha por fibra óptica Potente Wi-Fi Gigabit en todos los rincones Interfaz de 2,5 GbE de última generación para aprovechar al máximo el ancho de banda Acelera la conexión en red con un chipset de alto rendimiento VoIP para proporcionar llamadas de voz y vídeo HD Hardware Parameter Dimension 244mm*131mm*36mm (L*W*H) Net weight 425g Operating condition Operating temp: -10 ~ +55°C Operating humidity:5 ~ 95% (non-condensed) Storing condition Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed) Power adapter 12V/2A Power supply 24W Interface 1*2.5GE+3*GE+1*POTS+1*USB 3.0+ Wi-Fi 6 Indicators PON/LOS, WAN, USB, PHONE, Wi-Fi Interface Parameter PON Interface l 10G PON port: Class B+ l SC single mode, SC/UPC connector l TX optical power: 6dBm (XGS-PON), 5dBm (XG-PON), 4dBm (10G EPON) l RX sensitivity: -2 8 dBm l Overload optical power: – 8 dBm l Transmission distance: 20km l Wavelength: 10G EPON: DS 1577nm/US 1310nm XG(S)-PON:DS 1577nm/US 1270nm 10G PON layer l IEEE 802.3av(10G-EPON) l ITU-T G.987(XG-PON) l ITU-T G.9807.1 (XGS-PON) User interface l 1*2.5GE, Auto-negotiation, RJ45 ports l 3*GE, Auto-negotiation, RJ45 ports l 1*POTS, RJ11 Connector l 1*USB 3.0 Antenna 2*4dBi (2.4GHz), 2*5dBi(5GHz) ; external antennas USB 1×USB 3.0(Can connect to USB disk and support FTP service) Function Data O&M l WEB/TELNET/OAM/OMCI/TR069 l Support private OAM/OMCI protocol and Unified network management of VSOL OLT Internet Connection Support Bridge/Router mode Multicast l IGMP v1/v2/v3, IGMP snooping l MLD v1/v2 snooping VoIP l SIP and IMS SIP l G.711a/G.711u/G.722/G.729 Codec l Echo cancellation, VAD/CNG, DTMF Relay l T.30/T.38 FAX l Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference l Line testing according to GR-909 Wi-Fi l Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz l Wi-Fi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 l Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM l Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band L2 802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN L3 IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS Firewall Anti-DDOS, Filtering Based on ACL/MAC /URL VSOL Wi-Fi 6 HGU ONT HG3110AX

Especificaciones técnicas

Dimension

244mm*131mm*36mm (L*W*H)

Net weight

425g

Operating condition

Operating temp: -10 ~ +55°C Operating humidity:5 ~ 95% (non-condensed)

Storing condition

Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed)

Power adapter

12V/2A

Power supply

24W

Interface

1*2.5GE+3*GE+1*POTS+1*USB 3.0+ Wi-Fi 6

Indicators

PON/LOS, WAN, USB, PHONE, Wi-Fi

PON Interface

l 10G PON port: Class B+ l SC single mode, SC/UPC connector l TX optical power: 6dBm (XGS-PON), 5dBm (XG-PON), 4dBm (10G EPON) l RX sensitivity: -2 8 dBm l Overload optical power: – 8 dBm l Transmission distance: 20km l Wavelength: 10G EPON: DS 1577nm/US 1310nm XG(S)-PON:DS 1577nm/US 1270nm

10G PON layer

l IEEE 802.3av(10G-EPON) l ITU-T G.987(XG-PON) l ITU-T G.9807.1 (XGS-PON)

User interface

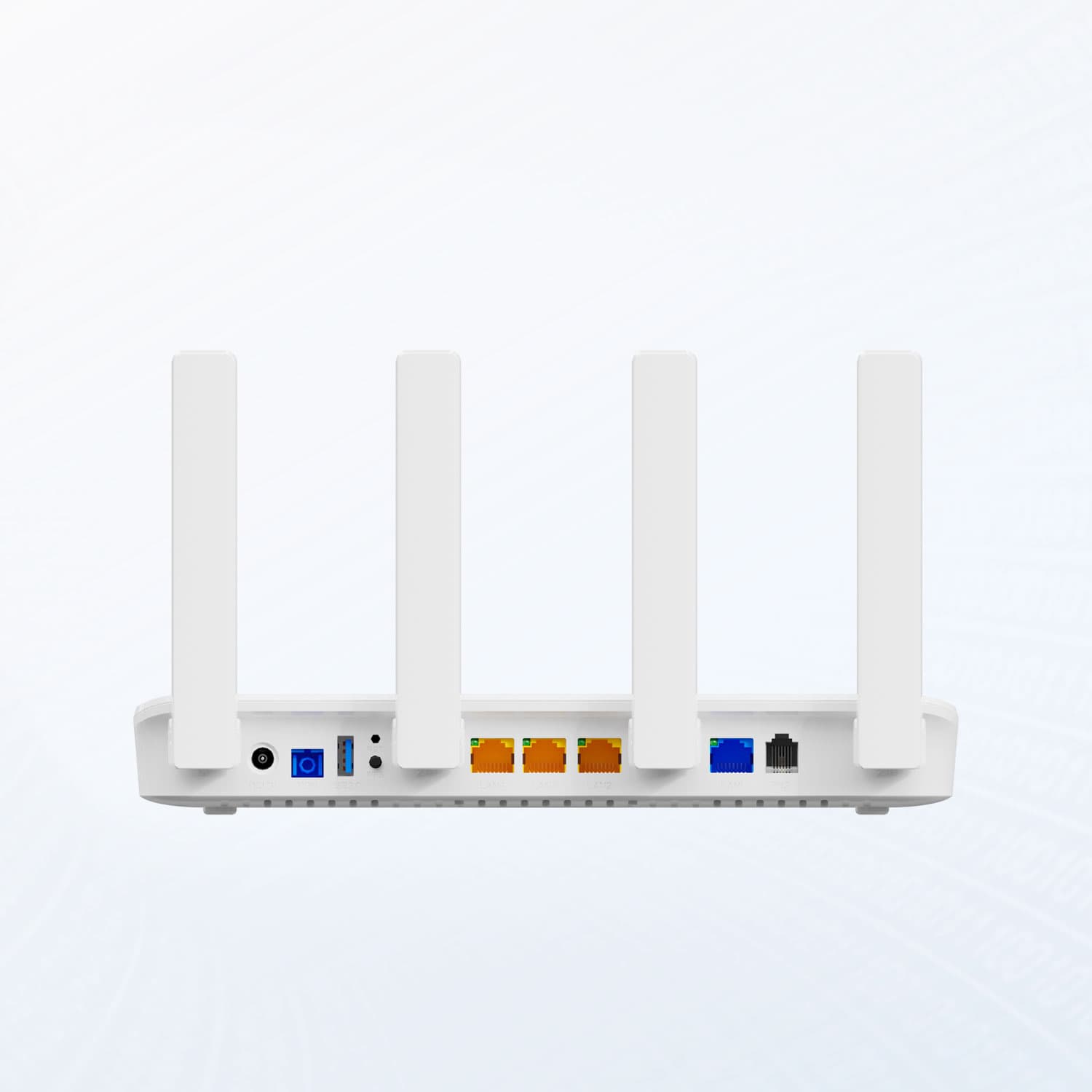

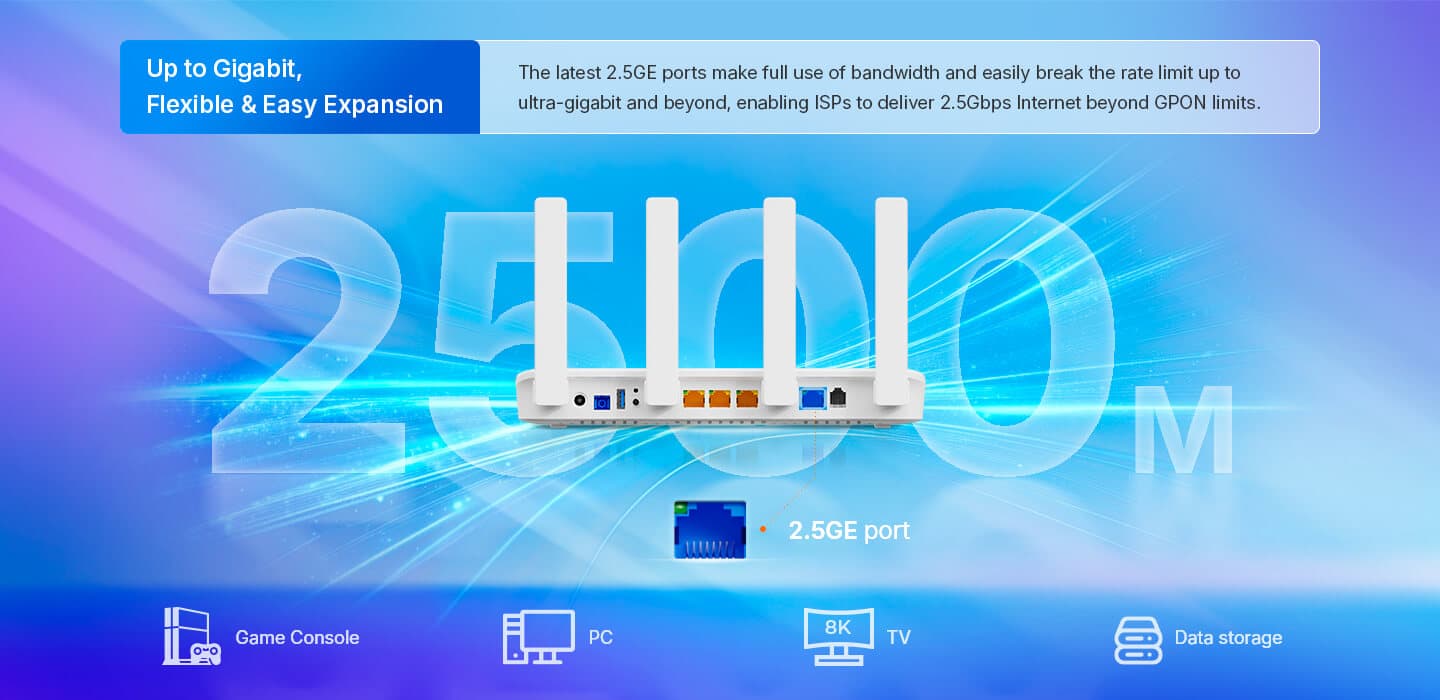

l 1*2.5GE, Auto-negotiation, RJ45 ports l 3*GE, Auto-negotiation, RJ45 ports l 1*POTS, RJ11 Connector l 1*USB 3.0

Antenna

2*4dBi (2.4GHz), 2*5dBi(5GHz) ; external antennas

USB

1×USB 3.0(Can connect to USB disk and support FTP service)

O&M

l WEB/TELNET/OAM/OMCI/TR069 l Support private OAM/OMCI protocol and Unified network management of VSOL OLT

Internet Connection

Support Bridge/Router mode

Multicast

l IGMP v1/v2/v3, IGMP snooping l MLD v1/v2 snooping

VoIP

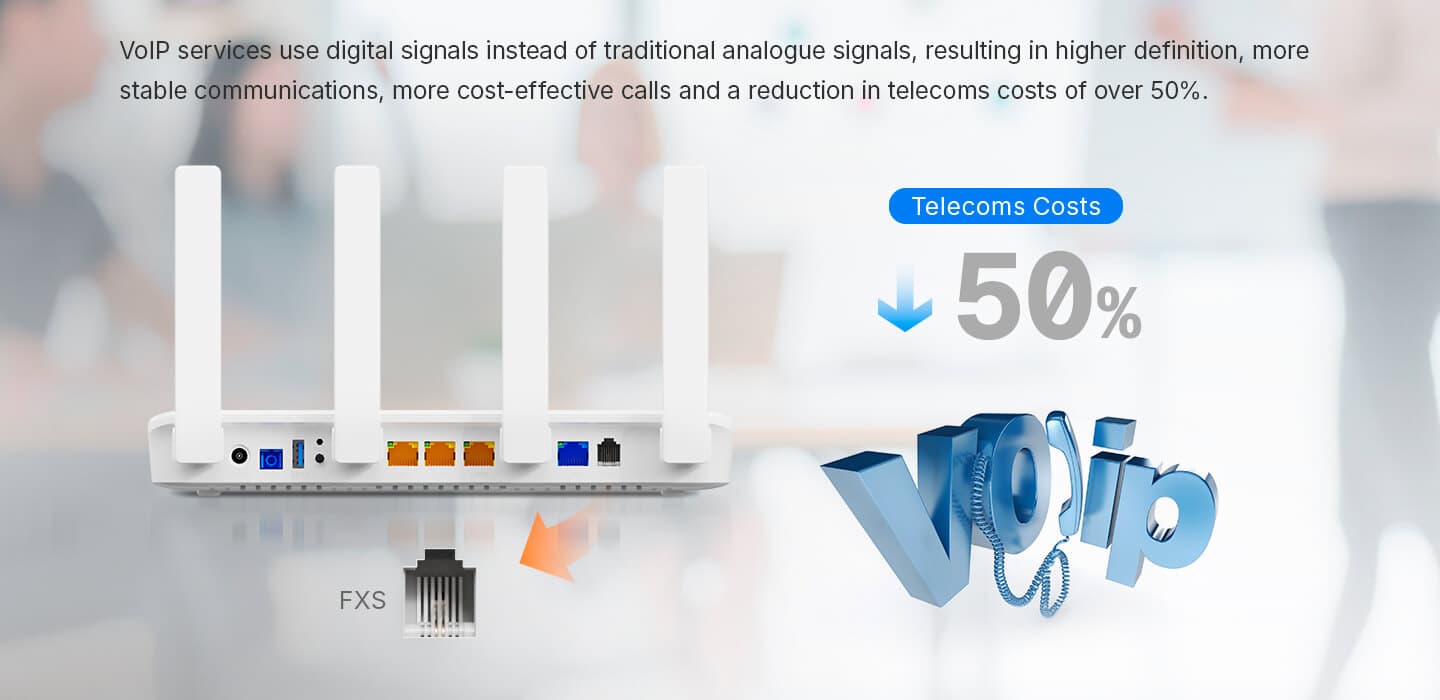

l SIP and IMS SIP l G.711a/G.711u/G.722/G.729 Codec l Echo cancellation, VAD/CNG, DTMF Relay l T.30/T.38 FAX l Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference l Line testing according to GR-909

Wi-Fi

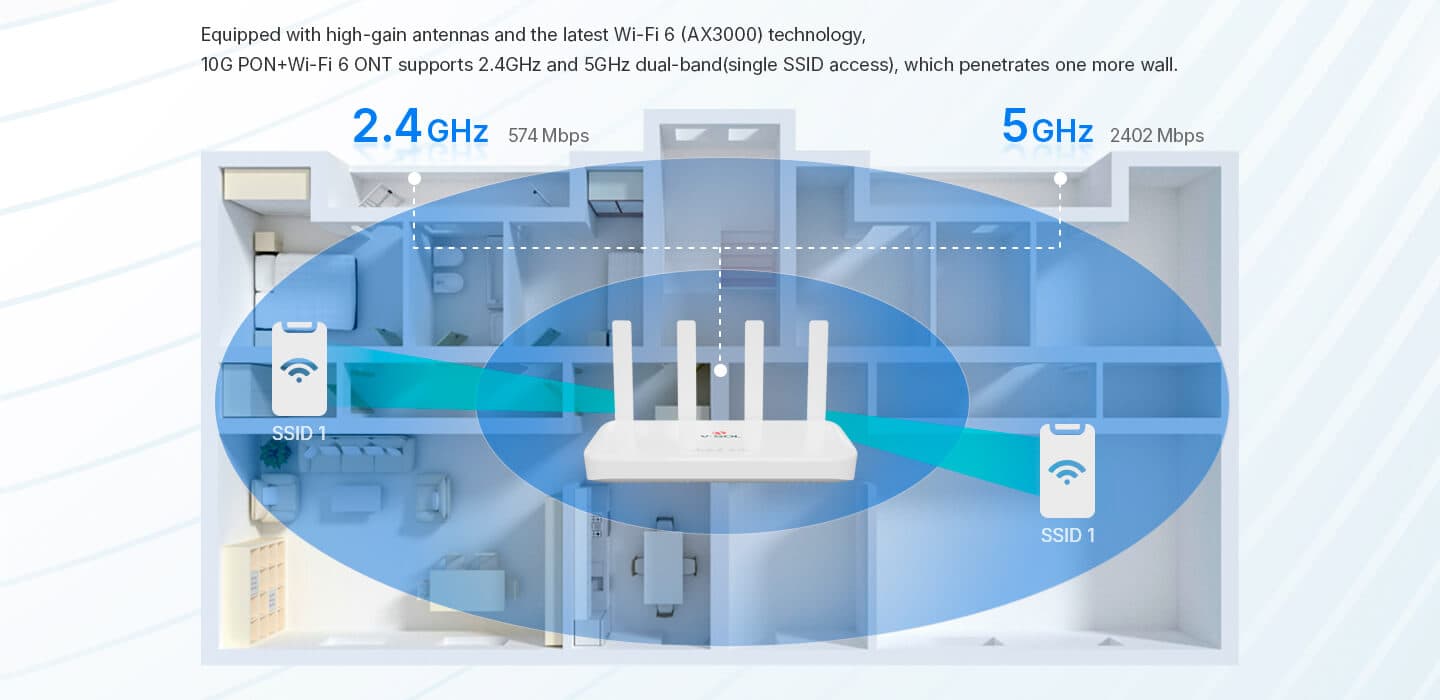

l Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz l Wi-Fi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 l Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM l Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band

L2

802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN

L3

IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS

Firewall

Anti-DDOS, Filtering Based on ACL/MAC /URL
